Begin troubleshooting by locating the ignition control module–a black rectangular component mounted on the firewall near the brake master cylinder. Pin 3 (purple/white stripe) feeds 12V from the battery when the key is in the ON position. If voltage is absent, trace the purple/white wire backward through the instrument panel fuse block (Fuse #23, 15A) to the ignition switch. A break here is the most common failure point after 20+ years of thermal cycling.

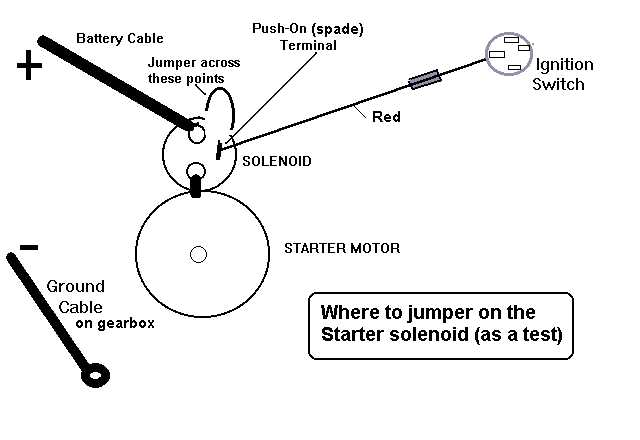

Check the starter solenoid next. The heavy-gauge yellow wire from the solenoid’s S terminal must show full battery voltage when cranking. If voltage drops below 10V, inspect the battery-ground connection at the driver-side frame rail–corrosion here mimics starter failure. Remove the ground strap, clean both surfaces to bare metal, and reinstall with dielectric grease to prevent recurrence.
The neutral safety switch–positioned on the transmission housing–uses a 4-wire connector. The light-blue/black wire (Pin B) carries 12V only in PARK or NEUTRAL. Bypass this switch temporarily by jumpering Pin B to Pin A (dark-blue/light-blue) to confirm its condition. If the engine cranks, replace the switch; if not, proceed to the next step.
Test the ignition coil feed. The pink/black wire (Pin 2 on the module) should pulse 0V to 12V during cranking. Absence of this signal indicates a failed crankshaft position sensor (mounted behind the harmonic balancer) or an open in the sensor’s three-wire harness. Resistance across the sensor’s terminals should measure 200–1000 ohms; outside this range, replace the sensor.
Inspect the fuel pump relay (black cube near the under-hood fuse box). The dark-green/yellow wire (terminal 86) receives 12V only during cranking. A missing pulse here confirms a faulty powertrain control module or an open in the relay’s control circuit. Swap the relay with a known-good one (e.g., A/C relay) to verify–if the issue persists, focus on the PCM ground (black/orange wire, terminal 51).
For persistent no-crank conditions, remove the starter motor and bench-test it. Apply 12V directly to the solenoid terminal while grounding the motor body. If the starter remains inert, disassemble it to check the brushes and armature. Brush wear beyond 0.125″ or glazed commutator bars require replacement. Ensure all connections use solder-and-heat-shrink rather than crimped terminals to prevent voltage drop.
Electrical Circuit Guide for Pre-2000 Full-Size Truck Startup System
Locate the power distribution box under the dashboard. The main relay–labeled “EEC” on the 80-terminal bride panel–routes current from the battery to the coil and fuel pump. Disconnect the negative terminal before probing connectors C270 (tan/lt blue) and C271 (red/lt green) to verify 12V constant on pin 30 and switched output at pin 87.
Splice anomalies typically trace to melted fusible links between the starter solenoid and the instrument cluster. Cut open the corrugated loom protecting the five-wire harness beneath the steering column; strands 54 (yellow) and 56 (dk green/white) must maintain zero ohms between the ignition cylinder and PCM at pin B18. Resistance readings above 0.3 ohms indicate corrosion inside the firewall bulkhead connector–scrub terminals with contact cleaner and a fine brass brush.
Test coil-in-plug units with a scope trigger set to 5 volts DC; misfires map to cracked boots on cylinders 4 and 6. The tarder-ignition module (black two-wire connector) draws ground through the chassis; jumper wire 12 AWG from the rear bolt of the throttle body to the module’s frame lug often restores steady spark.
Finding the Starter Circuit Connectors on the 1998-2000 Light-Duty Truck Model
Begin beneath the steering column, where the main electrical bundle exits the firewall. Look for a rectangular plug with two rows of terminals–this is the power distribution junction for the engine control system.
The primary feed splits into three branches: a thick red cable (battery voltage), a thinner yellow wire (accessory circuit), and an orange-striped lead (run/start signal). Trace the orange-striped line to its termination at the back of the fuse block.
Remove the lower dash panel by releasing three 7mm screws to expose the vehicle’s central harness. The ignition relay sits in the upper-left corner, recognizable by its black plastic housing and labeled terminals–focus on the connector attached to its base.
Follow the bundle toward the firewall until you reach a T-shaped splice. Here, a purple wire branches off toward the transmission range sensor, while the main harness continues upward. The critical start circuit runs through the thicker section of this bundle.
Check behind the glovebox for a secondary junction. A 16-pin connector here links the body control module with the starter solenoid–locate the dark green wire with a light blue stripe, as this carries the activation signal.
Under the hood, near the driver-side strut tower, a rubber-grommeted harness enters the chassis. Pull back the protective sleeve to find the blue/orange wire feeding the starter relay–this is the direct trigger for cranking.
For models with anti-theft, an additional gray connector sits behind the instrument cluster. Disconnect the cluster to access the gray plug, where the immobilizer data wire merges with the ignition network.
Use a multimeter to verify continuity on the red/white wire at the starter solenoid–this bypasses the relay and confirms direct battery feed during cranking attempts.
Step-by-Step Guide to Identifying Electrical Trigger Connector Hue Codes and Roles
Locate the steering column’s lower plastic shroud and remove it to expose the harness bundle. Trace the thickest cable cluster–typically containing six to eight strands–to the back of the rotary switch. The red wire with a white stripe delivers constant 12V power from the battery, bypassing the trigger mechanism entirely; test it first with a multimeter to confirm baseline voltage. The pink strand carries accessory voltage when the key turns to the first detent, illuminating dash lights without engaging the starter. A yellow lead with a black tracer activates the solenoid circuit during crank; its momentary pulse distinguishes it from steady-state hues. Light blue and dark green wires often pair to control vehicle electronics–instrumentation, fuel pump relay, and emission solenoids–so note their tight splicing near the fuse block.
Strip a quarter-inch of insulation from each identified cable, then probe with a circuit tester while cycling the key through OFF, ACC, RUN, and CRANK positions. Record which leads energize at each position–ACC should light the tester only on the pink and red/white, RUN adds the light blue and dark green, while CRANK isolates the yellow/black. Cross-reference these observations with factory color charts to spot aftermarket deviations, particularly in models with theft-deterrent modules or remote start kits that re-route standard paths; mislabeled splices often use solid red for ignition input on modified systems instead of the expected striped variant.
Mapping the Starter Relay Control Pathways on the ’98 Heavy-Duty Pickup
Begin testing at the relay socket. Locate cavity 85–this is the trigger input from the ignition switch. Probe with a multimeter set to 12V DC; expect 10.5V minimum when the key is turned to “START.” If voltage is absent, follow the purple/yellow stripe trace upstream to the column-mounted switch connector. Disconnect the plug and inspect terminals for corrosion; clean with a brass brush and dielectric grease.
Trace the power feed to the relay’s coil. Cavity 86 must show battery voltage at all times; if missing, check the 30A fuse link labeled “STARTER RELAY” under the dash. This fusible link forms the primary current path from the main power distribution box. Use a voltmeter’s continuity mode to verify integrity–an open circuit here indicates a burned segment requiring replacement of the entire pigtail.
- Confirm the relay’s output at cavity 30–this terminal supplies switched voltage to the starter solenoid.
- Attach a test lamp between cavity 30 and chassis ground; the lamp should illuminate brightly during crank attempt.
- If the lamp stays dark, swap relays with a known-good unit (horn or A/C relay typically share the same specifications).
The solenoid’s heavy-gauge input terminal is fed directly from cavity 30. Strip back ½” of insulation on the red/green cable and clamp an amp probe; cranking current should peak between 180-220 amps. Readings below 150A suggest partial fuse link degradation–replace the link even if visual inspection shows no burn marks.
Examine the solenoid’s ground return path. The outer casing screws into the engine block via a dedicated stud; remove the fastener and clean mating surfaces with a wire wheel. Apply anti-seize compound before reassembly. Verify ground continuity from this stud back to the negative battery terminal–resistance should measure less than 0.2 ohms.
Cross-check the clutch safety switch on manual transmissions. Unplug the orange/light-green connector beneath the pedal bracket and bridge the terminals with a jumper wire. If the engine cranks, replace the neutral switch; if not, proceed to the starter motor’s internal contacts inspection. Remove the solenoid cap and measure the plunger-to-contact resistance–values above 0.3 ohms indicate carbon buildup requiring contact sanding or replacement.
The yellow/black stripe wire from the ignition switch to the starter relay is prone to chafing where it passes behind the left fender liner. Peel back the wheel well cover and inspect the harness bundle–any exposed copper necessitates wrapping with self-fusing silicone tape. Confirm secure routing away from the exhaust manifold’s heat shield; improper placement here causes thermal-induced shorts.
- Disconnect the negative battery cable before servicing any electrical component.
- Label every removed connector with masking tape to prevent incorrect reassembly.
- Use a dedicated 4-gauge jumper wire for bench-testing the starter motor–never rely on vehicle wiring for load tests exceeding 200 amps.
