Locate the factory radio wiring harness behind the dashboard to eliminate guesswork. The primary power lead (red) connects to an ignition-switched 12V source–taps into fuse #21 (10A) in the junction box beneath the driver’s side panel. Ground (black) secures to a bare metal surface near the firewall–sand paint for solid conductivity. Speaker outputs follow a consistent color code: front left (+) light green, (-) dark green; front right (+) gray, (-) dark gray; rear left (+) tan, (-) yellow; rear right (+) purple, (-) dark purple. Verify each wire with a multimeter at 4-8 ohms before soldering.
Aftermarket amplifier integration requires a direct battery connection via an 8-gauge power cable through the firewall grommet–use a circuit breaker rated 40A within 18 inches of the battery terminal. Add a capacitor (1 farad per 1,000 watts) to prevent voltage sag during bass hits. The factory antenna lead (blue/white striped) transmits a remote turn-on signal–splice this to activate external audio components. For subwoofer installations, utilize the harness’s dark blue wire as a low-level RCA preamp output or connect to a line output converter if retaining the stock head unit.
Test each connection before finalizing the install. Adjust fader and balance settings to confirm all channels function–static or distortion indicates a loose wire. Seal splices with adhesive-lined heat shrink tubing to prevent corrosion. If retaining steering wheel controls, splice the gray/black wire from the original harness to the aftermarket adapter’s data input (varies by brand). For vehicles with premium sound systems, the pink wire carries the amp turn-on signal–connect this to the new unit’s remote lead for full functionality.
Electrical Connections for Your Heavy-Duty Pickup’s Audio System
Locate the factory harness behind the dash cluster–specifically at the 18-pin connector labeled C2. Pin 1 carries the constant 12V supply (orange wire, 10-gauge), while pin 10 delivers switched power (yellow, 14-gauge). Ground attaches to pin 12 (black, 12-gauge) with a direct chassis bolt near the pedal assembly. Mismatched connections here will trigger fuse F23 in the under-hood box.
Speaker outputs follow this color scheme: front left (+) dark blue/light blue stripe, (-) dark blue; front right (+) gray/light gray stripe, (-) gray; rear left (+) brown/light brown stripe, (-) brown; rear right (+) violet/light violet stripe, (-) violet. Each pair handles 20W RMS–exceeding this risks overheating the OEM amplifier mounted beneath the driver’s seat.
For aftermarket units requiring a data signal, tap the teal wire at pin 7 (C2 connector) for the vehicle speed sensor input. This line enables automatic volume adjustment, but splicing incorrectly can disrupt cruise control or ABS readings. Verify continuity with a digital multimeter before soldering.
Amplifier integration: The stock amp’s harness runs along the driver’s side rocker panel. Disconnect the battery, then splice the red/black wire (remote turn-on) to your new amp’s trigger. Cap unused wires with heat-shrink tubing to prevent shorts–exposed leads near the transmission tunnel have caused intermittent issues in models with manual HVAC.
Illumination sync uses the pink wire from the headlight switch (pin 3, C1 connector). If dashboard lights flicker during playback, add a 1-amp inline fuse to this line. Factory radios draw 0.8A–aftermarket decks exceeding 2.5A need a dedicated fuse holder installed near the battery.
Troubleshooting Common Errors
No power: Check the ignition switch harness (small white connector near steering column). The purple/white wire (run/start) often corrodes in vehicles stored outdoors–clean with DeoxIT. Static on rear channels: Inspect the rear door jamb harness grommets; moisture intrusion causes oxidation on the light-gray wires (rear right positive/negative). Use dielectric grease after repairing.
Finding the OEM Audio System Plug in Your Heavy-Duty Pickup
Begin by removing the lower dash panel directly beneath the climate controls. The panel is secured by two 7 mm screws and three plastic clips–slide a trim tool under the left edge to release the clips without breaking them. Behind this panel, you’ll find the factory amp (if equipped) and, to its right, a white or gray 12-pin rectangular connector. This is the main harness for the original head unit.
Trace the harness upwards–it exits the dash through a 2-inch grommet located behind the glove box. The grommet seals the firewall passage, so check for chafing if wires appear worn. The harness splits into two branches: one leads to the amplifier, while the other runs toward the rear of the cab, terminating at the optional CD changer or subwoofer connections. Ignore accessory plugs like the 4-pin trailer brake controller input; focus solely on the larger connector.
| Wire Color | Harness Pin | Function |
|---|---|---|
| Dark Green w/ Orange Stripe | 1 | Left Front Speaker (+) |
| Dark Green w/ Brown Stripe | 2 | Left Front Speaker (−) |
| Light Blue w/ White Stripe | 6 | Right Rear Speaker (+) |
| Brown w/ Yellow Stripe | 7 | Right Rear Speaker (−) |
| Yellow | 9 | Battery (+) Constant |
| Red | 10 | Ignition Switched (+) |
If the connector is missing or damaged, inspect the harness stub protruding from the dash cavity. The wires should be trimmed to clean copper–avoid stripping insulation back more than ¼ inch to prevent shorts. Use male spade terminals or T-taps for aftermarket head unit integration; never splice directly into speaker wires, as factory wiring gauges are thinner than aftermarket standards.
For trucks with premium sound systems, an additional 8-pin harness sits behind the amp. This plug carries amplified signals, so disconnect the negative battery terminal before probing. Label each wire with masking tape before cutting or crimping–color coding varies slightly between base and Infinity-equipped models.

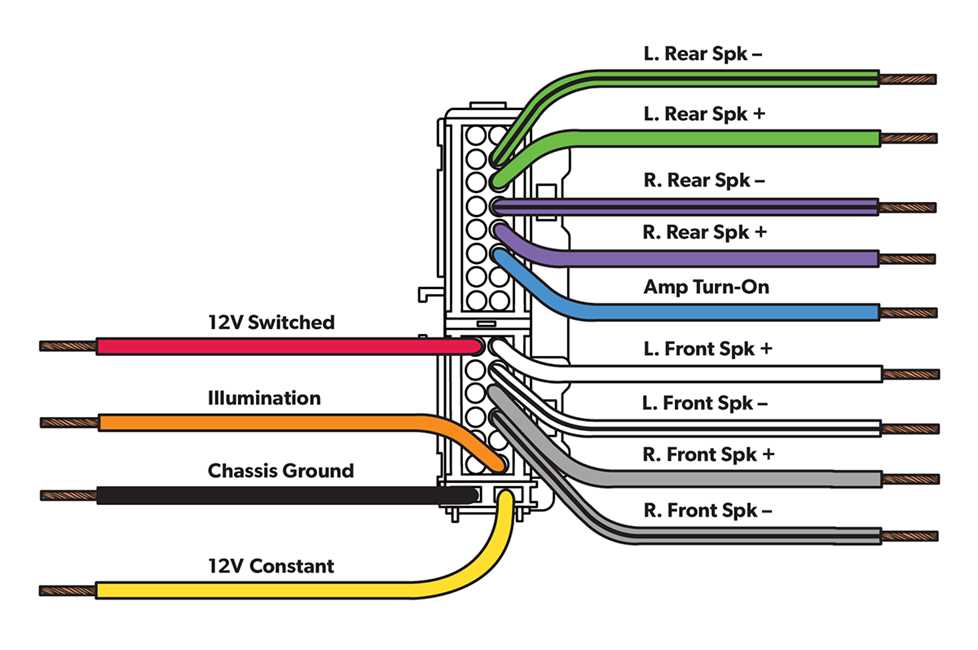

Decoding Vehicle Audio Cable Colors and Purposes for Custom Head Unit Setup
Begin by locating the factory connector behind the original sound system. The yellow 12-gauge cable delivers constant battery voltage–this powers memory retention for presets and clock settings. Verify this line with a multimeter to confirm no parasitic draw before connecting it to your new interface.
Identify the red switched-power lead, typically 18-gauge, which energizes only when the ignition is active. This wire prevents battery drain during downtime. Attach it directly to the aftermarket harness’s red input, ensuring no voltage drop across extended runs.
Ground and Speaker Connections
The black or brown ground wire must terminate to a bare metal chassis point free of corrosion. Clean the contact area with a wire brush, then secure it with a star washer for optimal conductivity. Avoid using the same screw as other accessories to prevent ground loops.
Speaker outputs follow a consistent color scheme: front left positive (gray), front right positive (white), rear left positive (green), and rear right positive (purple). Their striped counterparts–gray/black, white/black, green/black, and purple/black–are the negative returns. Maintain proper polarity; reversed connections degrade soundstage imaging.
For amplified systems, the dark blue or blue/white remote turn-on lead activates external amplifiers. Connect this to the corresponding output on the new head unit–failure to do so results in no signal to aftermarket amplifiers or subwoofers. Use a relay if the current draw exceeds 300mA to prevent overheating.
Orange illumination wiring controls dashboard dimming compatibility. If your aftermarket device lacks automatic illumination sync, leave this disconnected to avoid dimming interference. For vehicles with automatic headlights, tap into the dimmer circuit’s violet/white wire for seamless integration.
Verify all connections with a test light before finalizing installation. Recheck wire routing to avoid contact with sharp edges or moving components like steering columns. Secure loose cables with zip ties spaced every 12 inches to prevent rattling or electrical shorts.
Step-by-Step Guide to Proper Power and Ground Connections
Locate the ignition-switched power source using a multimeter–probe the fuse box for a 12V signal that activates only when the key turns to “ACC” or “ON”. Avoid constant 12V lines to prevent battery drain. The ideal wire is typically blue with a red stripe or purple, but verify with your vehicle’s color code manual. Strip ½ inch of insulation, twist the exposed strands tightly, and crimp a female spade connector for secure attachment.
Ground wires demand bare metal contact–never use paint, rust, or coated surfaces. Identify a solid chassis point within 18 inches of the audio unit’s location: bolts securing the dashboard brace or seat mounting hardware work well. Sand the chosen spot to shiny metal, apply dielectric grease to inhibit corrosion, then attach the ground wire (usually black) with a ring terminal. Tighten the bolt firmly to prevent voltage drops that cause whining or poor performance.
For amplifier installations, route power cables directly from the battery’s positive terminal. Use 4-AWG or thicker wire for systems over 50W RMS; thinner gauges risk overheating. Install an inline fuse (10-50A, depending on current draw) within 18 inches of the battery to protect the circuit. Run the cable under the hood, along the firewall grommet, and through the cabin, avoiding sharp edges or moving parts like pedals or steering columns.
Test connections before finalizing: turn the ignition to “ACC” and verify 12V at the head unit’s power input while the ground maintains 0V relative to the chassis. If voltage fluctuates or ground resistance exceeds 0.1 ohms, re-clean surfaces or relocate the attachment point. Secure all wires with nylon zip ties every 6-8 inches, keeping them away from heat sources (exhaust manifolds, catalytic converters) and rotating components (fan belts, driveshafts).
Finalize with a load test: play audio at 75% volume for 30 minutes while monitoring wire temperature. If any section exceeds 120°F, upsize the cable gauge or improve airflow around the routing path. Recheck fuse ratings and ground integrity annually–corrosion or loosening over time degrades signal quality and risks electrical hazards.
