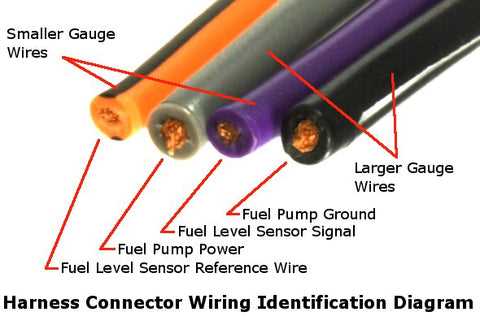

To diagnose or replace the module controlling the low-pressure circuit in your 1999 GMC full-size passenger hauler, first disconnect the battery’s negative terminal to eliminate power surges. Remove the left-side rear quarter panel access cover–this exposes the sender unit mounted on the tank assembly. Trace the harness from the sending module to the main wiring loom near the frame rail; you’ll identify the 4-wire connector: yellow (power to the module from ignition), black (ground), gray (signal return), and purple (pulse output). Ensure each terminal is corrosion-free; use a multimeter to verify 12V DC on the yellow wire and continuity on black when the ignition is on.
When splicing or repairing, avoid standard butt connectors–opt for weatherproof heat-shrink crimps rated for 16-18 AWG wiring. The purple wire carries a variable signal (0.5–4.5V) correlating to fuel level, while gray stabilizes the ground reference. For in-tank module failures, the OEM replacement part number is AC Delco FG0117; aftermarket alternatives like Delphi FG0199 often lack the correct impedance, causing erratic gauge readings. If the van cranks but stalls intermittently, bypass the inertia switch temporarily–this safety cut-off, located behind the driver’s seat kick panel, severs power during impact.
For the relay and fuse block checks, locate the under-hood fuse center; fuse #15 (15A) protects the circuit, and relay #3 (fuel pump relay) must engage with an audible click within 2 seconds of key-on. Test relay terminals 85 (coil ground) and 86 (key-switched 12V) for 90-110 ohms resistance. Terminal 30 (constant battery power) and 87 (output to pump) should show 12V when the relay clicks. If voltage drops below 11V on terminal 87, inspect the heavy-gauge orange wire for chafing near the frame or poor ground at G101 (front driver’s side, near the fender).
The in-tank assembly includes a Viton-sealed strainer and spring-loaded check valve–both critical for maintaining prime during startup. If the engine misfires under load at 3,000 RPM, suspect a collapsed fuel hose between the frame-mounted rail and engine bay; replace it with MPT-rated hose (SAE 30R10) and secure with clamps at 5-inch intervals. Never substitute the original filter (part #GF676) with a lower micron rating–the factory-specified 10-15 micron traps contaminants that clog the internal regulator’s bypass valve.
Electrical Schematic for GMC Savana Passenger Carrier’s Fuel Delivery Circuit
Locate the inertia switch beneath the driver-side dashboard near the brake pedal assembly–it’s a small, rectangular module with a reset button. If the engine cranks but won’t start, press this button firmly; a faulty switch interrupts current to the delivery assembly despite proper voltage from the relay. The relay itself, labeled “Fuel Oil” in the under-hood fuse box (RPO K44), uses terminals 85 (ground), 86 (PCM-triggered control signal), 87 (output to delivery unit), and 30 (constant 12V from the ignition switch). Test terminal 87 for 12V when cranking–absence indicates a failed relay or open circuit in the PCM-controlled wire (pink/black stripe).
- PCM connector C1 (gray, 24-pin) pin 5 sends the activation signal–verify continuity to relay terminal 86 using a multimeter (resistance should read less than 0.5 ohms).
- The delivery assembly ground (black wire) attaches to chassis stud G103 near the rear axle; clean this connection with a wire brush to remove corrosion that causes voltage drop.
- Harness connector SP201 (at the tank) has four pins: gray (power), black (ground), purple/white (level sensor), and gray/black (sender signal). Probe the gray wire for 12V key-on–if missing, inspect the 10A “IGNO” fuse (position 17) or the pink wire from ignition switch terminal “IGN.”

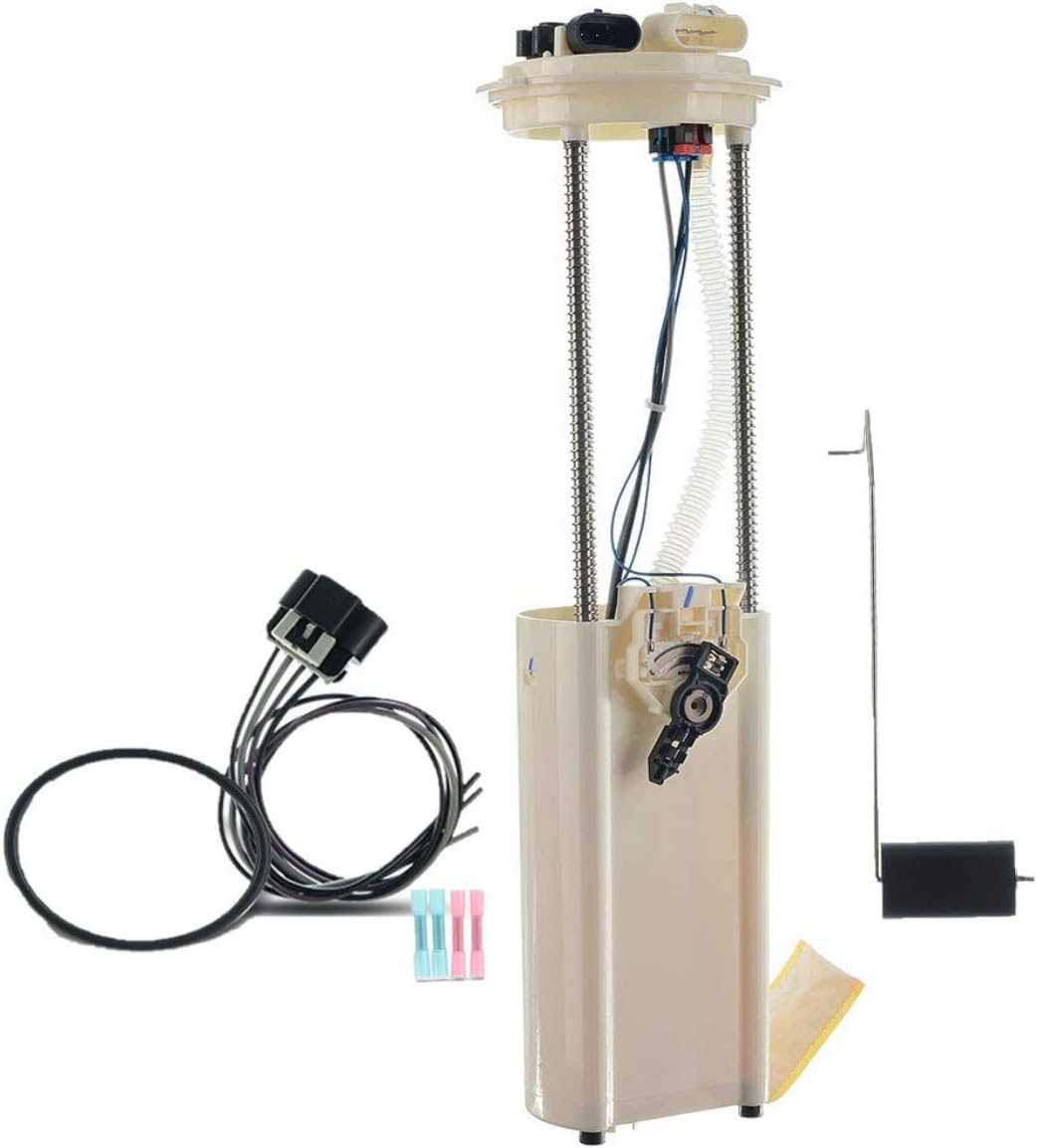

For module replacement, disconnect the battery negative terminal first to prevent sparks near fuel vapors. The tank-mounted assembly uses a four-pin connector–release the locking tab and pull straight out to avoid bending pins. Reinstall by aligning the guide notches before pressing firmly until the tab clicks; a loose connection causes intermittent pressure failures. After reassembly, cycle the key on/off three times to prime the system–listen for a two-second hum from the tank indicating proper operation.
Finding the Electrical Connector for the Supply Module on a G-Series Cargo Vehicle
Begin by accessing the underfloor access panel, located directly beneath the driver’s seat. Remove the four 10mm bolts securing the cover–use a deep-socket ratchet to avoid rounding the heads. Once the panel is lifted, the cylindrical tank sender assembly will be visible, mounted in the center of the reservoir. The multi-pin electrical pigtail attaches to the top of the sender via a white or gray connector; follow the cable bundle along the frame rail toward the rear bulkhead, where it merges with the main chassis loom.
Trace the harness forward approximately 18 inches to the first inline connector. This splice junction is typically black or dark blue, sealed with heat-shrink tubing, and secured with a zip-tie to the crossmember. Disconnecting here exposes female terminals that correspond to the following circuit identifiers: C3 (light-green/white stripe), D4 (yellow), and A6 (pink). Verify continuity using a multimeter–expected resistance values and wire gauge are listed below:
| Terminal | Function | Color Code | Expected Resistance | AWG |
|---|---|---|---|---|
| C3 | Sender signal return | Light-green/white | 90-110 Ω | 18 |
| D4 | Power feed | Pure yellow | 0.5 Ω or less | 14 |
| A6 | Ground | Pink | 0.3 Ω or less | 16 |
Isolating Common Failure Points
Check the harness segment between the sender connector and the inline splice for chafing near the left rear shock tower–this area sees constant suspension movement and frequently abrades the insulation. If bare copper is visible, strip back the damaged section, solder a repair jumper, and seal with adhesive-lined heat-shrink tubing. Also inspect the connector terminals for corrosion; a eroded contact can mimic low voltage symptoms. Clean oxide buildup with electrical contact cleaner and re-seat the pins firmly–listen for an audible click confirming engagement.
Finally, probe the underhood fuse block relay R6-1 with the ignition on–voltage should read 12.4–12.8 VDC at the relay socket terminal 87. If absent, back-trace 12 inches along the red/black tracer wire to locate a fusible link integrated into the harness; this link often melts under sustained current draw and requires replacement with an OEM-grade 20 AWG fusible link, not a standard jumper wire.
Identifying Critical Conductors in the Energy Delivery System: Color Codes and Roles
Trace the thick pink wire (circuit 440) from the inertia switch to the relay–this is the primary power feed under ignition. Verify voltage at both ends with the key in the RUN position; a reading below 10.5V indicates corrosion or a broken connection in the harness near the rear quarter panel.
Locate the tan wire with a black stripe (TAN/BLK) exiting the relay socket and terminating at the tank sender unit. This conductor carries the ground reference for the relay coil; confirm continuity with less than 0.5Ω resistance. If values exceed this, inspect the chassis ground point G103 behind the left rear wheel housing for paint overspray or loose mounting.
Input Signals and Safety Interlocks
The dark green wire with a white stripe (DK GRN/WHT) delivers the oil pressure safety signal. Probe this wire at the relay connector while cranking–voltage should jump to battery level within 2 seconds of starter engagement. Absence of signal suggests a faulty oil pressure sender or an open in the wire between the sender and the relay.
Examine the gray wire with a red stripe (GRY/RED) for the rollover valve circuit; it must show battery voltage when the tank is pressurized and drop to zero during purge cycles. A constant 12V reading signals a stuck valve solenoid or a short to power in the chassis harness near the left frame rail.
A purple wire (PPL) supplies the data stream to the powertrain control module. Check for clean 5V pulses at the rear junction block while cycling the key–erratic waveforms often point to a compromised serial data bus inside the passenger compartment loom.
Troubleshooting Ambiguous Color Markings
When factory tape labels peel or fade, cross-reference suspect wires against the pinout: terminal 30 on the relay is always the main supply; terminal 86 is the control coil positive; terminal 85 is the coil ground; terminal 87 is the switched output. Use a tone generator on each conductor back to its origin to eliminate guesswork.
For wires bundled with aftermarket harnesses, peel back the convolute and note any shrink tubing colors–common substitutions include solid brown replacing factory orange, and solid yellow replacing tan with a black stripe. Replace any splices with soldered joints and adhesive-lined heat shrink to prevent future voltage drops.
Step-by-Step Guide to Testing the Relay with a Multimeter
Locate the relay panel under the dashboard or in the engine compartment. On the 2000 G-series utility vehicle, the relay is typically marked “ECC” or “ECM” near position 30 for the electric supply module. Use the owner’s manual to confirm placement if labels are unclear.
Set the multimeter to continuity mode (200Ω range) or DC voltage (20V scale) depending on the test. Probe the relay socket’s pin 85 (ground trigger) and pin 86 (power trigger) first. A reading below 1Ω or battery voltage (12.6V) indicates a properly energized coil. If values deviate, inspect the powertrain control module for faults.
Switch to resistance mode and measure across pins 85 and 86. A functional relay coil reads between 50-120Ω. Readings outside this range suggest coil failure. Verify the circuit’s ground integrity by probing pin 85 against chassis ground–any resistance above 0.5Ω means a corroded connection needing cleaning.
Test load-side functionality by applying 12V across pins 85 and 86 using a jumper wire. With the multimeter in continuity mode, check for direct connection between pins 30 (supply) and 87 (output). If continuity exists only when energized, the relay operates correctly. No continuity signals internal contact failure.
For passive checks, shake the relay while listening for rattling–loose internals often indicate worn contacts. Press the relay firmly into the socket to rule out poor seating, which causes intermittent power loss. If corrosion is visible, scrub terminals with a wire brush dipped in dielectric grease.
Compare measured values against factory specs: relay draw should not exceed 150mA during operation. Excessive current suggests partial shorting, often traced to melted contacts or fused wiring. Use a fused jumper to bypass the relay temporarily–if the module activates, replace the relay immediately.
Critical note: Always disconnect the battery’s negative terminal before probing high-current circuits to prevent accidental shorts or damage to sensitive electronics. Reconnect only after confirming all tests are complete.
If the relay passes all tests but the system still fails, move to the control module’s power feed. Probe the harness-side connector for steady 12V at the relay’s pin 30 during cranking–voltage drops below 10V point to a weakened battery, faulty alternator, or undersized wiring.
