Locate the factory service manual (FSM) for the ZJ platform, specifically section 8W-40, which details all circuit routing, fuse assignments, and grounding points. Third-party sources like Mitchell1 or AlldataDIY provide digital copies if the official documentation is unavailable. Verify the illustrated schematics include color coding–dark green (DG), light blue (LB), and orange (O) for critical power feeds–to avoid misidentifying circuits during repairs.
Trace common failure points: the bulkhead connector (C100) near the driver-side kick panel often corrodes, disrupting signals to the instrument cluster and BCM. Replace it with a weather-pack connector (part #82200386) instead of repairing individual wires. For the power window circuits, check the door jamb switch (S157)–oxidation here mimics faulty regulators. Use dielectric grease during reassembly to prevent recurrence.

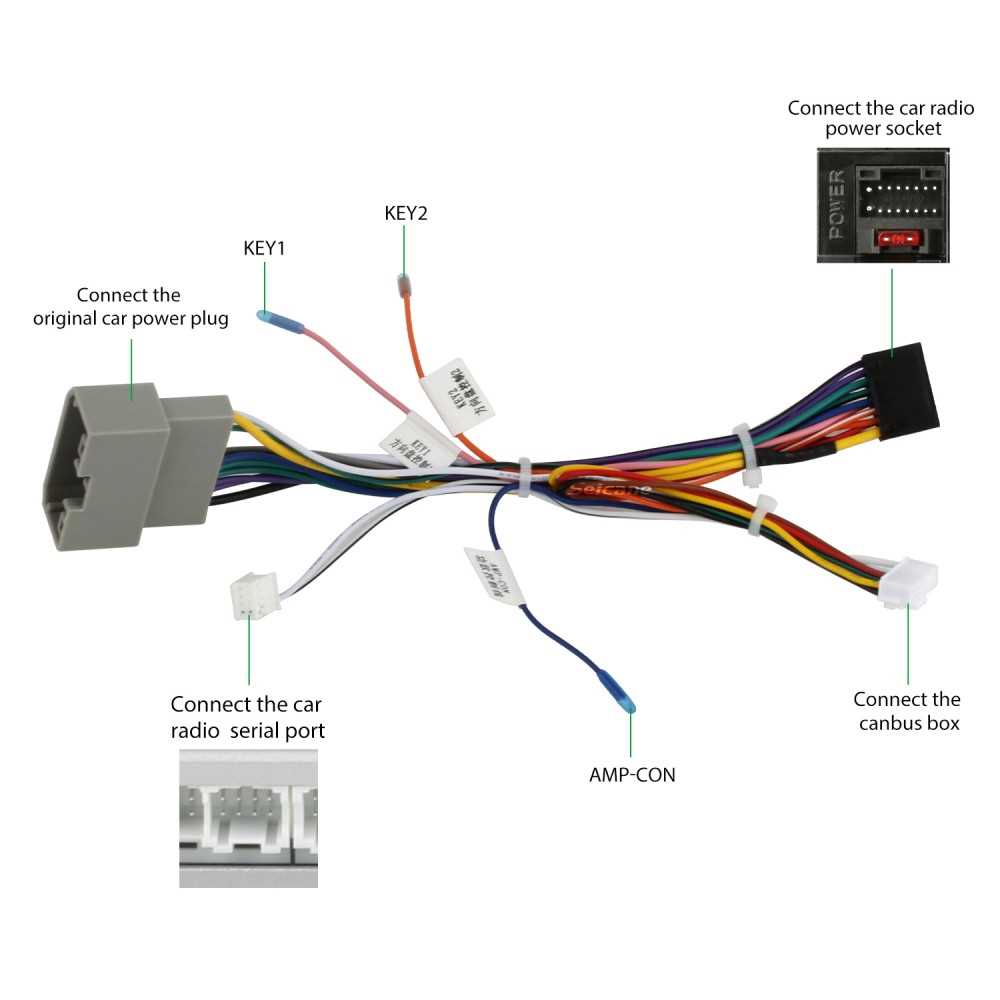

For aftermarket stereo installations, splice into the radio harness (C250) at the red/yellow (RY) and gray/black (GYBK) wires for constant and switched power, respectively. Avoid tapping the fuse panel directly–use an add-a-circuit (Mini 32V) to prevent overload. Ground points G100 (front left fender) and G106 (rear left frame) must be scraped clean to ensure signal integrity.
When diagnosing no-start conditions, bypass the anti-theft module (SKIM) by jumping pin 4 on the PCM connector (C1) to ground temporarily. If the engine cranks, the transponder coil (inside the ignition lock cylinder) or SKIM relay (K7) is faulty. Replace the entire cylinder assembly (part #56028868) rather than attempting to recode the chip.
For trailer wiring, the OEM harness terminates at a 7-pin round connector (C4) behind the rear bumper. If signals are intermittent, test the ground (G102) on the frame rail–corrosion here causes erratic brake light operation. Upgrade to a modular harness (part #10950822) with built-in load resistors if adding LED markers to prevent hyperflash.
Electrical Schematic Reference for the 1998 ZJ Model
Begin by locating fuse box F42 beneath the driver’s side dashboard–this panel houses critical relays for the HVAC blower motor and rear defogger system. Pin 16 on the 32-pin grey connector (C101) delivers switched 12V power to the instrument cluster; verify continuity with a multimeter before assuming corrosion at the splice joint near the firewall.
For the powertrain control module, trace the violet/white stripe wire from connector T32b (terminal 17) to the manifold absolute pressure sensor. Voltage should read 5V ±0.2V at idle; readings outside this range indicate a short or faulty PCM ground at G101, often mistaken for sensor failure.
Headlight circuit troubleshooting requires isolating the dimmer switch. The dark blue/white stripe wire (pin 5 of C202) carries low-beam voltage–measure between this terminal and chassis ground with headlights ON; expect 12-14V. If absent, inspect the brown fuse (F4) in the under-hood power distribution center, where oxidation frequently disrupts current flow.
Door ajar switches share a common ground via the tan/black stripe wire ending at connector C302. Swap doors if inconsistent signals persist; the passenger-side harness often frays where it bends near the hinge pillar. Replace the entire pigtail assembly if continuity drops below 1 ohm between pins during manual flexing.
Rear wiper motor operation depends on the grey/orange stripe wire at C104 (terminal 3), fed through the liftgate harness. If intermittent, bypass the delay module by jumping C104 pin 3 directly to fused ignition power–this isolates whether the module or motor brushes are failing.
Anti-lock brake system diagnostics start at connector C203. Probe pin 9 (white/black stripe) for 8-12V during ignition ON; this signal originates from the ABS pump relay coil. Voltage below 7V suggests relay contact degradation or loose battery-positive feed at the pump motor.
Fuel gauge inaccuracies typically trace to the right rear sender unit. Disconnect the connector at C401 and measure resistance across the pink/light blue stripe wires–expect 8-10 ohms for an empty tank, rising smoothly to 70-90 ohms at full. Replace the sender if readings jump erratically, as this signals float arm corrosion or cracked resistor tracks.
Locating the Primary Fuse Panel and Electrical Flow Schematic
Begin by removing the lower dashboard panel beneath the steering column on the driver’s side–fasteners are typically secured with 7mm screws or plastic clips. The main fuse block is mounted horizontally behind this panel, adjacent to the brake pedal assembly. Labels are printed directly on the plastic casing, but color-coded relays and fuses may vary slightly between production batches; cross-reference with the owner’s manual version for precise amperage ratings.

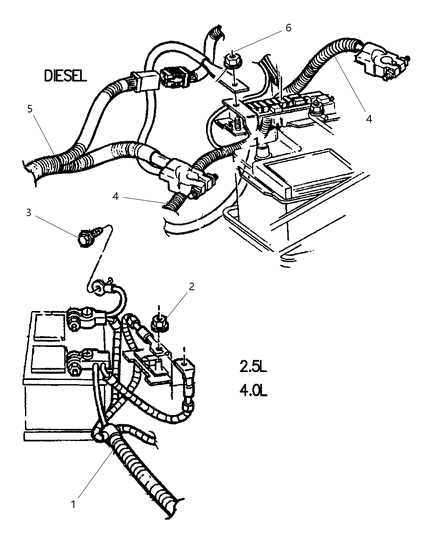

Identify the power distribution schematic by tracing the thick red cables originating from the battery positive terminal–these lead directly to the fuse box’s input studs. The largest 60-amp fuse (often marked “MAIN” or “B+”) feeds secondary circuits; failure here disrupts multiple systems simultaneously. Use a non-contact voltage tester to verify live connections before probing, as residual current persists even with the ignition off.
Common fuse assignments:
- 15A – Instrument cluster backlighting
- 20A – Heated mirrors and rear defroster grid
- 25A – Ignition switch feed (run/start)
- 30A – HVAC blower motor
- 40A – Anti-lock brake module (if equipped)
Label each fuse with masking tape and a fine-point marker during inspection to prevent misplacement. Note that some circuits share fuses–removing one may disable unrelated components.
Relay Locations and Function
The upper section of the fuse block houses relays, distinguishable by their square or rectangular shape and numbered slots. The horn relay (slot 4) and fuel pump relay (slot 6) are critical for starting; swap suspect relays with a known-good spare (e.g., the A/C compressor relay in slot 8) to isolate failures. Avoid forcing relays into incorrect slots–misalignment bends internal pins, causing intermittent electrical faults.
For the power distribution schematic, focus on the thick black-white tracer wire exiting the alternator; this is the vehicle’s primary grounding path. Corrosion at the chassis grounding points (typically near the driver’s side strut tower) mimics fuse or relay failures–clean connections with a wire brush and apply dielectric grease to prevent oxidation. Check for voltage drops across fusible links (thin, flexible wires near the battery) using a multimeter set to 200mV range–readings above 0.2V indicate resistance issues.
Access the interior fuse supplement by pulling the passenger-side kick panel–this panel protects auxiliary circuits for power windows, door locks, and the stereo amplifier. Use needle-nose pliers to extract mini fuses (10A–20A range); tug firmly but straight to avoid breaking the grip. Replace any fuses with signs of internal melting or discoloration–these rarely blow without cause and often indicate deeper wiring shorts.
If the schematic reference decal is missing or illegible, photograph the fuse block layout with a macro lens before disassembly; upload images to an electrical repair forum for crowd-sourced validation. Keep a spare 5A blade fuse in the glove compartment–this size fits multiple low-draw circuits (e.g., interior lights, radio memory) and resolves minor inconveniences without requiring a full inspection.
Locating Power Distribution Linkups Under the Hood
Start with the main engine harness splitter near the firewall on the driver’s side–label each plug by wrapping masking tape around the wires and marking with a fine-tip permanent marker before disconnecting anything. The large rectangular connector–typically grey or black–carries ignition-switched power; verify with a multimeter set to 20V DC: probe the pin furthest to the left on the top row while the key is in RUN but not cranking–reading should be 12-14V.
Trace the oxygen sensor leads from the exhaust manifold forward; the upstream connector rests against the front valve cover and uses a two-pin oval plug wrapped in heat-resistant braid–gentle tugs confirm it’s seated fully. Downstream sensor leads tuck under the transmission pan; color coding switches from dark brown upstream to light tan downstream–record these hues to prevent ECM fault codes later.
Find the alternator harness clipped to the upper radiator hose bracket; the serpentine-wired plug contains three pins–bat, sense, and ignition–match pin spacing to a reference chart before reconnecting. Ignition coils reside mid-engine; each coil pack has a single weather-packed plug with three terminals–inspect the seal grooves for dried adhesive debris before reseating to prevent moisture ingress.
The coolant temperature sender shares the mounting boss with the thermostat housing; its single-pin brass connector threads directly into the aluminum–apply conductive grease sparingly on the threads to stop corrosion without creating a high-resistance barrier. A secondary sensor plug nestles beside the intake manifold–verify function with a scan tool before assuming faulty readings.
Parking brake cable clips guide the brake switch linkage under the master cylinder; disconnecting it requires squeezing the retaining tabs inward–don’t force the plug or risk breaking plastic tangs. Vacuum lines intersect here too; use zip-ties to secure reattached hoses vertically, avoiding kinks that mimic MAP sensor failures.
Complete a final circuit verification with all systems powered–headlights OFF, hazard flashers ON–then sniff each connection hub for the faint scent of burnt epoxy; any odor mandates immediate disassembly, inspection for melted insulation, and resistance testing across adjacent pins–values below 2 ohms signal short-circuit risk.
