Begin by securing the main fuse block layout–located under the dashboard on the driver’s side. Five primary relays govern critical systems: ignition, fuel pump, headlights, A/C clutch, and cooling fan. Verify continuity across relay sockets before replacing components; corrosion on terminals 85 and 86 disrupts coil activation. The 31-pin ECM connector (gray, mounted near the firewall) requires back-probing for live voltage checks–black probe to chassis ground, red to specific pins:
- Pin 10: Battery voltage (constant, 12.0V minimum)
- Pin 20: Ignition-switched (9.5–12.5V, key ON)
- Pin 24: Throttle position sensor (0.5–4.8V, linear progression)
- Pin 6: Fuel injectors (pulsing 0–12V at idle)
Misdiagnosis often stems from overlooked ground distribution. Two chassis grounds (G101 near the brake master cylinder, G201 behind the right kick panel) demand scraping to bare metal and re-securing with star washers. The alternator’s B+ terminal connects directly to the positive distribution box via a 10-gauge yellow wire–resistance above 0.3Ω signals cable replacement. For intermittent stalling, inspect the white/black wire at the distributor (Hall-effect sensor); voltage should toggle between 0–5V at 1,000–3,000 RPM.
When tracing the power window circuit, prioritize the green/orange and blue/yellow wires feeding the driver’s door module–these degrade at the door hinge flex points. Use a loaded voltage test (10A probe) to confirm window motor current draw (minimum 8A, max 15A). For ABS diagnostics, focus on the wheel speed sensor loops: front sensors (two-wire, 1.1–1.3kΩ resistance), rear sensors (single wire, 0.9–1.2kΩ). A 0.1V AC signal at idle confirms proper sensor function; zero voltage indicates an open circuit in the gray/red (front left) or gray/black (front right) wires.
To isolate parasitic drain, disconnect the negative battery cable and insert a 10A inline fuse between cable and terminal. If current exceeds 50mA, methodically pull fuses (start with dome light/clock, then audio system) while monitoring draw. The ignition key cylinder’s black/yellow wire (pin 3 at cylinder) must show 12V only when key is inserted–this wire’s failure causes security system false triggers. For HVAC blend door actuator calibration, set the temp control to full cold, then reconnect the actuator; a brief 2-second buzz confirms successful initialization.
Detailed Electrical Schematic for Your 1997–1999 Mid-Size Sedan: Hands-On Solutions
Begin by locating the central fuse box beneath the dashboard on the driver’s side. Use a multimeter set to 20V DC to verify power at the 10A “IGN” fuse–pin 1 should read 12.4V+ with the ignition in the “ON” position. If voltage drops below 11.8V, inspect the ignition switch output wire (white/black stripe) for fraying near the firewall grommet. Common failure points include corroded terminals where the harness exits the cabin; clean with electrical contact spray and a wire brush before reassembly.
For the headlight circuit, trace the yellow/black wire from the left bulb socket to connector C303 behind the left kick panel. A broken connection here often mimics bulb failure–probe the socket terminals while activating the high beams to confirm 12V output. If voltage is missing, check the dimmer switch (gray 6-pin connector) for burnt contacts, especially pins 4 and 5, which handle the high-beam signal. Replacement switches cost ~$18 at salvage yards; ensure the part number ends in “B20A” for compatibility.
Troubleshooting the Instrument Cluster Backlighting
The backlighting fuse (7.5A “GAUGE”) shares power with the heater control illumination. If both fail simultaneously, focus on the black/blue wire identified in the under-dash harness. This conductor frequently shorts when pinched between the A-pillar and the dashboard roll bar during airbag system repairs. Strip back 5mm of insulation, solder a new segment of 18-gauge wire, and secure with adhesive-lined heat shrink tubing rated for 125°C. Avoid electrical tape, as it degrades within 12–18 months in this environment.

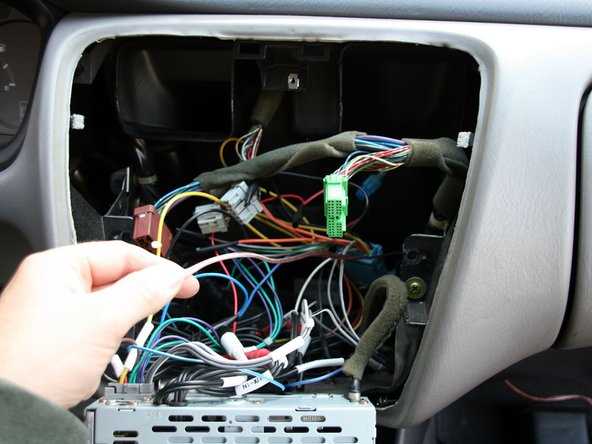

Radio Harness Repair: The aftermarket stereo installation often severs the purple/white memory wire needed for anti-theft features. Splice this into the orange/black “constant 12V” lead at the cigarette lighter harness instead of the original harness–this bypasses voltage drop issues affecting CD changers. For turn-on delay problems, add a 470µF capacitor between the yellow and red wires at the radio connector; this stabilizes power during engine cranking, preventing reset cycles on premium sound systems.
Finding Schematic Illustrations for Under-Hood Cable Routing
Identify the primary power distribution box beneath the hood on the driver’s side to begin tracing harness pathways–this junction typically consolidates ignition feeds, sensor loops, and lighting circuits into a single bundle secured by plastic clips. Mark each connector with tape labels noting color codes and pin counts before disconnecting; misalignment during reassembly can trigger false diagnostic codes. Lift the rubber gasket sealing the firewall entry point to access cabin-bound wiring clusters; corroded terminals here often cause intermittent electrical faults in climate control and dashboard gauges.
- Check the fuse block cover–most models print abbreviated routing maps alongside relay assignments, detailing spline paths for oxygen sensors, throttle actuators, and cooling fan relays.
- Inspect the rear of the alternator; a Y-shaped branch splits to the starter solenoid, battery positive cable, and ECM junction–verify each weave for chafing against the exhaust manifold shield.
- Locate the ground strap bolted to the intake manifold–test resistance to chassis with a multimeter; readings above 0.2 ohms indicate corroded connections affecting fuel injector pulses.
Slice through existing loom wrap with diagonal cutters only where insulation damage is visible–avoid unnecessary removal to prevent stress fractures at branch points. Photograph each segment before disturbing, focusing on connector orientation; polarity markers may be absent, and reversed pins can disable critical systems permanently. Replace brittle loom tape with spiral-cut polyethylene conduit where compression against moving components (e.g., A/C compressor bracket, power steering lines) has caused wear.
Locating Dash Panel Circuit Pathways
Disconnect the battery’s negative terminal before probing any connectors behind the instrument panel to prevent accidental shorts. Remove the trim bezel securing the gauge assembly–pry clips gently from the top edge using a non-marring tool to avoid cracking plastic retaining tabs. Behind the cluster, identify the 20-pin white plug and 16-pin blue plug as primary interfaces; trace wires from these harnesses to their respective sensors (speedometer, tachometer, fuel/temperature senders) using a continuity tester.
For illumination diagnostics, locate the orange/white wire in the white connector–it delivers voltage to the dial lights when the headlight switch is activated. If backlighting flickers or fails, measure resistance across the orange/white feed against chassis ground; readings above 5 ohms indicate corroded contacts or a faulty dimmer circuit. Check the brown/black wire in the same plug for a consistent 12V reference when ignition is ON–absence suggests a blown fuse in position 21 of the under-dash panel.
Needle movement issues require focused testing of sender circuits. The fuel gauge relies on a variable resistor (the sending unit) transmitting signals via the yellow/red wire in the blue connector–expect 2-120 ohms depending on tank level. If readings plateau, bypass the sender by grounding the yellow/red wire briefly; gauge movement confirms a faulty float assembly. Similarly, the temperature gauge uses the green/white wire–expect 25-270 ohms from the engine’s sending unit.
Verify signal integrity for the tachometer by probing the blue/white wire in the white connector while cranking the engine; pulse signals should range 2-8V AC. If absent, inspect the ignition coil’s black/yellow feed wire for damage or disconnect. Speedometer signals originate from the vehicle speed sensor (VSS)–locate the gray/yellow wire in the blue connector and confirm 3-10V AC output at varying speeds; erratic readings necessitate sensor replacement or cleaning the reluctor ring.
Reassemble connections only after confirming all pins are free of oxidation–clean contacts with electrical cleaner and nylon brush, then apply dielectric grease to inhibit future corrosion. Reconnect the negative battery terminal and cycle ignition ON/OFF to verify cluster self-test functionality before reinstalling trim panels.
Tracing Power Window and Door Actuator Circuit Routes
Locate the central fuse box beneath the dashboard on the driver’s side to begin isolating window and door lock actuator circuits. Reference the relay slot assignments: terminal 30 for constant battery feed, 87 for switched output to motors, and 85/86 for trigger signals. Probe terminal 87 with a multimeter set to 12V DC while cycling the switch–voltage should spike to full battery potential during activation and drop to zero in rest position.
Pinout Validation for Door Module Connectors
| Connector Terminal | Expected Color Code | Function | Typical Resistance (Ω) |
|---|---|---|---|
| 1 | Light Blue/Black Stripe | Window Motor + | 2-5 |
| 2 | Green/White Stripe | Window Motor – | 2-5 |
| 3 | Black/Yellow Stripe | Lock Actuator + | 8-12 |
| 4 | Pink/Black Stripe | Unlock Actuator – | 8-12 |
Disconnect each door harness plug to measure resistance across actuator terminals–values outside the specified range indicate internal motor or solenoid failure. Use a tone generator on the Green/White and Black/Yellow wires to trace continuity back to the master control switch cluster behind the trim panel.
Check the integration junction near the left kick panel where all door harnesses converge. Look for corrosion at the splice points, particularly the splice joining the dark green/white wire from the passenger door and the light blue wire feeding the rear actuators–these are common failure points. Reflow solder joints with flux-core wire if resistance exceeds 0.3Ω.
Verify ground distribution at the G203 chassis point behind the driver’s seat. Scrape paint from the mounting surface and confirm less than 0.1Ω resistance from each door actuator’s black wire to this point. If readings fluctuate, run a dedicated 10-gauge ground cable directly to the negative battery terminal, bypassing potential corroded factory paths.
