Locate the blower motor resistor on the passenger side firewall behind the glove box. Disconnect the wiring harness and probe terminals with a multimeter set to 200 ohms. Resistance values between 0.5–1.2Ω (low speed), 1.8–2.5Ω (medium), and open circuit (high speed) confirm proper operation. Deviations indicate corrosion at connector C205 or a compromised resistor pack.
Trace the orange/yellow stripe wire from the heat control switch to the temperature blend door actuator. This circuit should register 12V when the system is active. If voltage is absent, inspect fuse #23 (25A) in the under-dash panel or check for a short at splice S115 near the brake pedal.
For rear defrost diagnostics, verify relay R13 in the central junction box. The relay coil terminal (pin 85) must show continuity to ground when engaged. If the grid fails to energize, test the light green/red stripe wire for voltage at the rear window connector–absence suggests a break in the wiring harness behind the left quarter panel.
Reference panel 34-620 in the official service manual for the auxiliary climate module layout. Key components include the HVAC control amplifier (mounted above the radio) and the evaporator temperature sensor, which governs compressor engagement thresholds at 2.1–2.8V output.
When troubleshooting erratic fan operation, rule out a faulty instrument panel dimmer switch–its gray/light blue stripe feed can backfeed into the blower circuit, causing intermittent failures. Isolate by disconnecting the dimmer harness at connector C303.
Ford Off-Road SUV Climate Control Wiring Reference
To diagnose blower motor failures, trace voltage at the control module’s 4-pin connector: pin 3 (BK/OG) delivers 12V ignition feed, pin 1 (PK/LB) carries ground, while pins 2 (WH/YE) and 4 (YE/RD) switch between high/low speeds via a 1.2kΩ resistor array. Use a multimeter to verify resistance values against the table below–deviations above ±5% indicate a faulty module or corroded harness splices near the firewall.
| Component | Wire Color | Expected Voltage (Key ON) | Nominal Resistance |
|---|---|---|---|
| Blower Motor | TN/OG (High), YE/RD (Low) | 11.8–13.2V | 1.1–1.3kΩ |
| Resistor Pack | WH/YE (Mid), PK/LB (Ground) | 5.4–6.8V (Mid), 0V (Ground) | 450–500Ω (Mid), 0–0.2Ω |
| Temp Sensor | GN/YE | 0.5–4.5V (0–30°C) | 10kΩ @ 25°C |
Replace the cabin filter every 15k miles to prevent debris from starving the evaporator coil–restricted airflow triggers false overheat codes in the climate ECU, logged as DTC 0125 or 0130. Probe the evaporator’s thermistor at the outlet duct (BW/YE wire): a reading below 3.2kΩ at 32°F confirms proper refrigerant charge. If voltmeter shows erratic signals, inspect the 10A fuse (F6) in the under-dash panel–corrosion here mimics a failed compressor clutch relay.
Harness Repair Points
Focus on three chafing zones:
- Driver’s kick panel: WH/YE wire rubs against the brake pedal bracket (splice with 18-gauge heat-shrink)
- Passenger-side firewall grommet: TN/OG wire frays at the bulkhead (seal with dielectric grease)
- Under-hood relay box: YE/RD wire corrodes where it meets the junction block (clean with contact cleaner)
Finding the Climate Control Electrical and Vacuum Layout in OEM Repair Documentation
Start by accessing the vehicle’s official service literature–typically a multi-volume set included with full factory diagnostic packages. The wiring and vacuum routing illustrations for the HVAC system are almost always grouped under the “Body Electrical” or “Heater & A/C” section, labeled with precise chapter numbers (e.g., “Section 410-15” or “Group 10A-6”). Look for subheadings like “System Circuits” or “Vacuum Harness Routing”; these contain blown-up views of connectors, fuse assignments, and vacuum actuator port diagrams.
Use the manual’s bookmark tabs or digital search function (if available) to locate the “Connector Pinout Charts” subsection. Here, each wire is cross-referenced with its color code, circuit number, and destination component–critical for diagnosing faults in the blend door motor, recirculation motor, or heater control switch. The vacuum schematic often appears on a separate fold-out page or high-resolution illustration, showing valve locations, tubing colors, and manifold port assignments. Note that vacuum lines are usually color-coded: red for engine vacuum, yellow for vent control, and green for temperature doors.
Key Diagram Elements to Identify
Focus on three primary elements within the layouts: circuit protection (fuses/relays), sensor inputs (ambient temp, in-car temp sensors), and actuator outputs (door motors, compressor clutch). The manual will include connector callouts with pin numbers–for example, a 12-pin connector on the control head might list “Pin 3: Recirc Door (Yellow/Black)”–matching these to the vacuum diagram where actuator ports couple with solenoid valves. Verify ground points separately; many climate systems share chassis grounds near the passenger firewall or under the dashboard.

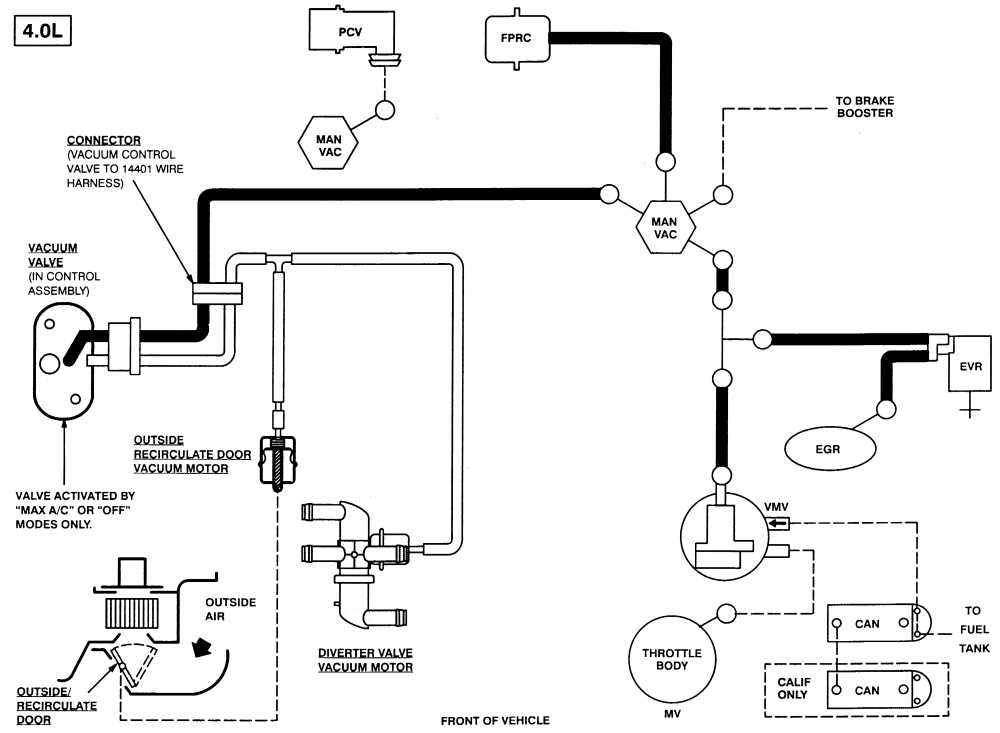

Trace the vacuum schematic from the source (intake manifold) through check valves and vacuum reservoirs to the HVAC control module. Each line should terminate at a solenoid, labeled with functions like “Floor/Defrost” or “Panel/Floor.” Manuals often include a troubleshooting tree for vacuum leaks, listing expected pressure readings at key points; use a vacuum pump gauge to measure against these specs (typically 18-22 inHg at the manifold tee). If the diagram includes a “Vacuum Actuator Port Map,” cross-reference solenoid colors with the routing chart to confirm correct line attachment during reassembly.
For electrical layouts, prioritize locating the “HVAC Control Module” illustration–this multi-page spread overlays the physical module with numbered pins, detailing inputs like blower speed resistors and ignition-sensed power. Look for footnotes explaining splice pack locations (often behind the glovebox or under the driver’s knee bolster) where wiring branches to motors. If the manual includes a “Circuit Operation Description,” it will summarize how relay triggers or sensor feedback loops interact–for instance, how the ambient temperature sensor modifies blend door positioning through PWM signals.
Locating Critical Parts in the Ford Vehicular Climate Control Network
Begin by tracing the blower motor resistor, typically mounted on the HVAC housing behind the glovebox. This component regulates fan speed and often fails due to overheating or corrosion. Test for resistance values between 0.5–3.0 ohms across terminals–any deviation indicates replacement is necessary. Ignore generic multimeter readings; use a known-good resistor as a reference to confirm inconsistency.
Inspect the heater core valves next. The temperature blend door actuator, a small electric motor near the firewall, adjusts airflow mix between ambient and heated sources. Listen for clicking sounds when adjusting climate settings–silence or grinding suggests motor failure. Remove the instrument panel lower cover to access the actuator; compare its gear teeth with a new unit, as worn gears disrupt proper positioning.
Don’t overlook the fuse and relay panel beneath the driver’s side dashboard. The 30A fuse (#17) protects the entire circuit, while relay #412 controls power to the blower. Swap relays with identical-rated spares (e.g., horn relay) to isolate faults. Blown fuses often signal deeper issues, such as shorted wiring to the rear defroster grid or resistive loads exceeding 14V.
Wire Harness Integrity Checks
Focus on the orange (power) and dark green/white (ground) wires connecting the blower motor. Probe with a voltmeter: 12V at the motor’s positive terminal confirms power delivery. Chafed insulation near the A-pillar or steering column is common–re-solder connections using heat-shrink tubing instead of electrical tape. Corrosion at the fuse box often spreads to adjacent circuits; clean terminals with baking soda and water, then apply dielectric grease to prevent recurrence.
Tracing Power Supply and Ground Paths for Blower Motor and Resistor
Begin by locating the blower motor relay in the fuse block beneath the instrument panel. The relay’s 85 terminal receives ignition-switched 12V from fuse F34 (20A), while 86 connects to chassis ground via a dedicated path. Verify continuity between relay terminal 30 and the blower motor’s positive lead–resistance should not exceed 0.2 ohms. If readings deviate, inspect the wiring harness for corrosion at connector C201 (white 14-pin) near the firewall.
Measure voltage drop across the blower resistor assembly. With the fan set to high speed, probe the resistor’s input (pink/black wire) and each subsequent tap (orange, light blue, dark blue). Acceptable drops:
- 2.1V–2.4V between input and orange tap
- 4.5V–4.8V between input and light blue tap
- 7.2V–7.5V between input and dark blue tap
Excessive drop indicates internal resistor failure; replace the entire assembly if readings exceed these ranges.
Ground Path Inspection
Disconnect the blower motor’s ground cable (black wire, terminal G101) and clean both the cable eyelet and chassis mount with a wire brush. Apply dielectric grease before reattaching. Use a multimeter to confirm resistance below 0.1 ohms between the blower housing and battery negative post. If resistance is higher, trace the ground wire to the central grounding bus–common failure points include the G101 stud and the splice at S301.
For intermittent low-speed operation, focus on the resistor-to-fan motor circuit. Back-probe the resistor’s white/violet wire at connector C202 while cycling the fan switch. Voltage should toggle cleanly between 0V and 12V. If spikes or drops occur, replace the fan speed switch or inspect the circuit board for cold solder joints at the switch terminals. Check for melted plastic near resistor coils–a sign of overheating from a shorted motor.
- Remove the glove box to access the resistor assembly.
- Label all connectors before disconnecting.
- Test the blower motor separately by applying 12V directly to its terminals–spin irregularities confirm motor bearing failure.
- Reassemble in reverse order, ensuring the resistor’s mounting tabs align with the ductwork to prevent airflow blockage.
