Start by locating the factory relay beneath the dashboard near the steering column. This 4-pin module regulates power distribution to the towing harness. Connect pin 30 to a fused 30A circuit from the battery positive terminal–avoid splicing into existing wiring looms as voltage drop can exceed 0.5V under load. Pin 85 grounds directly to the chassis, preferably at a pre-drilled hole behind the driver-side kick panel for corrosion resistance.
Pin 86 requires a switched 12V source; tap the red wire on the ignition harness at the fuse box labeled “IGN” (slot 16 on the 1997 model-year fuse map). Verify voltage stability with a multimeter–fluctuations above ±0.3V indicate a weak alternator or degraded connection at the battery terminal. Install a relay-rated inline fuse holder within 7 inches of the power source to comply with SAE J2807 standards.
For lighting integration, match the vehicle’s 7-way connector pinout: left turn (pin C, yellow), right turn (pin D, green), tail lamps (pin E, brown), and reverse lights (pin F, purple). Use heat-shrink butt splices for wire-to-wire connections; standard crimp connectors corrode within 18 months in high-humidity climates. The brake controller input (pin A, blue) draws 2.5A under load–ensure the chosen link integrates a low-pass filter to prevent feedback spikes damaging the ECU.
Critical: Test ground continuity at the trailer plug mounting point with a load-test sequence. Apply 10A to the tail lamp circuit (pin E) while monitoring chassis return–resistance above 0.1Ω warrants cleaning the mounting surface with a wire brush and applying dielectric grease to the connection threads. Repeat for each circuit before securing the 7-way cover plate.
Guide to Electrical Hookup for Older Pickup Towing Systems
Begin by locating the factory harness connector beneath the rear bumper on the driver’s side. This seven-pin plug matches the standard SAE J560 configuration used across most heavy-duty light trucks from the late nineties. Match each pin to the following functions:
Pin 1 (White): Ground – connect to the frame using a 10-gauge wire. Avoid relying on the exhaust or fuel tank straps; corrosion will disrupt the circuit within months.
Pin 2 (Brown): Tail lamps – splice directly into the rear lamp circuit using a butt connector. Seal edges with heat-shrink tubing; water ingress causes intermittent failures.
Pin 3 (Yellow): Left turn/brake – tap the single-filament bulb wire behind the left rear lens. Verify voltage drop below 0.5V during brake activation to prevent bulb burnout.
Pin 4 (Green): Right turn/brake – mirror the left-side process but use the right-side bulb wire. Test both turn signals simultaneously; a weak ground will dim both sides.
Pin 5 (Blue): Electric brakes – route through a dedicated relay if towing loads exceeding 5,000 lbs. The factory circuit lacks sufficient amperage for surge demands; bypass directly to the battery with a 30-amp fuse.

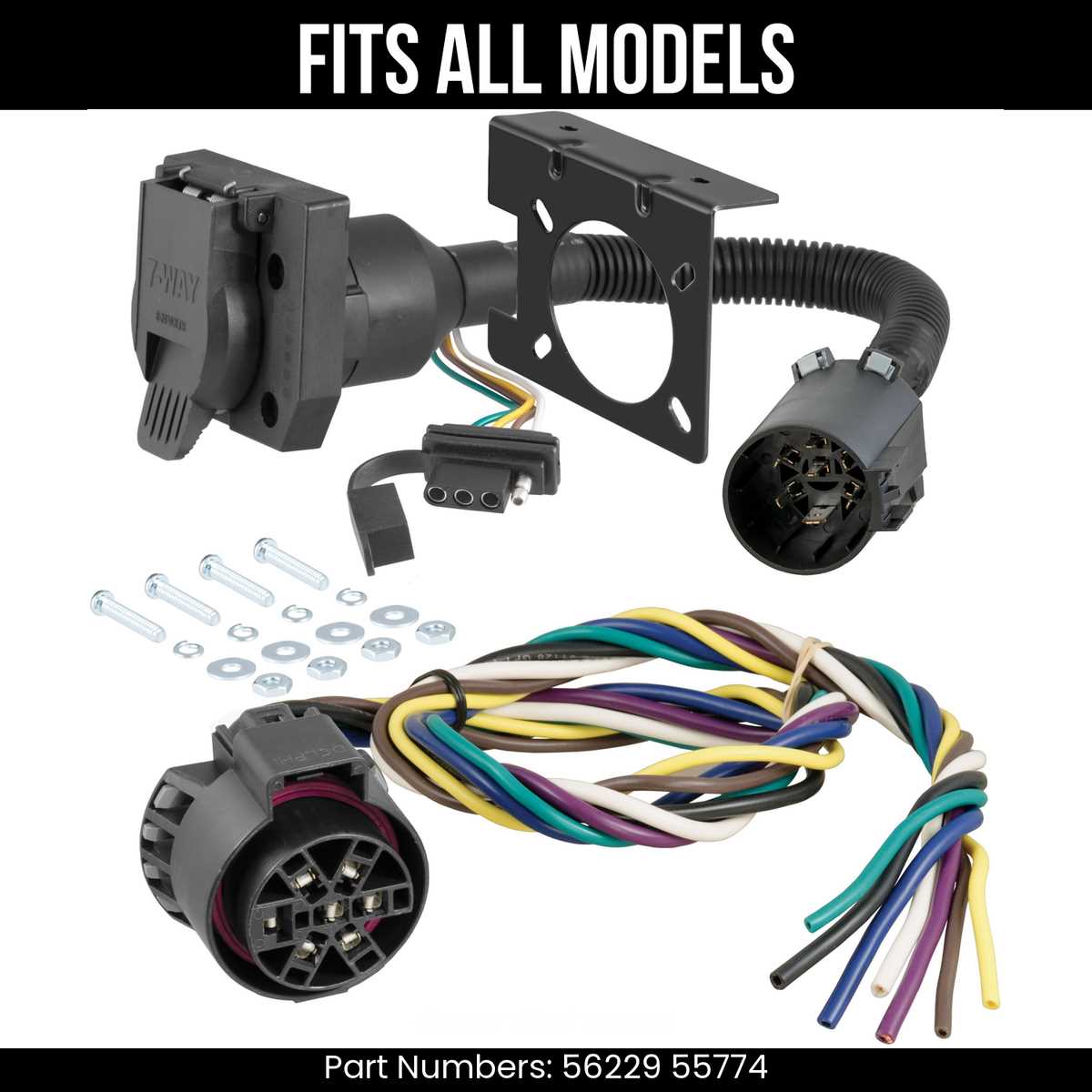

For vehicles without the seven-pin variant, retrofit the connector by removing the spare tire carrier panel. The harness loom contains redundant wires pre-cut for expansion; strip insulation ¼ inch beyond the factory sealant to prevent chafing against the bed frame.

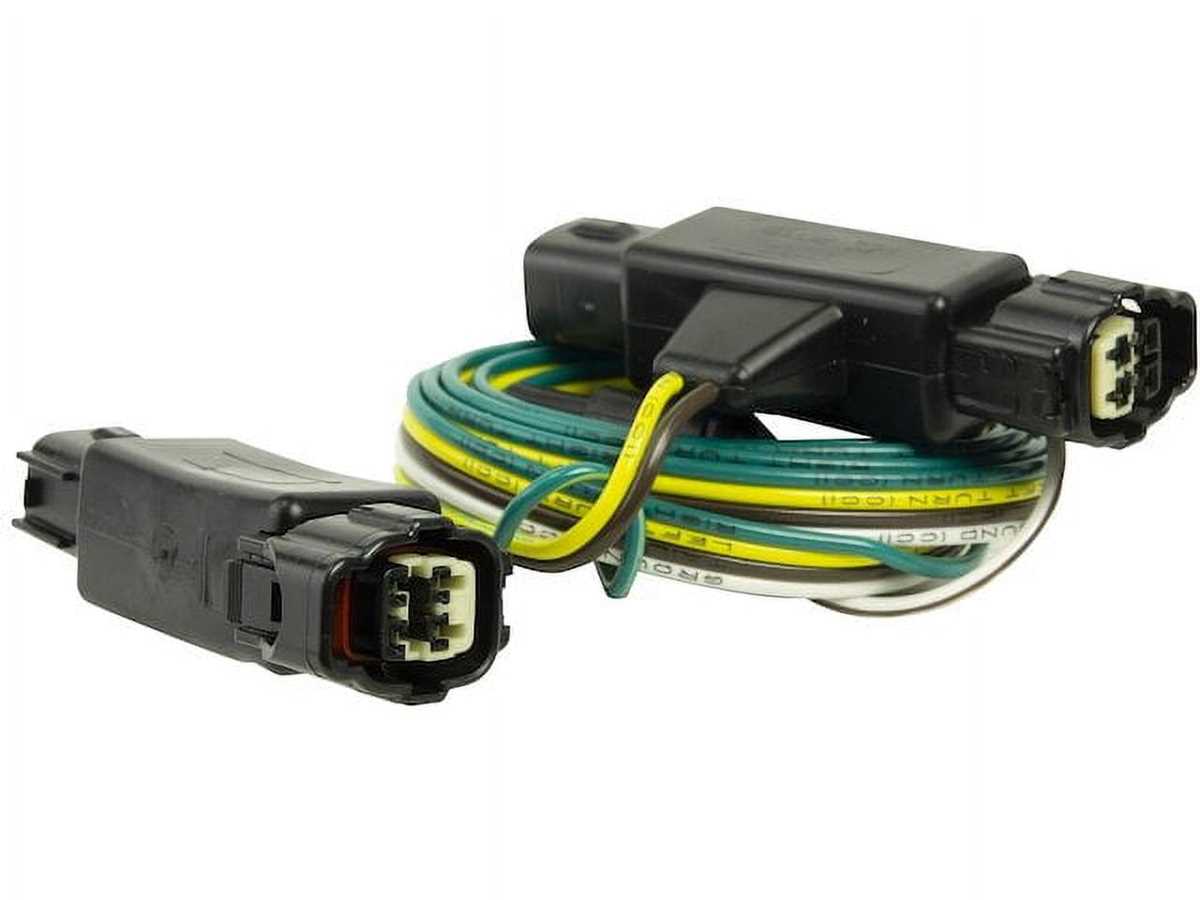

Install a modular adapter between the truck harness and camper plug if using LED fixtures. Incandescent bulb circuits often misread LED resistance, triggering false bulb-failure warnings. A load equalizer resolves this without altering the OEM wiring, maintaining warranty compliance.
Common Failure Points and Fixes
Inspect the main harness grommet where it exits the cab. Repeated flexing fractures the wires inside the plastic sheath; splice in 12-gauge silicone-jacketed wire for durability. Apply dielectric grease to connectors every six months, especially before winter storage. Salt and road spray accelerate terminal corrosion, doubling resistance in less than 1,200 miles.
Finding the Electrical Coupling Attachment Point for Your Heavy-Duty Pickup
Start by checking directly behind the rear bumper–most pre-2000 model-year trucks conceal the plug beneath a molded plastic cover secured by two Phillips screws. Remove these screws using a #2 driver; the access panel typically measures 6×4 inches and hinges downward once freed. If no connector is visible, slide your hand along the frame rail on the driver’s side–engineers often routed the bundle between the spare tire mount and the rear axle, tucked inside a corrugated loom for protection.
Alternative Mounting Positions
In rare cases, the factory may have relocated the plug to the bedside area beneath the lower tailgate hinge. Look for a rubber grommet pressed into the inner fender wall; pull it aside to expose a 7-pin round socket wrapped in black tape. For trucks equipped with a tow package, a secondary inline connector sometimes sits inside the rear corner of the cargo box, accessible by removing the plastic liner clip near the stake pocket.
Verify the plug’s integrity by testing continuity across each pin with a multimeter set to 20V DC. Pin assignments follow the SAE J560 standard: center is ground, top-right delivers brake signal, and bottom-left carries left-turn illumination. If corrosion is present, clean contacts using dielectric grease and a stainless-steel brush–avoid sandpaper, as it removes protective plating.
If the factory harness is missing, splice into the rear lamp assemblies: borrow power from the left taillight’s gray wire for parking lights, the yellow wire for right-turn signal, and the green wire for brake input. Always secure splices with adhesive-lined heat-shrink tubing, not electrical tape, to prevent moisture intrusion.
Decoding Vehicle Connection Color Standards for Tow Hookup Setup
Match the brown circuit to the running lights–this is non-negotiable. Brown universally denotes tail illumination, and deviation risks non-compliance with road safety regulations. Ensure the wire is secured with corrosion-resistant connectors to prevent voltage drop over extended hauls.
Green corresponds to the right-turn and brake signal on most standard seven-pin harnesses. Verify continuity with a multimeter before finalizing connections; intermittent faults here compromise visibility for following drivers. Insulate splices with heat-shrink tubing to block moisture ingress.
Yellow carries the left-turn and brake function, distinct from green only by side. Test both circuits independently–miswiring here causes erratic signaling or complete system failure. Use dielectric grease on terminals to inhibit oxidation in humid climates.
White serves as the ground conductor. Its gauge must equal or exceed the current-carrying wires to prevent overheating. Attach directly to the chassis frame at a clean, unpainted surface; rust or surface coatings introduce resistance, degrading performance under load.
Blue designates auxiliary functions, typically for electric brake controllers. Confirm the towing apparatus includes this capability before routing; otherwise, cap the wire with a watertight seal. Improper handling risks short circuits to sensitive brake modules.
The red or black circuit delivers constant 12V power for charging auxiliary batteries. Route through a fuse rated for 125% of the maximum current draw to prevent fire hazards. Avoid routing alongside signal wires to minimize electromagnetic interference.
Black or purple wires, when present, often signal reverse lights or backup power. Label each wire during disassembly–confusion here leads to reversed polarity, damaging connected devices. Use zip ties to bundle wires every 12 inches, preventing chafing against sharp edges.
Gray or orange wires may indicate specialized functions like trailer battery monitoring or stability control integration. Refer to the OEM specification sheet for exact pin assignments; assumptions here invalidate warranty coverage and compromise vehicle diagnostics.
Step-by-Step Guide to Verifying Electrical Connections Using a Multimeter
Set the multimeter to DC voltage mode (20V range) and connect the black probe to a grounded metal surface on the vehicle chassis. Touch the red probe to each pin connector–starting with the main power feed (typically 12V+)–while an assistant activates the corresponding function (e.g., brake lights, turn signals, or reverse lights). Record readings: functional circuits should show 10.5–14V during activation, while 0V or inconsistent fluctuations indicate a broken wire, poor ground, or blown fuse.
Pin Voltage Reference Table
| Function | Expected Voltage (V) | Troubleshooting Steps if Reading Deviates |
|---|---|---|
| Primary power | 12–14 | Check fuse #15 under hood or relay box–replace if continuity test fails |
| Signal control (left/right) | 10.5–13.8 (flashing) | Inspect bulbs for filament integrity; test socket ground with ohmmeter (below 0.5Ω) |
| Brake engagement | 12–14 (steady) | Trace red/white wire from harness grommet to junction block–look for chafing near frame rails |
| Reverse illumination | 11–13.5 | Verify switch operation by shifting gear selector while monitoring voltage |
If readings fall below thresholds, switch the multimeter to resistance mode (200Ω range). Disconnect the harness at both ends and probe each wire segment: values above 5Ω suggest corrosion or partial breakage. For ground issues (common on older assemblies), attach one probe to the wire’s terminal and the other to bare metal–ideal resistance should be under 1Ω. Replace or solder connections showing higher resistance, ensuring heat-shrink tubing seals exposed areas against moisture ingress.
