If your sound installation or repair hits a snag, pinpointing the correct wire harness layout is critical. The aftermarket radio harness for this model splits into two distinct plugs: an 8-pin square connector (ISO A) for power, illumination, and antenna controls, and a 6-pin rectangular connector (ISO B) handling speaker outputs. Cross-reference these with the vehicle’s factory wiring–mismatches here cause silent speakers, dimmed displays, or blown fuses within minutes of operation.
Locate the constant 12V source on the red wire (terminal 5, ISO A) and confirm it stays live with the ignition off–multimeter readings should hold steady at 12.6V. The switched 12V (yellow, terminal 3) must drop under 0.5V when the key is removed to prevent battery drain. Ground connections (black, terminal 4) require bare metal contact, preferably to the chassis near the mounting bracket; corroded factory bolts here manifest as static or intermittent volume drops.
Speaker impedance ranks as a frequent tripping point: the factory setup uses 2-ohm woofers and 4-ohm tweeters. Deviating from this risks amplifier overload–verify resistance before bridging any harness wires. Front door woofers connect via the gray/black (negative) and gray (positive) wires on ISO B terminal 1 and 6; rear-door equivalents follow a similar logic but use violet pairs (terminals 3 and 4). Reversing polarity produces phasing issues detectable only through spatial sound distortion, not immediately obvious volume discrepancies.
Steering wheel controls run through a dedicated blue/white lead (ISO A terminal 6); bypassing this removes hands-free adjustment but avoids complex resistor network integrations if duct-taping non-OEM head units. For amp-trigger wires (blue, terminal 7), ensure they feed 12V solely to activated amplifiers–accidental shorts here fry both aftermarket crossover modules and standard in-dash units.
Color-coding consistency ends at the firewall splice: orange wires (factory fuse block) morph into brown/white at the radio plug, yet carry the same dimmer signal. Use heat-shrink tubing when splicing to prevent voltage leaks that translate as dashboard lighting pulsing in sync with bass notes. Verify all connections with a 5A fuse tester on the constant power line before finalizing the installation–resetting airbag codes afterward costs double the initial troubleshooting time.
Vehicle Audio System Wire Connection Reference for 1999 Model Year Trucks

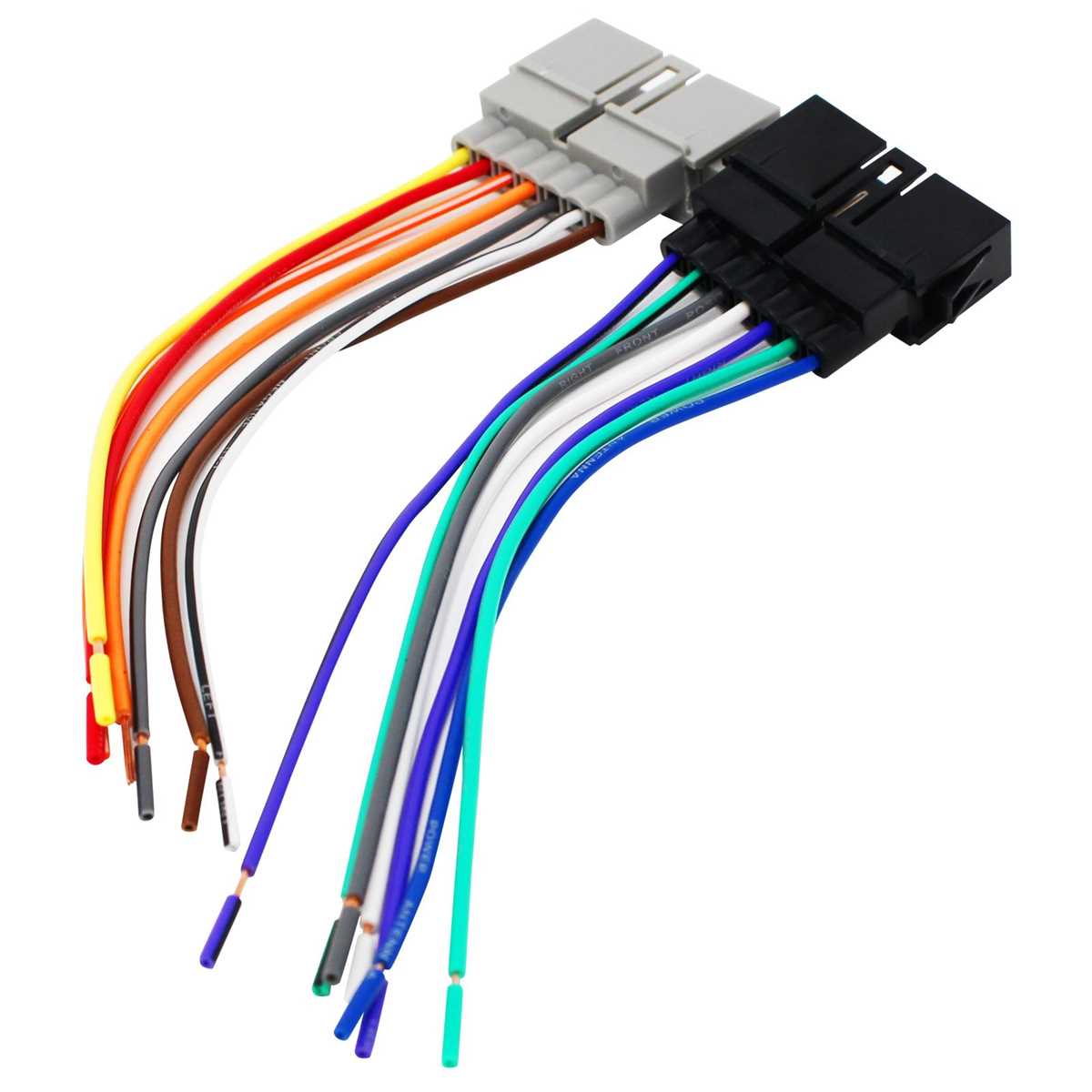

Locate the aftermarket radio harness adapter matching the factory connector layout–Metra 70-1817 or Axxess ASWC-1 for seamless integration without splicing. The speaker outputs follow this pinout: front left (+) on pin 6 (gray), front left (-) on pin 5 (gray/black), front right (+) on pin 3 (white), front right (-) on pin 4 (white/black), rear left (+) on pin 10 (green), rear left (-) on pin 9 (green/black), rear right (+) on pin 8 (violet), rear right (-) on pin 7 (violet/black). Power feeds require constant 12V (yellow, pin 1), switched 12V (red, pin 2), and ground (black, pin 16).
Antitheft systems in base trims may trigger if the battery is disconnected–use a memory saver plugged into the OBD-II port before unplugging the factory radio. For vehicles with premium sound setups, an amplifier bypass wire (blue/white, pin 11) must be connected to the aftermarket head unit’s remote turn-on lead to prevent dead audio channels. If static or weak bass occurs, verify the 4-gauge ground strap behind the dash is securely fastened to bare metal–corrosion on this connection is a common culprit.
For steering wheel control retention, install a PAC RP4-CH11 interface; program buttons using these resistance values: volume up (680Ω), volume down (1500Ω), next track (470Ω), previous track (2200Ω). Always test continuity with a multimeter before finalizing connections–mismatched speaker polarities will cancel bass frequencies, and reversed power leads can fry circuit boards.
Finding the Original Audio System Connector in Your Pickup’s Cabin
Start by removing the center dash panel below the climate controls. A 10mm socket wrench works best–two bolts secure the lower bezel, while two smaller 7mm screws hold the upper trim. Once the trim is off, the factory harness emerges from behind the metal reinforcement plate, clipped directly to the firewall with a white plastic retainer.
The connector itself is a 16-pin rectangular plug, typically black or gray, labeled C107 on the back. If you’ve dropped the glovebox, follow the bundle of wires exiting the back of the head unit cavity–they snake downward and join this harness within two inches, making it impossible to miss.
For trucks equipped with an amplifier, the main harness splits shortly after leaving the dash. The larger branch continues straight to the amp under the passenger seat; the smaller one feeds the door speakers. Trace both bundles–only the thicker set leads to the primary interface behind the radio.
Pull the carpet back on the passenger side floorboard to expose the footwell wiring conduit. The harness exits through a rubber grommet adjacent to the transmission tunnel, bundled with thick yellow and red power leads. Tugging gently on these cables will help confirm you’re following the correct path back to the dash.
Verify wire colors before cutting: constant 12V appears as a solid yellow; switched power is red; speaker outputs follow factory codes–front left (+) light blue with dark blue stripe, (-) dark blue; rear left (+) gray, (-) gray with black stripe. Mistaking these for accessory circuits risks blowing fuses or damaging modules.
Press the plastic tab on the connector’s side to release it from the dash bracket. With the radio removed, use a female spade terminal to test each pin for voltage–this confirms correct connections before attaching aftermarket components. Always reconnect the climate control harness when done; leaving it unplugged triggers fault codes in the BCM.
Standard Color Markings for Pickup Audio System Speaker Leads
Locate the grey harness connector behind the factory head unit–this contains all front and rear channel outputs. The left front positive terminal uses dark green/violet stripe wire, while its negative counterpart is grey/light green stripe. For the right front output, positive is dark blue/white stripe with negative as grey/red stripe.
Rear channel leads follow a distinct pattern: left rear positive is brown/yellow stripe, left rear negative is tan/black stripe. Right rear positive uses purple/white stripe, with right rear negative being tan/orange stripe. Confirm polarity with a 9V battery if resistance readings are inconsistent–brief speaker pop indicates correct alignment.
Common Pitfalls During Connection
- Grey/light blue stripe wire is often mistaken for audio feed; this is a 12V accessory line–accidental grounding risks fuse failure.
- Tan/white stripe serves as ground–ensure it’s solidly connected to chassis metal to prevent noise interference.
- Dash illumination lead (orange/black stripe) should remain unmodified–altering it affects dimmer function.
Before finalizing connections, test each pair with an ohmmeter–readings should show 2-8Ω for intact voice coils. Higher readings suggest broken or disconnected leads; recheck harness splicing if impedance appears infinite. Amplifier turn-on lead (violet/white stripe) must be routed separately from power cables to avoid signal cross-talk.
For aftermarket integration, use these conversions:
- Dark green/violet stripe → Front Left (+)
- Grey/light green stripe → Front Left (–)
- Dark blue/white stripe → Front Right (+)
- Grey/red stripe → Front Right (–)
- Brown/yellow stripe → Rear Left (+)
- Tan/black stripe → Rear Left (–)
- Purple/white stripe → Rear Right (+)
- Tan/orange stripe → Rear Right (–)
Store unused leads in heat-shrink tubing to prevent short circuits. If replacing the entire harness, retain original pins–third-party connectors often lack proper OEM pin spacing. Verify harness integrity by gently tugging each wire; loose strands compromise conductivity during vibration.
How to Connect an Audio System in Your Pickup Truck: A Practical Guide
Disconnect the negative terminal of the vehicle’s battery to prevent electrical shorts. Locate the factory harness behind the dash panel on the driver’s side–it’s usually a 12-pin connector secured by a plastic clip. If removing an existing unit, press the release tabs on either side of the bezel and slide it out gently.
Match the aftermarket harness to the original plug by color-coding: purple (right rear positive), purple/black (right rear negative), green (left rear positive), green/black (left rear negative), gray (right front positive), gray/black (right front negative), white (left front positive), and white/black (left front negative). Strip ¼ inch of insulation from each wire if splicing is required.
Identify the yellow 12V constant power lead–this must connect directly to the battery’s positive terminal using an inline fuse rated at 15 amperes. Route the cable through the firewall via the pre-existing grommet near the pedal assembly. Avoid the alternator and moving parts to prevent abrasion.
Attach the red switched power wire to a fuse tap linked to the ignition circuit–common locations include the fuse box under the dash or behind the glove compartment. Verify voltage with a multimeter before securing connections. The orange illumination wire should tie into the dash lighting circuit to sync with the instrument cluster brightness.
Ground the black wire to a bare metal chassis point using a ring terminal and a 10mm bolt. Sand the surface to remove paint or corrosion for optimal conductivity. For amplified systems, dedicate a separate ground point at least 18 inches away from the battery’s negative terminal to reduce noise interference.
Test the installation before reassembling the dash. Reconnect the battery, turn the key to accessory mode, and check each speaker for balanced sound output. Adjust fader and balance controls on the new unit to confirm proper channel distribution. If distortion occurs, recheck connections for loose strands or crossed wires.
Mount the new head unit using the provided brackets, ensuring all edges are flush with the dashboard. Secure any excess wiring with zip ties and tuck it away from pedals or heating vents. Reinstall trim panels carefully–plastic clips are fragile. Verify that all functions (radio, auxiliary inputs, Bluetooth if applicable) operate as intended before finalizing the setup.
