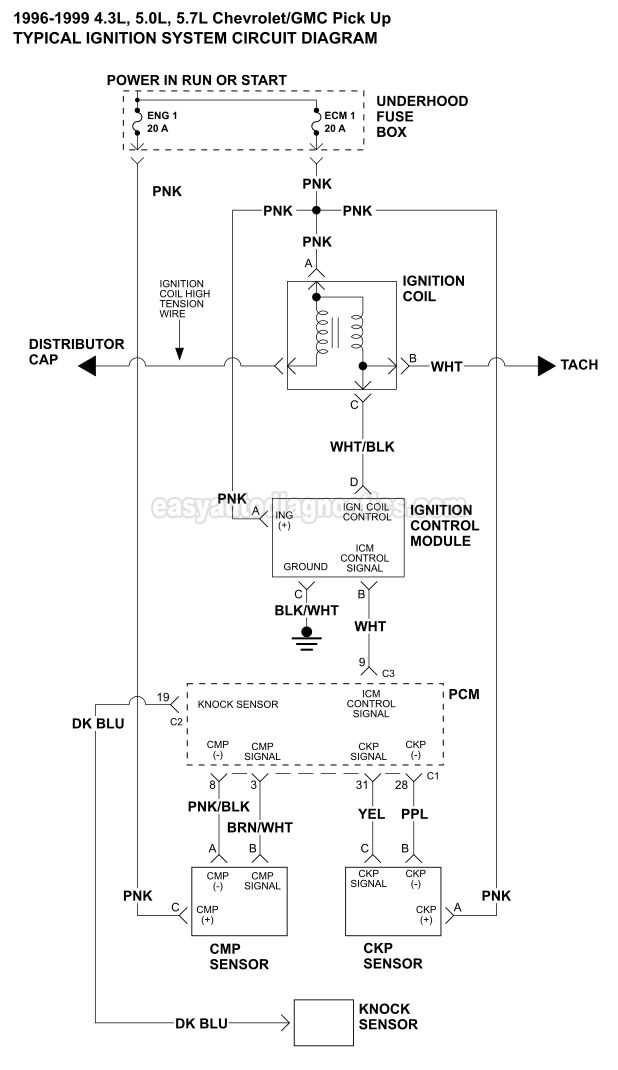

The 5.7L V8 Vortec engine in this model relies on a precise sequence of connections from the ignition switch to the starter solenoid, ignition coil, and distributor. Locate the purple wire (terminal 5 on the ignition switch)–this carries the ignition feed to the coil via the pink wire (terminal 30 on the fuse block). The yellow wire (starter solenoid S-terminal) engages the starter when the switch is turned to “START.” Cross-reference these colors with a multimeter set to continuity mode to confirm no breaks exist in the circuit.

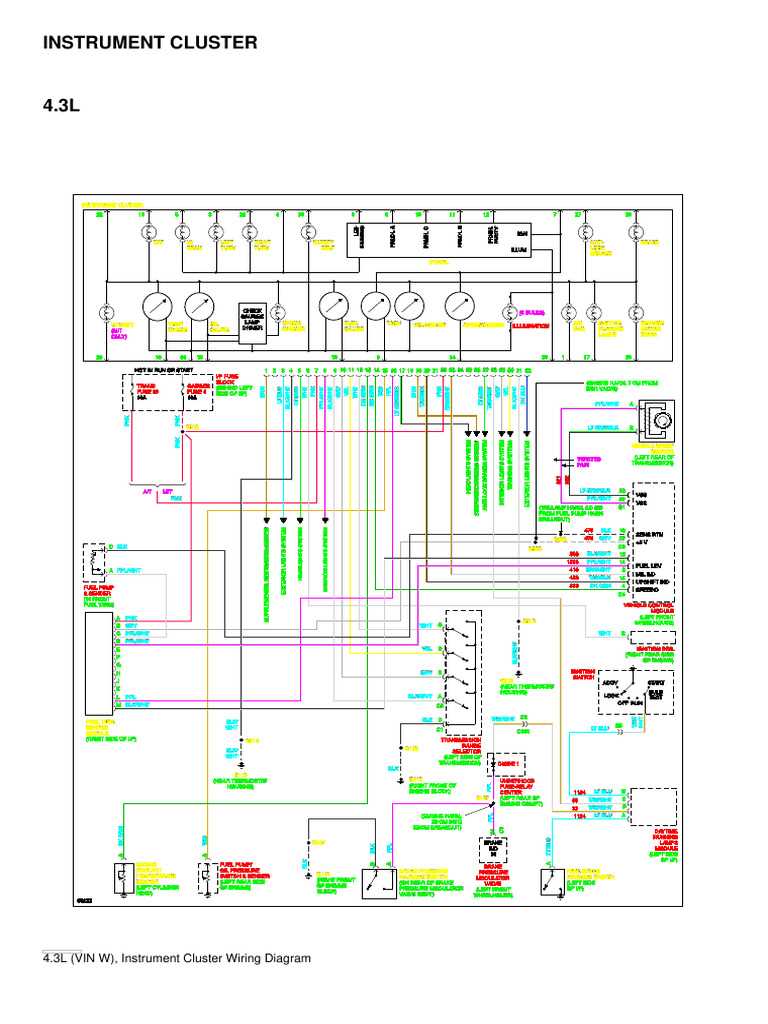

Ground faults often mimic ignition failures. Check the engine block ground strap (usually a black wire with a ring terminal) bolted near the bellhousing. Corrosion here causes intermittent spark loss. For the instrument cluster, the dark green/white stripe wire delivers voltage from the ignition switch (terminal 2) to the fuse panel–ensure it’s seated firmly in the connector.
If the vehicle cranks but won’t start, probe the white wire (coil positive) with a test light while cranking. Absence of voltage indicates a faulty ignition control module (ICM) or damaged pick-up coil inside the distributor. Replace the ICM if resistance across its two-prong connector reads outside 500–1500 ohms. For distributorless setups, verify the crank sensor’s gray/black wire delivers a clean 0.5–1.5V AC signal during cranking.
Ballast resistors were omitted in this year’s model, so the coil’s pink/black wire must receive full battery voltage (12V–14V) when the key is in “RUN.” If voltage drops below 10V, inspect the ignition switch’s red wire (terminal 30) and fusible link near the battery. The security system (VATS) uses a tan/black wire between the ignition switch and PCM–cutting this wire disables the anti-theft during diagnostics, but reattach it immediately after.
For aftermarket upgrades, tap into the orange wire (ignition-switched power) at the fuse block for accessory power, but never exceed 10A draw. The purple/white wire (PCM power) should remain untouched–it handles fuel injection timing and requires stable voltage. Always disconnect the battery negative terminal before probing wires to prevent shorting the ECM.
GM Full-Size Pickup Start Circuit Color Codes and Troubleshooting
Locate the purple/violet (PPL/WHT) wire at the back of the ignition switch connector–pin C3 on the harness side. This wire carries 12V in the “start” position and must reach the starter solenoid via the neutral safety switch. If voltage drops below 10V at the solenoid during cranking, inspect the PPL/WHT wire for corrosion at the bulkhead connector near the firewall or at the junction block under the dash.
Trace the yellow (YEL) wire from the ignition cylinder directly to the starter relay coil terminal (85) under the instrument panel. A failed relay often mimics a bad switch–swap with a known-good relay (horn or A/C) to isolate. Check for 0.5Ω or less continuity between the YEL wire and ground when the key is turned to “start”; resistance above 5Ω indicates a broken strand inside the steering column shroud.
Connector Pinouts and Expected Readings
Verify voltage at the ignition switch connector using a multimeter:
- Pin C1 (RED/BLK): 12V constant (battery feed)
- Pin C2 (PPL): 0V key-off, 12V crank-only
- Pin C3 (PPL/WHT): 12V crank-only (critical path)
- Pin C4 (ORG): 12V key-on/run/start (powers ECM and gauges)
- Pin C5 (YEL): 12V key-on/run (accessory feed)
If Pin C4 reads 0V in “run,” replace the ignition switch; the ORG wire rarely fails but can short to ground at the junction behind the glovebox.
Disconnect the battery before probing the starter solenoid S-terminal. Attach a test light between the PPL/WHT wire (from the neutral safety switch) and the battery positive; the light should illuminate only when the transmission is in Park/Neutral and the key is in “start.” If it glows constantly, the safety switch is stuck or the PPL/WHT wire is shorted to another circuit–common at the trans linkage or shift cable grommet.
Splice a temporary bypass wire (16 AWG) from the ignition switch C3 terminal directly to the starter solenoid S-terminal if the truck cranks only with a remote starter. Route the wire along the existing harness and secure it with zip ties–this confirms whether the original PPL/WHT wire has an open circuit. Do not leave the bypass in place; corrosion in the wiring harness near the transmission crossmember often severs the conductor.
Strip and solder each connection rather than using crimp terminals when replacing the ignition switch. Apply dielectric grease to every connector to prevent future moisture intrusion–particularly the ORG and PPL/WHT pins, which control sensitive ECM inputs. Use a heat-shrink tube rated for 125°C minimum to seal splices exposed under the vehicle.
Component Replacement Tips
Remove the upper dash panel by unscrewing two 7mm bolts behind the driver knee bolster–this exposes the ignition switch mounting screws for easier removal. The new switch must align exactly with the actuator tab on the cylinder; if misaligned, the truck will start but the key will not return from “start” position.
Aftermarket starter relays often lack the necessary 85Ω coil resistance required by the ECM; OEM relay part #10491377 is a direct replacement. If the engine cranks slowly but does not start, measure voltage at the fuel pump relay–expected 12V within 2 seconds of key-on; if delayed, the ORG wire feeding the ECM is likely compromised at the 15-way bulkhead connector above the pedals.
Finding the Starter Relay Trigger Leads on Your Late-90s Pickup

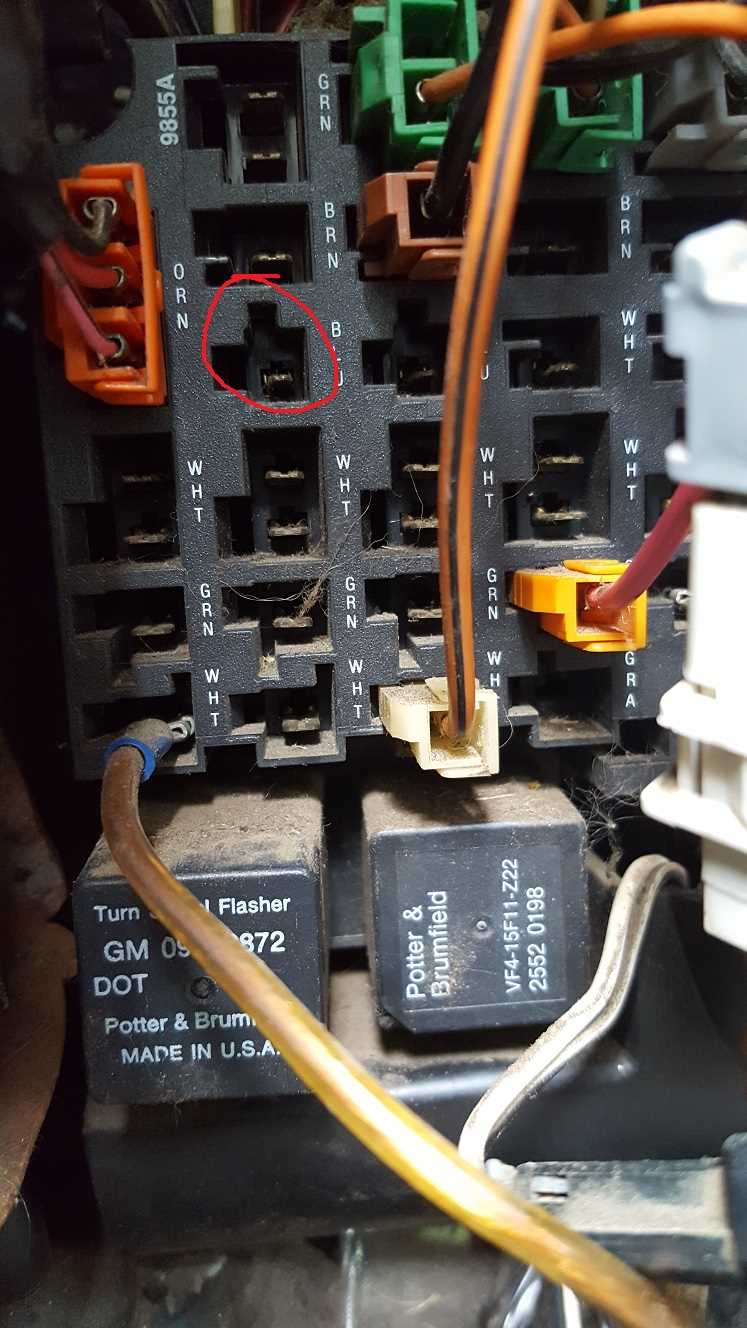

Begin by removing the lower dash panel beneath the steering column–three 7mm screws secure it. The harness you need sits directly behind the fuse box, bundled in a black plastic conduit marked “SEC” (Security/Starter). Follow the conduit upward; it splits into a 10-pin rectangular plug with gray, yellow, pink, and purple conductors. The yellow lead carries the 12V signal from the key tumbler to the starter solenoid, confirmed by probing with a test lamp while an assistant turns the key to “CRANK.”
Visual Landmarks for Quick Identification
- Look for a white decal embossed “C1” on the firewall-side bracket holding the harness.
- Atan offset-angled tab on the connector prevents misalignment–match this tab to the ridge molded into the switch receptacle.
- On the backside of the plug, pin #6 (counting left to right, top row) delivers the critical trigger voltage.
Disconnect the battery negative terminal before separating the plug. Use a small flat-blade screwdriver to depress the plastic retaining clip–it releases upward at a 30-degree angle. Pull the connector straight out; twisting can break the locking tangs inside. Inspect the contacts for corrosion–any greenish residue indicates a need for dielectric grease before reconnection to prevent voltage drop during cold starts.
- Test continuity between the yellow wire and chassis ground in the “RUN” position–expect an open circuit.
- Switch to “CRANK”; the same probe should show 0.2–0.5 ohms resistance, confirming the path to the relay coil.
- If readings deviate, trace the yellow conductor through the firewall grommet into the engine bay; common chafing points occur where the harness crosses the brake pedal bracket.
Label each wire with masking tape before servicing–gray supplies power to the ECM, pink feeds dash gauges, and purple carries the security pulse. Reassembly requires routing the harness clear of the pedal linkage; a single 10mm bolt secures the bracket to prevent harness vibration wear. Reconnect the battery last, then cycle the key multiple times to verify consistent starter engagement without intermittent clicks.
Step-by-Step Guide to Tracing Circuit Colors in the Vehicle’s Electrical Core
Locate the main connector bundle beneath the steering column. The largest grouping contains twelve individual strands–seven primary, five auxiliary–each serving distinct control functions. Begin by isolating the red stripe wire; this is the battery feed for the accessory circuit, delivering 12V when the key is rotated to the “ACC” position. Use a multimeter set to DC voltage to confirm power flow before proceeding.
Next, identify the pink cable–thicker than most, with a white stripe–linking directly to the starter solenoid. This line carries high-current pulses only during cranking; expect intermittent voltage spikes between 8V and 12V. Avoid prolonged testing, as excessive current can damage the solenoid coil. If corrosion is present, clean terminals with a wire brush and apply dielectric grease before reconnection.
Trace the yellow wire, often paired with a black sleeve near the ignition switch. This strand powers the fuel pump relay and requires continuity checks with the key in the “ON” position. A break here will prevent fuel delivery entirely; inspect for chafing where the bundle passes through the firewall. Replace the entire segment if insulation damage exceeds 10mm.
Cross-Referencing with Factory Service Manuals
Secure a physical copy of the electrical schematic for your model variant–aftermarket digital scans frequently omit splice points unique to early production runs. Pinpoint the orange wire, which feeds the instrument cluster and ECM. Its voltage should remain stable at 12V regardless of key position; drooping readings indicate a failing alternator or weak battery reserve.
Examine the dark blue wire, responsible for controlling the tachometer and shift indicators. This circuit differs in later configurations, so verify its path against the manual’s supplemental diagrams. A common failure point occurs where it routes behind the dashboard; test for shorts by wiggling the harness while monitoring gauge behavior.
Finally, check the tan wire–frequently overlooked–linking to the security module. Its absence in voltage signals a problematic anti-theft system, triggering fuel cutoff. Bypass testing is possible by temporarily jumpering this line to the red stripe feed, but re-secure all connections afterward to prevent unintended immobilizer engagement.
Label each wire with masking tape and corresponding schematic symbols before disassembly. Group strands by color families–solid, striped, and dotted–to prevent misrouting during reassembly. For persistent issues, replace the entire harness section rather than individual wires; aftermarket replacements fail at splice points within two years under daily use.
