Start by locating the main fuse block under the dashboard. The driver-side panel houses critical relays and fuses controlling the engine bay, instrument cluster, and lighting circuits. Pin numbers on the connector match the original service manual–verify each wire color against the legend before splicing. Yellow-striped wires (YEL/WHT) typically feed the ignition coil, while orange-striped (ORG/BLK) handle power distribution to the ECM. A multimeter set to 20V DC will confirm voltage at key junctions.
For the trailer harness, trace the seven-pin connector wiring back to the rear of the cab. Brown (BRN/WHT) and green (GRN/WHT) wires carry tail and marker light signals–use crimp connectors rated for 14 AWG wire. If the turn signals flash erratically, inspect the ground at the trailer socket; corrosion here mimics bulb failure. The alternator’s B+ terminal should read 13.8-14.5 volts at 2,000 RPM–lower readings indicate a faulty voltage regulator.

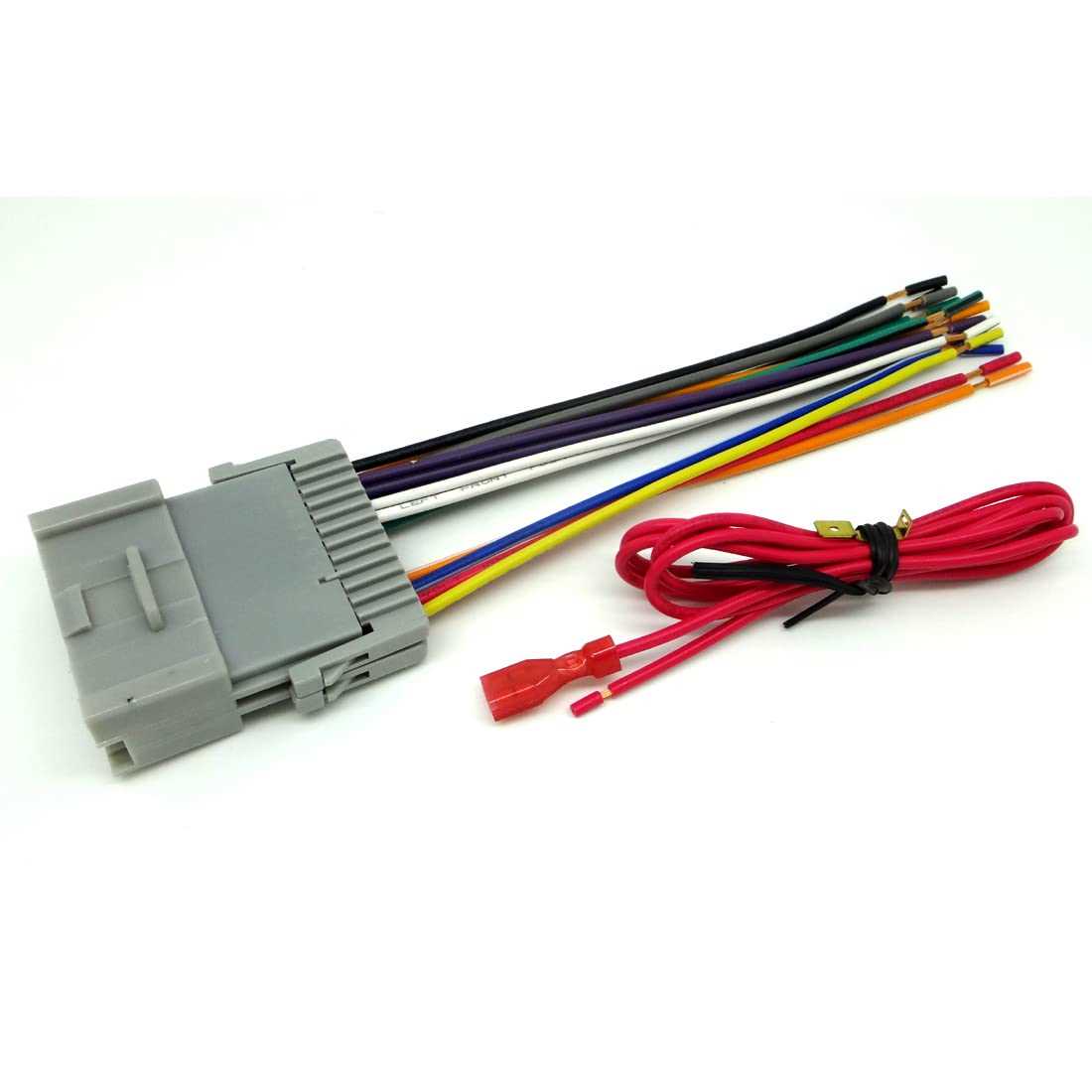

Replace the stereo harness adapter if the aftermarket unit interferes with the fuel gauge. The factory radio’s yellow (YEL/BLK) wire supplies constant 12V, while the light blue (LT BLU/WHT) wire triggers the amplifier. For engine diagnostics, probe the OBD-II port’s pin 16 (B+) and pin 4 (ground) with the key in the ON position. Misfires often trace to worn ignition wires–resistance should not exceed 10,000 ohms per foot. The starter solenoid’s purple (PPL/WHT) wire must hold 12V during cranking; voltage drops below 9.6V suggest a weak battery or corroded connections.
Headlight circuits rely on the multifunction switch–dark blue (DK BLU/WHT) and light green (LT GRN/WHT) wires control high/low beams. If one side fails, swap bulbs first; if the issue persists, test the dimmer relay. The ABS controller’s connector has 35 pins–pin 20 (YEL) carries brake switch input, while pin 30 (GRY) delivers wheel speed signals. For power window issues, examine the window motor’s blue (BLU/WHT) and tan (TAN/WHT) wires; voltage spikes here damage the window control module.
Electrical Schematic Guide for a 1998 Full-Size Pickup Truck
Begin troubleshooting with the under-hood fuse block located near the driver’s side strut tower. Label B1 (40A) powers the ignition system–corrosion here often mimics fuel pump failure. Remove the cover and inspect terminals for white oxide deposits; clean with a wire brush and apply dielectric grease before reassembly.
Trace the instrument cluster harness by disconnecting the negative battery cable first. Pin 2 (tan/black) delivers voltage to the tachometer–use a multimeter set to 20VDC to verify 12V with the key in RUN. If reading fluctuates, probe the PCM connector C1 for a short at pin 80 (tan/light blue). Replace the harness section if resistance exceeds 0.5 ohms.
Examine the front lighting circuit at the headlamp bulb socket. Left low-beam (clear bulb) receives power via a pink/black wire from the HDLP relay–check continuity from the relay socket terminal 87 to the bulb socket ground-side tab. Dim headlights often indicate a faulty relay or a broken ground at G300, mounted on the driver’s side frame rail behind the cab.
For power window issues, access the door jamb switch by removing the inner door panel. The main feed wire (pink) from the circuit breaker enters the switch at pin 4–bypass the switch by jumping pins 4 and 2 with a paperclip to test for motor functionality. If the window moves, replace the switch; if not, inspect the window regulator and motor for binding or stripped gears.
Test the antilock brake module by locating the EBCM under the master cylinder. Unplug the 85-pin connector and probe pin 60 (yellow) for 12V with the key ON. Zero voltage suggests a blown instrument panel fuse F21 (10A)–replace after confirming no short exists in the wheel speed sensor circuits. Use an oscilloscope to verify sensor signals show clean sine waves between 0.25V and 2.5V at 50 mph.
When replacing the starter, disconnect the positive battery cable and label all wires removed from the solenoid. The heavy red cable attaches to the stud closest to the bell housing, while the thinner purple wire triggers the solenoid relay. Apply thread-locking compound to the starter bolts and torque to 45 ft-lbs to prevent loosening from engine vibration.
For HVAC blower troubles, locate the resistor block behind the glove box. The 30A fuse (F2) in the under-dash panel powers the blower–test with a test light clipped to the fuse box ground. If the light illuminates but the blower only works on high, replace the resistor pack. Ensure the blower motor ground strap beneath the passenger seat is securely bolted to the chassis.
Finding Engine Bay Wire Link Points
Begin by tracing the main harness bundle from the firewall toward the front of the vehicle. Key tie-in spots cluster near the alternator, oil pressure sensor, and coolant temperature switch–all housed on the passenger side near the intake manifold. Use a flashlight to identify color-coded leads: dark green for coolant temp, light blue for oil pressure, and yellow for the alternator’s voltage regulator. Follow each wire back to its junction block, typically mounted on the inner fender or firewall, marked with matching color stripes.
Inspect the driver-side wheel well for additional connections. The anti-lock brake module harness branches off here, recognizable by its thick black casing and orange-striped wires. Probe beneath the air intake resonator to uncover the mass airflow sensor plug–its distinct trapezoidal shape differentiates it from nearby injectors and throttle position connectors. Label each plug with masking tape to prevent mix-ups during reassembly.
Check the ground straps bolted to the engine block and chassis. Corrosion here mimics electrical faults, so clean each contact point with a wire brush before reattaching. The ignition coil pack, nestled between the valve covers, connects via a compact harness with two red-and-black leads–verify continuity with a multimeter if misfires persist. Prioritize these steps before disassembling dash components.
Mapping Out the Dash and Gauge Cluster Circuit Configuration
Locate the black/orange stripe auxiliary fuse block near the steering column first–it feeds power to the ignition-controlled circuits, including the instrument panel. Verify continuity from terminal 6 of connector C1 (24-pin white) to the fuse; corrosion at this junction causes intermittent gauge failure. Use a multimeter set to 200 ohms; resistance should read below 0.5 ohms.
Identify the three main harness connectors behind the cluster bezel: white C1 (24-pin), gray C2 (12-pin), and black C3 (6-pin). The tachometer signal enters C2 pin 10 (tan/black stripe), grounded through pin 12 (brown). If the needle jumps erratically, probe these pins while rotating the key to ACC–voltage spikes exceeding 0.3V indicate a faulty ignition coil or fouled spark plugs.
- Backlighting circuits: orange wire (C1 pin 4) supplies 12V from headlight switch; dimming control runs through pink (C2 pin 2). Test with headlights on–voltage should drop to 3-5V at minimum brightness.
- Turn signal lamps: light green (C1 pin 14) and dark blue (C1 pin 15) alternate 0-12V at 1-2Hz. Use a non-contact voltage detector to confirm flashing without removing the panel.
- Check engine light: gray (C2 pin 11) pulls low to ground when triggered. If always on, back-probe this pin and scan for pending codes.
Disconnect the battery negative terminal before servicing the printed circuit board (PCB). Remove the four Torx T20 screws securing the cluster–lever gently at the top edges to avoid breaking plastic tabs. Inspect the PCB traces for green oxidation; clean with isopropyl alcohol and a fiberglass pen brush. Replace any blown SMD fuses (marked 250V 2A) only with identical ratings–aftermarket substitutes melt under 5A startup surges.
The speedometer output (C1 pin 13, purple) sends a 4000 Hz pulsed signal to the powertrain control module (PCM). If the odometer freezes, tap this pin while driving–momentary recovery suggests a failing vehicle speed sensor (VSS). Reconnect the VSS only after applying dielectric grease to the pins; water ingress corrodes the 3.3k ohm pull-up resistor inside the transmission tailshaft housing within 18 months if unprotected.
Tracing Power Window and Door Lock Electrical Routes
Locate the body control module (BCM) under the dashboard near the steering column–it manages both window and lock circuits. Use a multimeter to test voltage at pin 30 (constant 12V) and pin 58 (switched 12V) of the BCM harness connector; zero reading indicates a broken feed from the fuse box. For window motors, trace purple (left front) and dark blue (right front) wires from the BCM to the door jamb switches–corrosion here mimics motor failure.
Common Circuit Failure Points
| Component | Wire Color | Typical Voltage Drop | Diagnosis Method |
|---|---|---|---|
| Door jamb switch | Yellow/black (lock), Light blue (unlock) | 0.2V max | Backprobe connector, cycle switch |
| Window motor | Purple (down), Dark green (up) | 0.5V max | Ground motor case, test drive signal |
| Relay coil | Pink (coil supply) | 0.3V max | Swap with known-good relay |
For door locks, disconnect the actuator harness and measure resistance across the solenoid windings–values below 50Ω suggest shorted coils. Check the lock relay by swapping it with the horn relay (identical part); if locks engage, replace the faulty unit. Inline fuse holders near the kick panel often melt internally despite intact exterior–cut open the insulation to verify continuity.
