Start by locating the vehicle’s harness behind the dashboard panel near the driver’s side. The factory connector typically includes 12 wires with distinct color codes: solid yellow (constant 12V), red with blue stripe (switched power), black (ground), and pairs for left/right speakers (light green/white and purple/white). Verify these colors against the original installation–aftermarket units may require adapter harnesses if deviations exist.
For bypassing the factory anti-theft circuit, connect the red/blue stripe wire directly to a fused ignition source using a 10A fuse. Failure to isolate this line can trigger erratic power cuts. Ground the black wire to bare metal using a #12 AWG ring terminal, avoiding painted or coated surfaces to prevent voltage drops.
Speaker outputs should match impedance ratings–2-4 ohm for stock units. Cross-pollinating wires between front/rear channels will distort audio or damage amplifiers. Test connections with a multimeter: probe between each speaker wire and ground; expected readings are ~4-6 ohms for intact circuits. Use crimp connectors with heat shrink tubing for long-term reliability, not twisted splices.
If integrating a newer stereo, bypass the factory wiring entirely by sourcing a Metra 70-7501 adapter harness. This plug-and-play solution maps OEM wires to ISO standard outputs, eliminating manual splicing. For vehicles with premium sound systems, retain the external amp by splicing the gray/white (remote turn-on) wire into the new head unit’s blue/white lead.
After completion, verify all connections with the vehicle running. A popping sound during ignition indicates loose grounds; re-secure before proceeding. Store wiring diagrams in the glovebox for future reference–label each wire with masking tape during disassembly to avoid guesswork later.
Vehicle Audio System Connector Guide for the B13 Chassis

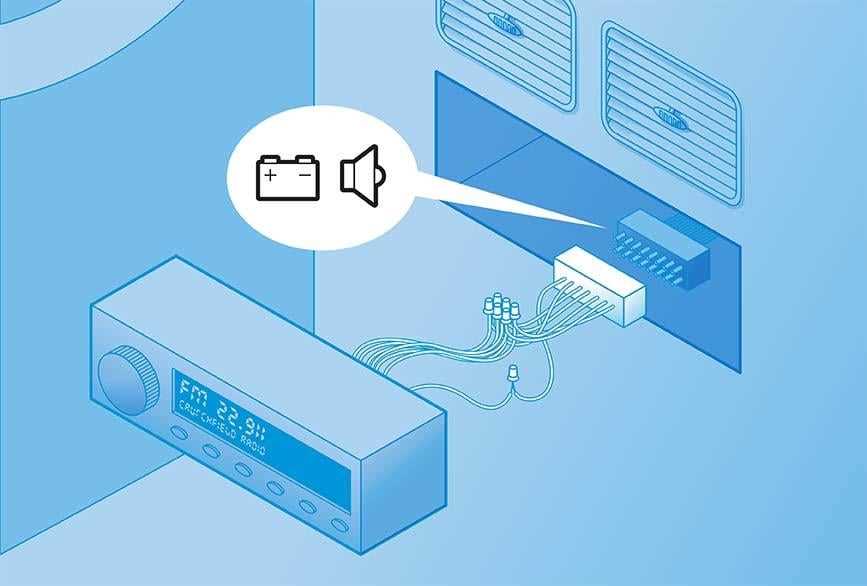

Begin by locating the factory harness behind the dashboard assembly. The primary connector is a 12-pin plug with a distinctive white housing–match this to the aftermarket stereo’s wiring loom using a universal adapter. Pin assignments follow the ISO standard with minor deviations: constant 12V power is on pin 4 (yellow), ignition-switched 12V on pin 7 (red), and ground on pin 5 (black).
Speaker outputs occupy pins 1 (front left positive, white), 2 (front left negative, white/black stripe), 3 (front right positive, grey), and 6 (front right negative, grey/black stripe). Rear channels use pins 8 (rear left positive, green) and 9 (rear left negative, green/black stripe), with pins 10 (rear right positive, violet) and 11 (rear right negative, violet/black stripe). Avoid connecting these directly to amplified outputs without an inline resistor.
Illumination control is handled via pin 12 (orange), linked to the dimmer circuit. This wire requires a 1kΩ resistor in series when interfacing with modern head units to prevent flickering or overload. Antenna trigger (blue/white) is absent in the OEM harness–install a separate relay if the new system demands it.
For vehicles equipped with a premium audio package, an additional 8-pin connector supplies power to the factory amplifier. This sub-harness uses a brown plug; pin 1 delivers 12V constant, pin 2 is ground, and pins 3–8 are speaker-level inputs. Bypass this entirely when retrofitting a non-amplified system to avoid signal degradation.
Troubleshooting Common Integration Issues
If static persists, verify the ground connection at the chassis–sand paint from a bolt near the original mounting bracket and use star washers to ensure conductivity. High-frequency noise often stems from unshielded RCA cables routed near power wires; maintain a 30cm separation or use twisted-pair RCA lines.
Check for voltage drops across the constant power lead with a multimeter–readings below 11.8V indicate a corroded fuse (10A, located in the under-hood box, slot 17). Factory connectors may have brittle insulation; replace cracked terminals with crimp-style spade connectors and heat-shrink tubing.
When retrofitting a system with steering wheel controls, use an ASWC-1 adapter wired to the gray 2-pin connector behind the glove box. This module requires programming via a laptop but eliminates the need for splicing into the vehicle’s CAN bus.
Final Assembly Precautions
Reinstall the dashboard cover in reverse order–align the climate control bezel first, then secure the stereo housing with the factory screws (M5 x 20mm). Test all functions (power, balance, fade) before final tightening. If the display dims inconsistently, reconfirm the illumination wire’s resistor value or substitute it with a solid-state dimmer module.
Finding the Audio System Plug Beneath the Instrument Panel
Remove the lower dashboard trim panel by prying out the two plastic clips near the steering column and the single screw hidden behind the cigarette lighter bezel. The panel drops straight down–no twisting needed–revealing the backside of the climate controls and the target connector snug against the firewall, secured by a 10 mm bolt.
- Disconnect the negative battery cable first to prevent accidental shorts.
- Label every wire with masking tape before unplugging; colors repeat across circuits.
- Trace the harness down from the head unit; it splits into two eight-pin plugs, one rectangular (main power) and one trapezoidal (speaker outputs).
- Check for corrosion on the pins; use electrical contact cleaner on both plugs before reconnection.
Key Connector Identifiers
The main power plug contains a solid yellow 12 V constant wire, a red ignition-switched line, and a black ground lead. Speaker outputs are grouped in pairs: front left (gray), front right (white), rear left (green), and rear right (violet), each accompanied by a striped grounding partner.
Identifying Connector Cable Hues and Their Purposes
Begin by locating the constant 12V power lead–typically a solid yellow strand–that maintains memory settings. Verify this first, as incorrect connections risk draining the vehicle’s battery overnight. Use a multimeter set to DC voltage; probe the yellow wire while the ignition is off–readings should remain above 11.5V. If voltage drops below this threshold, inspect the fuse or ground path for corrosion.
Trace the illumination wire–usually a thin orange or light green stripe–responsible for dimming panel lights in sync with headlights. Connecting this to the wrong terminal causes either no backlighting or blinding brightness at night. Test by toggling headlights; the dash display should adjust proportionally. If unresponsive, check for continuity between the stereo’s harness and the vehicle’s lighting module.
Critical Signal and Ground Paths
Black strands serve as chassis grounds–attach these directly to bare metal surfaces, avoiding painted areas. Use a 10-gauge ring terminal crimped tightly; even minor resistance here introduces static, distorted audio, or intermittent shutdowns. Strip insulation no farther than the terminal’s barrel length to prevent short circuits.
Left (white) and right (red) speaker wires carry amplified signals–swap their polarity, and bass notes cancel out entirely. Confirm correct pairing by touching a 1.5V AA battery to each lead while idle: the corresponding speaker should emit a distinct click. If clicks are faint, inspect for frayed strands or partial breaks beneath insulation–signal wires demand pristine conductivity to prevent phase distortion.
Integrating Third-Party Audio Units with Factory Harnesses Using Adapters

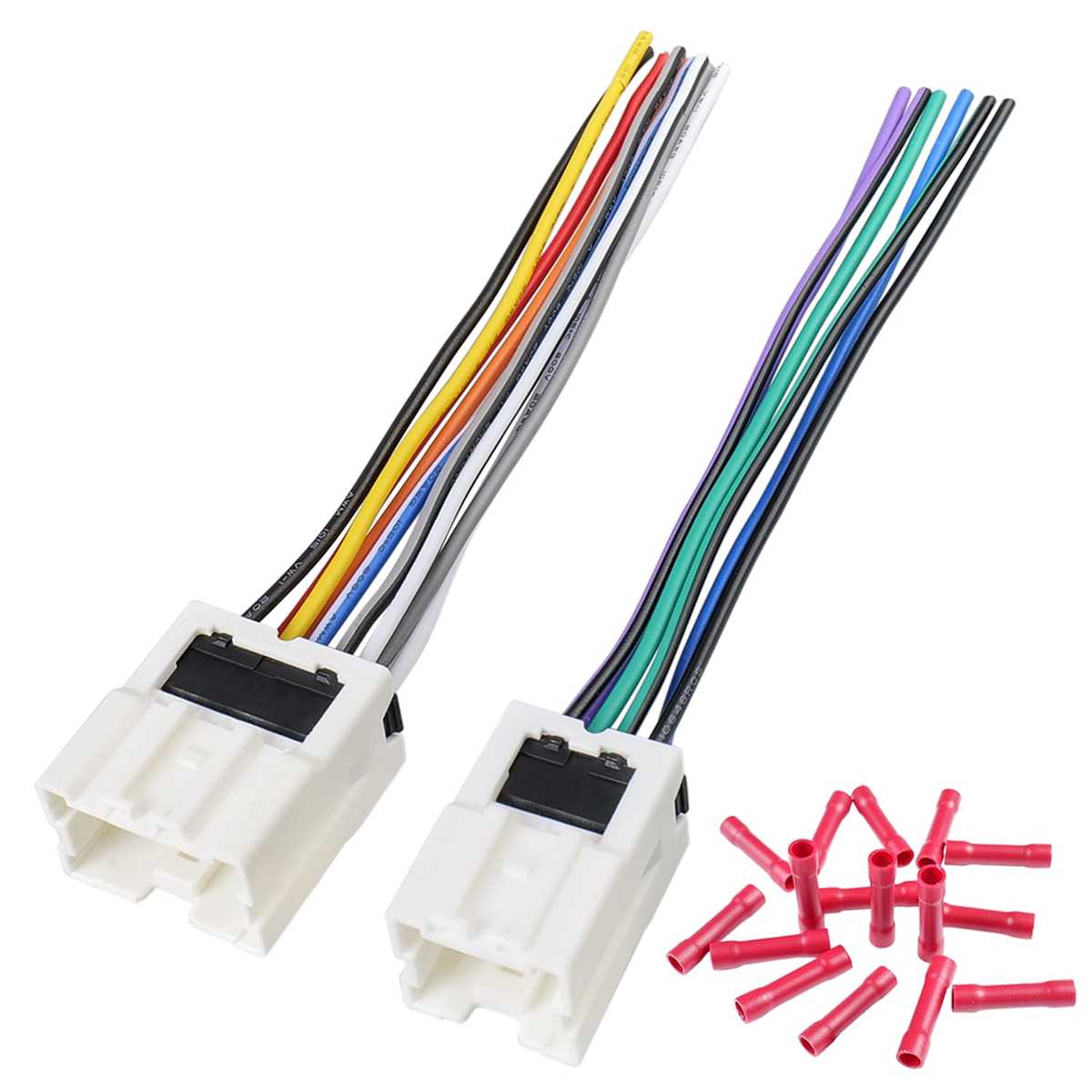

Locate the vehicle’s original connector behind the dash–typically a 10-16 pin plug with color-coded leads matching the manufacturer’s standard. Purchase a harness adapter specific to the model year and trim (e.g., Metra 70-1748 or Axxess ASWC-1 for steering wheel controls). These adapters splice directly into factory plugs, maintaining all safety circuits and antenna triggers without modifying insulation.
Verify wire functions against the adapter’s manual–factory power often includes yellow (constant 12V), red (switched 12V), black (ground), and blue/white (amplifier remote). Test each lead with a multimeter: probe the wire against chassis ground to confirm voltages (12V/DC for power, continuity for grounds). Avoid relying solely on color codes; cross-reference with a pinout diagram if discrepancies arise.
| Factory Wire | Third-Party Equivalent | Verification Method |
|---|---|---|
| Yellow (B+) | Red (Battery) | 12V constant, fuse holder check |
| Red (ACC) | Yellow (Switched) | Voltage drops to 0V when ignition off |
| Black (GND) | Black (Ground) | Continuity to chassis, <0.5Ω |
| Blue/White (Remote) | Blue (Antenna) | 12V when unit powered, 0V off |
Use Posi-Taps or T-taps to connect speaker wires (typically gray, white, green, purple pairs with striped grounds) to the adapter. Strip 3mm of insulation, slide the tap over the factory wire, and secure it–no soldering required. Ensure polarity matches between systems; reversed polarity distorts audio. For premium sound systems, confirm if factory amps require bypassing by checking for retained accessory power (RAP) circuits.
Secure the adapter with zip ties to prevent vibration damage to connections. Route excess wiring behind the climate controls or under the dash panel, avoiding sharp edges or moving components. Test anti-theft features (if applicable) by disabling power for 30 minutes–some aftermarket units lose presets unless a memory saver is used, which connects to the OBD-II port during installation.
Finalize by reconnecting the battery and cycling the ignition to ensure all functions operate: display backlight, tuner presets, and steering wheel controls (if retained). If controls don’t respond, reprogram the ASWC-1 module using the included instructions–hold the “volume +” button for 3 seconds to enter pairing mode.
