Locate the power antenna wire at pin 12 (blue) on the factory harness connector–this activates the motorized unit when the stereo powers on. Connect it directly to the head unit’s antenna trigger (10V DC) to avoid intermittent signal loss, especially at highway speeds where weak grounding fails.
Wire color codes differ behind dash-mounted receivers versus trunk-mounted amplifiers. For sedan models with premium sound, attach the orange/yellow lead (illumination) to a dimmer-compatible circuit; splicing into the taillight feed preserves dash light synchronization during night driving. Avoid tapping instrument cluster harnesses–voltage spikes can corrupt memory settings.

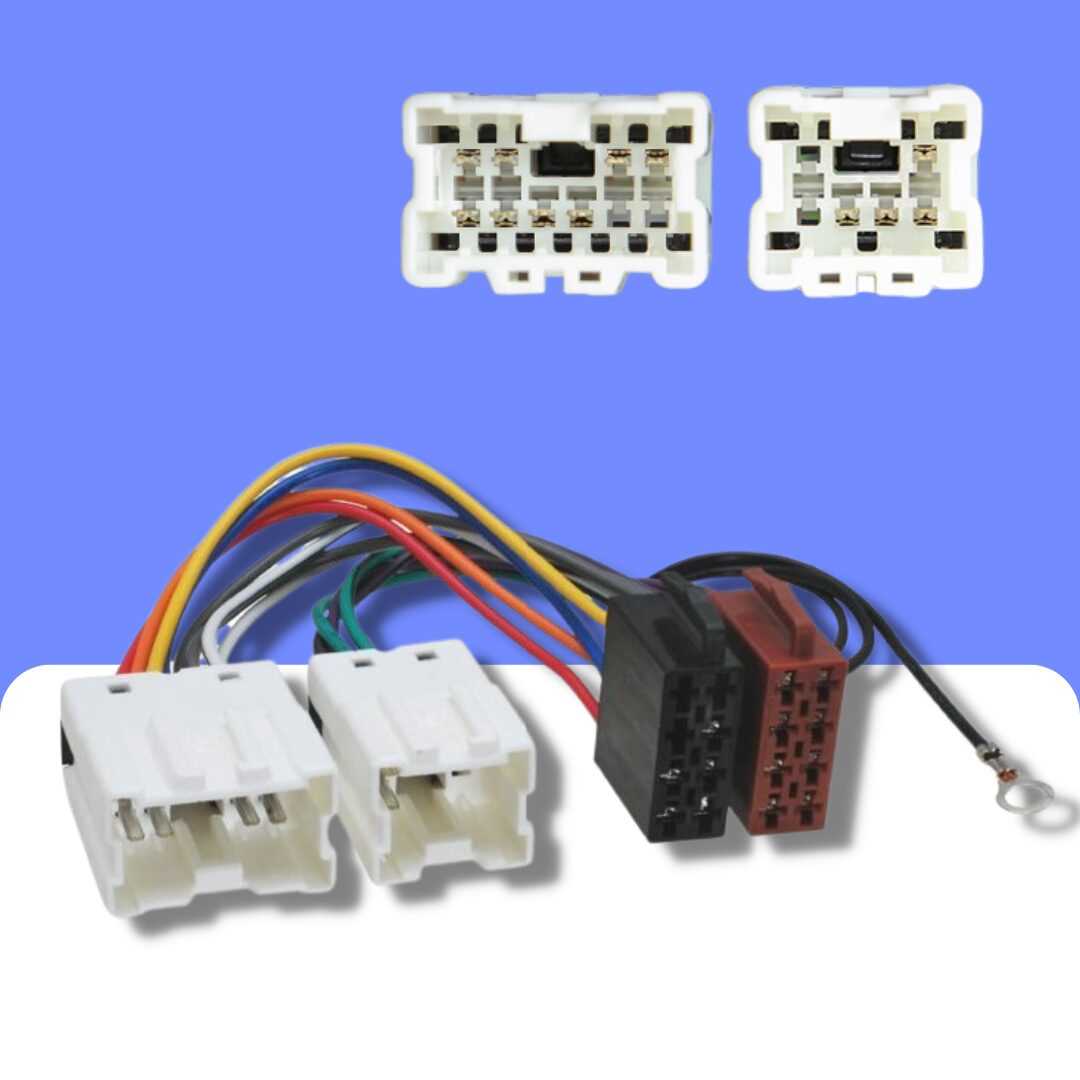

Aftermarket adapters for the single-DIN enclosure often omit the org/gray (mute) and org/red (reverse) wires essential for navigation mute and backup camera input. Verify continuity across both wires before finalizing the install; resistance above 0.5 ohms indicates corroded terminals, requiring removal of the kick panel for direct battery grounding.
Speaker outputs follow the A622, A623 schematic IDs. Front doors use blue/white (+) and blue/red (-) pairs, while rear deck mounts pair brn/yel (+) and brn/wht (-). Reversing polarity diminishes bass response and risks tweeter damage when amplifier turn-on thumps occur.
Guide to Connecting Your Vehicle’s Audio System Circuitry
Locate the 12-pin connector behind the factory stereo–pins 1 through 4 supply constant power, ignition, and ground. Use a multimeter to verify voltages: pin 1 should read 12V at all times, while pin 2 delivers voltage only when the key is in the “ACC” position. Mismatched readings often indicate a blown fuse or corroded harness, which can be traced using the vehicle’s main fuse block under the dashboard on the driver’s side.
Color-Coded Harness Breakdown
Solid blue wire handles antenna power, requiring a splice to the aftermarket unit’s blue/white lead for automatic activation. The six speaker outputs follow a consistent pattern: front left positive (gray), front left negative (gray/black), rear left positive (green), rear left negative (green/black), front right positive (white), front right negative (white/black). Avoid grounding any negative wires directly to the chassis–this introduces distortion and risks damaging the amplifier’s internal circuits.
For vehicles equipped with a Bose system, the harness includes an additional orange/black wire, which carries a 4V reference signal. This wire must be disconnected when retrofitting non-Bose units, as leaving it connected causes erratic volume fluctuations. Aftermarket adapters often label this wire as “illumination” or “dimmer,” but bypassing it entirely is the safest approach unless the new stereo explicitly supports Nissan’s proprietary voltage modulation.
Solder each connection and insulate with heat-shrink tubing rather than electrical tape–vibration from road use degrades tape’s adhesive properties within months. For secondary components like CD changers or subwoofer controls, the gray/red wire provides switched power, delayed until the ignition cycles off to prevent battery drain. Always test load handling with the engine off before finalizing the install; a parasitic draw over 50mA indicates an improperly terminated circuit.

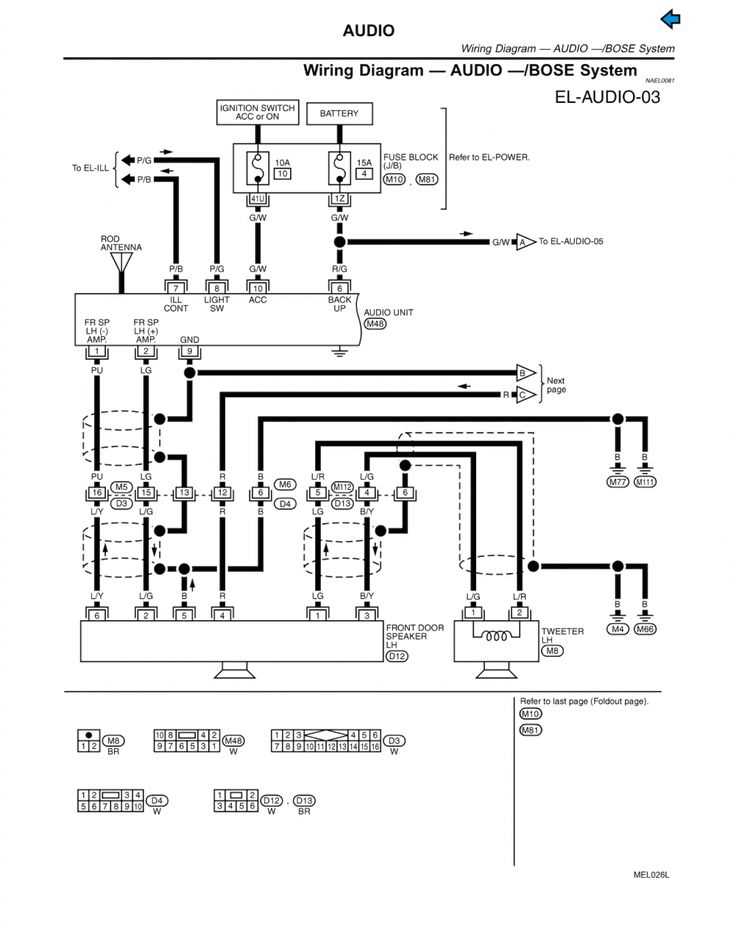

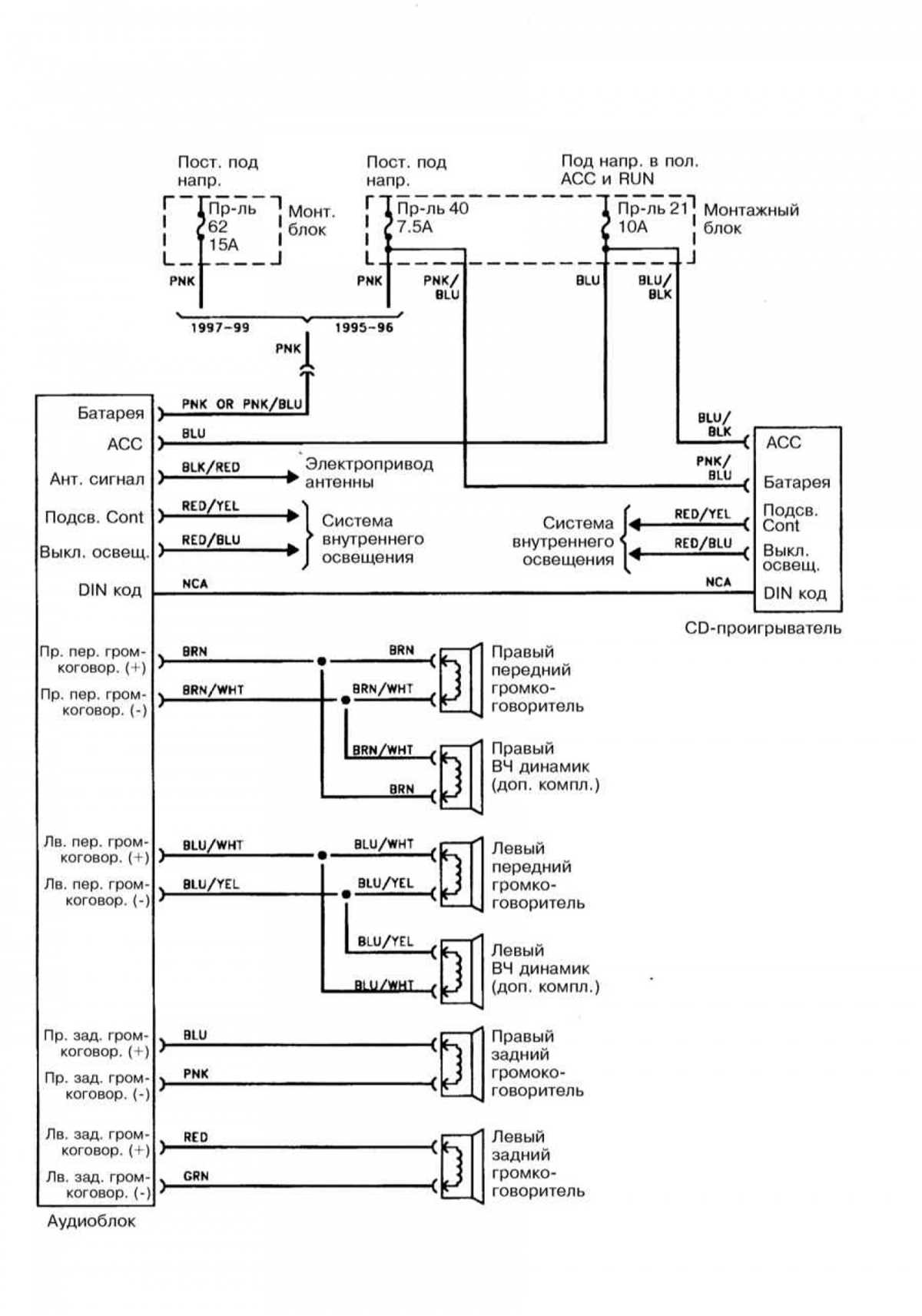

Locating the Authentic Electrical Schematic for Your Fourth-Generation Sedan’s Audio System
The most reliable source for the official harness layout is the original service manual released by the manufacturer. This document, often labeled as the Factory Service Manual (FSM) or Electrical Wiring Diagram (EWD), contains the precise pinouts, color codes, and connector configurations. Copies can be obtained directly from authorized dealers, though older editions may require requesting archived materials. Some dealers charge a nominal fee for reproduction or digital access, typically under $20.
For immediate access, specialized automotive documentation platforms like Mitchell1, ALLDATA, or ChiltonDIY offer paid subscriptions that include exact reproductions of the factory schematics. Mitchell1’s OnDemand service provides the EWD section in a searchable format, including splice points for the Bose premium sound system variant. A 24-hour pass costs approximately $25, while annual subscriptions range from $80–$120, granting access to wiring layouts for additional models.
Free alternatives exist but demand caution. Enthusiast forums such as Maxima.org and NICOclub maintain dedicated threads where members upload scanned excerpts from manuals. Verify the authenticity of shared files by cross-referencing connector labels (e.g., “C101” for the head unit) and wire colors (orange/black for ground, pink for memory power) with known good references. Peer-reviewed uploads from long-standing forum members are more trustworthy.
Key Documentation Sources at a Glance
| Source | Format | Cost | Access Method |
|---|---|---|---|
| Dealer Service Manual | Print/Digital | $0–$50 | In-person or email request |
| Mitchell1 OnDemand | Digital (PDF/searchable) | $25–$120 | Website login |
| NICOclub Forum | Scanned PDF | Free | Forum download links |
| PDF/Printed | $10–$30 | Digital delivery |
eBay and ETSY sellers offer instant digital downloads of the EWD section, often bundled with other trim-specific schematics. Search for “A32 sedan electrical wiring diagram” to filter results. Prices vary from $10–$30, and reputable sellers usually include previews showing wire gauge, fuse ratings, and connector pin assignments. Avoid listings with watermarked or low-resolution samples.
The vehicle’s glovebox may contain a spare-parts catalog that includes a simplified wiring overview. While less detailed than the EWD, it maps basic connections like antenna feed, illumination, and power inputs. If the original owner retained the manual, the schematic is typically on pages 120–135, marked with component labels (e.g., “A/T CU” for automatic transmission control unit sharing the harness).
Salvage yards sometimes permit manual photocopying from donor vehicles’ glove compartments. Identify local yards with this model in stock using tools like Car-Part.com, filtering for “A32 1995–1999.” Bring a notebook to sketch critical routes, noting splice locations for the amplifier and CD changer interfaces, which differ from base stereo setups.
When tracing circuits manually, use a multimeter to confirm wire functions. The ignition-switched power line should show 12V only when the key is in the “ACC” or “ON” position, while the permanent battery feed remains live at all times. Document deviations–aftermarket alarms or keyless entry systems often reroute the yellow (memory) and red (accessory) wires, complicating repairs.

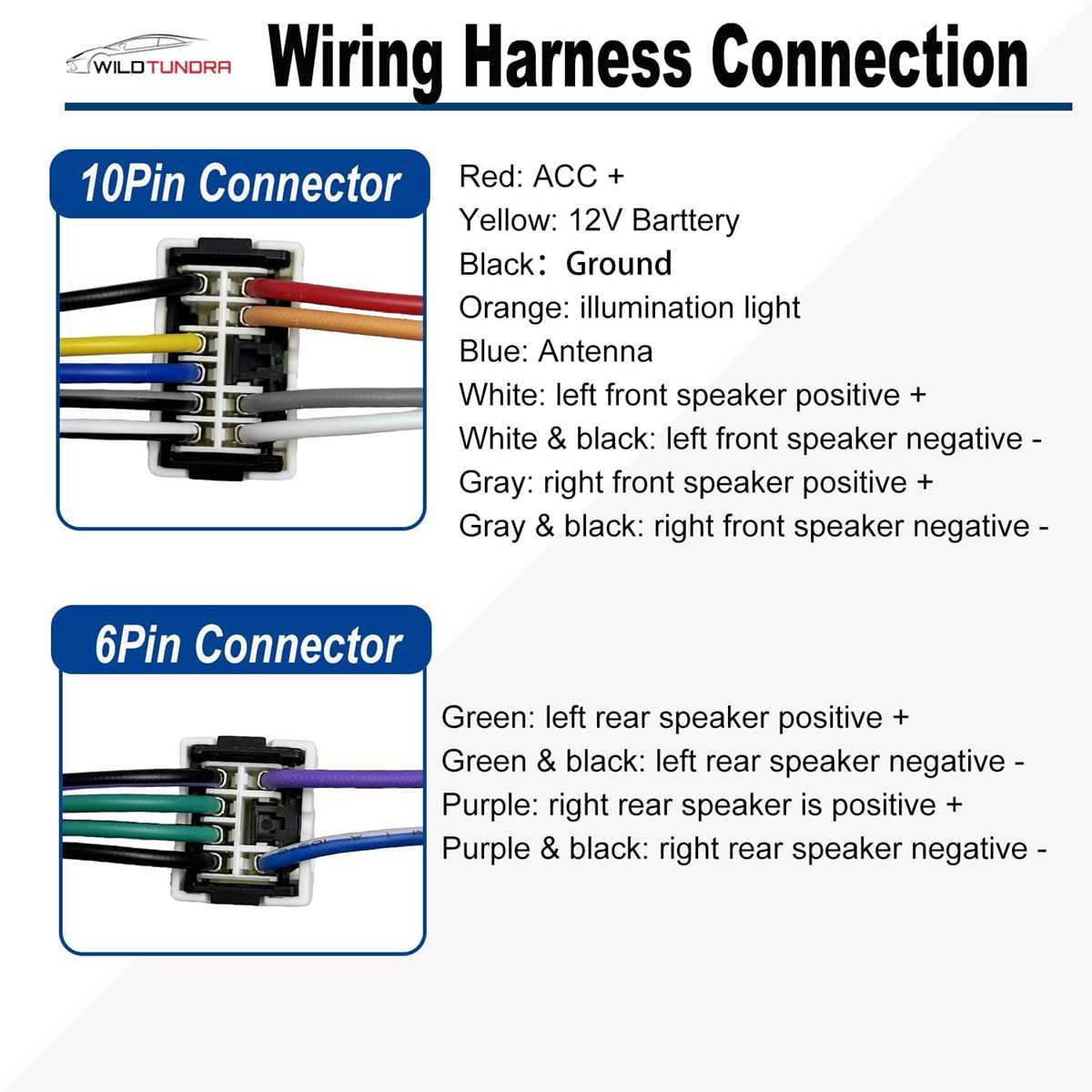

How to Match Audio System Cable Colors to Their Purpose

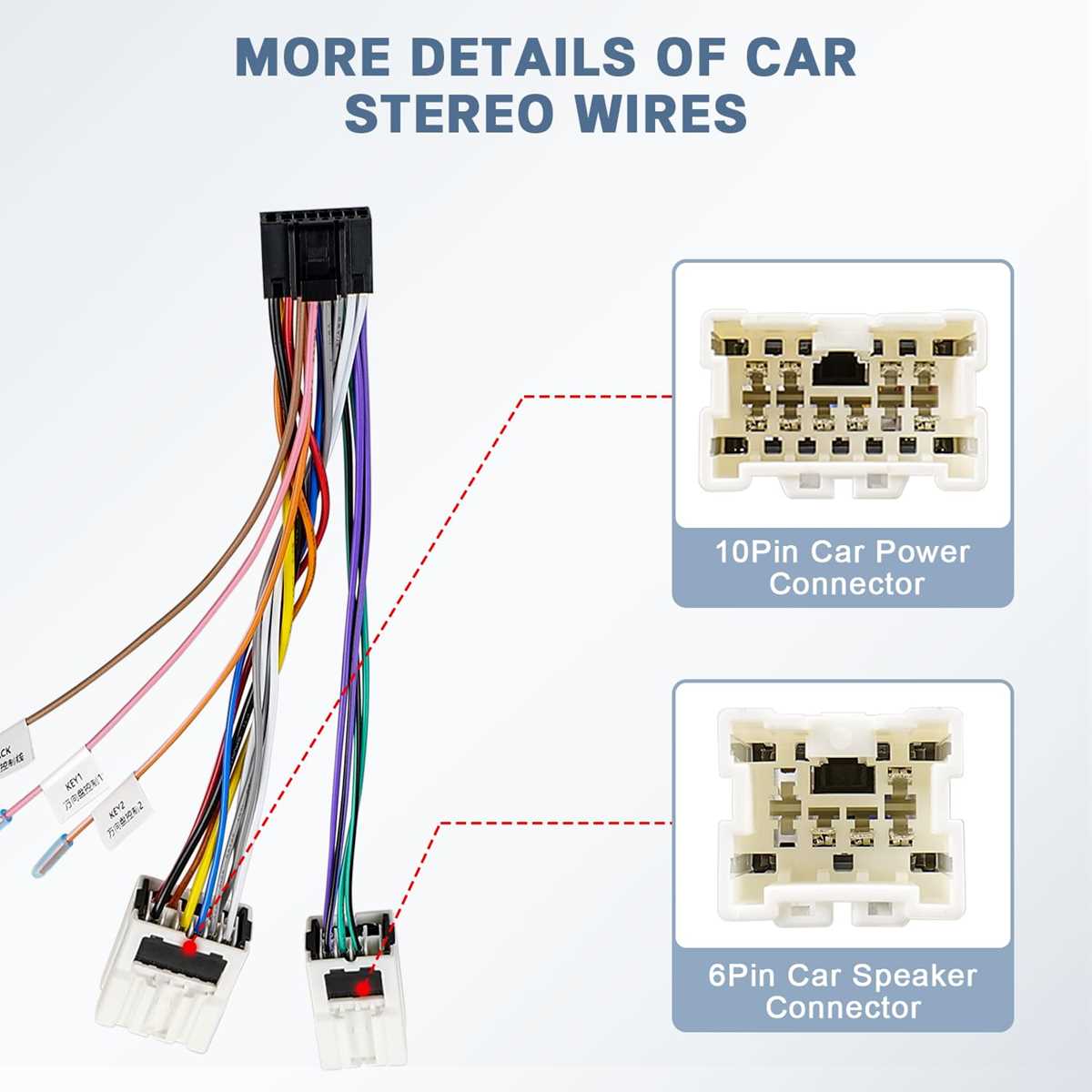

Locate the main harness connector behind the head unit’s mounting sleeve. On factory-installed decks, this plug typically contains 16 or 20 terminals arranged in two rows. Pin numbering follows a standard: odd-numbered slots sit on the left, even on the right.
Identify ground first–it’s always black or dark green in older assemblies. Confirm continuity with the chassis using a multimeter; readings below 0.1 ohms indicate a solid ground. Loose crimps here cause buzzing, so re-crimp if corroded.
Trace the memory power feed–the violet or orange stripe that stays hot regardless of ignition position. Attach this to the battery’s positive terminal via a fuse no larger than 10A; bypassing the fuse risks draining the vehicle’s reserve.
Next, find the switched twelve-volt line–usually red or pink–activated only when the key turns to ACC. Verify voltage drops to zero when the key returns to OFF. Wrong connections here prevent the deck from powering down, overloading the circuit.
Speaker cables follow a consistent palette: solid gray (+) and gray-black (-) for front right, solid white (+) and white-black (-) for front left, purple (+)/purple-black (-) for rear right, green (+)/green-black (-) for rear left. Swap polarity and observe balance–distorted bass reveals incorrect pairing.
Look for dimmer wires–often orange or light blue–used to sync dashboard lighting. Route these through a 5kΩ potentiometer if factory dimming control seems erratic. Avoid splicing directly into headlight circuits, as voltage spikes can damage the unit’s illumination module.
Finally, inspect antenna leads–either solid blue (trigger) or blue-white (motorized mast). Connect the trigger to any switched 12V source; attach the mast cable only to passive antennas. A missing ground on motorized masts causes slow retraction and static on weak FM signals.
How to Test and Confirm Each Audio System Cable Link Before Setup
Start by disconnecting the vehicle’s battery to prevent short circuits during verification. Use a multimeter set to continuity mode (or the lowest ohms range) to check each connector pin. Touch one probe to the wire’s exposed end and the other to the corresponding terminal on the device’s harness. A reading near zero ohms confirms a solid connection.
For power feeds, switch the multimeter to DC voltage (20V range). Reconnect the battery and probe the live wires while the ignition is off, then on. Expected values: 12V constant for memory retention, 12V switched for accessory power. Deviations indicate a faulty fuse or broken circuit.
- Identify ground cables by color (typically black or brown). Verify by probing between the wire end and a clean metal point on the chassis. A reading below 0.5 ohms ensures a reliable ground.
- Speaker leads can be tested with the multimeter in continuity mode. Tap the probes to the positive and negative wires–no resistance means a short, infinite resistance indicates an open circuit.
- For amplified signals, use an audio signal tester or connect a 9V battery briefly to the speaker wires. A click sound confirms the path is intact.
Label each wire with masking tape after verification to avoid confusion during installation. Cross-reference findings with the manufacturer’s harness layout to spot miswired or missing connectors. Re-test any questionable connections before securing them permanently.
Tools Required
- Digital multimeter (with continuity and voltage modes)
- Wire strippers (for exposing bare metal)
- 9V battery (for speaker wire tests)
- Alligator clips (for secure probing)
If the multimeter shows erratic readings, inspect the wire for frays, corrosion, or loose crimps. Replace damaged sections with soldered connections wrapped in heat-shrink tubing for durability. Avoid twist-and-tape joints–they degrade over time.
Final step: Reconnect the battery, power on the system, and verify all functions (tuner, media input, volume controls). No distortion or intermittent operation confirms a successful pre-installation test.
