For accurate diagnostics, start by locating the resistor pack near the fan assembly–typically mounted behind the glovebox or under the dashboard on the passenger side. The circuit includes three primary connectors: the power feed (red wire, 12V constant), the ground (black wire), and the control input (gray or blue wire, depending on speed selector position). Use a multimeter to verify voltage at each terminal while cycling through fan speeds; readings should drop incrementally (12V → ~8V → ~5V → ground) as resistance increases.
If the fan operates only at full speed, the speed control module has likely failed–common in vehicles with high mileage due to heat stress. Replace it with an OEM equivalent (part #56044644AB) rather than aftermarket units, which often lack proper thermal protection. For intermittent operation, inspect the relay under the hood near the fuse box (identifiable by its square shape and labeled “HVAC Blower”). Clean its contacts with DeoxIT or replace it entirely, as corrosion is a frequent culprit.
Trace the wiring harness along the firewall, focusing on the passenger-side kick panel. Look for chafed insulation where the bundle enters the cabin–this zone is prone to abrasion from pedal assemblies. If the circuit shows continuity but no power at the fan, check the 20-amp fuse in the under-dash panel (position #14 on most models). Replace it only with the specified amperage; higher-rated fuses risk melting the harness.
For low-speed failures, test the final resistor in the pack–the large ceramic component with three windings. Set your multimeter to ohms and probe across each winding; readings should be ~1.0–1.2 ohms for the first two and ~1.8–2.0 ohms for the last. Deviations indicate a shorted winding, requiring full module replacement. Avoid bypassing the resistor pack, as doing so will force the fan to run at maximum output, straining the motor and draining the battery.
Electrical Guide for HVAC Fan Assembly in the 199X Grand Wagoneer Variant
Check the fusible link labeled F2 in the under-hood power center–it feeds the climate control module directly. If burnt, replace with a 20A fuse; any deviation risks shorting the entire loop.
Trace the orange wire (terminal 87) from the relay to the fan resistor pack beneath the glovebox. Corrosion here mimics faulty motor behavior–clean contacts with dielectric grease or bypass temporarily with 12-gauge jumper wire to isolate.
The resistor block uses a stepped network: high speed engages the purple/black stripe wire (terminal H), medium draws via dark blue (terminal M), low via tan/black (terminal L). Probe each terminal with a multimeter at 12V; readings below 10V indicate resistance failure.
Ground return is shared through the black wire at the firewall stud G103. Scrape paint off the mounting surface–improper grounding causes intermittent spin or complete stall under load.
For diagnosis, disconnect the two-prong connector behind the passenger kick panel. Apply 12V directly to the male terminals; if the impeller spins freely at max RPM, the issue lies upstream in the wiring harness or switch.
Common Failure Points

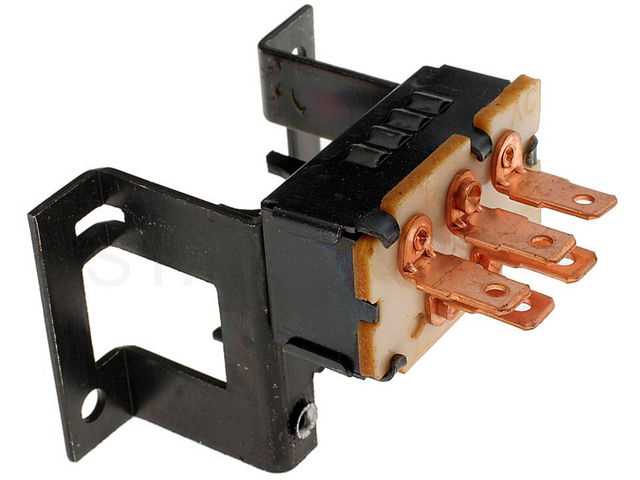

The heater control switch on the dash ages internally. Test by jumping the female terminals: pin 4 (purple) to pin 7 (black) should force max airflow. If not, replace the switch–avoid aftermarket units, as they often misalign voltage drops.
The relay socket corrodes over time; remove the relay (designated K27), inspect for green oxidation on the copper pads. Sand clean, apply anti-oxidant compound, and reseat. If relay clicks but fan remains dead, swap with the identical horn relay from slot K26 to rule out faulty relay.
Finding the Climate Control Fan Assembly Connector Points
Begin by removing the lower dashboard panel beneath the steering column. This exposes the HVAC module housing, where three primary connectors attach to the fan assembly. The largest of these is the power feed–marked by a green or gray plastic casing with male spade terminals. Trace this bundle upward; it terminates behind the glove compartment, secured by a single 10mm bolt adjacent to the evaporator housing.
Identify the second connection near the firewall, just left of the brake pedal bracket. This smaller, two-wire harness uses female bullet connectors and carries the resistor pack signals–inspect for corrosion or melted insulation, common failure points. The third, a single-wire ground, attaches via a ring terminal to the chassis; follow the braided strap from the fan casing downward to locate it threaded through a metal grommet near the kick panel.
- Disconnect the battery negative terminal before handling any harness.
- Label each connection with masking tape to avoid cross-wiring during reassembly.
- Use a multimeter set to continuity mode to verify integrity: probe the spade terminals while rotating the fan switch through all positions.
- Gently wiggle connectors while testing to detect intermittent faults.
The fan relay resides in the under-hood fuse block, identifiable by a black plastic cover labeled F4; remove it to access the hidden spade terminals beneath. Probe these with a test light while an assistant cycles the ignition–illumination at terminal 87 confirms proper voltage delivery. If absent, inspect the maxi-fuse holder adjacent to the battery for a burned 30A fuse, a frequent casualty of shorted fan circuits.
Decoding Fan Assembly Circuit Wire Colors
Locate the vehicle’s interior fuse panel beneath the dashboard to begin tracing the HVAC system’s electrical paths. The primary power feed for the climate control fan typically originates from a green/black striped conductor, delivering 12V directly from the battery via a dedicated fuse (usually 25A). This wire splits into two branches: one leading to the resistor block (often dark blue or tan) and another to the switch assembly, identifiable by a light blue or pink tracer.
- Ground connection: Solid black wire, often crimped to chassis near the fan housing. Corrosion here mimics intermittent failures–clean contacts with dielectric grease.
- Resistor outputs: Three wires (commonly white, yellow, violet) control fan speeds by varying resistance. Test continuity between these and the main feed wire; infinite resistance indicates a broken coil.
- Switch feedback: Purple wire sends voltage back to the climate control module, confirming switch position. If this reads 0V on all speeds, suspect a dead switch or open circuit.
For high-speed operation, the system bypasses the resistor, routing power through a dark green/orange stripe wire tied to a relay near the fuse panel. This circuit demands heavier gauge wire–inspect for chafing near the firewall where the harness bends. Use a multimeter’s diode test mode to verify relay functionality: a functioning relay should click and show ~0.5V drop across terminals 85/86. If silent, replace the relay before assuming fan assembly failure.
Verifying Power Delivery at the Climate Control Resistance Module Across Fan Speeds
Begin by locating the resistance assembly under the passenger-side dashboard–typically secured behind the climate housing near the evaporator outlet. Disconnect the wiring harness connector to prevent backfeeding from the control module. Set your multimeter to DC voltage scale at 20V or higher to accommodate full circuit potential.
Probe the input terminal (commonly the larger gauge wire) against chassis ground while the selector is set to each speed position. At the lowest setting, expect a reading between 4.5V and 6V. If voltage exceeds 6.5V or falls below 4V, suspect a degraded power relay or corroded circuit path upstream. Intermediate speeds should incrementally rise–7V to 9V for medium-low, 9.5V to 11.5V for medium, and 11.5V to 13.5V for the highest output. Deviations exceeding ±0.8V per step indicate internal resistance degradation requiring replacement.
Trace each speed wire from the control switch to the resistor pack. Use a pinout diagram for reference–color codes often follow: white/yellow for low, dark blue/orange for medium-low, brown/red for medium, and solid pink for high. Cross-reference readings against the table below:
| Fan Speed | Expected Voltage Range (V) | Diagnostic Action |
|---|---|---|
| Low | 4.5–6.0 | Check ground integrity if <4V |
| Medium-Low | 7.0–9.0 | Inspect relay contact resistance |
| Medium | 9.5–11.5 | Verify switch continuity |
| High | 11.5–13.5 | Test fuse link bypass |
Engage high speed and monitor voltage stability for 30 seconds. Fluctuations exceeding ±0.2V suggest intermittent circuit connections–wriggle test the connector and wiring loom for intermittent faults. If voltage remains stable but airflow lacks corresponding intensity, measure current draw at the resistor output: disconnect the fan harness and series-connect an ammeter. Expected values range from 3A (low) to 12A (high). Readings below 2.5A at any setting confirm excessive resistance in the rotor assembly.
When verifying ground paths, ensure the chassis bonding point (often near the firewall) shows less than 0.2Ω resistance to the battery negative terminal. Elevated resistance here mimics resistor failure–clean contact surfaces with a wire brush and reapply dielectric grease before reassembly. If voltage readings normalize after cleaning, the original connection was compromised by oxidation.
For vehicles with manual climate controls, switch the ignition to accessory mode without engine running. This isolates the circuit from alternator noise, which can cause false-positive voltage spikes on high-speed settings. If spikes persist, install a 0.1µF ceramic capacitor across the resistor input to suppress transient interference before condemning the module.
Reconnect the harness and retest with the cabin fan operational. If any speed setting delivers correct voltage yet fails to sustain airflow, disassemble the motor housing and inspect the armature commutator. Carbon deposits on two or more adjacent segments signal brush wear–replace the unit if wear exceeds 2mm or segments exhibit pitting deeper than 0.5mm.
Document all readings per speed setting for comparison after repairs. Voltage consistency across three consecutive tests confirms successful diagnosis–deviation warrants rechecking upstream components, starting with the control switch and relay bank.
