Start by locating the fusebox under the dashboard near the driver’s knee–this is the nerve center for your vehicle’s circuits. Remove the cover to expose the relays and fuses; label each one with masking tape before disconnecting anything. Pin #15 on the black 22-pin connector (behind the instrument cluster) carries ignition-switched power–test for 12V with a multimeter before proceeding. If voltage is absent, inspect the pink wire leading to the ignition switch; corrosion at the firewall grommet is a common failure point.
The ECU harness (grey 32-pin connector) requires precise reconnection. Pin #5 (green/black stripe) controls the fuel pump relay–verify continuity to ground when the key is turned to “ON.” For sensor circuits, the MAP (red/white) and throttle position (blue/black) wires terminate at the ECU’s pin #24 and #22, respectively; reverse polarity here will trigger error code 33. Use a factory service manual for exact wire colors–aftermarket diagrams often swap yellow and light blue.
Ground points G102 (behind the left taillight) and G203 (near the battery) are critical for proper system operation. Sand down any paint or rust at these locations before reattaching the ring terminals–loose grounds cause intermittent electrical gremlins like random stalling or erratic gauge readings. For interior components, the headlight switch’s dimmer circuit (orange wire) splits into two paths: one to the instrument cluster (purple) and another to the A/C control module (brown). Use a tone generator to trace these splits if retrofitting LED bulbs.
Always disconnect the battery’s negative terminal before servicing any electrical component. For troubleshooting, a digital oscilloscope is more reliable than a test light–especially for O2 sensor waveforms (grey wire) or ignition coil trigger signals (black/red). Keep a fire extinguisher rated for electrical fires nearby when probing live circuits near flammable materials.

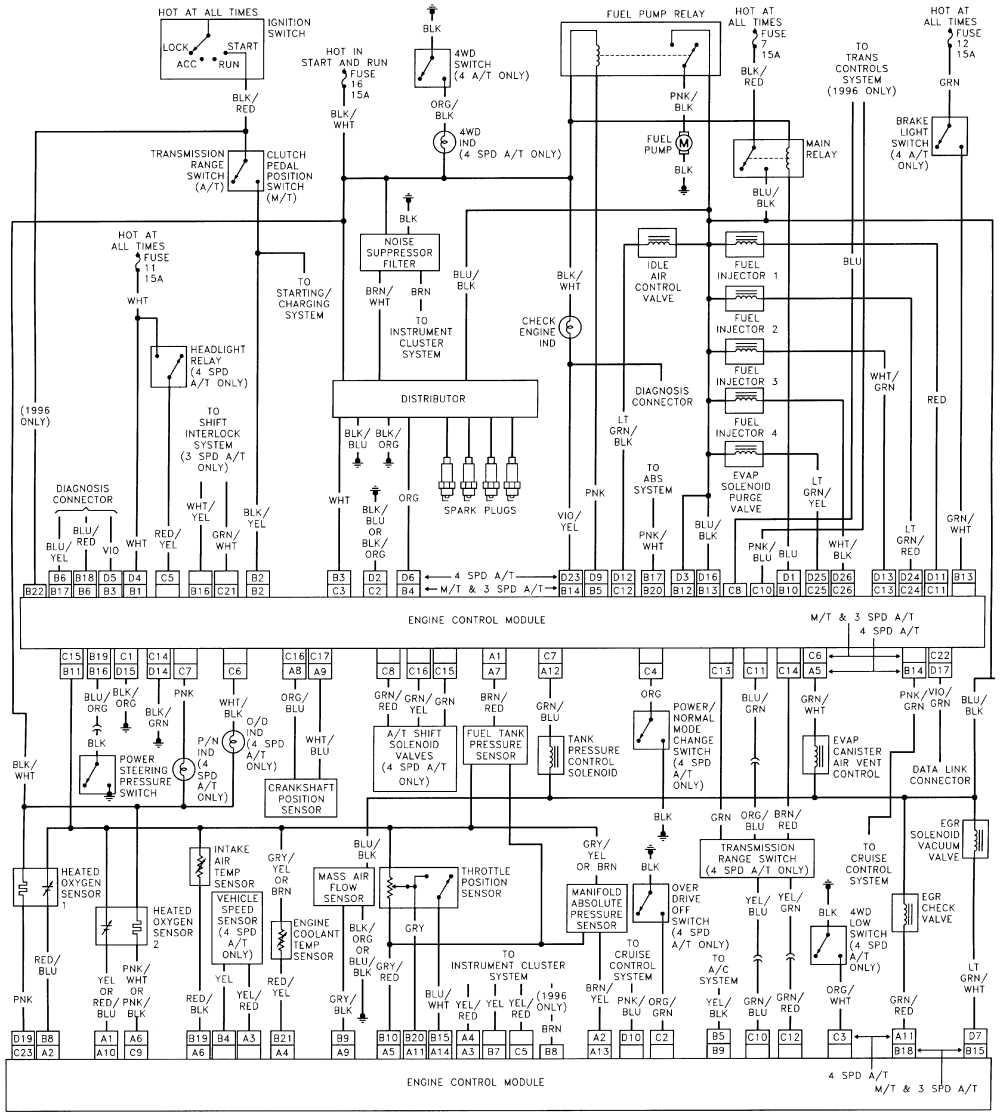

Electrical Schematic Reference for the 1996 Compact SUV Model
Locate the main fuse block under the dashboard on the driver’s side–remove the lower trim panel using a 10mm socket to access it. Fuse positions 12 (10A), 14 (15A), and 18 (20A) control critical circuits: ignition relay, fuel pump, and ECM power respectively. Cross-reference these with the color-coded wires in the service manual: red with white stripe (RW) delivers constant 12V+, while yellow with black stripe (YB) carries switched ignition power. Label each wire with masking tape before disconnecting connectors to prevent misalignment during reassembly.
Trace the engine bay harness along the firewall near the brake master cylinder. The dual-spade connector (black, 12-pin) houses signals for the oxygen sensor, coolant temperature sensor, and throttle position sensor. Verify continuity using a multimeter–resistance should read 0.5 ohms or less between the ECM pin and sensor terminal. If readings exceed 2 ohms, inspect for corrosion in the connectors or frayed wire insulation, particularly at bend points under the air intake tube.
| Connector Pin | Wire Color | Function | Expected Voltage |
|---|---|---|---|
| A7 | Light Green/Black | Injector #1 Pulse | 0.2V–0.8V (idle) |
| B4 | White/Red | Battery (+) | 12.6V constant |
| C10 | Dark Blue/White | Vehicle Speed Sensor | 0V–5V AC (varies with speed) |
Ground points G101 (near the battery tray) and G201 (behind the right kick panel) must register zero resistance to chassis. Clean oxidized surfaces with a wire brush and apply dielectric grease to prevent future corrosion. For the instrument cluster, the brown connector (16-pin) requires specific attention–pins 8 (illumination) and 9 (fuel gauge) often fail due to brittle solder joints. Reflow solder using a 40W iron if the gauge needle behaves erratically.
Check the alternator output at the B+ terminal–voltage should rise to 13.8V–14.4V under load (headlights on, blower at high speed). If readings drop below 13V, replace the voltage regulator or brush assembly. The A/C clutch wire (light blue/red) connects to the compressor via a thermal fuse embedded in the harness near the condenser–test for 12V at the compressor connector during A/C activation. Replace the entire harness segment if the fuse is open, as patching often leads to intermittent failures.
Finding the Right Electrical Schematic for Your Mid-90s Compact SUV
Check the vehicle’s service manual under section 8A-10 for the factory-issued circuit layout. The OEM guide for this model year splits diagrams by system: engine controls (pages 12–18), lighting (22–25), and instrumentation (28–31). Aftermarket manuals like Haynes or Chilton combine these into a single fold-out, but the factory schematic remains the most accurate for pin colors and connector positions. Avoid generic online diagrams that merge multiple model years–this mid-90s release has unique fusebox relay slots (positions 7 and 12) not shared by earlier or later variants.
Verifying Diagram Accuracy Before Use
Cross-reference the document with the vehicle identification sticker inside the glove compartment: the build date on the label should match the month/year suffix in the upper-right corner of the official circuit chart. If discrepancies appear–common with third-party PDFs–trace the harness routing physically. The ABS module’s ground point (G103) is often mislabeled as G201 in non-factory sources, leading to incorrect voltage drop tests. For hard-to-find originals, request the microfiche archive from the manufacturer’s regional parts department using the VIN; they provide a faxed copy within 48 hours.
Engine Bay Electrical Circuit Identification and Path Tracing
Locate the main fuse block under the hood near the battery, then trace the primary power feed–typically an 8-gauge red conductor–to its termination at the ignition switch harness connector.
Follow these harness branch connections:
- Yellow/red stripe (4-gauge) splits to the starter solenoid and alternator B+ terminal.
- Black with white stripe (10-gauge) acts as the chassis ground–ensure corrosion-free connection at the engine mounting point.
- Light blue (12-gauge) carries switched ignition voltage to the fuel pump relay and ECM.
Inspect the sensor loops routed along the firewall:
- Coolant temperature sender–tan/black stripe paired with a solid tan return line.
- Oxygen probe–purple stripe on white (upstream) and green stripe on white (downstream).
- Throttle position sensor–solid orange for reference, gray/red stripe for signal.
Route the injector harness bundle separately from the ignition coils–bundle A (injectors 1 & 3) uses dark blue/light blue stripes, while bundle B (injectors 2 & 4) employs brown/black stripes–to prevent induction cross-talk.
Ground all shielded cables directly to the intake manifold using M6 star washers; avoid daisy-chaining to prevent signal drift. The knock sensor (pink/black stripe) requires a dedicated 14-gauge ground braid routed away from the exhaust manifold.
Verify harness clamps secure every 15 cm along aluminum cross-members–use nylon zip ties on plastic loom sections to prevent abrasion. Replace any cracked conduit with split corrugated tubing (ID 12 mm) before continuing routing.
Cross-reference each circuit termination point with the factory repair manual pinout table–terminal 1A on the ECM harness connector (white 48-pin) corresponds to MAP sensor input (light green stripe), while 2B (blue 24-pin) handles ignition coil triggering (dark green).
Locating and Verifying Fuses and Relays in Your Compact SUV’s Electrical Network
Begin by accessing the primary fuse block beneath the instrument panel on the driver’s side. Remove the kick panel cover by unsnapping the plastic clips–no tools required. The block contains 20 fuses and 5 relays, each labeled numerically on the underside of the cover. Compare these markings to the printed legend; discrepancies may indicate a prior modification or fuse box replacement.
Use a multimeter set to continuity mode to test suspect fuses. Insert probes into each fuse slot–readings below 0.1 ohms confirm an intact fuse. Blown fuses show infinite resistance. For relays, shake them gently; an audible rattle suggests a failed internal coil. Swap questionable relays with known-good spares from the horn or headlight circuit to isolate faults without risking further damage to sensitive systems like the ECU.

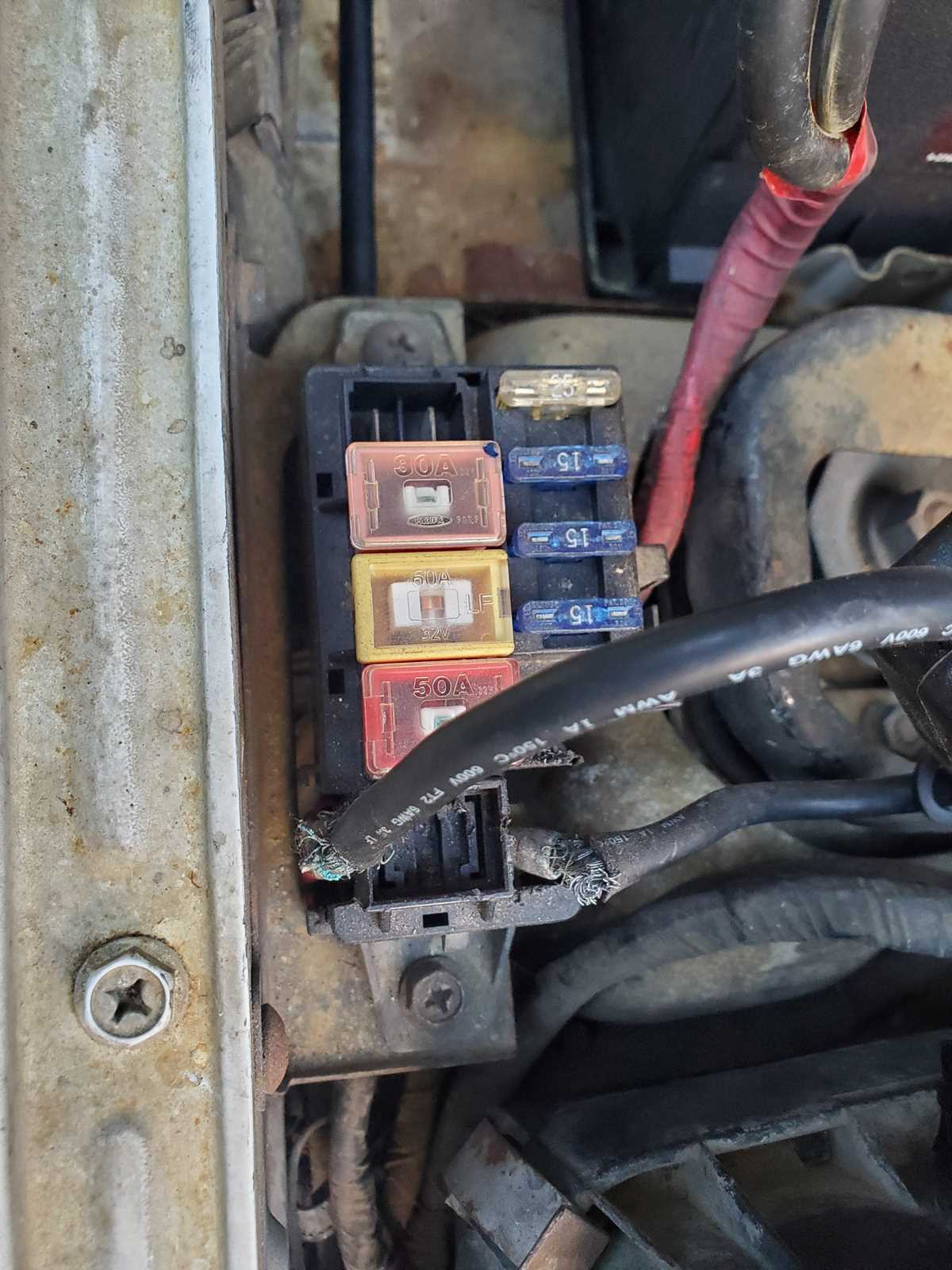

Inspect the auxiliary fuse box under the hood, next to the battery. This holds higher-amperage components: cooling fan, A/C compressor, and ignition circuits. Test terminals with the vehicle off to avoid false positives from active current. Corrosion on fuse clips often mimics blown fuses–clean contacts with a wire brush and dielectric grease before retesting.
- Battery junction relay (main power distribution) sits adjacent to the positive terminal. Bypass it temporarily by jumpering the 30 and 87 terminals if the vehicle cranks but won’t start.
- Fuel pump relay (position 4 in the interior fuse block) clicks audibly when toggled. Absence of sound means failure; test resistance across coil terminals 85/86 (~60-100 ohms).
- Fuses for wipers (15A) and turn signals (10A) degrade faster than others–replace preventatively during seasonal checks.
For intermittent electrical gremlins, probe relay sockets with the engine running. Voltage at terminal 85 indicates healthy control input; terminal 30 should match battery voltage. Dropout suggests a faulty ignition switch or ignition relay cluster located behind the glovebox. Remove the glovebox entirely by squeezing its sides to access this secondary relay panel.
Document all tests in a notebook. Track resistance values, voltage drops, and relay swap results. Cross-reference symptoms (e.g., no-crank, dim lights) with fuse ratings–repeatedly blown fuses often trace to a shorted harness near the steering column or undercarriage. Avoid guesswork; substitute only confirmed defective components.
