Start by locating the central power distribution module under the hood. This box houses critical relays, including the inline fuse for the fuel delivery system–typically labeled FP or Fuel Injector. Trace the red wire with an orange stripe from the relay to connector C240 near the driver-side firewall. Verify voltage at this junction with the ignition in the ON position; expect 12V DC.
Inspect the inertia switch inside the passenger-side kick panel if power is absent. This safety cut-off triggers during impacts and must be reset by pressing its red button. Next, follow the gray wire from the switch to the sender unit beneath the bed floor–this circuit carries the critical ground return path. Check for corrosion at T-connector junctions; clean with dielectric grease if resistance exceeds 0.5 ohms.
For vehicles exhibiting intermittent failure, focus on the fuel module ground bolted to the frame rail adjacent to the tank. Remove the 10mm fastener, scrape bare metal, and re-secure with a star washer to ensure proper conductivity. If fuel pressure tests below 45 PSI at the Schraeder valve, suspect either a clogged strainer or internal module failure–replace the entire assembly as a unit.
Use a multimeter to test continuity across the sender harness. Probe connector C269 at the tank–pin 2 (gray) should show infinite resistance to ground with the ignition off and drop below 100 ohms when fully submerged. If readings fluctuate erratically, replace the sender float mechanism. Always disconnect the battery’s negative terminal before working on live circuits.
Refer to Ford’s ESD-13457 bulletin for revised wiring colors on post-2001 reroutes. Early models use a 14-gauge pink wire for the fuel pump relay control circuit instead of the later 16-gauge purple wire. Cross-reference the Vehicle Identification Number to avoid misdiagnosis.
Electrical Schematic for Your 1995-1997 Ford Truck’s Fuel Delivery System
Start by locating the inertia switch behind the right-hand kick panel–this safety device halts current flow during impact. Trace its 20-gauge pink/yellow wire to the relay’s pin 86, confirming continuity with a multimeter (0.5 ohms or less). The 20-amp fuse in position #3 (10-amp for California emissions models) must show battery voltage on both terminals under key-on conditions; a discrepancy here indicates corrosion at the junction box under the dash.
Examine the powertrain control module’s (PCM) yellow/black wire at connector C240, pin 3–this triggers the relay coil. Probe this circuit while cycling the ignition; a 5-volt pulse should register within 2 seconds. If voltage persists beyond 3 seconds, suspect a faulty PCM ground at G101 behind the intake manifold, where a single corroded eyelet disrupts the entire cascade.
Follow the thick 10-gauge red wire from the relay’s pin 30 to the sender unit–this carries unregulated power directly from the battery. Inspect the inline 40-amp maxifuse near the starter solenoid; a melted fusible link here mimics a failed assembly. For 4.9L engines, note the additional green/violet wire running to the pressure regulator solenoid, absent in 5.0L variants.

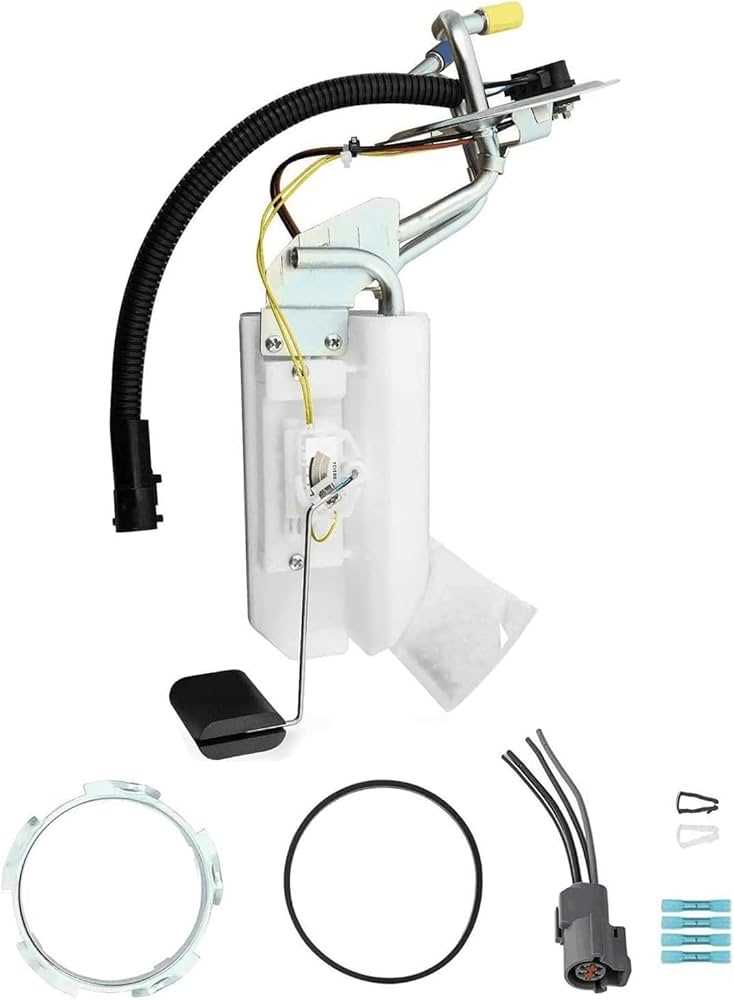

Test the sender’s float circuit by removing the access panel in the truck bed–disconnect the tan/light blue wire at the top connector and measure resistance across the float terminals: 32 ohms empty, 254 ohms full. A reading outside this range demands replacement of the entire sending/reservoir assembly, as the float’s rheostat degrades non-uniformly. Clean the electrical connector with CRC dielectric grease to prevent moisture-induced false low-fuel warnings.
Verify the anti-theft module (if equipped) by checking for a steady 12 volts on the dark green/red wire at pin 7 of the relay during cranking. A failing module extends cranking time by 1-2 seconds; bypass temporarily by jumpering this wire to 12 volts at the relay socket for diagnostics. Replace the relay if clicking persists without pump activation–the internal contacts carbonize after 150,000 miles on models with California emissions packages.
Finding Power Delivery Links for the In-Tank Module Under the Vehicle’s Front End
Follow the main electrical conduit from the passenger-side firewall toward the rear frame rail. Look for a rectangular black connector with three terminals–two thicker gauge wires (yellow/green and gray) supplying 12V ignition and constant battery feeds, plus a slimmer brown/white wire for the fuel level sender. Trace the harness upward into the engine bay; the connector itself is clipped to the inner fender apron just ahead of the brake master cylinder reservoir, often hidden beneath a plastic splash shield that folds back with a flat-head screwdriver.
Peel back any plastic loom tape securing the harness; the joints are sealed with heat-shrink tubing, so inspect for brittle cracking. If corrosion is visible, probe each terminal with a multimeter set to DC volts–expect 11.8V to 12.5V across the yellow/green and ground points during key-on-engine-off cycles, zero volts if the inertial switch has tripped. Replace any compromised seals immediately to prevent moisture ingress, using dielectric grease on reconnection.
Decoding In-Tank Sender Wire Colors for the 1995-1997 Blue Oval Pickup
Locate the electrical connector for the sender assembly–it features a dark green/violet stripe (DG/V) lead handling the sender’s return signal, paired with a gray/orange stripe (GY/O) supplying constant 12V when the ignition key sits in the RUN position. Tap into these two first; everything else branches off them. The DG/V wire is the high-impedance sender return–avoid grounding it or the gauge will peg full.
Understanding the Three Additional Leads
The remaining wires form a precise trio: light blue/yellow stripe (LB/Y) carries the low-level signal straight to the dashboard gauge cluster, while brown/yellow stripe (BN/Y) and white/pink stripe (W/PK) tie into the in-line inertia switch and fuel relay coil respectively. BN/Y is the kill wire–interrupting it kills current to the relay coil, cutting power to the tank unit; W/PK feeds the relay coil itself, so verifying its continuity ensures the relay can close the circuit.
Isolate each wire at the connector; use a multimeter to confirm voltage on GY/O (expect 12-13V) and continuity on W/PK back to the relay socket. Color deviations are rare but factory bulletins document occasional stripping errors–cross-check with the engine bay relay socket pinout if readings mismatch.
Step-by-Step Guide to Bypassing the Fuel Delivery Relay for Diagnostics
Locate the relay panel beneath the dashboard on the driver’s side–remove the protective cover to expose the small modules. Identify the relay responsible for energizing the injection circuit by matching its part number to the vehicle’s service manual (typically marked with a yellow or black casing). Use a multimeter to confirm power at the relay’s 85 and 86 terminals; expect 12V on terminal 86 when the ignition is engaged. If voltage is absent, inspect the fuse box and ignition switch wiring for breaks or corrosion.
Trace the relay’s output terminal (usually 30) to a thick wire leading toward the engine bay–this connects to the circuit’s power feed. Attach a temporary jumper wire between the relay socket’s 30 and 87 terminals to bypass the module entirely. Caution: Ensure the ignition is off before making connections to prevent accidental sparks or backfeed. If the circuit activates immediately upon jumper installation, the module is faulty and requires replacement. If no response occurs, proceed to the next diagnostic step.
Verify ground integrity at the relay’s 85 terminal–probe it against a known chassis ground while maintaining ignition in the “ON” position. A reading below 0.2V confirms proper grounding; values above 0.5V indicate corrosion or loose connections. Clean the ground contact with a wire brush and dielectric grease if necessary, then retest. Persistent high resistance suggests a deeper issue in the harness or ECU communication line.
| Relay Terminal | Expected Voltage | Diagnostic Action |
|---|---|---|
| 85 (Ground) | 0V to 0.2V | Clean corrosion, retest |
| 86 (Coil Power) | 12V | Check ignition feed |
| 30 (Input Power) | 12V (battery) | Inspect fuse, wiring gauge |
| 87 (Output) | 12V (post-bypass) | Replace faulty relay |
Safety Precautions During Relay Bypass
Never perform this test with the engine running–fuel rail pressure can exceed 60 psi, risking fire if sprayed near hot components. Disconnect the negative battery terminal if working near exposed 12V circuits to avoid short-circuits or accidental starts. Use insulated jumper wires with alligator clips rated for 20A to prevent melting under load. If the circuit remains inactive after bypass, inspect the in-line inertia switch (typically near the firewall), which may have tripped during a collision or rough handling.
Reinstall the original module after testing–confirm proper seating by pressing firmly until it clicks into place. Start the engine and monitor pressure readings via an OBD-II scanner (PID 0x0A), targeting 45-55 psi at idle. Deviations above 60 psi suggest a failed regulator, while values below 35 psi indicate a clogged line or failing delivery mechanism. Replace the relay if inconsistent performance persists after confirmation, ensuring the new unit matches the original OEM specifications.
Identifying and Diagnosing Ground Path Issues in Your Truck’s Electrical Delivery System
Locate the main relay panel under the dashboard on the driver’s side–it houses the powertrain control module and supporting relays. Remove the cover to expose terminals; the ground connection is typically marked GND or labeled with a black or brown wire.
Disconnect the battery negative terminal before probing any circuits to prevent accidental shorts. Use a multimeter set to continuity mode; probe between the ground terminal and a known clean chassis point, such as a bolt on the firewall or a dedicated grounding strap. Resistance should read near zero ohms–anything above 0.5 ohms indicates corrosion or a loose connection.
Inspect the wiring harness where it attaches to the tank assembly. Look for frayed insulation, greenish oxidation on copper strands, or brittle wire coatings. These issues often occur where the harness bends sharply or rubs against the frame. Use dielectric grease on repaired splices to protect against moisture ingress.
Trace the ground path from the tank-mounting flange upward along the frame rail. Check for intermediate grounding points–Ford vehicles of this model often use star washers under bolts to ensure solid contact. Remove, clean, and re-torque any suspect connections; a loose star washer can introduce intermittent faults.
If continuity tests pass but the circuit still fails under load, perform a voltage drop test. Reconnect the battery, set the multimeter to DC volts, and measure across the ground circuit while activating the system. Voltage exceeding 0.2 volts signals excessive resistance–replace corroded terminals or upgrade to larger-gauge wire if needed.
The tank assembly itself may hide another ground point inside the sender unit. Drop the tank module by removing the retaining ring using a brass drift punch–never force steel tools against aluminum threads. Once removed, scrub the mating surfaces with a brass brush and apply conductive paste before reassembly.
Verify the integrity of the main chassis ground near the starter motor. This location frequently accumulates road debris and corrosion. Disconnect the bolt, sand both surfaces, and reinstall with a new star washer–this single fix resolves many no-start conditions.
For stubborn cases, bypass the stock ground path entirely. Run a heavy-gauge (10 AWG minimum) braided copper strap directly from the tank flange to the frame rail, then daisy-chain to the battery negative terminal. Secure with stainless hardware and heat-shrink tubing to prevent future issues.
