Begin by locating the factory harness connectors behind the dashboard cluster–specifically the 16-pin ISO adapter tucked near the steering column support. Pin assignments follow a standard color code: yellow (constant +12V), red (ignition-switched +12V), black (ground), and brown (dimmer control). Verify voltages with a multimeter before splicing; factory circuits often suffer from corroded terminals, particularly on the B+ feed from the fuse box (fuse #12, 10A).
For aftermarket head unit installation, bypass the stock amplifier by tapping into front speaker wires (gray/violet for left positive, gray/black for left negative; white/violet for right positive, white/black for right negative). Avoid cutting factory wires–use T-tap connectors or solder-and-heat-shrink joints for reliability. If the original system included a chime module, retain it by splicing into the door ajar or key-in-ignition circuits; failure to do so may trigger false warnings.
The antenna motor wire (light blue with white stripe) requires a +12V trigger during power-on to extend the mast. Connect this directly to the head unit’s remote turn-on lead or an ignition-switched source. Ground loops–a frequent issue–can be eliminated by ensuring all earth points share a common, clean chassis connection near the driver’s footwell.
For vehicles equipped with RKE (remote keyless entry), preserve functionality by isolating the data bus wire (usually dark green with white stripe) before attaching new components. Test continuity from the RKE module to the instrument cluster; a broken circuit here causes intermittent lock/unlock failures post-installation.

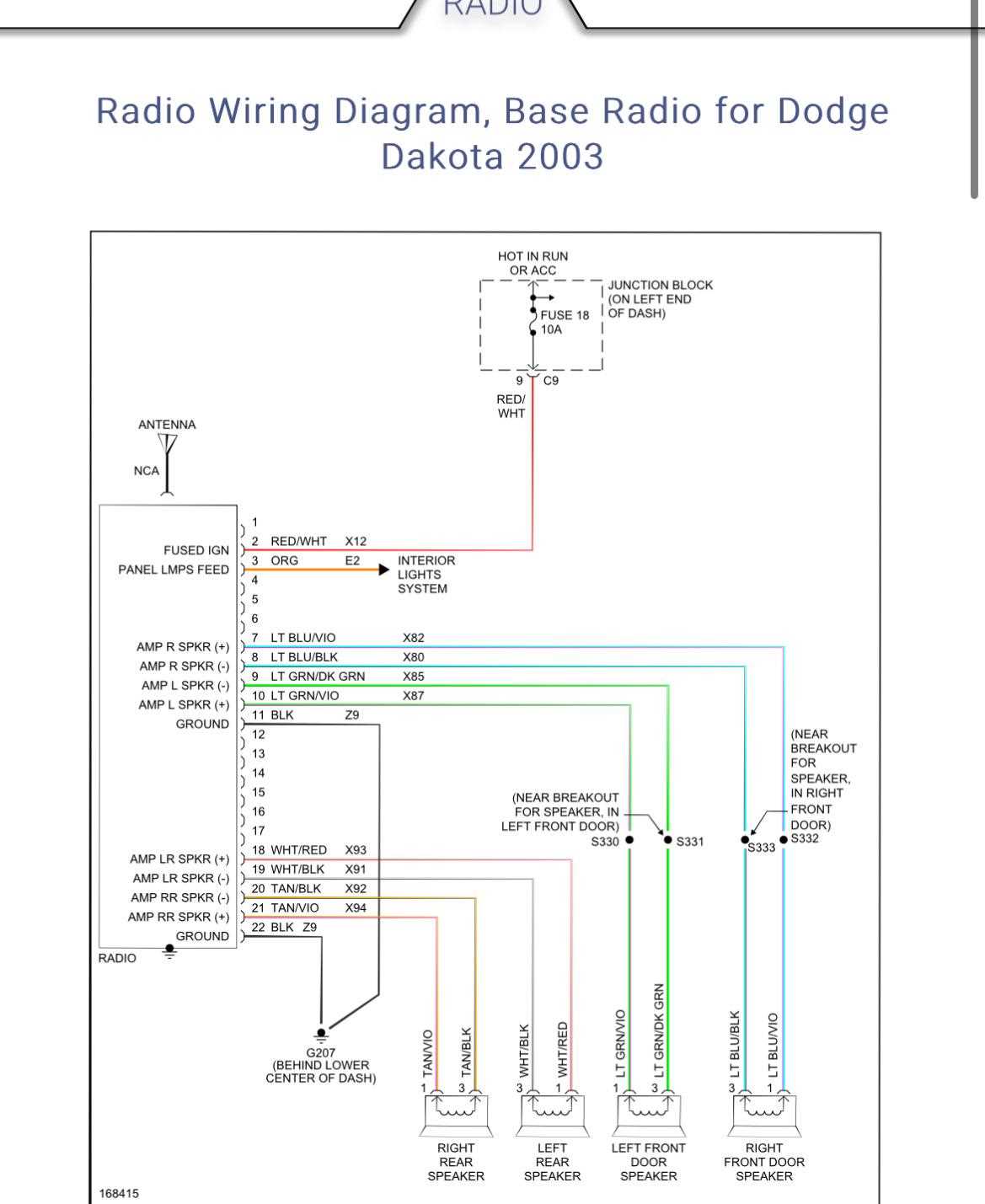

Electrical Connections for Mid-90s Pickup Audio Systems
Locate the 12-pin wiring harness connector behind the factory-installed sound unit–the tan plastic plug with labeled cavities correlates to specific circuits. Pin 1 (yellow) delivers constant 12V power from the battery; pair it with a 20-amp fuse inline to prevent overloads. Pin 2 (dark green) carries illumination control, adjusting dash brightness in sync with headlights. Pin 3 (violet/white stripe) grounds the left rear speaker, while Pin 9 (gray) grounds the right rear. Verify resistance between each speaker wire and chassis: values below 4 ohms indicate shorts requiring immediate repair.
| Wire Color | Function | Voltage (Key On) | Fuse Rating |
|---|---|---|---|
| Yellow | Battery Feed | 12V | 20A |
| Dark Green | Dimmer Control | 0-12V variable | Not applicable |
| Red/White | Switched Power | 12V | 10A |
| Black/Tan | Chassis Ground | 0V | Not applicable |
Aftermarket installations should bypass the original amplifier harness–cut the gray 18-gauge wire supplying power to the amp and reroute it directly to new speakers via 16-gauge oxygen-free copper wire. The factory antenna lead (blue/white) requires a 5-ohm resistor if replacing with a non-motorized unit to avoid error codes. For CD changers, splice the pink/light blue wire to a switched power source, ensuring the accessory circuit remains active only when the ignition is engaged. Avoid common mistakes: never splice into the fuel pump relay (purple/white) for power, and confirm all connections with a multimeter before finalizing crimps.
Grounding issues manifest as low-volume distortion–use star washers and dielectric grease on all chassis connections. The passenger-side kick panel houses the main ground distribution block; adding a secondary ground here eliminates signal noise. For vehicles equipped with premium audio (Boston Acoustics), retain the original amplifier’s 12-pin connector but remove the restrictor diode in Pin 6 (light blue) to prevent clipping. If retaining the factory equalizer, leave the orange/black wire intact; removal disables fade/balance controls.
Finding the Original Cable Assembly Behind the Sound System
Remove the trim panel around the stereo head unit first. Use a plastic pry tool to gently pop the clips securing the dash fascia; starting at the bottom right corner prevents cracking the brittle plastic. Once the panel is loose, disconnect the hazard-light switch harness–marked by a white two-pin plug–before fully withdrawing the fascia. Behind the stereo cavity, the factory harness runs vertically along the central firewall grommet; look for a gray six-way connector containing red, yellow, black, green, blue, and purple leads.
Verifying Connector Integrity
Check the six-way plug for corrosion or bent pins before proceeding. Use a multimeter set to continuity mode: probe pin 1 (red lead) and confirm 12V ignition voltage, pin 2 (yellow) should maintain battery voltage regardless of key position, and pin 4 (black) must ground properly against the chassis rail. Any deviation indicates upstream fuse or relay faults, typically traced to the interior fuse block under the driver’s dash.
If splicing is required, cut only the necessary wires leaving at least two inches of slack–use heat-shrink tubing instead of electrical tape for moisture resistance. The power antenna trigger (blue) and illumination dimmer (purple) rarely need modification unless aftermarket amplifiers are installed.
Decoding Wire Colors and Their Specific Roles in Audio System Installations
Begin by locating the solid yellow cable–this delivers constant 12V power from the fuse panel, ensuring memory retention for presets and clock settings even when the ignition is off. Verify its connection directly to the battery’s positive terminal or an always-hot fuse to prevent voltage drops that could reset configurations or drain the battery.
The solid red wire typically handles switched 12V power, energized only when the ignition is in the “accessory” or “on” position. Connect this to a fuse tap linked to the ignition switch circuit; misrouting it to a constant source will keep the unit powered indefinitely, risking parasitic drain. For vehicles with delayed accessory shutoff, use a relay to mimic factory behavior.
Ground and Speaker Connections
A bare black wire serves as the system ground–attach it to a clean, unpainted metal surface within 18 inches of the head unit to minimize interference and ensure stable operation. Avoid daisy-chaining grounds or connecting near high-current devices (e.g., starter motors or alternators), as this introduces noise and potential whine.
Speaker wires follow a standardized color scheme: solid/dashed pairs (white/gray for front left, green/purple for rear right, etc.). Confirm polarity by testing with a 9V battery–positive lead to the solid color should push the speaker cone outward. Reversing polarity causes phase cancellation, weakening bass response and stereo imaging. For aftermarket amplifiers, use 16-14 gauge wire; factory harnesses may use thinner strands, requiring splices reinforced with solder or crimp connectors rated for automotive use.
Step-by-Step Guide to Removing the Factory Sound System Without Harming Interface Links
Disconnect the vehicle’s battery before touching any electrical components. Remove the negative terminal first using a 10mm wrench, then wrap the cable end in electrical tape to prevent accidental contact. This eliminates risks of short circuits or airbag deployment during disassembly.
Locate the trim panel encasing the unit–often secured by four clips at the corners. Gently pry along the edges with a plastic trim tool, starting from the bottom left corner. Work clockwise, applying gradual pressure to release each clip without snapping the plastic tabs. Metal tools risk scratching surfaces or damaging retaining mechanisms.
Extract the mounting cage once the dash bezel is free. Two screws, typically 7mm, hold the cage in place–one at the upper left, another at the lower right. Remove these with a magnetic screwdriver to avoid dropping fasteners into the dashboard cavity. Slide the cage outward carefully; rear connectors may still be attached.
Identify the harness plugs at the back–usually a large orange/yellow bundle for power and signal, plus a smaller antenna lead. Press the release tabs on the plugs while wiggling slightly; tugging too hard can bend pins. For stubborn connectors, use a small flat-head screwdriver to gently coax the locking tab upward before pulling apart.
If replacing the unit, note the color coding on the factory harness. White/light blue wires often denote speaker outputs, while solid yellow typically handles constant 12V power. Use a multimeter to confirm voltages if documentation is unclear–probing the wrong wires risks frying new hardware.
Handling Unexpected Issues
Should the connectors refuse separation, inspect for secondary release mechanisms. Some harnesses include a sliding latch perpendicular to the main tab. Others may have adhesive residue; rubbing alcohol and a cotton swab will clean these without corroding contacts. Never force removal–micro-fractures in the plastic housing can compromise future connections.
Reinstallation follows these steps in reverse, ensuring all clips snap securely and connectors click into place. Reattach the battery last, then test functionality with the ignition on. If static or silence occurs, recheck ground wires (usually black or brown) and confirm speaker impedance matches the new unit’s requirements.
Integrating Factory-Compatible Head Unit Leads with a Vehicle-Specific Connector
Locate the aftermarket stereo’s color-coded cables–typically 12 to 16 strands–then match each one to the corresponding pinout on the premade harness adapter designed for the pickup’s original electrical layout. Common mappings include:
- Solid yellow to constant power (battery feed)
- Red striped wire to switched ignition source
- Black as ground (chassis connection)
- Purple/white stripe for right rear speaker (+)
- Green/black stripe for left rear speaker (+)
- Gray/black stripe for right front speaker (+)
- White/black stripe for left front speaker (+)
- Blue/white stripe for amplifier remote turn-on
- Orange for illumination dimmer lead
Confirm polarity by checking the pin configuration diagram shipped with the adapter; reversed connections can damage the aftermarket head unit’s internal circuitry.
Strip no more than 6 mm of insulation from each wire end, then insert into the designated slot on the adapter’s crimp connector. Use a ratcheting crimping tool to secure each joint–avoid twisting or soldering unless the aftermarket kit explicitly instructs otherwise. Loose crimps can cause intermittent audio dropouts or complete system failure after exposure to vibration.
If the adapter lacks a dedicated illumination lead terminal (orange wire), tap into the vehicle’s dash dimmer circuit at the headlight switch connector–pin 5 on most 1990s mid-size pickup models–or splice directly to the orange wire behind the instrument cluster via a three-way butt connector. Verify dimming functionality with the headlights off and on before finalizing connections.
For vehicles equipped with a factory amplified system, identify the amplifier’s remote turn-on lead–usually a thin blue wire with a white tracer–on the original harness. Connect this to the aftermarket stereo’s blue/white amplifier trigger output using a waterproof butt splice or male/female bullet connector. Failure to engage the factory amp will result in no sound or severely reduced volume levels despite correct speaker wiring.
Test each connection without mounting the head unit permanently. Power the system, cycle the ignition, and verify:
- All speakers produce clear audio at normal volume (no distortion)
- Illumination intensity adjusts with dash lights
- Memory settings retain presets after ignition off
- Amplifier engages/disengages without popping noises
If the system passes, route the adapter behind the dash panel through the existing grommet, avoiding sharp edges and moving components like the steering column. Secure excess wire with nylon zip ties at 15 cm intervals.
Finish by attaching the adapter’s weatherproof connector to the vehicle’s plug-in receptacle, then seat the aftermarket head unit into the mounting kit. Snap the trim bezel into place and reinstall any dash panels removed during the procedure.
