For accurate troubleshooting, start by locating the solenoid–positioned near the battery under the seat on most pre-2000 models. Verify its continuity with a multimeter set to ohms; resistance should read below 0.5 Ω. Higher values indicate corrosion, requiring disassembly and cleaning of its copper contacts with 400-grit sandpaper. Bypass testing is unreliable; direct measurement is mandatory.
The ignition system integrates a magneto charging coil rated at 10–12V AC at 3000 RPM; anything lower suggests stator failure. Disconnect the voltage regulator first–its three-wire harness often masks coil output readings. Ground the negative probe to the engine block during checks to avoid false negatives from harness deterioration.
Headlamp circuits default to 12V DC but share a fused line with the horn, pulling 8A combined. Upgrading to LED bulbs reduces draw to 1.2A and eliminates flicker from voltage drops. For reversed polarity issues, trace the white stripe on the red wire from the key switch; it splits at terminal block C-1 before branching to accessories. Swapping terminals here restores forward-direction current.
Battery cables require 4 AWG minimum gauge, terminated with crimped lugs torqued to 10–12 lb-ft. Corroded lugs necessitate mechanical cleaning–not chemical treatments. The brake light circuit uses a pressure switch prone to leakage; replace it if pedal engagement fails to trigger the #5 fuse input.
Schematics for these models classify wires by color-band combinations–yellow-red striped denotes accessory power, while black-white marks ground paths. Use a toner probe to confirm wire runs through harness sleeves; insulation rubs near the rear axle are common failure points. Silicone dielectric grease applied post-repair prevents moisture ingress.

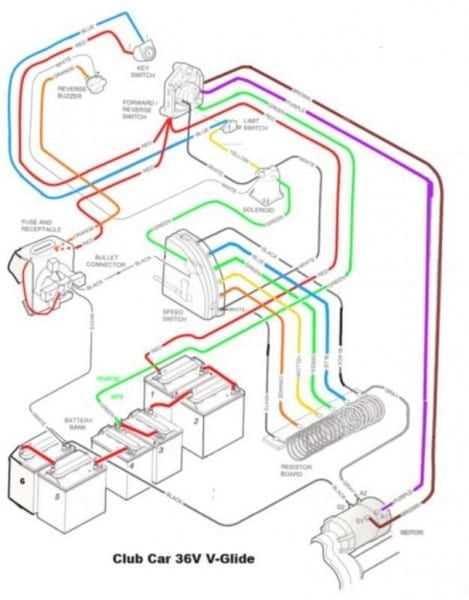

Electrical Schematic for 1995-Model Electric Vehicle Troubleshooting

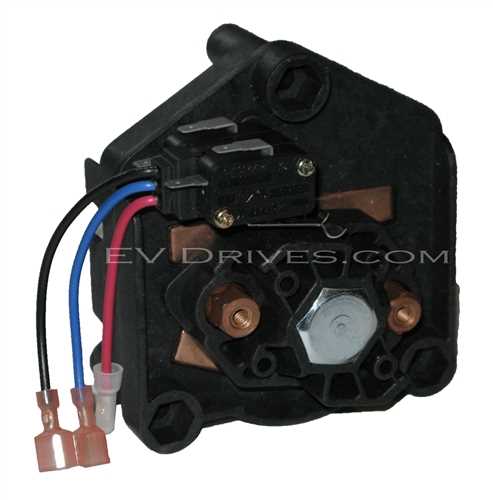

Locate the main solenoid connections first–terminals labeled “S” and “B+” must show 36V or 48V continuity between battery pack and motor controller when engaged, else check fuses F1 (30A) and F2 (20A) near the forward-reverse switch. Replace blown fuses with identical amperage rating; upgrading gauge risks overheating harness wiring, which in pre-DS models averages 12-gauge copper.
Key Power Flow Checkpoints
Trace voltage from the positive battery terminal through the key switch (terminal “A” to “B”), then to the speed controller (pin 3, yellow/blue stripe). Measure 0V at rest, full system voltage when accelerator pedal compresses microswitch. Verify ground paths: motor housing to frame, controller bracket to negative terminal–resistance above 0.5 ohms indicates corrosion at cable lugs or starter-generator brush wear.

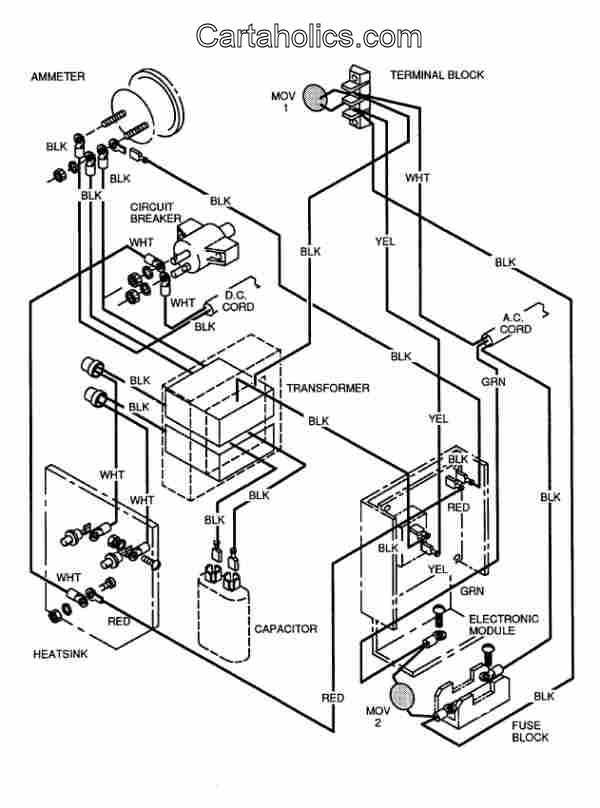

Service the charging circuit by confirming AC input voltage (120V/240V) at the onboard charger receptacle; incorrect polarity trips internal relay RY1, cutting power to the 50A rectifier bridge. Disconnect batteries before testing diode drops–forward bias should read ≈0.7V, reversed bias infinite resistance on multimeter. Replace defective diodes with identical 6A10 microfarad units; mismatched capacitance disrupts equalization cycles during recharge.
Locating Critical Electrical Parts in a 1995-Era Electric Utility Vehicle
Begin by isolating the main power source: the battery pack. In models from this period, the pack typically consists of six 6-volt deep-cycle units, wired in series to deliver 36 volts. Trace the positive cable (thick red wire) from the batteries to the solenoid, a cylindrical or rectangular component mounted near the motor. The solenoid acts as a high-current relay–if this part fails, the vehicle won’t engage forward or reverse. Check for corrosion at the terminals; even minor buildup can cause voltage drops.
| Component | Wire Gauge (AWG) | Typical Failure Symptoms |
|---|---|---|
| Battery Interconnect | 6 | Intermittent power loss, slow acceleration |
| Solenoid Trigger | 14–16 | Clicking without motor engagement |
| Speed Controller Input | 10–12 | Erratic speed, sudden stalls |
| Forward/Reverse Switch | 12–14 | Direction failure, no movement |
Examine the controller, usually a rectangular black box under the seat or front cowl. This device regulates power to the motor based on throttle input. Peel back the protective cover (if present) to inspect the bus bars–thick copper strips connecting the batteries to the controller. Use a multimeter to verify voltage at the controller’s input terminals: you should read 36 volts with the key on and throttle depressed. If voltage is absent, test the micro-switch inside the foot pedal assembly; a worn switch often prevents circuit completion, mimicking controller failure.
Step-by-Step Guide to Decoding the Electrical Blueprint of Your Vintage Utility Vehicle
Locate the power source symbols first–these are typically labeled as a battery or 48V system. Identify the positive (+) and negative (-) terminals marked in red and black, respectively. Verify continuity between the main battery pack and the solenoid using a multimeter set to resistance (Ω) mode; readings should fall below 0.5 ohms for intact connections.
Trace the thickest cables from the battery to the controller, noting any fusible links or circuit breakers. On vintage schematics, these may appear as simple squares with labels like “FL1” or “CB1.” Check for voltage drops across each link–any reading above 0.2V indicates corrosion or a failing component. Replace damaged links with identical gauge wire to prevent overheating.
Interpreting Key Components
- Solenoid: Follow the starter cable from the ignition switch to a coil-like symbol. This activates when the key turns, bridging the main power circuit. Test by probing the small terminal while turning the ignition–it should click and show 12V.
- Motor: Represented as a circle with “M” or “ARM,” ensure all brush connections (A1, A2, F1, F2) align with the schematic. Miswiring here can reduce speed by 30% or cause erratic operation.
- Direction Switch: A toggle symbol with “FWD/REV” labels. Confirm the switch sends voltage to the correct motor terminals when toggled–reverse polarity here risks immediate burnout.
Examine diode symbols (triangles with a line) along accessory circuits, especially near lights and horns. These prevent reverse current that can damage bulbs or electronic modules. Use a diode tester to validate functionality; faulty diodes often cause flickering lights or intermittent failures.
For speed controllers, identify the “throttle” input line (usually labeled “TH” or “POT”). Calibrate by adjusting the potentiometer while monitoring output voltage–it should scale smoothly from 0V (idle) to 5V (full speed). Jumper wires temporarily if testing reveals dead zones; permanent fixes require replacing the throttle sensor.
- Disconnect the battery before probing live circuits to avoid shorting.
- Use color-coded wires matching the schematic (e.g., purple for reverse, orange for accessory power) to simplify future repairs.
- Label each wire with shrink tubing and a permanent marker–schematics often omit color details for older models.
- Scan for hidden fuses under seats or behind panels; some models integrate them into the main harness.
- If voltage readings drop unexpectedly, inspect grounding points–rust or loose bolts can cripple performance.
Common Pitfalls
Misidentifying a shunt resistor (often marked “SH” or “S”) as a fuse leads to unnecessary replacements. These are precision components for current sensing; bypassing them can overheat the controller. Always refer to the legend–older blueprints may use non-standard symbols.
Frequent Electrical Problems and Fixes for Early Electric Vehicles
Check the solenoid connections first if the vehicle fails to start or moves intermittently. Loose or corroded terminals here disrupt current flow to the motor. Clean contacts with fine-grit sandpaper, then tighten securely. A multimeter reading below 12 volts across the solenoid terminals indicates insufficient charge–test the battery pack next. Each 6-volt unit should register above 6.3 volts; anything lower requires replacement.
Inspect the speed controller for burn marks or swollen capacitors. Overheating often causes erratic acceleration or sudden stops. Replace the entire unit if physical damage is visible–attempting repairs on these components rarely restores full function. Ensure the controller’s ground wire connects directly to the frame without intermediary splices, which can introduce resistance and lead to inconsistent performance.
Frayed or melted wires near the rear axle are a common failure point, especially in older models. Look for copper strands poking through insulation–this signals imminent breakage. Use heat-shrink tubing or high-quality electrical tape to repair, but reroute the wire entirely if corrosion has set in. Pay special attention to the red (positive) lead to the motor; a broken connection here results in complete power loss.
Test the reverse buzzer circuit if it fails to sound or emits a weak tone. The issue typically lies in the small gauge wire running to the buzzer itself. A reading of less than 1 ohm between the buzzer terminal and ground suggests a short–trace the wire path, checking for pinches against the chassis. If no short is found, the buzzer may be defective; it’s enclosed in a sealed unit and must be replaced as a single part.
Voltage Regulator and Lighting System Checks
Voltage fluctuations causing dim or flickering headlights point to a failing regulator. The original unit regulates output to 14 volts; anything above damages bulbs and accessories. Replace it with an aftermarket solid-state regulator, which handles modern battery loads more reliably. Confirm the stator is generating AC voltage before replacement–measure across the two yellow wires; readings should alternate between 0 and 30 volts AC.
Fuses for accessories are often overlooked. The inline fuse holder for the cigarette lighter or optional radio corrodes easily. Replace blown fuses with the exact amp rating–using a higher-rated fuse risks melting wires. If the replacement blows immediately, look for a short in the accessory’s power lead, typically caused by a pinched wire inside the dash panel.
Final Inspection and Preventative Measures
After repairs, perform a full system test under load. Drive the vehicle up a slight incline while monitoring for voltage drops–any fluctuation below 36 volts under load indicates a weak battery cell or poor connection. Coat all terminals with dielectric grease to prevent future corrosion, and reroute any wires away from moving parts or sharp edges. Store the vehicle with a battery maintainer to extend pack life; deep discharges accelerate cell failure.
