For accurate repairs, locate the underhood fuse block diagram first–it maps power distribution feed circuits. Trace the pink wire (ignition-switched 12V) from the fuse 10 terminal to the instrument cluster, then verify continuity at connector C101. Interruptions here disable dash lights, fuel gauge, and turn signal feedback.
Inspect the main wiring harness behind the driver’s side kick panel. The dark green/white tracer wire carries critical signals from the transmission range sensor; corrosion at terminal 23 often triggers falsely neutral readings. Clean contacts with 220-grit emery cloth, avoiding excessive pressure that deforms pin sockets.
Ground connections demand priority–test the G200 grounding strap near the left front fender. Resistance exceeding 0.5 ohms indicates degraded braided copper strands. Replace with tinned marine-grade cable, crimping terminals with a 12-ton hydraulic press for consistent conductivity.
Fuel pump relay placement exists beneath the driver’s seat in pre-OBDII models. Bypass the relay socket with a jumper wire (30 to 87) to confirm pump operation before replacing–ambient heat cycles frequently damage soldered joints inside the relay case.
Headlight circuits split at the bulkhead connector near the battery tray. Examine the light blue/white and yellow/white wires for brittle insulation–replace segments with cross-linked polyethylene conduit rated for 125°C continuous duty.
Use a Fluke 87V meter set to diode test mode for parasitic drain checks. Probe the battery’s negative terminal while sequentially pulling fuses. Current draw exceeding 50 milliamps at fuse 18 points to a malfunctioning Body Control Module–reset by disconnecting the battery for 30 minutes minimum.
Chevy Full-Size Pickup Electrical Blueprint: Hands-On Repair Tips
Start by locating the under-dash fuse block–it hides behind the driver-side kick panel, secured with two 8mm bolts. Remove the panel carefully; the clips break easily. The fuse block cover labels circuits numerically, but the actual cluster of relays and fuses follows a distinct schematic:
- Fuse 14 (15A) – Ignition feed, crucial for ECU power.
- Fuse 17 (10A) – Instrument panel illumination; check dimmer switch if gauges flicker.
- Relay G – A/C compressor clutch control; swap with Relay H (horn) to test if compressor stalls.
Trace the main harness bundle running along the firewall left side. Look for chafed wires near the steering column bracket–this spot sees frequent wear from pedal movement. Wrap damaged sections with 3M Super 33+ electrical tape, not standard vinyl tape; it resists engine heat and oil. For splices, crimp connectors rated minimum 22-18 AWG; soldering risks melting factory insulation. Test continuity with a multimeter set to 200 ohms–expected readings fall between 0.3-1.2 ohms for intact circuits.

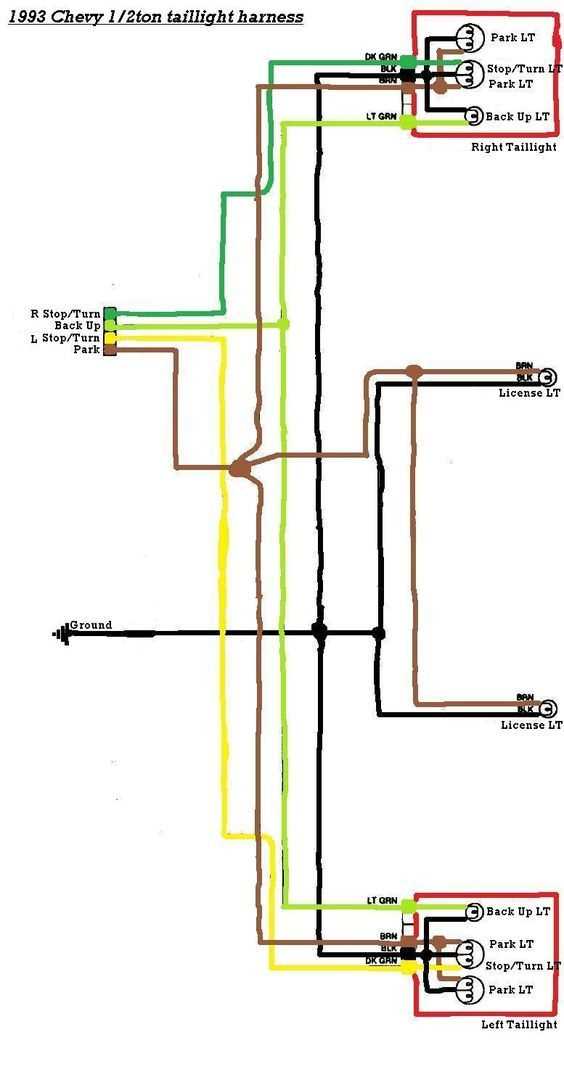

For trailer light diagnostics, examine the brown wire connector tucked behind the rear bumper’s left corner. Corrosion here mimics a short; disassemble the plug and coat terminals with Permatex Dielectric Grease. Verify voltage at the connector pin closest to the license plate (taillight circuit): 12.4-13.8V indicates proper charging, while waterproof Deutsch DT connectors prevent future issues.
When troubleshooting the 4L60E transmission harness, focus on the three-wire sensor plug near the transmission pan. Pin A (gray wire) carries 5V reference; Pin B (dark blue) is the speed sensor signal. Probe both with the ignition ON–gray should read 4.8-5.2V; dark blue fluctuates between 0.5-4.5V when the driveshaft turns. Static readings point to a faulty sensor or broken wire; nudge the harness while monitoring voltage to isolate intermittent breaks. Secure loose wires with Pearson’s Wire Loom, sized 3/8” for bulk harness protection.
Reset the CCM (Central Control Module) after repairs by disconnecting the battery’s negative terminal for exactly 15 minutes. Reconnect and cycle the ignition key ON-OFF three times within 10 seconds to reload adaptive fuel values. If the SES (Service Engine Soon) light persists, scan with OTC 7700; codes P0100-P0104 flag MAP sensor failures–swap the unit if voltage at Pin C (violet wire) sits below 1.5V at idle.
Finding Primary Electrical Bundle Junctions in the GMC Sierra C1500 Series
Start under the dashboard on the driver’s side, directly above the pedal assembly. The main bundle exits the firewall through a 50-pin bulkhead connector labeled C101; split loom here branches into three sub-harnesses:
| Connector | Pin Count | Wire Colors | Destination |
|---|---|---|---|
| A | 14 | Orange/Black, Yellow/Black | Instrument cluster |
| B | 22 | Pink, Dark Green, Tan | Body control module |
| C | 12 | Red/White, Light Blue/White | HVAC controls |
Trace the thickest loom upward; it clamps to the steering column support bracket before splitting again at a two-part multiplug marked C105.
Move to the engine bay: the front harness routes from the bulkhead connector along the left inner fender, secured by plastic clips every 6 inches, then splits at the radiator support. The larger branch continues to the alternator, starter solenoid, and ignition coil via a 8-gauge red lead, while a smaller 14-gauge bundle (dark green, light blue) feeds the A/C compressor clutch and cooling fans at a splice block above the battery tray. Disconnect the 10-mm bolt at the splice block to expose hidden contacts; corrosion here disrupts fan relay signals.
Tracing and Verifying Fuse Panel Pathways in a Chevy Full-Size Truck (Early ’90s Model)
Begin with the under-hood fuse block–located driver-side, adjacent to the brake master cylinder. Label F1 through F15 are standard, but labels alone won’t confirm circuit integrity. Probe each fuse socket terminal with a multimeter set to 12V DC; expect 12.6V on the battery-side terminal and 0V on the load-side if the fuse is intact. Any deviation suggests a short downstream or a blown fuse not visually detectable.
For the interior fuse panel, remove the lower dashboard trim beneath the steering column to expose the relay cavities. Focus on cavity positions R1-R5: R1 controls the A/C compressor clutch, R2 handles the electric cooling fan, and R3 governs the high-beam headlight circuit. Swap each relay with a known-good 30A unit to isolate whether the issue lies in the relay itself or its circuit.
Trace the red 10-gauge wire feeding F2–designated for the ignition switch “run” and “start” positions. Disconnect the wire at the ignition switch bulkhead connector; measure continuity between the harness-side terminal and chassis ground with a resistance setting. Infinite resistance indicates a break, while any measurable resistance points to a partial short. Repeat for the purple 14-gauge wire supporting F3 (instrument panel feed), checking against the factory splice at connector C101.
Identify the fusible link–a 6-inch yellow wire bridged between the starter solenoid and the under-hood fuse block. Clip an inductive ammeter around this link while cycling the key to “start.” Normal current draw for a healthy 5.7L V8 should peak at 220-250A momentarily, then settle to 30-40A in “run.” Readings above 400A signal starter drag or a shorted solenoid.
Use a test light with a sharpened probe to back-probe connector C202 behind the glove box. Pin 3 (light green wire) carries F4’s feed to the rear cargo lamp–tap the probe into the terminal while toggling the lamp switch. A dim or flickering test light confirms voltage drop across the switch contacts; replace the switch if resistance exceeds 0.5 ohms.
Inspect cavity F5, a green 18-gauge wire supplying the ECM power relay. Unplug the ECM connector and measure voltage at pin A3–should mirror battery voltage. If below 11.5V, splice a temporary jumper from the battery positive terminal to isolate whether voltage loss originates at the relay or along the harness route past the bulkhead grommet.
For the transmission control module feed (F7), follow the tan 16-gauge wire from the fuse panel to the driver-side kick panel connector C305. Pull the connector apart and check for corrosion on the male spade terminals. Clean with a wire brush, then apply dielectric grease to prevent recurrence. Reconnect and monitor wire temperature with an infrared thermometer while idling; readings above 150 °F indicate excessive resistance.
When testing F12–responsible for the fuel pump relay–ensure the inertia switch (mounted behind the passenger-side kick panel) hasn’t tripped. Press its reset button, then back-probe the orange 12-gauge wire at the relay socket. With the key in “run,” voltage should spike to 12V for 2 seconds then drop to 0V if the ECM primes the injectors. A persistent 12V reading points to a stuck relay or ECM failure.
Tracing Engine Bay Circuits for Common Failure Points
Begin by inspecting the ignition coil connections and the distributor harness. Corrosion at the coil’s spade terminals is frequent–clean with a wire brush and apply dielectric grease. The distributor’s pickup coil wires, especially where they exit the cap, often fray due to vibration. Test continuity with a multimeter; resistance should read between 500–1500 ohms. If readings fluctuate, replace the wires with silicone-insulated units rated for 200°C.
Focus next on the ground straps linking the engine block to the chassis. A single bolted connection near the thermostat housing often loosens or corrodes. Remove, sand the mating surfaces to bare metal, and reinstall with a star washer to ensure tension. Weak grounds manifest as intermittent sensor readings or fuel pump priming delays–use a test light to verify current flow at the strap during cranking.
- Alternator output terminal: Check for frayed insulation where the positive cable bends toward the firewall. A 10-gauge cable should carry at least 70A under load; voltage drop exceeding 0.5V indicates internal corrosion.
- Throttle position sensor plug: Wiggle the connector while monitoring voltage–erratic readings signal worn pins. Reflow solder on a new connector if terminals show pitting.
- Coolant temperature sender: The two-wire harness near the thermostat is prone to chafing against the intake manifold. Route wires above the exhaust crossover to prevent heat damage.
For fuel injectors, probe the injector harness at the ECM plug–each pink/black wire should measure 12V during key-on. If voltage is missing, trace back to the fuel pump relay, focusing on the relay socket’s solder joints. Injector circuits also fail silently when the ECM grounds their control wires; swap injectors between cylinders to isolate dead drivers.
