Locate the orange wire behind the factory stereo harness–this carries constant 12V power and must be spliced directly to the new head unit’s red lead. The yellow wire serves as the memory keeper; avoid cutting it unless you’re installing a modern unit with built-in voltage regulation. Ground connections require a clean metal surface under the dash, preferably a dedicated bolt near the kick panel; surface rust or paint will cause intermittent power loss.
For amplifier integration, trace the light green and dark green wires at the rear of the original harness–these handle the rear speaker outputs. Measure their resistance with a multimeter; values above 4 ohms indicate corroded factory connectors or frayed wiring needing replacement before proceeding. The purple wire (right rear positive) and gray (left rear positive) must be extended to the amp’s input terminals using 18-gauge oxygen-free copper wire to prevent signal degradation.
Factory antenna control runs through the dark blue wire; connect this to the new unit’s power antenna or remote turn-on lead. If your aftermarket receiver lacks this feature, use a relay triggered by the ignition wire (pink) to power the antenna motor. The dimmer wire (light blue with a white stripe) adjusts illumination with the dash lights–splice this to your new stereo’s rheostat input or bypass it if not required.
Test every connection with a 12V test light before reassembling the dash. A single misplaced wire can trigger security system faults or blown fuses–double-check the brown wire (vehicle speed signal) if your stereo includes speed-sensitive volume. Replace the fuse box cover last; missing screws or gaps lead to dashboard rattles at higher RPMs.
Avoid twisting speaker wires together–use soldered joins wrapped in adhesive-lined heat shrink for moisture resistance. If the stock harness shows signs of brittle insulation, replace the entire connector block with a pre-made adapter (part #C0600) to maintain OE compatibility. Keep a wiring schematic on hand; color codes vary between base and SLT trim packages.
Guide to Electrical Schematics for Your Vintage Pickup Audio System
Begin by locating the tan wire with a black stripe on the aftermarket harness–this is the constant 12V feed needed to retain memory presets. Connect it directly to the ignition-switched red wire on the OEM plug (pin A7) using a 18-gauge fusible link to prevent voltage drops. Avoid splicing into the yellow wire (pin A4) as it carries accessory power only when the key is in the “ACC” position, which risks draining the battery overnight.
Ground connections must terminate at the metal chassis near the dashboard rather than the stereo’s mounting bracket. Use a 12-gauge wire with a star washer to ensure a solid connection; corrosion at this point is a leading cause of alternator whine and speaker popping. If static persists, run an additional ground from the head unit’s black wire (pin C) to the same chassis point, bypassing any factory splices that may have degraded over time.
The orange wire (pin A8) delivers illumination power to dim the display when headlights activate. Route this through a 2-amp fuse and connect it to the dimmer switch harness rather than the tail light circuit to avoid overload. Failure to do so can cause the dashboard lights to flicker when the audio system draws current, especially with high-wattage aftermarket amplifiers.
Speaker outputs follow a specific polarity: front left (+) is gray (pin B4), front left (-) is gray/black (pin B5); rear right (+) is purple (pin B6), rear right (-) is purple/black (pin B7). Cross-wiring these will invert stereo imaging and weaken bass response. For systems with separate tweeters, use a 120Hz crossover capacitor on the (+) leads to protect the tweeters from damaging low-frequency signals.
If retrofitting a modern unit, the factory antenna motor (dark blue, pin A10) requires a relay to simulate the original signal, as newer radios lack the voltage trigger. Use a 30-amp Bosch-style relay with the coil wired to the ignition switch and the contacts to the antenna lead. Without this, the power antenna will extend but fail to retract, or worse–remain stuck in the “up” position, draining the battery within hours.
Matching the Right Connector for Your Truck’s Sound System Upgrade

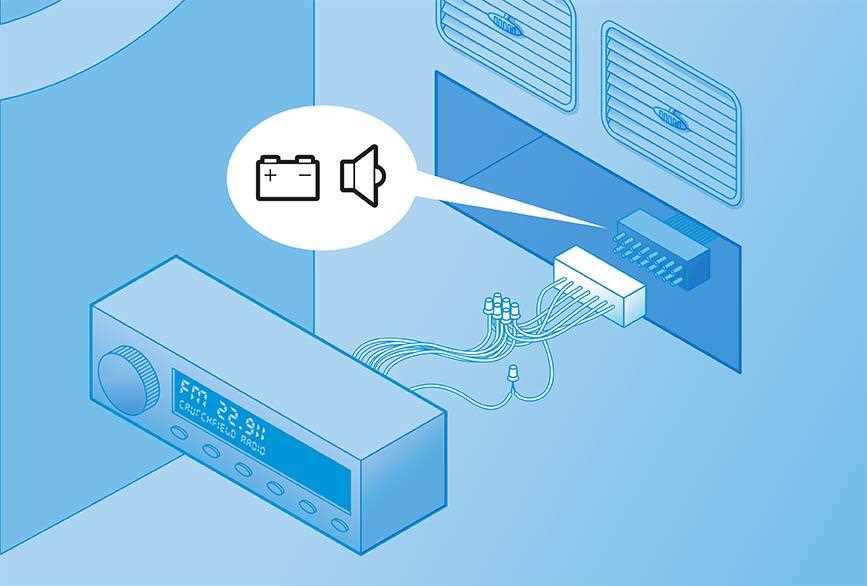

Locate the factory harness behind the dash cluster–it terminates in a 12-pin rectangular plug for most standard audio units. Pin assignments follow a consistent pattern: A4 (dark blue) carries constant 12V, B2 (gray) delivers switched power, and C3 (pink) handles illumination. Ground sits at D1 (black). Verify these positions with a multimeter before splicing; reversed polarity risks frying the head unit’s internal circuitry.
Aftermarket harnesses often bundle adapters for Pioneer, Alpine, or Kenwood receivers. Select models ending in “-16” for compatibility–these include the necessary resistors to interface with the truck’s retained accessory power circuit. Skip universal kits lacking labeled connectors; bundled diagrams use vague color codes that fail to match actual wire sizes (e.g., 18-gauge vs 20-gauge). Purchase adapters from authorized dealers rather than eBay–counterfeit units melt under sustained current draw.
Trim the new harness’s wires to match the existing plug’s length–excess copper causes voltage drop across splitters. Apply solder and heatshrink tubing to joints; electrical tape degrades within 18 months when exposed to dashboard temperatures. Route cables away from the transmission tunnel and HVAC blend doors–steel edges slice insulation over time. Secure runs with nylon tie-wraps every 6 inches to prevent rattling-induced short circuits.
Test all functions before finalizing installation: seek mode should cycle sources without audible clicks, and the dimmer function must reduce illumination without cutting bass frequencies. If the clock loses time after ignition cycles, add a standalone capacitor (1000μF, 25V) across the standby power line–factory modules drain residual charge unpredictably. Recheck fuse ratings; the original 10A fuse often needs upgrading to 15A for modern amplifiers.
For vehicles upgraded with premium audio, splice the remote turn-on lead (typically blue/white) directly to the amplifier–relays supplied in cheap kits introduce latency, causing subwoofer pop on startup. Keep a spare 30-amp blade fuse within arm’s reach; dash-dismantling takes 45 minutes, and blown fuses are difficult to replace mid-project.
Step-by-Step Guide to Pinpointing the Audio System Harness Layout Behind the Instrument Panel

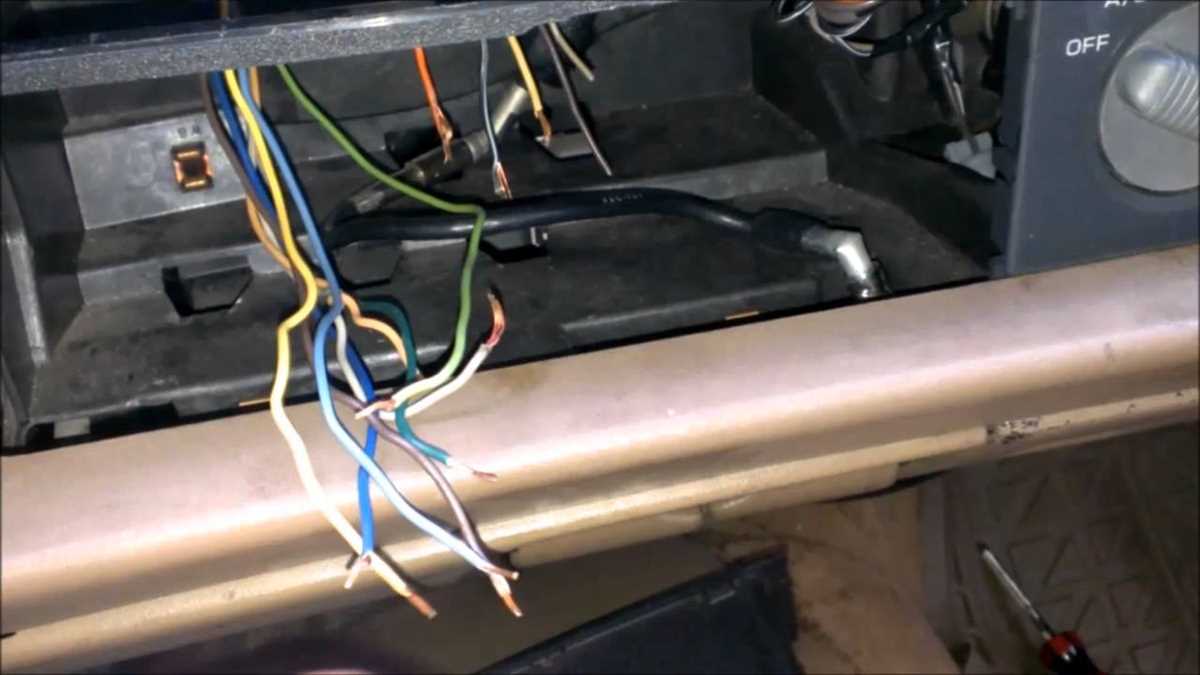

Disconnect the vehicle’s battery terminal to prevent short circuits before handling any connectors. Locate the primary access panel beneath the steering column–it’s secured by two 7mm screws; remove them using a nut driver. Pull down the panel gently to expose the main wiring cluster. Identify the rectangular 12-pin plug attached to the back of the head unit’s housing–this is the key harness interface. Trace the wires back to the firewall grommet; the color-coded leads (typically yellow for constant power, red for switched, black for ground, and purple/white for antenna) will split into smaller branches here.
- Use a multimeter set to DC voltage (20V range) to verify live circuits–probe the yellow wire with the ignition off to confirm 12V.
- Label each connector with masking tape before detachment to avoid confusion during reassembly.
- Check for aftermarket splices by inspecting the harness 6 inches from the plug–factory connections use ultrasonic welding, not tape or crimps.
- If the schematic isn’t visible, refer to the original manufacturer’s manual (section 8B, page 112) or a Chilton guide for exact pinouts; third-party diagrams often mislabel orange (illumination) and gray (dimmer) wires.
- Reattach all components in reverse order, ensuring the ground strap (bare copper) makes direct contact with the chassis–corrosion here causes intermittent power loss.
Color-Coded Wires Explained: Power, Ground, Speaker, and Antenna Connections
Trace the yellow wire (constant 12V+) directly to the positive terminal of the fuse box–verify amperage matches the aftermarket unit’s requirements (typically 10A). A red wire (switched 12V+) must connect to an ignition-controlled source, often labeled “ACC” or “IGN” on the harness; bypassing this causes parasitic drain. For grounding, strip the black wire (chassis ground) to bare metal, ensuring contact with an unpainted surface near the mount–corrosion here creates intermittent failures.
| Wire Color | Function | Gauge (AWG) | Connection Notes |
|---|---|---|---|
| Yellow | Battery (constant power) | 16-18 | Splice with inline fuse; avoid tap connectors |
| Red | Ignition (switched power) | 18-20 | Test with multimeter for 12V in “RUN” position |
| Black | Ground | 14-16 | Scrape chassis paint; use star washer for stability |
| Gray/White | Front right speaker (+) | 20-22 | Check polarity against door tweeter for phase alignment |
| Violet/Blue | Antenna trigger | 22-24 | Connect to motorized or powered antenna unit only |
Speaker outputs follow a standardized polarity: solid color (+) and stripe (-). Confirm door speakers’ resistance (4-8 ohms) before connecting; mismatches cause distortion. The blue/white stripe (amplified antenna) requires a direct link to the antenna module–skipping this powers down the external amplifer. For retrofits, solder joints outlast crimp connectors, especially for high-current feeds (yellow/red).
