Start by locating the main solenoid near the battery pack–this component regulates high-current flow and is critical for proper system activation. Identify the red (positive) and black (negative) cables connecting to the solenoid; mismatched or corroded terminals here disrupt ignition and accessory functions. Use a multimeter set to 20V DC to verify voltage across these terminals during startup; readings below 12V indicate a weak battery or faulty solenoid connections.
Trace the ignition switch wires–typically brown, yellow, and blue–to their junctions. The brown wire delivers power from the key switch to the solenoid, the yellow feeds the reverse buzzer, and the blue controls the headlights. If the headlights flicker or fail, inspect the blue wire’s ground point near the front chassis; rust or loose screws create high resistance. Clean contacts with a wire brush and apply dielectric grease to prevent oxidation.
Check the controller’s wiring harness for frayed insulation or melted spots, especially where wires bend near the motor. Early models use a 36V system, so measure voltage at the controller’s input terminals–expect ~36V under load. Deviations suggest a failing motor brush or damaged controller board. Replace brushes if resistance exceeds 5 ohms; standard replacements fit 0.5″ x 1.0″ dimensions.
For troubleshooting sudden power loss, focus on the run/tow switch. Set to RUN for normal operation; accidental TOW mode cuts power to the motor. Test continuity with the switch in both positions–zero resistance in RUN and infinite in TOW confirms proper function. If readings are inconsistent, replace the micro-switch beneath the seat.
Lastly, verify the speed sensor connection if the cart stalls under acceleration. The sensor mounts near the rear axle and communicates wheel rotation to the controller. Disconnect the gray wire from the sensor and probe for a 0-5V signal while spinning the wheel by hand–no signal points to a defective sensor or severed wire. Replacements require precise alignment to avoid false readings.

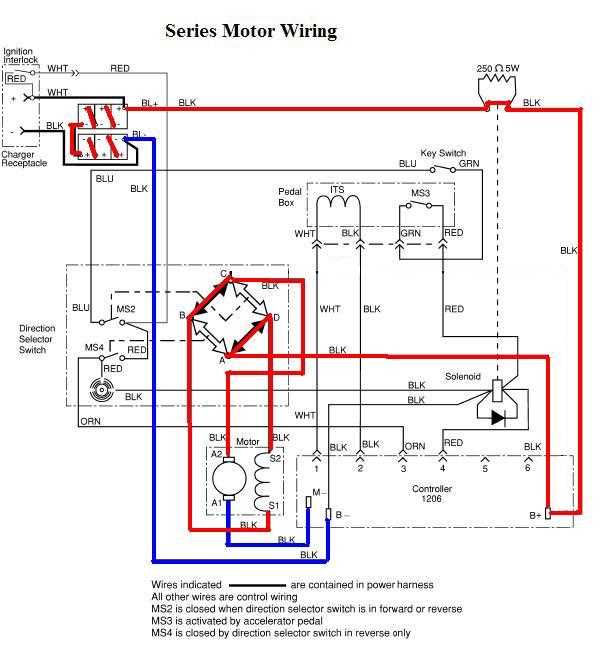

Tracing Electrical Paths in Early Golf Carts: A Full Schematic Breakdown
Locate the main power solenoid beneath the passenger-side seat–it’s the rectangular black box with two heavy-gage cables entering its top. Verify it’s the 36-volt variant: terminals should be stamped B+ (battery positive), M (motor), and two smaller spade connectors marked S (switch) and A (accessory). If labels are worn, use a multimeter set to continuity; the S terminal will close the circuit when the ignition key turns. Replace the solenoid if resistance exceeds 0.5 ohms between B+ and M.
- Battery pack: six Trojan T-105 traction cells wired in series (6×6=36V). Terminal posts are threaded 5/16″-18; torque to 10-12 ft-lbs.
- Run-tow switch: two-position rocker near the accelerator pedal. Illuminated red = run; amber = tow. Under tow mode, the controller bypasses the solenoid entirely–critical for pushing the cart without battery drain.
- Forward-reverse lever: microswitch with three colored wires–orange (ground), blue (reverse solenoid), yellow (forward solenoid). If cart lurches, check these first; corroded contacts cause intermittent reverse failure.
- Fuses: 250V, 20A ceramic fuse in the dash-mounted holder (labeled F1). Secondary 10A fuse feeds accessories (headlights, horn). Fuse ratings match wire gauge: 10 AWG for accessories, 6 AWG for main power.
Trace accessory circuits from the accessory relay–small rectangular relay under the dash. Pinout: 30 (common), 85 (ground), 86 (12V ignition), 87 (accessory bus). Headlights pull 7A each; taillights 3A. Voltage drop across any light socket exceeding 0.3V indicates poor grounding–clean connection points with fine-grit sandpaper and apply dielectric grease. For auxiliary 12V outlets (if retrofitted), wire directly to the solenoid’s A terminal via 14 AWG cable and a 15A blade fuse. Never splice into existing circuits; factory harnesses use heat-shrink tubing, not electrical tape, for waterproofing.
Identifying Core Elements in the Early Model Golf Cart Electrical Layout
Start beneath the seat to find the fuse block–typically mounted on the left side, near the battery tray. Check for a 30-amp main fuse linked directly to the ignition switch; corrosion here causes intermittent power loss. Follow the red wire from the fuse to the solenoid, ensuring its connections are tight and free of oxidation. Replace any damaged crimp connectors with soldered joints for reliability.
The controller sits adjacent to the motor, encased in a rectangular housing with cooling fins. Trace the thick cables entering and exiting this unit–black (ground), orange (power input), and yellow (throttle signal) must be secure. Measure voltage at the orange wire with the key turned; 36 volts confirms proper circuit flow. Failed readings point to solenoid or battery issues, not controller faults.
Battery terminals require direct inspection. Negative posts should connect to a braided ground strap leading to the chassis, while positives route through the main switch. Use a multimeter to verify each cell’s output–consistent drops below 6 volts per 8-volt battery indicate replacement needs. Clean terminals with baking soda paste, avoiding abrasives that strip plating.
Throttle micro-switch attaches to the pedal assembly, activating when depressed. Locate the two small wires (usually purple and gray) leading to the controller; broken insulation here causes erratic acceleration. Test continuity while pressing the pedal–clicking confirms functional operation. Swap the entire switch if clicking is absent, as internal contacts wear over time.
Guide to Electrical Circuit Hookups for Early Electric Cart Models
Begin by locating the main battery pack under the seat. Disconnect the negative terminal first to prevent short circuits. Use a 10mm wrench to loosen the terminal clamp, then lift the cable away from the post. Label each connection with masking tape to avoid confusion during reassembly.
Trace the heavy-gauge cables from the batteries to the solenoid. The solenoid sits near the motor, bolted to the frame. Two large wires–red from the key switch and black from the negative bus–feed into its terminals. Confirm continuity with a multimeter set to 200 ohms; resistance should read below 0.5 ohms.

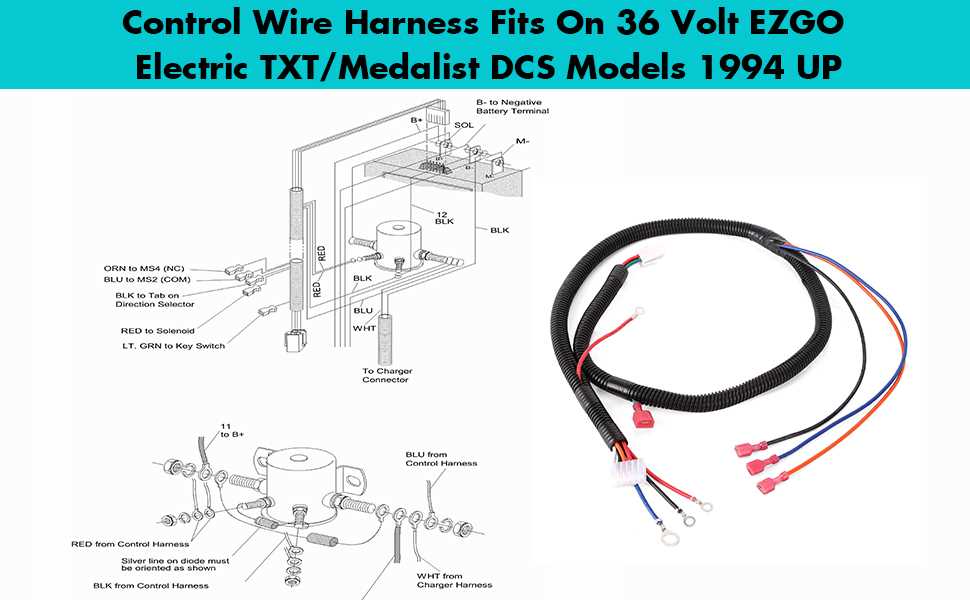

Install the key switch harness by aligning the colored leads with the corresponding controller ports. The chart below maps each wire to its destination:
| Wire Color | Connects To | Function |
|---|---|---|
| Red (thick) | Solenoid (top terminal) | Ignition power |
| Yellow | Forward microswitch | Direction selector |
| White | Throttle potentiometer | Speed signal |
| Blue | Reverse microswitch | Direction selector |
| Black (thin) | Motor controller (ground) | Common return |
Attach the throttle assembly next. The potentiometer mounts on the pedal linkage, with three wires–5V reference (gray), signal (white), and ground (black). Secure the signal wire to the controller’s P2 port. Test pedal response: voltage should rise smoothly from 1V to 4V as pressure increases.
Route the motor cables carefully. The controller outputs two large wires–one to the motor’s A1 terminal, the other to A2. Bolt them directly to the terminals using #10 split washers to prevent loosening. Avoid twisting the cables; strain relief clamps must be tightened to the chassis every 6 inches.
Connect the charge receptacle last. The receptacle has three pins: positive (red), negative (black), and AC sense (blue). Crimp spade connectors to the leads, then snap them into the back of the receptacle. Route the wires along the frame, securing them with zip ties. Measure voltage at the battery with a load tester: 36V indicates proper charging.
Recheck all connections before powering on. Reconnect the negative battery terminal, then turn the key. Listen for a solid click from the solenoid–no clicking means a bad relay or loose wire. If the cart moves in reverse only, swap the yellow and blue wires at the microswitches.
Seal exposed connections with heat-shrink tubing. Slide tubing over splices before soldering, then apply heat with a heat gun until it conforms tightly. This prevents corrosion from moisture and dirt buildup. Store the reference schematic in a ziplock bag under the seat for future troubleshooting.
Diagnosing Electrical Faults with Schematic Reference
Check the battery connections first–corrosion on terminals disrupts voltage flow even if the charge is adequate. Use a multimeter to verify 36–48 volts at the pack; anything below 34 volts indicates weak cells or bad connections. Follow the main feed line from the battery to the controller on the diagram to locate intermittent breaks or frayed spots.
Identify solenoid failures by listening for a distinct click when engaging the accelerator. No click suggests the coil is broken or the switch isn’t receiving signal. Use the schematic to trace the ignition circuit–voltage should jump from 0 to full pack voltage at the solenoid’s large terminals when activated.
Test motor brush continuity directly–open brushes prevent torque despite functional power delivery. Remove the cover panel referencing the circuit layout, then apply 12 volts to each brush pair; resistance should measure under 5 ohms. Higher readings signal worn or disconnected components.
Inspect the throttle microswitch by confirming voltage drop across its contacts while pressing the pedal. The diagram marks expected values–absence of voltage shift pinpoints a faulty switch or severed line. Bypass temporary faults by bridging the switch terminals with a jumper wire to isolate the issue.
Examine all ground points against the layout–loose or oxidized grounds create unpredictable behavior. Scrape corrosion from chassis mounts and re-secure connections; test continuity from battery negative to each ground node. Poor bonding often mimics more complex problems.
Use the fuse legend to quickly rule out blown protection devices before probing deeper circuits. A 20-amp fuse missing voltage on the load side isolates a short in downstream wiring. Replace only with identical amperage rated components to prevent fire hazards.
Probe the direction switch connector for signal integrity–each position should momentarily pulse 12 volts to the corresponding relay coil. Missing pulses direct attention to either the switch internals or relay windings. Swap relays side-by-side to confirm suspected failures.
Record observed voltages at every test point on a printed layout copy–anomalies between measurements and expected readings immediately reveal problem segments. Repeat testing between power cycles to catch intermittent faults that disappear under load.
