Locate the purple wire connected to the solenoid’s S-terminal–this is the primary control lead from the ignition switch. Trace it backward to confirm it merges with a fusible link near the firewall before entering the main harness bundle. If corrosion is present at this junction, strip the wire, apply dielectric grease, and crimp a new 16-gauge ring terminal. Avoid solder alone; mechanical reinforcement prevents future failure.
Identify the thick red cable attached to the solenoid’s battery terminal. This supplies direct current from the positive post. Measure voltage here with the key in the start position–readings should match battery voltage (12.6V+). If below 10V, inspect the battery cables for internal breaks or surface oxidation. Replace both ends if resistance exceeds 0.5 ohms.
The yellow or white striped wire (varies by engine size) links the solenoid to the neutral safety switch. Check continuity between the switch and the starter relay when the transmission is in Park or Neutral. A failed switch cuts current, preventing engagement. Bypass temporarily for testing by jumping the relay terminals, but replace the switch immediately after confirmation.
Examine the ground strap from the engine block to the chassis. Loose or corroded grounds mimic starter malfunction. Clean both contact points with a wire brush, then secure with a new 10mm bolt and stainless-steel washer. Avoid paint or undercoating at the attachment point; bare metal ensures reliable conduction.
For installations where the original harness has been modified, map all connections against factory schematics. Non-standard colors (e.g., solid orange instead of yellow) often indicate aftermarket alterations. Cross-reference with GM Bulletin 93-6E-12 if discrepancies arise–this covers common splicing errors from auxiliary lighting retrofits.
Electrical Hookup for GM Full-Size Pickup Ignition System
Locate the solenoid’s S-terminal first–it’s the smaller post labeled with an “S” on the side of the motor assembly. This post accepts a 12-gauge purple wire from the ignition switch. Ensure the crimp connector is fully seated; corrosion here mimics intermittent no-crank complaints.
Trace the battery feed next. A braided 4-gauge cable runs directly from the positive battery terminal to the larger B-post on the solenoid. Verify clamp torque at 12 Nm–loose connections generate excessive heat, degrading solenoid contacts over time. Replace clamps if pitting exceeds 1 mm depth.
Common voltage-drop test points:
- Negative battery to engine block: < 0.1V.
- Solenoid B-post to battery positive: < 0.2V.
- Ignition switch output (purple) to solenoid S-post: < 0.3V.
Exceeding these thresholds indicates corroded terminals or undersized cables.
Neutral Safety Interlock Check
Vehicles equipped with automatic transmissions incorporate a switch wired in-series with the ignition purple wire. Bypass temporarily by jumpering the two switch terminals; if rotation occurs, replace the neutral switch. For manual transmissions, the clutch pedal switch operates similarly–inspect for cracked housings or stuck plungers.
Fuse block relay #3 supplies power during cranking only; inspect the 20A fuse for hairline cracks. Replacement relays must match GM part #14098144–aftermarket units often lack the 80-ohm pull-in coil resistor, causing arcing at the starter contacts. Confirm relay operation by probing terminal 86 for 12V when the key is turned to the start position.
Locating Critical Conductors in the Ignition Relay System
Begin by tracing the solenoid’s heavy-gauge cable–typically a red or orange 8–10 AWG strand–directly from the battery terminal. Verify this conductor bypasses all fuses and switches to deliver unobstructed amperage; corrosion here mimics faulty relay behavior but shows distinct voltage drops under load (below 9.6V). Mark this cable before proceeding to avoid misidentifying accessory leads.
- Control strand: Locate the ignition-switch feed–usually a thin yellow or purple wire–at the relay’s small spade connector. Probe it with a multimeter set to DC volts; cranking voltage should spike to 10–12V momentarily then stabilize at 7–9V while the engine engages. A flatline reading signals switch failure or broken excitation path.
- Ground return: The solenoid casing must bond to chassis ground via a clean, unpainted surface; resistance exceeding 0.1Ω invites intermittent no-start conditions. Scrape paint from contact points if readings fluctuate during crank tests.
- Interlock circuit: Automatic transmissions include a neutral safety lead (pink or light blue) spliced near the steering column. Jump this temporarily to isolate whether stall prevention interferes–voltage should mirror ignition-switch feed during attempted start.
Examine solenoid terminals: the spade connector closest to the ring terminal carries starter-motor feed, while the opposing terminal receives ignition-switch control. Swap their positions accidentally and prolonged cranking destroys the relay coil internally–symptoms include a single click followed by silence. Confirm coil resistance between these spades: 0.3–0.7Ω indicates intact windings; open circuits demand immediate replacement.
Inspect fuse link integrity: follow the battery-feed cable backward 6–12 inches to locate a fusible segment thinner than primary conductors. Melted insulation here suggests sustained overload–replace with identical gauge (preferably solder-sealed) to prevent recurrence. Never substitute standard fuse wire; this segment acts as intentional weak point during catastrophic shorts.
Decoding Power Connection Colors: A Practical Guide
Locate the thick purple cable first–this supplies the solenoid with ignition voltage. Trace its path from the ignition switch terminal designated “B” or “S” to the solenoid’s upper post; ensure no corrosion or fraying disrupts this 12-gauge link. If voltage drops below 10.5V at this point under cranking load, inspect the battery’s ground path or solenoid contacts.
Identify the yellow-striped lead feeding the motor’s field coils. This conductor originates from the solenoid’s smaller terminal and must maintain continuity to the starter motor housing; resistance exceeding 0.2 ohms signals internal wear or partial disconnection. Use a multimeter in continuity mode to verify integrity–any deviation demands replacing the motor assembly rather than splicing.
The black sleeve conceals the main power feed from the battery’s positive terminal. This 4-gauge braided cable attaches to the solenoid’s central stud; secure it with a 15mm socket and torque to 85 lb-ft. Check for heat signatures–excessive warmth post-cranking indicates parasitic draw from a faulty diode trio or armature shorts.
Ground return flows through the vehicle’s frame via the engine block’s unpainted mating surface. Scrape away paint or rust at the bell housing mount point to restore

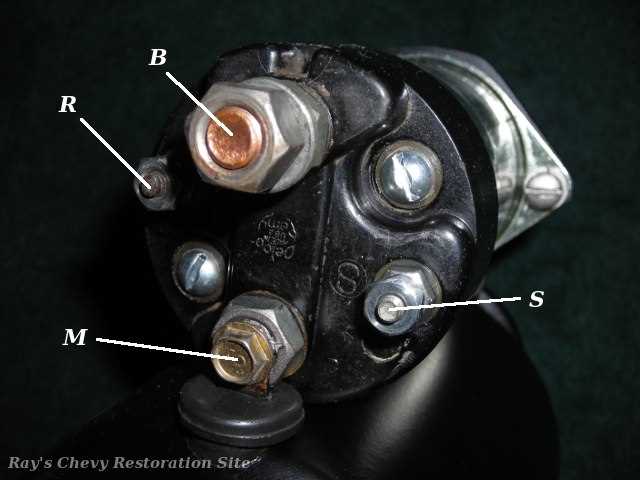

Inspect the thin tan wire running from the ignition harness to the solenoid’s “R” terminal. This triggers the solenoid pull-in coil; voltages below 8V during cranking mean a degraded switch or swollen ignition cylinder. Swap the cylinder first–testing reveals soldered contacts inside modern replacements bypassing intermittent failure modes.
Locating and Testing the Starter Solenoid Connections
Find the solenoid mounted on the power engagement assembly–typically a cylindrical or rectangular component with two thick posts and a smaller terminal. Use a multimeter set to continuity mode; probe the larger posts while an assistant turns the ignition key to the crank position. A reading below 0.5 ohms confirms proper activation, while no change indicates a faulty relay or corroded contacts. If the solenoid clicks but fails to engage, clean the posts with a wire brush and retest.
Voltage Drop Testing
Attach the multimeter’s red lead to the battery’s positive terminal and the black lead to the solenoid’s main output post. With the engine cranking, voltage should not drop below 9.6V. A drop exceeding 0.5V signals excessive resistance–inspect the cable, connections, and ground strap for fraying, oxidation, or loose bolts. Replace any compromised wiring harness segments with 4 AWG copper wiring to restore full conductivity.
Common Electrical Faults and Diagnostic Steps
Check the solenoid connection first–corroded or loose terminals cause intermittent power delivery even with a fully charged battery. Use a multimeter to verify voltage at the trigger wire while engaging the ignition; readings below 10.5V indicate resistance in the circuit. Inspect the fusible link near the battery for melted insulation or breaks, as this fails silently and mimics starter motor issues by cutting power to downstream components.
Test relay continuity with a bench test–swap the suspected unit with a known-good relay of matching amperage rating. Faulty relays often stick open or closed, leading to slow cranking or no response. For ground path problems, trace the engine-to-chassis strap; rust or paint on mounting points creates high resistance. Clean both surfaces with a wire brush and apply dielectric grease to prevent future oxidation.
Quick Voltage Drop Test Reference
| Component | Max Drop (Volts) | Symptom |
|---|---|---|
| Positive Cables | 0.2 | Slow or failed crank |
| Solenoid Contacts | 0.3 | Clicking without rotation |
| Ground Strap | 0.1 | Intermittent power loss |
Replace any ignition switch showing internal wear–test by bypassing it momentarily with a jumper wire from the 12V source to the control wire. If the engine turns over, the switch is defective. Inspect clutch safety switches on manual transmissions; misadjusted switches prevent circuit completion. Finally, verify the neutral safety switch on automatics; incorrect alignment keeps the system from recognizing park/neutral positions.
