Begin troubleshooting any electrical issue by locating the Constant Power Feed (CPF) on the main fuse block beneath the instrument panel. This 10-gauge red wire (circuit 101) delivers uninterrupted 12V from the battery via fuse F1 (30A) directly to the ignition switch, starter solenoid, and backup lights. Verify continuity from the battery positive terminal through this path; corrosion at the firewall connector (C100) is the most common failure point, reducing voltage by 0.5V or more under load. Use a multimeter set to 20V DC across both terminals of the connector–readings below 11.8V indicate resistance requiring replacement of the pigtail harness.
For ignition system diagnostics, trace circuit 310 (yellow/blue) from the ignition coil positive terminal back to the ignition control module (ICM). The module, mounted on the left inner fender, relies on a dedicated 8-gauge orange wire (circuit 11) for power during cranking–failure here mimics a bad starter. Check the ICM ground strap (circuit 57, black/white) against chassis ground; resistance exceeding 0.2 ohms warrants cleaning the mounting surface or replacing the strap. Replace the ignition coil only after confirming at least 0.6V spark at each wire during cranking with an inline spark tester.
Lighting circuits require distinct voltage levels–marker lights operate on circuit 3 (brown wire, 3A fuse), while headlights draw from circuit 10 (grey/yellow, 20A fuse). The headlight switch interrupts ground to circuit 56 (black), but the dimmer relay (mounted on the driver’s side kick panel) controls high/low beam selection via circuit 112 (light blue/black). Test relay operation by jumpering pins 85 and 86–audible click confirms coil function, while silence indicates a failed relay or open in circuit 11 (purple/orange from the fuse block). Headlight bulbs rated at 9005 (65W) must be identical pairs; mismatched resistance causes premature failure.

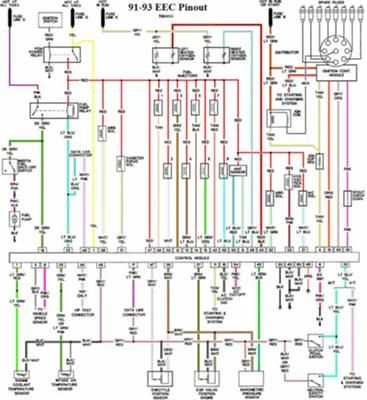

Fuel injection wiring centers on the Engine Control Assembly (ECA), powered by circuit 14 (pink/black) fused at 15A. Oxygen sensor input (circuit 414, white) terminates at pin 40 on the ECA; probe this wire with a scope while idling–waveform amplitude below 0.2V suggests a faulty sensor or open in circuit 43 (tan/black) returning to the sensor ground. The Thick Film Ignition (TFI) module grounds through circuit 57 (black/white), but corrosion at the engine block attachment point raises voltage drop; measure between the block and pin 5 on the TFI–readings above 40mV necessitate re-tapping the ground location.
Transmission control relies on circuit 179 (orange/yellow) from the Transmission Range Sensor (TRS) to the ECA. Defective park/neutral switching typically traces to broken pins at the TRS connector; jumper across pins A and B while monitoring ECA pin 32–no voltage change confirms an open circuit. Replace the TRS only after verifying continuity on circuit 15 (purple/orange) through the ignition switch. For overdrive functionality, circuit 635 (red/black) at the Overdrive Cancel Switch toggles between open and closed states–intermittent operation often stems from frayed wires near the console pivot.
Ford Fox Platform Electrical Schematics: Hands-On Troubleshooting
Locate fuse box labels under the dash–row one handles ignition, row two covers lighting. Voltage drops across terminals 30/50 signal bad grounds; probe with multimeter set to 200mV DC. Replace fusible links (orange wires) if resistance exceeds 0.2 ohms.
Trace fuel pump relay circuit: pin 85 triggers coil, 86 grounds it, 30 feeds constant battery voltage, 87 powers pump. Swap relay with A/C clutch relay (identical part #F15Z-14B020-A) to isolate faults. Inertia switch clicks reset only after full depress; test continuity with needle probes.
Headlight circuit paths split at multi-function switch–low beams run LT BLU/DK GRN, high beams LT BLU/WHT. Corroded bulb sockets create 1.5V drops; clean with aluminum oxide sandpaper (grit 600). Headlight door actuators stall at 12.6V; exceed 13.8V and they burn out.
| Connector | Pin | Function | Expected Voltage |
|---|---|---|---|
| C201 | 56 | Turn signal feed | Battery voltage (key on) |
| C243 | 2 | Blower motor low speed | 9–11V (resistor pack) |
| C148 | 33 | Instrument cluster ground | Less than 0.1V drop |
Starter solenoid pull-in coil draws 30–50A; shunt coil draws 70–100A. Copper contacts wear unevenly–inspect with 30X loupe for pitting deeper than 0.010″. Alternator field coil activation starts at 2.5V; below that, diode trio bridge is shorted. Replace voltage regulator if output exceeds 14.7V at 3000 RPM.
Instrument cluster illumination wires cluster at connector C263–DK BLU dims dash lights, LT BLU drives gauge backlight. Odometer stepper motors fail at 180° resistance exceeding 200Ω; bypass with temporary 10kΩ resistor to test. Trip computer clock keeps time via 32.768kHz crystal; desolder and replace if frequency drifts ±0.1%.
Horn relay (pin 85) triggers on DK PNK wire. Corrosion in the steering column clock spring adds 2–3Ω to circuit–clean both slip rings with contact cleaner. Power door locks pulse 0.5 seconds; exceeding 0.7 seconds burns solenoid coils. Test window motors by reversing polarity–healthy motors reverse instantly; sluggish motors signal worn brushes.
Engine bay harness grommet at firewall leaks 1–2mA if cracked–replace with OEM Ford part #F3ZZ-14A055-AA. Ignition coil primary resistance measures 0.8–1.2Ω; secondary resistance 10–15kΩ. Spark plug wires should read 5000–8000Ω per foot–above 12000Ω indicates internal spiral conductor break.

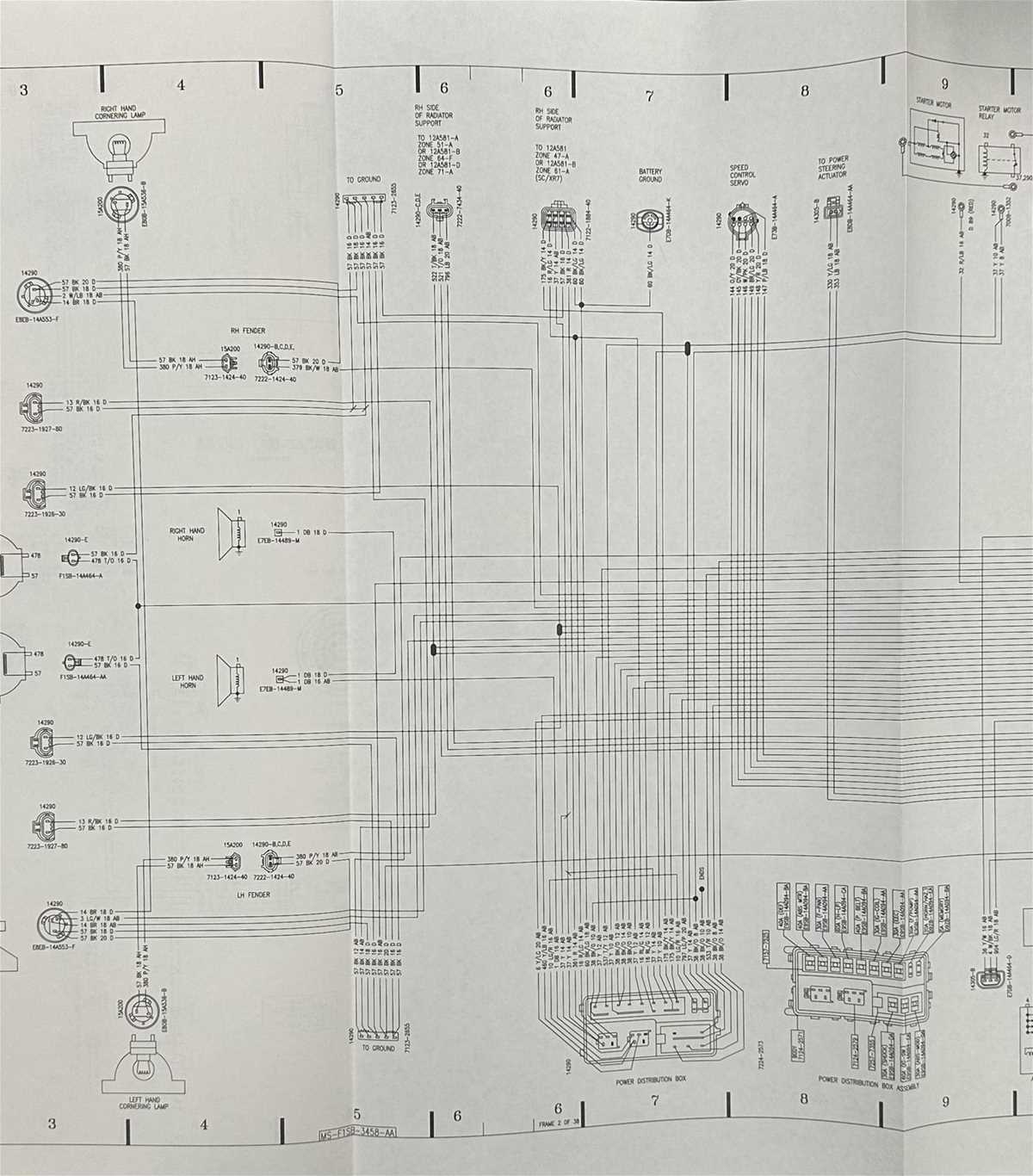

Finding the Full Electrical Schematic for Your Fox-Body Pony Car
Start with the official factory service manual. Ford Motor Company produced two primary documents for this vintage coupe: the Ford Mustang Shop Manual (Part No. FPS-12139-91) and the Electrical & Vacuum Troubleshooting Manual (Part No. FPS-12140-91). These books include every circuit layout, including fuse block details, ground locations, and connector pinouts. Check eBay, Ford parts dealers, or reproduction websites like Helm Incorporated for original or licensed copies.
Chilton and Haynes publish aftermarket repair guides that simplify tracing circuits. While these lack the depth of factory schematics, they offer clear color-coded illustrations for major systems–fuel injection, ignition, lighting, and charging. The Haynes manual (No. 36055) dedicates an entire chapter to electrical flowcharts with wire gauge colors and routing diagrams through the firewall, door jambs, and rear quarter panels.
Online forums like StangNet, Corral.net, and the Fox Mustang section of MustangForums.com host downloadable PDF scans. Members often attach high-resolution files of the EVTM (Electrical & Vacuum Troubleshooting Manual) or organize community-driven wire guides in pinned threads. Look for user-updated versions that correct errors in early print runs, particularly around the EEC-IV engine computer connections.
Salvage yards and specialty shops occasionally sell intact harnesses with attached labels. Pulling a harness from a donor vehicle lets you visually trace each wire’s path, matching colors to factory codes like LG/Y (light green/yellow stripe) for the fuel pump relay trigger. Avoid splicing–use a multimeter to confirm continuity before relying on memory.
Key Resources and Their Limitations
Automotive Data Solutions (ADS) offers a CD-ROM (Part No. ADS-FB91) that consolidates all system schematics into searchable, zoomable diagrams. It includes later revisions not found in paper manuals, such as updated wiring for the 5.0L mass air conversion. However, the interface is Windows XP-era software–run it in compatibility mode if needed.
For quick reference, bookmark MustangFAQ.com’s wiring section. It breaks down each subsystem (A/C, stereo, sensors) into standalone diagrams with hyperlinked component locations. The site also cross-references circuit numbers against the factory EVTM, eliminating guesswork when labeling wires removed during modifications.
Locating Critical Electrical Bundle Parts Under the Hood
Start by tracing the main power distribution cluster near the battery. The thickest cables–typically 6-8 gauge–lead to the fusible links or primary relay. These protect the starter solenoid and ignition circuits. Verify the links are intact, without signs of melting or corrosion, as failed ones mimic alternator or battery issues.
Examine the engine control module connector. Look for a single 50-60 pin plug, usually mounted on the firewall or inner fender. The harness splits here, feeding sensors and injectors. Check for brittle insulation at stress points where the bundle bends or rests against metal edges. Chafing here disrupts fuel delivery and timing signals.
Key sensor cables include:
- Crankshaft position–thin gray wire with two-wire connector
- Throttle position–red/light blue, paired with MAP sensor
- Oxygen sensor–unshielded, single-wire (pre-CAT models)
- Coolant temperature–yellow/black, prone to water intrusion
Follow the alternator output cable. It’s a heavy-gauge red lead, often hidden behind the engine mount. This wire carries charging voltage to the battery; corrosion here drops system voltage by 0.3-0.5V, causing intermittent accessories failure.
Identify the ground straps. They’re braided copper strips, bolted to the block, firewall, and chassis rails. A single loose bolt increases resistance, leading to dim lights or erratic gauge readings. Clean connection points with a wire brush and apply dielectric grease.
Troubleshooting Relay and Fuse Clusters
Locate the power distribution box–usually a black plastic housing near the strut tower. Remove the cover and label each relay before swapping. Common culprits:
- Fuel pump relay–controls pump spin-up during ignition
- AC clutch relay–engages compressor under high load
- Cooling fan relay–single-speed or dual-speed variants, activates at ~215°F
Test relays by probing terminals 85 and 86 for 12V when key is on. If voltage is present but the relay doesn’t click, the coil is faulty. Swap with a known-good relay (horn or headlight relay) to isolate the problem. Fuses rarely fail without physical damage, but check for hairline cracks in the ceramic body.
Preventing Common Failure Points
Spray electrical contact cleaner into sensor connectors before reinstalling. Push each terminal fully into its seat–partial insertion causes voltage drop. For splices, solder connections and seal with heat-shrink tubing, not tape. Replace nylon zip ties securing harnesses every 3-4 years; UV exposure makes them brittle, leading to bundle droop and grounding issues.
