Start with the main solenoid–its location varies but is typically mounted near the battery tray or under the seat. Use a multimeter to verify at least 36V across the large terminals when the pedal is depressed; readings below 35V indicate a failing coil or corroded connections. Clean terminal posts with a wire brush and apply dielectric grease before reconnecting. Replace the solenoid if resistance exceeds 0.5 ohms.
Trace the throttle microswitch wiring harness–it’s a common failure point. The red wire (key switch) should carry battery voltage to the microswitch upon ignition, while the yellow wire (throttle signal) must show 0V at rest and 5V under full pedal engagement. If readings fluctuate erratically, inspect the pedal potentiometer; a sharp tap can often reveal intermittent shorts. For replacement, match OEM resistance ranges (0–5k ohms) to avoid speed controller errors.
Check the speed controller’s heat sink for thermal paste degradation. Excessive heat (above 70°C) triggers automatic shutdowns. The white wire (field excitation) should measure 12V when the key is turned; absence suggests a faulty DC converter or blown fuse. Verify the black ground wire (chassis) maintains continuity; resistance over 0.1 ohms requires sanding contact points and securing with star washers.

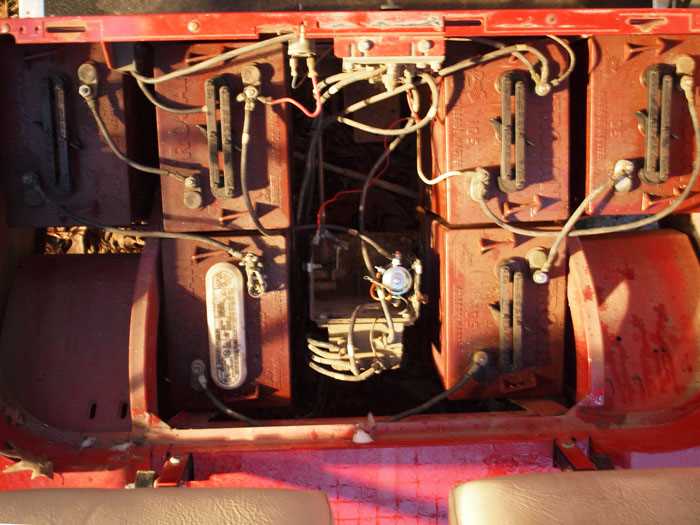

Inspect the battery interconnect cables next. Corrosion on the positive terminal (especially between batteries two and three) causes voltage drops. Cut back frayed insulation, crimp new ring terminals, and secure with nylon-lined clamps to prevent vibration damage. For 36V systems, ensure each battery reads 6.3–6.5V under load; deviations point to weak cells needing replacement.
Finalize the process by testing forward/reverse functionality. The gray wire (F/R switch) toggles between +12V and 0V; erratic voltage indicates switch wear. If the cart jerks during direction changes, replace the mechanical switch or check for water ingress in the controller housing. Seal gaps with silicone and confirm all connector pins show zero corrosion before re-assembly.

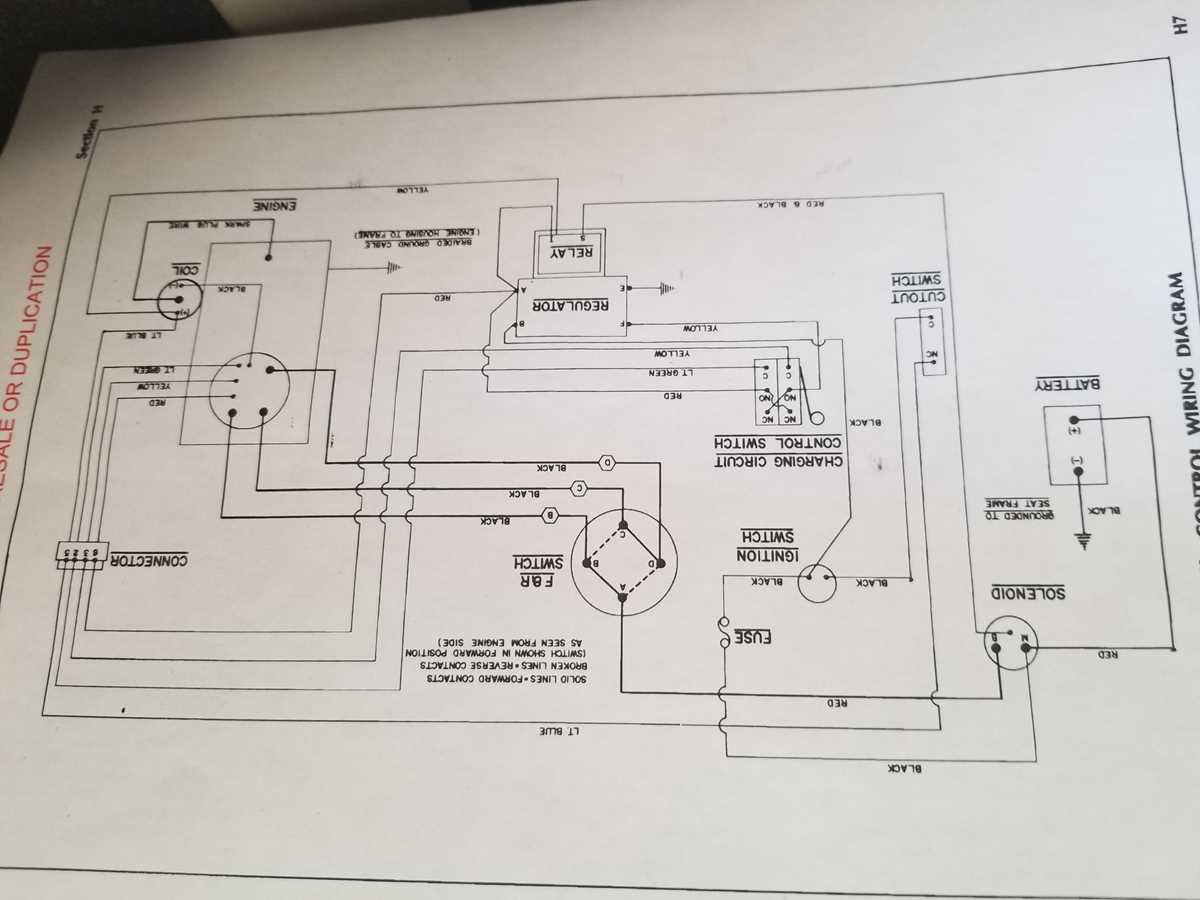

Electrical Layout for 1992 Gas-Powered Golf Cart: Step-by-Step Troubleshooting
Start by locating the main solenoid near the battery pack–it’s a cylindrical component with thick cables attached. Use a multimeter set to 12V DC to test voltage at the large terminals while pressing the accelerator. If readings drop below 10.5V, the solenoid contacts may be corroded; clean them with fine-grit sandpaper or replace the unit if resistance exceeds 0.2 ohms.
Trace the red wire from the ignition switch to the coil, then to the voltage regulator. This path controls charging–if the cart stalls after starting, the regulator’s diodes often fail. Check for 13.5–14.5V at the battery terminals with the engine running. If below 13V, the regulator needs replacement; bypass it temporarily with jumper wires to confirm.
Examine the white wire running from the key switch to the starter generator. Intermittent starting issues often stem from a frayed connection here. Strip ¼ inch of insulation from the wire ends, crimp new connectors, and secure them with heat-shrink tubing. For persistent no-crank scenarios, test the generator’s brushes–wear beyond ⅜ inch requires replacement.
The black-and-white striped wire links the reverse microswitch to the controller. If the cart moves in reverse but not forward (or vice versa), this 20-gauge wire is likely damaged. Probe the microswitch terminals with a continuity tester; infinite resistance means a broken circuit. Solder a new wire if insulation is compromised, or bypass the switch with a direct 16-gauge jumper for testing.
Battery interconnects demand 6-gauge cables–anything thinner causes voltage sag. Measure individual battery voltages with the cart under load (e.g., headlights on). A discrepancy over 0.3V between any two batteries signals a bad cell. Replace corroded cables with tinned copper variants; clean terminals with a baking soda solution, rinse, and dry before reassembly.
For lighting issues, focus on the yellow wire feeding the headlight socket. A dim or flickering beam typically indicates a poor ground–scrape paint off the chassis at the ground point and secure the wire with a star washer. If the taillights fail, inspect the brown wire from the light switch; rodent bites are common–splice in new wire with solder and adhesive-lined heat shrink.
Solenoid clicking without engagement points to low amperage. Jump the small solenoid terminals with a screwdriver; if the cart starts, the ignition switch or its 18-gauge purple wire has high resistance. Swap the switch if voltage at its output terminal drops below 11V when the key is turned. Replace the wire if it’s thinner than original factory specs.
Reset the controller by disconnecting the main battery for 10 minutes–this clears error codes. If the cart still hesitates under load, recalibrate the throttle potentiometer. Turn the key on without starting, then slowly press the pedal while monitoring voltage at the controller’s throttle input (should range from 0V to 4.5V). Adjust the potentiometer screw until full range is achieved.
Critical Electrical Parts and Where to Find Them in Early 90s Golf Carts
Locate the solenoid under the seat assembly–it’s the rectangular box with thick cables connected to the battery pack. Verify its mounting bolts are tight; corrosion here disrupts voltage delivery to the motor. The coil inside should measure 0.2–0.5 ohms–any deviation indicates a faulty unit needing immediate swap to prevent controller overheating.
Controller and Fuse Positions
Check the black box secured behind the accelerator pedal–this houses the speed governor and fuse block. The primary fuse, a 30-amp blade type, sits atop the controller; replace any blown fuse with an identical rating or risk permanent damage to the microchip regulating current flow. Test the accelerator microswitch with a multimeter set to continuity: press the pedal fully–audible clicks confirm proper engagement; silence signals a broken switch requiring direct solder replacement.
Trace the ignition wires from the key switch to the dash harness–these thin red and black cables control accessory power and must be routed away from moving parts or sharp edges. Inspect the main positive cable (6–8 gauge) connecting the battery bank to the solenoid; fraying near the terminal clamp causes intermittent power loss–crimp a new lug using a hydraulic crimper and coat with dielectric grease before securing with a torque wrench set to 12 Nm.
Step-by-Step Tracing of the Primary Electrical Flow in Golf Cart Schematics
Locate the battery pack’s positive terminal–marked with a bold red line–and confirm continuity to the main solenoid using a multimeter set to resistance mode. Expect a reading below 0.5 ohms; anything higher indicates corroded connections or a faulty relay. Disconnect the solenoid’s heavy-gauge input cable first to isolate the circuit before testing, preventing false readings from parallel loads. Clean terminal surfaces with a wire brush if corrosion is visible, then reapply dielectric grease to prevent future oxidation.
Follow the solenoid’s output cable–typically a thick yellow or orange conductor–to the controller’s B+ input. Verify voltage at this point matches the battery pack’s nominal output (usually 36V or 48V) under load. If voltage drops below 90% of the expected value during a test drive, inspect the solenoid’s contacts for pitting or carbon buildup. Replace the solenoid if disassembled contacts show signs of arcing; overheating here will cascade into erratic speed controller behavior.
Trace the path from the controller’s output to the motor’s armature via the thickest cable in the system. Use a clamp meter to measure current draw during acceleration–normal readings peak at 200-250A for short bursts. If the meter spikes above 300A consistently, check for binding in the drivetrain or shorted armature windings. For troubleshooting, disconnect the field wires one at a time; a significant speed change when either wire is removed confirms a healthy circuit, while no change suggests a grounded or open field winding.
Troubleshooting Common Electrical Issues Using the Schematic
Check the ignition switch continuity first. Remove the key, disassemble the switch housing, and probe terminals 1 (battery+) and 5 (solenoid control) with a multimeter set to ohms. Infinite resistance confirms a failed switch–replace the entire unit rather than attempting internal repairs. If the reading shows near-zero resistance, inspect the solenoid coil next. A weak or intermittent connection here mimics a dead battery; bypass the solenoid temporarily by jumpering the large terminals to isolate the issue.
Trace the red wire from the battery to the motor controller if forward/reverse functions fail. Use the schematic to identify splice points–common corrosion sites beneath the seat or near the rear axle. Scrape oxidation from connectors and apply dielectric grease. For erratic speed control, measure voltage at the controller’s input (pin 3) while activating the throttle. Readings below 12V indicate a degraded battery or frayed wire; readings above 14V suggest a faulty voltage regulator. Replace the regulator if voltage spikes exceed 15V under load.
Voltage Drop Tests
- Attach the negative probe to the battery’s negative terminal.
- Touch the positive probe to the motor’s A1 terminal; voltage should match battery voltage (±0.5V).
- Repeat at the controller’s B+ terminal–drops >1V indicate a faulty main contactor or melted fuse link.
Common Failure Points
- Battery cables–measure resistance across terminal clamps; >0.1Ω requires replacement.
- MOSFET array–controller overheating (>80°C) degrades performance; verify heatsink compound integrity.
- Throttle sensor–calibrate by holding the pedal fully depressed while measuring pin 2 (throttle signal). Adjust pot until reading stabilizes at 3.8–4.2V.
