Start by locating the main solenoid under the seat–this is the central relay controlling power distribution. For tractors built in the final year of the Soviet era, the solenoid will have a single thick red cable for battery input and two smaller red wires leading to the forward/reverse microswitches. If voltage drops below 10.5V at these terminals, check the 30-amp fuse directly behind the battery tray; corrosion here is common due to moisture seeping through the plastic tray slots.
Identify the speed controller mounted near the motor–it’s a black rectangular unit with a heat sink. Disconnect the grey wire harness plug first, then probe the six terminals inside. Terminals 1 (blue) and 6 (red) should show continuity to the motor’s field coils; anything under 0.3 ohms indicates partial shorting. Trace the yellow wire from terminal 3 back to the throttle potentiometer; if resistance exceeds 5k ohms, replace the pot or clean its carbon track.
Examine the rear corner panel where the charger socket connects. The 8-pin round plug has two critical paths: the white wire carries 36V from the onboard charger, and the black wire grounds through the frame. Use a multimeter set to diode mode; a reading above 0.7V on the white wire suggests a faulty blocking diode in the charger itself. For models with intermittent headlight failure, focus on the brown wire that loops around the steering column–corroded eyebolts inside the column tube break the circuit.
Inspect the brake microswitch assembly beneath the pedal plate. The thin orange wire should toggle between 0V and 36V when the pedal is depressed; no change signals a faulty switch or disconnected wire inside the switch housing. Finally, verify the state-of-charge controller near the voltage reducer–its single LED should blink rapidly during charging; steady glow or no light indicates internal transistor failure, requiring complete replacement.

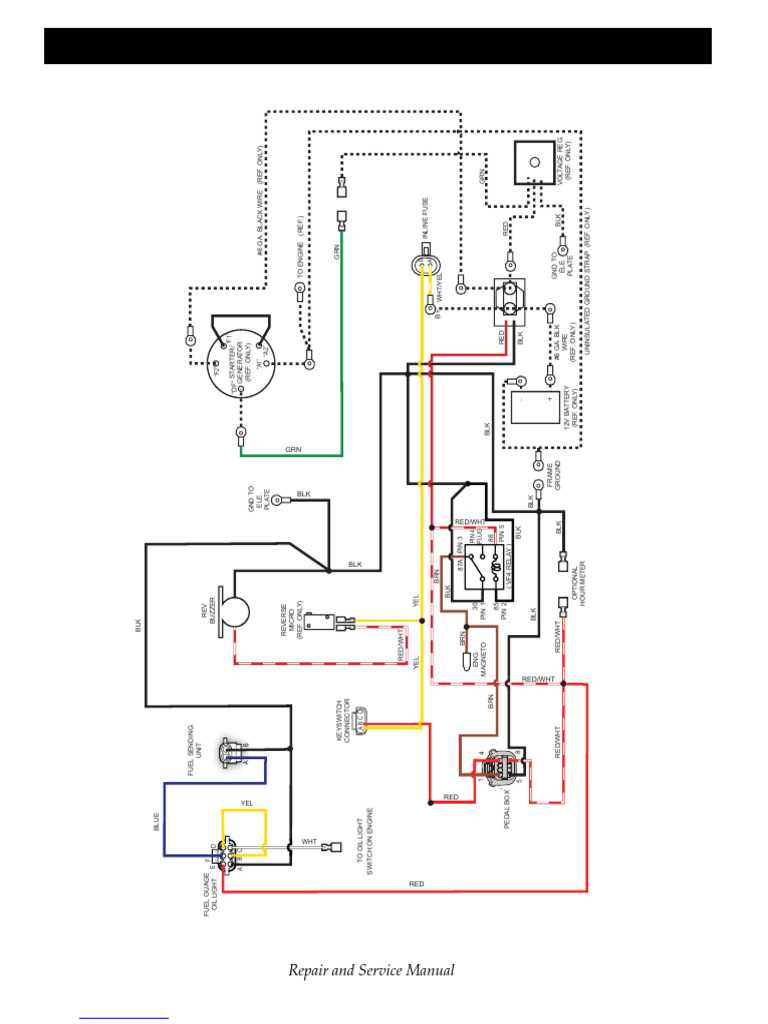

Electrical Schematic for Early EZ Go Vehicle Models
Check the battery pack first if the 36-volt system fails. Disconnect terminals, clean corrosion with a baking soda solution, and verify voltage output at each 6V unit before proceeding. A multimeter must show 6.3–6.5V per cell; readings below 6.1V indicate sulfation or dead cells requiring replacement.
Trace the main solenoid connections using the color codes on the harness: red (battery positive), black (ground), yellow (regen brake), and blue (key switch). Frayed or melted insulation near the controller usually signals overheating–replace the harness segment if resistance exceeds 0.5 ohms between any two points.
Critical Circuit Pathways
- F/R switch: Green wire supplies forward/reverse logic; continuity must toggle cleanly without voltage drop.
- Directional relay: Purple and gray wires handle motor field coils–test with engine off, ensuring no stray current reaches the motor brushes.
- Speed controller: Orange and white leads regulate pulse width; ensure tight connections to prevent erratic acceleration.
Inspect the charge receptacle if the onboard charger doesn’t engage. The 7-pin plug must align precisely–misaligned pins cause high resistance, leading to overheated wiring. Test the charger’s output at the solenoid: expect 38–42V DC during active charging. Deviations suggest a faulty transformer or rectifier bridge.
For pedal interlock issues, verify the microswitch under the accelerator. A faulty switch prevents the solenoid from engaging even when the key is turned. Press the pedal while monitoring voltage at the microswitch terminals–output should jump from 0V to 36V instantly. Replace the switch if response is sluggish or absent.
Troubleshooting Flow
- Measure battery pack voltage with all loads disconnected.
- Activate key switch, check for 36V at solenoid input terminal.
- Press accelerator pedal, confirm solenoid clicks and voltage appears at motor leads.
- If no click, test solenoid coil resistance (should be 2–4 ohms).
- If solenoid clicks but no movement, inspect directional relay contacts for pitting.
Store schematics physically near the vehicle to cross-reference colors against actual wires. Photo-document every disassembly step–small plastic clips securing harnesses often break during repairs. Use crimp connectors instead of solder for field repairs; solder joints fatigue under vibration, leading to intermittent failures.
Finding Key Electrical Links in Older EZ Go Models
Start by removing the seat base–this exposes the central power bundle junction. Look for a rectangular plastic housing beneath the forward panel; it secures the primary plug interface. Disconnect the battery pack first to prevent shorts while handling live contacts.
The main harness splits into three distinct groups near the controller box:
- Thick red/black pair: direct battery leads, often 4-6 gauge;
- Multi-pin connector: colored strands for accessories and sensors;
- Smaller auxiliary socket: dashboard illumination and horn circuit.
Check the forward bulkhead for hidden connections. A separate two-pin plug typically bridges headlights and tail lamps. Follow the conduit upward from the motor assembly–this routes critical speed and direction signals back to the central unit.
Inspect terminals for corrosion. White oxidation on aluminum lugs indicates high-resistance faults. Clean contacts using fine-grit emery cloth, never steel wool–it leaves conductive residue.
Verify continuity across each path before reassembly. Use a multimeter set to ohms; expect near-zero resistance on solid-state switches and clean paths. High readings (>0.5Ω) pinpoint failing splices or worn insulation.
Reconnect components in reverse order: motor feeds first, then controller links, last battery leads. Secure all fasteners with dielectric grease to block moisture intrusion–key failure points often develop under vibration without lubrication.
Decoding Color Patterns of Core System Parts in the Early EZGO Vehicle
Locate the main power feed by tracing the thick red cable from the battery terminal–this is the primary energized line supplying the entire electrical network. Any splice or connection involving this conductor must be inspected for corrosion, as even minor resistance here reduces voltage to critical components.
Battery ignition switch wires follow a standard but often misidentified sequence: the purple lead carries the unlock signal, while the yellow stripe acts as the continuous power feed from the solenoid. Mixing these two will prevent the starter from engaging, so verify their routing against service manual pinouts if modifications exist.
For solenoid internals, note the dual red/white wires linking the coil–these regulate engagement but are frequently confused with accessory feeds due to similar gauge. The smaller red conductor with black tracer is ground reference; swapping it with the red/white input causes intermittent starter dropouts under load.
Instrument cluster illumination uses a dedicated white wire with red stripe, branching from the headlight dimmer circuit. If gauges fail to light, probe this line first before assuming faulty bulbs or stepper motors. The alternator excitation loop runs through a brown wire; voltage readings below 12.8V here indicate diode failure or loose belt tension.
Reverse warning beeper connects via a thin gray wire tapped into the F/R switch harness. This circuit is fragile–corroded connectors at the rear body plug often create false positive alerts. Test continuity from the switch terminal itself, not the beeper, to isolate faults.
Accessory ports, including cigar lighter outlets, depend on the orange fuse-protected line. Overloading this branch trips the 20A fuse without warning; trace downstream loads if it blows repeatedly. The blue wire with white stripe handles brake light activation–verify its path to the pedal switch if rear lights stay lit continuously.
Ground points cluster near the frame rail under the driver’s side, identified by bare or green-sheathed wires. Poor bonding here mimics battery failure symptoms: dim lights, sluggish cranking, or erratic solenoid clicks. Clean mounting surfaces to bare metal and apply dielectric grease after reassembly.
Step-by-Step Guide to Testing the Ignition Switch Circuit
Disconnect the battery terminals first to prevent accidental shorts. Use a multimeter set to the continuity or resistance setting–probe the switch’s input terminal (typically the red wire) and the output terminal (often a purple or brown wire). A reading of near-zero ohms confirms a closed circuit; infinite resistance indicates failure.
Check for voltage at the input terminal with the key turned to the “ON” position. Probe the input terminal and a solid ground (engine block or chassis). Expect 12V DC; lower readings suggest a weak battery, corroded connections, or a faulty switch. If voltage is absent, trace the circuit backward, inspecting fuses (common amperage: 15A–20A) and wiring harness junctions for breaks or corrosion.
| Switch Position | Expected Voltage (Input) | Expected Voltage (Output) | Failure Indications |
|---|---|---|---|
| OFF | 0V | 0V | Voltage present: shorted contacts |
| ON | 12V | 12V | 0V: open circuit; <9V: high resistance |
| START | 12V | 10V–12V (momentary) | <10V: solenoid/starter issue |
Inspect the switch’s physical condition: cracked casings, melted plastic, or discolored contacts signal overheating. Test each contact pair individually–rotate the key through all positions (OFF, ON, START) while monitoring resistance. A gradual increase in resistance (e.g., 0.5Ω–5Ω) points to worn internals; abrupt jumps indicate pitted contacts.
For a solenoid-integrated system, verify output voltage at the starter relay. With the key in “START,” measure voltage between the relay’s trigger wire (yellow/green stripe) and ground. A drop below 9.6V suggests excessive current draw–inspect the solenoid coil resistance (ideal: 1.2Ω–1.8Ω) and replace if outside this range. Always secure connections with dielectric grease to prevent future corrosion.
