Begin by locating the factory harness behind the dashboard cluster–specifically the pink (+12V ignition), yellow (constant power), black (ground), and blue/white (amplified signal) wires. These four conductors form the core of the retrofit connection. If your model includes a tachometer signal wire (typically green with an orange stripe), isolate it immediately to prevent interference with modern head units.
For vehicles with intact single-DIN slots, retain the original mounting bracket–it serves as structural support for heavier receivers. Cut the factory wiring 3–4 inches from the plug, strip 5mm of insulation, and crimp using 16–18 AWG butt connectors. Color-coded replacement harnesses exist (identifiable by Toyota’s proprietary TIS codes), but manual splicing remains more reliable for mismatched aftermarket units.
Meter each wire before powering on: verify ground continuity at the chassis (under 0.5 ohms), ignition voltage (minimum 11.8V at key-on), and battery feed stability (no voltage drop under load). Early models lack USB-powered outputs; preamp converters (LINE OUT converters) must be wired directly to the RCA cables, bypassing the factory amplifier if one is present.
Avoid direct soldering to the vehicle’s firewall harness–heat from prolonged soldering can melt adjacent plastic clips. Instead, use quick-disconnect terminals for future servicing. If static persists, check the antenna lead (thin coaxial cable) for corrosion–it degrades faster than power wires in humid climates.
For dual-seat configurations with extended cab variants, additional speaker wires run through the door jambs. Trace them using a multimeter in continuity mode; expected impedance for stock speakers is 4 ohms ± 10%. Aftermarket replacements exceeding 8 ohms require amplifier integration or impedance-matching resistors to prevent head unit overheating.
Audio System Connection Guide for Your Classic Truck
Start by locating the factory wiring harness behind the dash panel–usually a white 10-pin connector for the head unit. Pin 1 (solid blue) carries the amplified antenna signal; never splice it directly to power sources. Pins 2 (solid green) and 3 (striped green) feed the right channel speakers, while pins 4 (solid red) and 5 (striped red) handle the left. Confusing these will reverse polarity, causing phase cancellation.
Ground the black wire (pin 10) to bare metal using a 10mm bolt near the mounting bracket–paint or corrosion here creates static. For aftermarket units, match the yellow (constant 12V) and red (switched 12V) wires precisely; swapping them drains the battery or prevents memory retention of presets. Use a 15A fuse within 18 inches of the battery terminal for the yellow lead.
Speaker Impedance and Wire Gauge
Factory speakers are typically 4Ω, but verify before connecting amplifiers–lower impedance risks overheating. For aftermarket speakers, 16-gauge wire suffices for runs under 12 feet; downgrade to 14-gauge for longer routes. Brown (pin 6) and striped brown (pin 7) wires serve the rear left/right speakers; if absent in older harnesses, trace the wires from the door jamb.
Illumination control (orange, pin 9) dims the display with the dash lights–test with a multimeter to confirm 12V when the headlights are on. If the factory harness lacks this wire, splice into the dimmer circuit near the fuse box. Avoid soldering near plastic components; excessive heat cracks dash bezels. Crimp connectors with heat-shrink tubing for durability.
For steering wheel controls (if equipped), the gray wire (pin 8) requires a resistor network–values vary by aftermarket brand. Metra ASWC-1 or PAC RP4-CH11 adapters simplify this integration without cutting the original harness. Always disconnect the negative battery terminal before probing circuits; shorting airbag wires (usually yellow) triggers accidental deployment.
Verify all connections with a 9V battery test–briefly touching speaker wires to the terminals should produce audible clicks. No sound indicates reversed polarity or dead channels. Secure loose wires with nylon zip ties to prevent rattling against the heater core; chafe-prone areas under the glovebox are common failure points.
Finding the Original Audio Connection Bundle in Your 1989 Hilux
Start by removing the dashboard trim panel beneath the radio unit–access requires a small flathead screwdriver to release the plastic clips without breaking them. The connection bundle hides behind the climate control ducts, secured by a single 10mm bolt and two plastic fasteners; removing these reveals the harness tucked between the firewall and the ashtray assembly. Colors match the standard Japanese factory color code: red (constant power), yellow (switched ignition), black (ground), blue/white (power antenna), and the speaker wires (gray, violet, green, and white with matching stripes).
Trace the harness toward the driver’s side kick panel if the first location yields nothing–some models route the bundle alongside the fuse block, tucked behind a thin carpet panel. Peel back the sound-deadening material carefully; the wires may be bundled with a foam wrap to prevent rattling. Confirm connections by probing with a multimeter: 12 volts on red with the key off, and 12 volts on yellow only when the ignition is in ACC or ON.
For single-cab models, check beneath the driver’s seat–early factory installations often secured the harness to the seat rail with zip ties. Double-cab vehicles may have an additional inline adapter near the glove box, where the harness splits toward rear speakers. If corrosion is present on the ground (black) wire, scrape the connection point clean and re-secure with a ring terminal to the chassis for reliable signal.
Label each wire with masking tape before disconnecting anything–avoid electrical tape as it can leave residue. If the harness is missing entirely, use the OEM part number 86120-12091 for exact replacement or construct a new one with 18-gauge wire, matching the original pinout: 8-pin rectangular connector for the head unit, with speaker outputs arranged sequentially from left front to right rear.

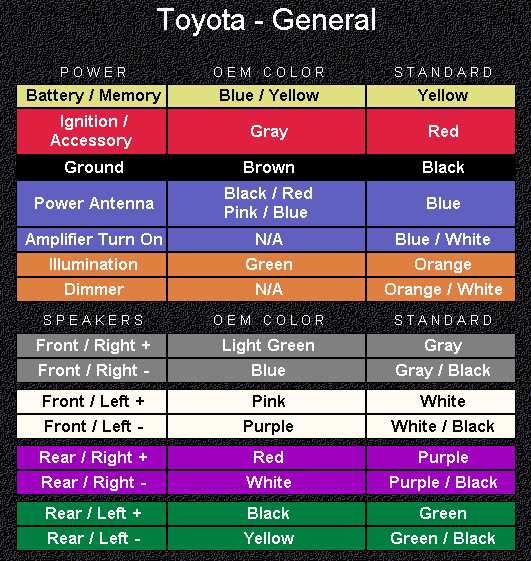

Color Codes and Function Identification for Aftermarket Head Unit Integration
Begin by locating the factory harness connector behind the dash–its 12-pin plug follows a consistent, though not universal, color scheme across early compact utility models. The permanent +12V feed (ignition-independent) is typically a yellow wire with a red stripe, capable of handling up to 10A without additional relay activation. Ground (chassis return) uses a solid brown or black trace, often bundled with speaker returns but distinguishable by its thicker gauge–verify with a multimeter at 0 ohms to frame contact before finalizing connections.
Speaker outputs adopt a twisted-pair wiring standard, reducing electromagnetic interference; observe polarity rigorously during splicing. Front left positive is consistently light green with a white stripe, front right positive a gray wire with a violet stripe–both confirmed by audio signal test when the head unit is powered. Rear channels follow suit: rear left positive is solid blue with black stripe, rear right positive pure green–their corresponding negatives mirror stripe patterns but omit base color inversion. Confirm all four channels with a 1 kHz test tone at 1W to avoid phase cancellation during installation.
| Wire Color | Function | Peak Current (A) | Connector Pin |
|---|---|---|---|
| Yellow/Red stripe | Constant +12V | 10 | 4 |
| Brown | Ground | N/A | 8 |
| Light green/White stripe | Front left (+) | 5 | 3 |
| Gray/Violet stripe | Front right (+) | 5 | 7 |
| Blue/Black stripe | Rear left (+) | 5 | 2 |
| Solid green | Rear right (+) | 5 | 6 |
Illumination control uses a thin pink wire with a white stripe, integrating directly with dash lighting circuits; this line requires 12V only when parking lights activate–test with a 12V bulb to confirm circuit integrity before routing to aftermarket harness. Power antenna (if equipped) is a solid violet wire, handled through a dedicated relay if the new unit lacks an antenna motor output. Avoid splicing into amplifier remote turn-on (blue with white stripe), as modern units often manage this internally–consult manufacturer specifications to prevent backfeeding current into factory amplifier circuits.
Step-by-Step Guide to Secure Power and Earth Linkages
Strip 1/4 inch of insulation from the constant 12V lead (typically yellow) and attach it to the harness’s corresponding wire using a crimp connector or solder joint. Verify the connection with a multimeter–readings should show 12-14V with the ignition off. For switched power (red), repeat the process, ensuring it only delivers voltage when the key is turned to the “ACC” or “ON” position. Avoid twisting wires together without proper termination; loose strands can arc, causing shorts or fires.
- Locate the chassis ground point–usually a bare metal bolt near the dash or firewall–remove paint or corrosion with a wire brush.
- Crimp a ring terminal to the black ground wire and secure it tightly to the cleaned surface using the original bolt or a self-tapping screw.
- Test continuity between the ground wire and battery negative with a multimeter (resistance should read below 0.2 ohms).
- Apply dielectric grease to the terminal to prevent oxidation if the vehicle operates in humid or salty conditions.
Diagnosing Frequent Electrical Problems in Your Early 90s Light Truck Sound System
Check the fuse first–locate the inline fuse holder beneath the dash near the radio harness. A 10-amp fuse is standard; if blown, replace with the identical rating and test for continuity. Burnt fuses often signal a deeper short, so inspect the harness sleeves for melted insulation or exposed copper strands. Focus on the red (constant power) and yellow (switched power) leads where fraying is most common.
Use a multimeter to verify voltage at the radio’s power connector. With the ignition off, the red wire should read 12-13 volts; the yellow should show zero. Turn the key to ACC–the yellow lead must jump to 12 volts. If readings are absent, trace the harness back to the fusebox, probing connections with a pin probe to isolate voltage drops. Corrosion on the fusebox terminals often disrupts flow; clean with electrical contact cleaner and a small wire brush.
Ground issues manifest as static, weak bass, or erratic display behavior. The black ground wire typically terminates at a chassis bolt near the kick panel. Remove the bolt, sand the mounting surface down to bare metal, and reattach. If symptoms persist, run a dedicated 12-gauge ground wire directly to the battery’s negative terminal–avoid daisy-chaining to existing grounds. This bypasses factory ground loops prone to resistance buildup.
Speaker wires in these models are color-coded: white (front left +), white/black (front left -), gray (front right +), gray/black (front right -), green (rear left +), green/black (rear left -), purple (rear right +), purple/black (rear right -). Strip 1/4 inch of insulation and twist each pair tightly; loose connections cause intermittent sound or crossover distortion. Verify polarity with a 9-volt battery–positive probes should move outward when touching the speaker wires. Reversed polarity flips phase, canceling bass frequencies.
Dimmer circuit interference creates buzzing or volume fluctuations when headlights activate. The illumination wire (orange with white stripe) carries variable voltage for dashboard lighting, often coupling noise into the audio path. Disconnect this lead at the radio plug-in; if interference disappears, add a 1000 µF capacitor inline to filter voltage spikes. For persistent issues, route the illumination wire through a noise suppressor like a Metra ASWC-1, isolating the radio’s power circuitry from dashboard dimming circuits.

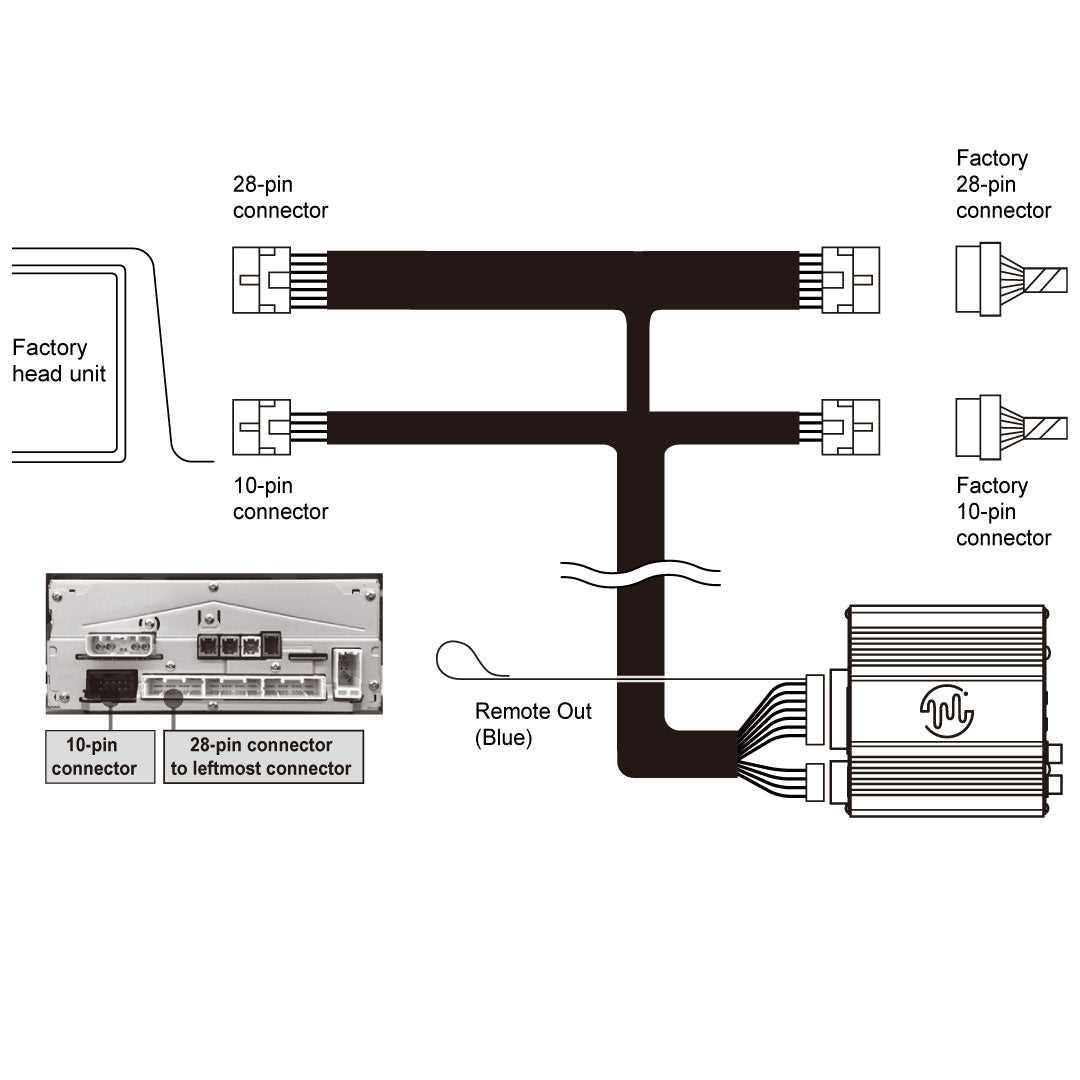

Aftermarket head units sometimes mismatch factory harness adapters, leading to overheated wires or blown amplifiers. Confirm the adapter’s pinout against the vehicle’s service manual–early 90s models often split the antenna trigger (blue/white) and amplifier remote (blue) into separate leads. Cross-wiring these causes continuous amplifier drain or no signal activation. Use a relay if the aftermarket unit lacks a dedicated remote wire; connect the coil to ignition-switched power and the contacts to the amp’s remote terminal.
Static or popping during acceleration points to ignition noise. Route the power wires away from the spark plug cables, using split-loom tubing for protection. Add a 100 mH choke coil inline with the red power lead, grounding the opposite end to the chassis. If noise persists, install a ground loop isolator on the RCA cables between the head unit and amplifier. For severe cases, replace the factory alternator with a high-output unit–stock alternators often lack sufficient filtering to prevent coil whine from bleeding into the audio system.
