If your vessel’s ignition fails or the navigation lights flicker unpredictably, check the main fuse block beneath the console first–corrosion here disrupts the entire circuit. Replace the 30-amp fuse linked to the helm switch panel immediately; spares are listed in the electrical troubleshooting section under part #BR-1294. Ignoring this leads to voltage drops across the instrument cluster, especially under load when both the bilge pump and VHF radio operate simultaneously.
Trace the red power wire from the battery positive terminal to the starter solenoid–insulation brittleness at the engine block connection causes intermittent shorts. Use marine-grade heat-shrink tubing over exposed sections; standard vinyl sleeves degrade within months when exposed to bilge moisture. Verify continuity with a multimeter set to 200 ohms; readings above 5 ohms indicate compromised wire strands requiring full re-termination.
The navigation light circuit relies on a dedicated 15-amp breaker positioned aft of the throttle quadrant. Confirm its operation by testing both steady-state and flash modes–erratic behavior typically stems from a faulty ground at the transom junction box. Sand the corroded aluminum surface to bare metal, then apply dielectric grease before reattaching the grounding lug.
For the depth sounder wiring, focus on the coaxial cable–pinched sections near the transom mounting bracket weaken signal integrity. Route the replacement cable along the port-side gunwale using existing cable clamps; avoid tight bends to prevent signal loss. Terminate the connection with crimp-on BNC connectors, ensuring solder reinforcement before sealing with adhesive-lined heat shrink.

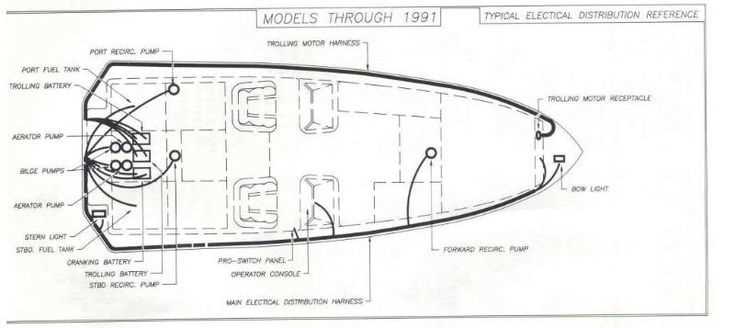

Distribute a detailed schematic (available from the manufacturer’s archive under model year prefix BR-86X) among crew when undertaking repairs. Mark each wire run with temporary labels matching the schematic’s color-coding system–white/yellow for AC feeds, green/black for critical engine sensors. Misidentification risks damaging the alternator’s voltage regulator or tripping the rarely accessed but critical 50-amp bus bar circuit near the battery tray.
Electrical System Guide for Classic Model Boats: Key Connections
Locate the main fuse block under the dashboard near the helm. On this vintage craft, it houses four blade-style fuses marked 10A, 15A, 20A, and 30A. Replace any blown fuse with an identical rating–never exceed the original value, as this risks damaging the bilge pump circuit, which operates independently from the accessory bus.
- Navigation lights: red/green wires run from the switch to terminal 4 on the forward console block.
- Instrument panel: yellow wire connects the voltage regulator to the fuel gauge sender–test continuity with a multimeter set to 200Ω if readings fluctuate.
- Starter solenoid: heavy-gauge purple wire links the ignition switch to the solenoid post–clean corrosion with baking soda paste if engagement is slow.
Trace the throttle control harness from the helm to the engine compartment. The shift interrupt switch (black wire with blue stripe) must engage only when shifting into reverse; bypassing it incorrectly causes the ignition to cut out. Verify the neutral safety switch by grounding the orange wire to the engine block–if the engine cranks, replace the switch immediately.
Check the bonding system grounding points: stern drive transom plate, engine block, and battery negative. Use a wire brush to remove oxidation at connection points, then secure with stainless steel 3/8″ bolts coated in dielectric grease. Weak grounding causes intermittent electrical faults in the bilge blower and horn circuits.
- Disconnect the battery before servicing.
- Label all disconnections with masking tape.
- Test circuits with a probe-type voltmeter, not just visual inspection.
- Inspect rubber grommets where harnesses pass through bulkheads–water intrusion corrodes terminals within weeks.
How to Find the Factory Electrical Schematic for Your Vintage Boat Model
Begin with the manufacturer’s official resources–contact their customer service or visit their support portal. For older models, request archives or technical documentation departments; they often maintain microfiche or digitized records of discontinued product specifications. Include the vessel’s hull identification number (HIN) and engine serial number to expedite the search, as schematics vary by configuration.
Alternative Documentation Sources
- Owner’s manuals: Check the original purchase paperwork or storage compartments–dealers sometimes included folded paper schematics tucked inside manuals.
- Online forums: Search marine-specific communities like iboats.com, thehulltruth.com, or boatdesign.net using the model’s exact designation. Members frequently scan and upload rare documents.
- Marine repair shops: Independent mechanics specializing in older boats may have preserved physical copies of common schematics. Ask for a scanned image of the page referencing your vessel’s configuration.
If official channels yield no results, examine the boat itself. Trace critical circuits–ignition, bilge pumps, navigation lights–and document wire colors, connector types, and fuse ratings. Compare findings with generic marine electrical guides (e.g., Chapman Piloting & Seamanship) to identify deviations unique to your model. Label every wire with numbered tags to avoid misconnections during re-assembly.
Industry associations and marine surveyors sometimes retain obsolete data. Organizations like the American Boat & Yacht Council (ABYC) or National Marine Electronics Association (NMEA) offer member-only document libraries. Some surveyors charge a fee for accessing their private archives, but this cost is justified if it prevents costly trial-and-error repairs.
Digital Tools to Reconstruct Missing Data
- Use a multimeter to test continuity and voltage on exposed wiring harnesses, cross-referencing measurements with expected values from West Marine’s technical resources or BoatUS guides.
- Sketch a rough schematic on graph paper or using software like Fritzing or Lucidchart, noting wire gauge, terminal types, and grounding points.
- Consult Seloc Marine Manuals for that model year–while not exact, they often include partial diagrams as a starting point.
For persistent gaps, hire an electrical engineer with maritime experience. Provide them with photographed components, wire samples, and diagnostic notes; their expertise can reverse-engineer missing details in a fraction of the time needed for independent research. Expect to pay $75–$150/hour but confirm their familiarity with marine-grade wiring standards before engagement.
Key Electrical Parts in the Vintage Boat Electrical Layout
Start by locating the main power distribution panel–typically mounted near the helm or in a dry compartment beneath the console. This central hub regulates all incoming power from batteries to accessories. Verify that each breaker is labeled correctly; mislabeled circuits lead to troubleshooting nightmares later. If labels are missing, use a multimeter to trace connections under load, matching amperage readings to expected device draws.
Inspect the alternator and voltage regulator next. On older marine engines, these components often suffer from corrosion or worn brushes, leading to inconsistent charging. Check resistance values across the stator windings; readings above 0.5 ohms signal potential failure. Replace the regulator if voltage output fluctuates beyond 13.8–14.4V at cruising RPM, as overcharging damages batteries while undercharging reduces accessory performance.
The ignition system deserves special attention. Coil packs, distributor (if equipped), and spark plug wires degrade faster in marine environments due to moisture exposure. Test each wire for resistance–ideal values range between 5k and 15k ohms per foot. Swap out any wire exceeding 25k ohms, as high resistance causes misfires. For boats with electronic ignition, confirm ECU ground connections are corrosion-free; even slight resistance here disrupts timing.
| Component | Optimal Reading | Failure Threshold | Maintenance Action |
|---|---|---|---|
| Battery terminals | 0.2V drop max | >0.5V | Clean/re-torque monthly |
| Starter solenoid | Open circuit between terminals | <1Ω when engaged | Test annually, replace if stuck |
| Bilge pump motor | 10–15Ω across brushes | >30Ω | Lubricate shaft, check impeller |
Power cords and connectors corrode silently. Replace any tinned copper wire showing green oxidation–it increases resistance exponentially. For critical circuits like navigation lights or bilge pumps, use heat-shrink terminals crimped with marine-grade splices. Avoid butt connectors unless sealed in adhesive-lined tubing; they trap moisture and fail within months. Test each connection with a 12V test light before reassembly to confirm continuity.
Battery management distinguishes reliable boats from floating headaches. Dual-battery setups require an isolator or automatic charging relay to prevent parasitic drains. Measure quiescent current draw–anything above 50mA when all switches are off indicates a bad diode or stuck relay. For single-battery systems, install a battery combiner to share charge between cranking and house loads without risking engine start failure.
Finally, verify all ground connections anchor to a common bus bar bolted directly to the engine block or transom. Painted or anodized surfaces prevent proper grounding; scrape away coatings until bare metal shows. For aluminum hulls, use a dedicated ground plate submerged in water to avoid galvanic corrosion. Test ground paths by measuring voltage drop while operating a high-load device like a windlass–any drop above 0.1V signals poor contact requiring immediate attention.
