Locate the main harness connector near the ignition coil–this segment splits into two primary branches: the left-side loom feeds the front lighting cluster and horn relay, while the right-side loom powers the instrument panel and starter solenoid. Verify continuity between pin 3 (red/white stripe) and ground before proceeding; resistance should read under 0.3 ohms. If readings exceed this threshold, inspect the inline fuse holder behind the battery tray–corrosion here disrupts signal flow to the voltage regulator.
Trace the violet wire from the alternator output to the rectifier; any fraying between these components necessitates immediate replacement with 12-gauge copper-clad wire. The black/yellow stripe originating at the ignition switch must terminate at the CDI unit–interruptions in this circuit prevent spark delivery. For diagnostic purposes, use a non-powered test light across the plug leads; consistent flashing under kickstart confirms intact ignition pathways.
Check the neutral safety switch by bridging its terminals with a jumper wire–failure to engage the starter motor suggests a faulty starter clutch or bent shift fork, which requires engine disassembly. The choke circuit, controlled by the orange/white wire, relies on a 3-ohm resistor; bypassing this resistor may cause premature coil failure. Always disconnect the battery ground cable before handling the harness to avoid accidental shorts.
Refer to the color-coded legend stamped on the harness sleeve beneath the seat–the 18-pin connector mapping differs from later models, so cross-reference with factory microfiche for accurate pin assignments. Replace all bullet connectors with soldered splices if corrosion is visible; heat-shrink tubing over these joints ensures longevity. The turn-signal flasher unit, mounted adjacent to the fuse block, operates on a bimetallic strip–replacement flasher modules must match the 3.4-watt spec to avoid hyper-flashing or burnout.

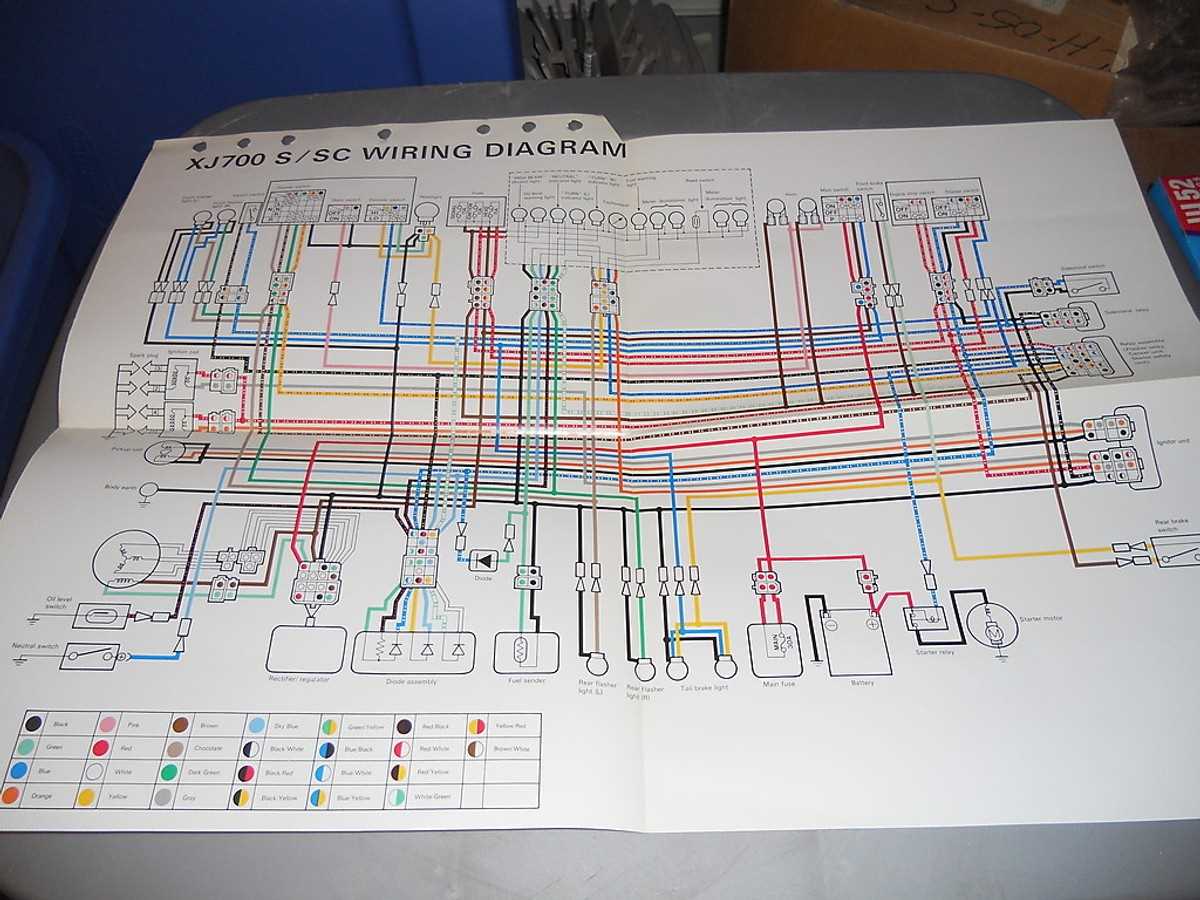

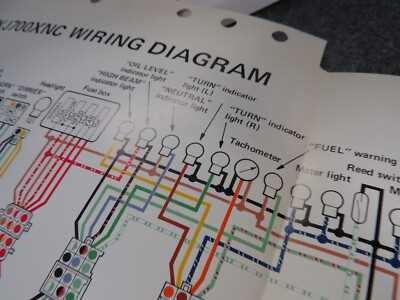

Electrical Schematic for the Vintage 1985 Maxim 700 Motorcycle
Locate the main harness connector near the battery–pinout follows a left-to-right sequence: ignition feed (red), starter relay trigger (orange), lighting circuit (yellow), and ground (black/white stripe). Verify continuity between the alternator stator output (white wire cluster) and the regulator/rectifier; resistance should read 0.2-0.5 ohms across each phase winding. Replace any oxidized terminals using 6mm crimp connectors coated with dielectric grease to prevent future corrosion.
Trace the handlebar switch wiring–clutch switch (gray) connects to the neutral safety diode (purple) beneath the instrument cluster. If starter engagement fails, test the diode using a multimeter in diode-check mode; expect 0.5-0.7V forward voltage drop. Bypass questionable connectors temporarily with a 16-gauge jumper wire to isolate faulty segments without full disassembly.
Ignition System Troubleshooting
CDI unit triggers via black/yellow wire from the pulse generator–attach oscilloscope probes between this wire and chassis ground; healthy waveforms should peak at 3-5V AC at 2,000 RPM. If signal is weak, clean the generator rotor’s pickup coil gap (spec: 0.3-0.4mm) using a plastic feeler gauge. Confirm coil primary resistance between spark plug caps and coil tower: 0.2-0.5 ohms for primary, 10-16k ohms for secondary.
Headlight circuit utilizes a 30/30W dual-filament bulb–low beam splits through a brown wire to the dimmer relay, while high beam runs through a blue wire directly to the left hand switch. Replace blown fuses with identical 10A ceramic units, never exceeding current ratings. For intermittent lighting, probe the wiring loom for chafed spots where it passes behind the fuel tank; rewrapped damaged sections with 3M Super 33+ electrical tape.
Charging system diagnostics begin with unplugging the regulator/rectifier connector–measure AC voltage from the stator at 3,000 RPM; minimum 30V AC indicates functional windings. DC output should steady at 14.2-14.8V across battery terminals while running. If readings fluctuate, swap the regulator/rectifier before condemning the alternator; aftermarket units often require different grounding polarity.
Turn signal circuit incorporates a flasher relay mounted under the seat–replacement relays must match the stock 3-terminal configuration (49, 49a, L). Test functionality by jumpering terminals 49 and L; signals should flash at 60-120 cycles per minute. Upgrade incandescent bulbs to LED equivalents only after installing an electronic flasher relay to compensate for lower current draw, preventing hyper-flashing.
Finding Key Electrical Bundles on the 1985 Maxim 700
Start beneath the fuel tank by removing the two 10mm bolts securing the seat hinge bracket. Lift the tank to expose the upper frame rail; the main loom’s 12-pin rectangular connector anchors directly to the frame at the rear of the air box. Trace the harness along the right side of the engine–three auxiliary plugs branch off near the starter solenoid: a 4-pin black connector for lighting circuits, a 3-pin green connector for ignition coils, and a 2-pin white connector linking the voltage regulator.
The instrument cluster connector hides behind the headlight bucket; remove the two Phillips screws holding the speedometer assembly to access its 6-pin white plug. Below the steering stem, a 5-pin orange connector interfaces with handlebar switches–label each wire before disconnecting to avoid color-coding confusion. Use this reference table for critical connector locations:
| Location | Connector Type | Pin Count | Color Code |
|---|---|---|---|
| Frame rail (rear air box) | Rectangular | 12 | Multi-color |
| Starter solenoid area | Cylindrical | 4 | Black |
| Ignition coils | Flat | 3 | Green |
| Voltage regulator | Blade | 2 | White |
| Instrument cluster | Rectangular | 6 | White |
| Handlebar switchgear | Multi-pin | 5 | Orange |
Identifying Color-Coded Wires in the Charging System Circuit
Locate the stator output wires first–they’re typically yellow with a colored stripe. On this model, three yellow leads carry AC current from the alternator to the regulator-rectifier. Each stripe (red, blue, or white) differentiates phases; mixing them causes imbalance. Verify continuity with a multimeter before reconnecting.
Examine the regulator-rectifier connector for a green wire–this is the ground return. It must attach securely to the bike’s frame or engine block. Corrosion here mimics alternator failure; clean the contact point with 600-grit sandpaper and dielectric grease. A loose ground drains battery charge overnight.
Trace the red wire from the regulator-rectifier to the battery positive terminal. This path delivers DC current after rectification. If voltage drops below 13.5V at idle (measured at the battery), inspect for fraying between the rectifier and battery. Replace the unit if readings stay under 13V–internal diodes are likely shorted.
The white wire with red stripe serves as the key-on excitation line. It triggers the regulator to begin charging once the ignition switch closes. Disconnect it during bench testing to prevent accidental grounding. If the bike starts but voltage remains flat, probe this wire for 12V when the key turns; absence indicates a blown fuse or faulty ignition circuit.
Check for a thin brown wire–this is the warning lamp feed. It ties into the instrument cluster and lights the charge indicator when ignition is on but the engine off. A burned-out bulb here masks charging issues; swap it for an LED to confirm. If the lamp stays lit while riding, the regulator-rectifier isn’t cutting over from limiter mode.
Use this reference table for quick identification:
- Yellow + stripe: Stator AC output
- Green: Ground return
- Red: DC output to battery
- White/red: Excitation trigger
- Brown: Charge warning lamp
- Black/white: Ignition-switched power
For troubleshooting, back-probe the connector with the engine running. Set multimeter to DC volts: measure between the red wire and ground–expected range 13.8–14.5V at 2500 RPM. Below 13V, shift to AC volts between two yellow wires–readings over 20V AC mean stator failure. Above 0.5V DC on any yellow wire indicates half-wave rectification; replace the regulator-rectifier immediately.
Label every wire before disconnecting. Use heat-shrink tubing for splices–electrical tape degrades and absorbs moisture. Route new wires along existing harness paths, securing with zip ties every 15 cm. Avoid sharp edges; vibration wears insulation over time. Test ride after repairs: voltage should stabilize within 10 seconds of startup.
Step-by-Step Guide to Testing the Ignition System Circuitry
Disconnect the battery negative terminal before handling any electrical components to prevent shorts or accidental sparks. Use a multimeter set to 20V DC to probe the ignition coil’s primary circuit. Attach the red probe to the positive terminal (typically marked “+”) and the black probe to the negative terminal (marked “-” or connected to the engine ground). A functional coil should read between 0.2 and 0.5 ohms; values outside this range indicate a faulty coil requiring replacement. For the secondary circuit, set the multimeter to 20k ohms and measure between the coil’s positive terminal and the spark plug wire connector. A healthy reading ranges from 5,000 to 15,000 ohms, though some models may vary–consult the service manual for exact specifications.
- Remove the spark plug and reattach it to the spark plug wire. Ground the plug’s metal body against the engine block using a jumper wire to prevent damage to the ignition system.
- Reconnect the battery and crank the engine while observing the spark plug gap. A strong, consistent blue spark confirms a functioning ignition system. If the spark is weak, orange, or absent, proceed to test the following components in order:
- Stator Coil: Locate the stator under the flywheel.Using the multimeter set to AC voltage, probe the stator’s output wires while cranking the engine. Expect readings between 20V and 50V AC; lower values suggest a failing stator.
- CDI Unit: Check continuity between the CDI’s input and output terminals. No continuity or erratic readings signal a defective unit, which must be replaced as it cannot be repaired.
- Kill Switch: Ensure the switch is in the “ON” position. Test for continuity between the switch terminals–if none is present, the switch is faulty.
- Pickup Coil: Measure resistance across the pickup coil’s leads. Typical values range from 50 to 200 ohms; deviations indicate failure.
- Inspect all connectors for corrosion, melted plastic, or loose pins. Use dielectric grease to protect cleaned terminals from future oxidation.
