Start by locating the original factory service manual for this mid-80s model–it remains the most accurate source for electrical layouts. Third-party repair guides, particularly those from Haynes or Chilton, often simplify or omit critical details, leading to misdiagnosed issues. If the manual is unavailable, focus on salvage yards specializing in Japanese imports; they frequently retain original documentation with vehicles of this era.
For direct tracing, prioritize the main fuse block located under the dashboard on the driver’s side. From there, follow the thick red wire–this is the constant 12V supply line–and trace its path to the ignition switch. Key connectors to inspect include the white/red striped wire (ignition feed), black/white striped wire (ground), and yellow/blue striped wire (headlight circuit). Use a multimeter, not a test light, to verify voltage drops across these lines.
Modifications from aftermarket upgrades–such as auxiliary lighting or winch systems–often introduce wiring faults. Inspect every splice point under the hood and along the frame rails, as corroded or improperly crimped connections are common failure points. Replace any degraded wiring with SAE-spec GPT wire of the same gauge, avoiding generic automotive cable that lacks heat resistance.
Online forums dedicated to classic 4x4s host scanned copies of original schematics, but exercise caution: errors in uploaded files can mislabel critical circuits. Cross-reference any downloaded material with physical inspection. If the issue persists, examine the instrument cluster harness–early models suffered from brittle insulation behind the gauge pods, causing intermittent power loss.
Off-Road SUV Electrical Schematic: Critical Maintenance Insights
Begin troubleshooting dash lights by verifying fuse #12 (10A) in the under-dash panel–this protects the instrument cluster and illumination circuits. Measure voltage at the orange wire terminal behind the speedometer; expect 12.6V when ignition switches to ON. Absence indicates a broken connection at the A/C heater control harness junction (gray 12-pin connector).
Replace turn signal flasher module if blinkers operate at double normal speed–locate the cylindrical relay beside the steering column shroud. Test continuity between terminals 49 (power input) and 49a (output) using a multimeter: resistance should toggle between 0Ω and ∞ during operation. A static reading confirms internal failure.
- Dashboard warning lights failing? Strip 2 cm of insulation from the brown/yellow tracer wire at the rear of the fuse box–this carries ground to all indicator lamps. Corrosion here disrupts nine separate circuits.
- Headlight high beams inoperative? Inspect the yellow/black wire at the dimmer switch–frayed insulation commonly causes intermittent opens during vibration.
- Starter cranks but engine stalls? Probe the pink wire at the ignition coil–voltage should drop below 0.5V when cranking; sustained readings above 3V reveal a faulty ballast resistor.
For tail light circuits, trace the red/blue tracer wire from bulb sockets to the rear junction block beneath the left wheel well. Splice interruptions here require soldering–not crimp connectors–to prevent voltage drop under load. Confirm bulb ground continuity by testing each socket shell against chassis ground; readings above 0.3Ω necessitate rewiring the ground strap to the frame.
Heater fan operates only on high speed? Check the resistor block mounted to the heater case–burned traces affect medium and low-speed settings. The block’s resistance values must match: 0.5Ω (high), 1.2Ω (medium), 2.4Ω (low). Replace if readings deviate by more than 0.2Ω.
- Disconnect battery negative terminal before servicing any harness connectors to avoid shorting adjacent terminals.
- Label cables with numbered tape during removal–factory harnesses follow non-intuitive routing behind dashboard bulkhead.
- Use dielectric grease on all renewed connectors; oxidation accelerates in high-humidity conditions typical under hood compartments.
Locating the Exact Electrical Schematic for Your Mid-80s Off-Roader Variant
Check the vehicle’s identification plate first–the fifth through seventh digits of the VIN reveal the exact trim and engine configuration. Early SR5 models with the 22R engine use a different harness layout than the base version, despite sharing the same body style. Factory service manuals often group schematics by engine code, not model year, so verify whether your rig has the carbureted 22R (single wire harness under the dash) or the fuel-injected 22R-E (dual harness with a separate injector loom).

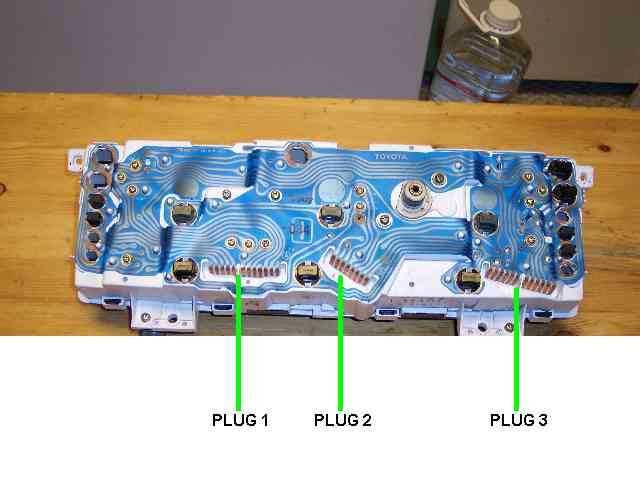

Fold-out pages in the original paper shop manual–section EL-12 for electrical troubleshooting–contain color-coded lines annotated with terminal numbers. A brown and white stripe (BW) wire on pin 1 of the instrument-cluster connector, for example, carries ignition-switched power; swap to a different diagram and that same color might feed the rear defogger relay. Always cross-reference the legend for connector C105 and C201; discrepancies here signal a swapped manual belonging to a Hilux pickup or later year.
Differentiating Aftermarket Sources
Haynes and Chilton manuals simplify circuits but omit the ground-tree distribution underneath the driver’s seat unique to this chassis. Mitchell1 diagrams include splice packs (S101–S103) hidden behind the kick panel, absent in generic scans. Look for revision dates on PDFs; a May 1984 schematic covers carbureted engines only, while an October 1985 revision adds the 22R-E injector circuit and knock sensor wiring. Download the 300+ page “EWD-36” document from Toyota’s technical archive–the last two digits confirm the exact month of release.
Sensor-wire colors shift between manuals: OEM documents label the throttle-position sensor wire as LG for light green, aftermarket books often list it simply as G. Pinouts on the multi-function relay (rear wiper, cargo lamp, fuel pump) vary–some diagrams show a solid purple wire where others print purple with a yellow stripe. Use a multimeter set to continuity mode to trace from the relay socket back to connector B3 for absolute confirmation.
Visual Verification Steps Before Trusting a Diagram
Pop the hood and locate the main fuse box; compare fuse slot numbers and amperage ratings against schematic labels–slot F13 for the ignition coil should be 10A, not 15A. Peel back the battery tray liner to inspect the oxygen-sensor heater harness; post-’84 builds integrate this into the engine harness, while earlier variants run a separate two-wire loom. Photograph each connector ID tag (stamped on the plastic) and match the three-letter code–“BDY” for body harness, “MTR” for engine–to the legend printed on the first schematic page.
Step-by-Step Guide to Tracing the Engine Harness Pathways
Begin by isolating the main power distribution block beneath the hood–locate the battery’s positive terminal connection, typically a 10-gauge red cable terminating at a fusible link or relay box. Disconnect the battery’s negative clamp to prevent accidental shorts while probing connections. Use a multimeter set to continuity mode to verify each segment of the harness by probing the terminals at both ends of a section, noting any unexpected open circuits. For reference, consult the vehicle’s technical schematics, focusing on the color-coded legend (e.g., red with white stripe for ignition-switched power, black with yellow stripe for ground returns).
Trace the ignition-controlled circuit by following the red/white wire from the ignition switch to its first junction point, usually near the firewall or engine control module. This wire often branches into three paths: the starter solenoid, fuel pump relay, and instrument cluster. Check each splice for corrosion or brittle insulation, particularly around engine mounts and suspension components where chafing is common. A secondary pathway worth inspecting is the oxygen sensor heater circuit; begin at the sensor’s four-pin connector (two white wires for heater power, one black wire for signal, one black/white wire for ground) and follow it back to the ECU or dedicated relay.
| Circuit | Typical Wire Gauge | Key Connection Points | Failure Symptoms |
|---|---|---|---|
| Fuel Injector | 16-18 AWG | ECU, fuel rail connector | Hard start, misfires |
| Throttle Position Sensor | 18-20 AWG | ECU, throttle body | Erratic idle, poor acceleration |
| Alternator Field Excitation | 10-12 AWG | Voltage regulator, ignition relay | Battery drain, dim lights |
For auxiliary systems like the air conditioning compressor clutch, follow the 14-gauge blue/white wire from the compressor to the A/C relay, then to the pressure switch and finally the cabin control switch. Test the relay by jumping terminals 85 and 86 with the ignition on–if the clutch engages, the relay is faulty. Always reinstall connectors with dielectric grease to prevent moisture ingress, especially on chassis-grounded components. Document each step with photographs or notes to avoid confusion during reassembly.
Common Electrical Faults and Schematic-Based Fixes

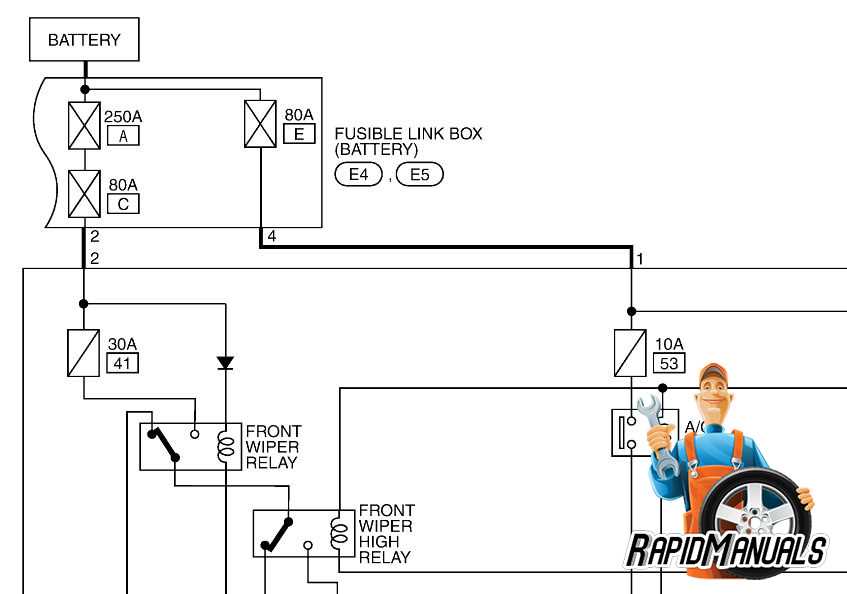

Start by checking the fusible links near the positive battery terminal. Corrosion here mimics alternator failure–clean terminals with baking soda solution and recheck voltage at the starter solenoid. If readings remain below 12.4V under load, trace the red/blue stripe cable back to the alternator’s B+ terminal; chafing against the exhaust manifold causes intermittent voltage drops.
Headlight flickering often stems from the dimmer relay’s ground wire. Locate the brown/blue wire at pin 3 of the relay socket–scrape paint off the chassis mount point and apply dielectric grease after securing the connection. For high-beam failures, probe the yellow/black wire at the headlight switch with a multimeter set to continuity; expect 0.2 ohms resistance to the bulb socket.
Dashboard gauges erratically jumping to zero? Focus on the instrument voltage regulator. The white/black wire supplies 10V reference voltage–solder a jumper wire from the regulator’s input to the gauge cluster if readings vanish during accelerations. Verify the ground connection at the regulator’s mounting bolt; a loose bolt creates voltage spikes that fry gauge circuits.
Tail lights refusing to illuminate can hide a break in the brown wire between the tail lamp assembly and the trailer connector. Use a tone generator on the brown wire at the rear bumper; listen for signal loss where the wire passes through the frame rail. Replace the factory splice connectors–crimped connections degrade over time, increasing resistance beyond 0.5 ohms.
Power windows stalling mid-operation usually involve the window motor’s yellow/red power wire. Disconnect the motor’s two-pin connector and test for 13.2V between the pins while holding the switch–if voltage disappears, inspect the switch contacts for pitting. Clean contacts with a fiberglass pen or bypass the switch temporarily by jumping the connector wires to isolate the fault.
Engine stalling when hot frequently points to the ignition coil’s primary circuit. Measure resistance between the coil’s negative terminal and the distributor’s white/black wire–expect 1.2 to 1.5 ohms. If readings fluctuate, replace the ignition control module; failing modules create heat-induced open circuits in the white wire that ground the coil.
Horn failures often confuse owners because the relay and switch check out. The black/yellow wire at the horn button carries the ground signal–follow it to the steering column clock spring. Disconnect the clock spring’s two-pin connector; a broken ribbon inside creates a high-resistance path. Test for continuity across the clock spring terminals–replace if resistance exceeds 5 ohms.
ABS light triggering randomly can trap mechanics unless they follow the blue/black sensor wire from the front hub to the control module. Pinch points at the brake line brackets fray the wire’s insulation, exposing copper to moisture. Strip 1 inch of wire, solder in a repair section, and heat-shrink the joint. Re-zero the ABS module via a scan tool if the light persists.
