Locate the main power solenoid–typically mounted near the battery pack–and verify its connections before proceeding. If corrosion is present on the terminals, remove the cables and clean both the solenoid studs and cable lugs with a wire brush and baking soda solution. Replace any cables showing fraying, green oxidation, or stiffness; these are prime failure points during operation.
The key components to inspect include the forward/reverse switch, throttle microswitch, and 36-volt ignition relay. Trace each wire from the controller to its destination using a continuity tester: red wires carry positive charge, black wires ground the circuit, and smaller gauge wires (usually white or yellow) handle signal duties. Document each connection before disassembling, as factory wiring harnesses on older models often lack standardization.
For voltage drops exceeding 0.5V across any connection, remove the terminal, sand the contact surfaces, and reconnect with dielectric grease. Pay special attention to the headlight harness–ground points behind the dash are common failure spots due to vibration. If the cart stalls or jerks during acceleration, bypass the resistor coil temporarily with a jumper wire to isolate heavy-load spikes.
Use marine-grade heat shrink tubing on all splices, as standard electrical tape degrades under UV exposure. When replacing fuses, match not only the amperage but also the fuse type: ceramic fuses withstand heat better than glass versions. For intermittent electrical faults, tap connectors lightly with a plastic tool while testing–vibrations often dislodge corroded crimps.
The charging circuit requires separate attention: adjust the voltage regulator trimmer potentiometer to maintain 40–42V at the battery posts under load. If the charger cycles erratically, replace the thyristor or diode stack before assuming battery failure. Keep a multimeter set to DC voltage within reach–periodic readings during test drives reveal voltage sag under load, indicating resistance issues.

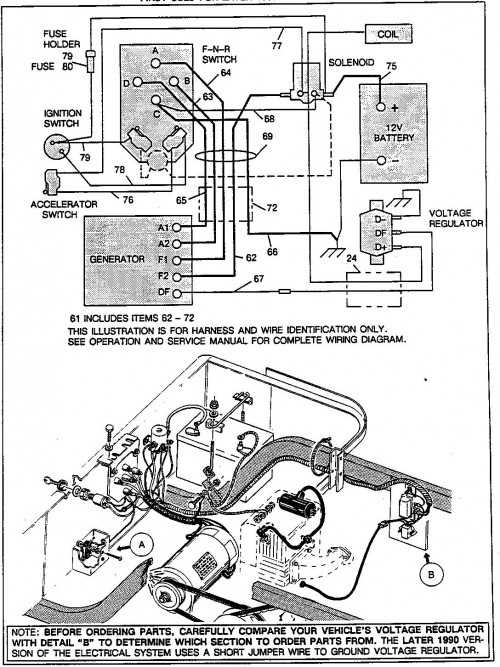

Electrical Layout Guide for Vintage Cart Models
Begin by locating the main solenoid near the battery tray–its terminals must be clean, corrosion-free, and firmly connected. Use a 10-gauge wire for the primary power circuit, ensuring all solder joints are heat-shrinked to prevent moisture ingress. Check the microswitch on the accelerator pedal; if faulty, replace it with an OEM equivalent rated for 20A continuous current. The voltage regulator should maintain 12.6V under load–deviations indicate a failing alternator or weak battery cells.
- Trace the ignition wire from the key switch to the coil–use a multimeter to verify 12V presence when engaged.
- Inspect the speed controller for burned traces or swollen capacitors, common failure points in older systems.
- Ground paths must terminate directly to the chassis, avoiding daisy-chained connections to prevent voltage drops.
For troubleshooting, isolate circuits using a fused jumper wire: connect the battery positive to the solenoid’s “S” terminal while activating the pedal–if the motor engages, the issue lies upstream (key switch, fuses, or wiring). Replace the 30A fuse in the accessory circuit if lights or horns fail, but first measure amperage draw to rule out shorts. Always disconnect the battery negative terminal before servicing to prevent accidental shorts.
Finding the Primary Electrical Bundle in Early Cart Models
Start by removing the rear seat cushion and the storage tray beneath it. The central electrical bundle exits the battery compartment, routed along the chassis frame toward the dash. Look for a thick, corrugated loom wrapped in black or gray tape–this conceals the six-gauge main power cables and smaller signal wires. Trace the bundle forward; it splits near the accelerator pedal bracket, one branch feeding the solenoid and ignition switch, the other continuing to the instrument cluster.
Inspect the area where the bundle passes through the firewall–typically a rubber grommet prevents chafing. If corrosion is present, focus on the junction where the positive lead connects to the fuse block; this is a common failure point on carts of this vintage. Use a multimeter to verify continuity between the battery terminal and the main fuse–readings below 0.2 ohms indicate intact connections.
Label each branch before disconnecting anything. The throttle linkage often obscures the lower section of the harness, so rotate the pedal assembly upward for clearance. Note the color-coding: red for power, black for ground, yellow for accessories, and green or blue for lighting circuits. Photograph the layout before servicing–this saves reassembly time and prevents mismatched connections.
Identifying Key Components in the 12-Volt Electrical Framework
Locate the battery terminals first–corrosion on the positive (red) or negative (black) posts disrupts current flow. Use a multimeter to verify voltage: 12.6V indicates full charge, while readings below 12.2V signal sulfation or parasitic drain. Clean terminals with a wire brush and baking soda solution if oxidation is present; failure to do so compounds inefficiency in the power distribution network.
The solenoid acts as the gateway between the battery and motor. Test it by listening for a clicking sound when engaging the ignition–the absence of this noise suggests a faulty coil or loose connections at the input/output studs. Probe the small control terminal with a 12V test light while activating the throttle; if the light stays off, the microswitch or wiring to the accelerator assembly requires inspection.
Examine the DC motor for brush wear or armature damage. Disconnect the motor leads and spin the shaft by hand–grinding or hesitation points to internal resistance. Measure resistance across the motor terminals: values below 0.1 ohms denote normal operation, while higher readings confirm shorted or open windings. Replace the motor if resistance exceeds 0.3 ohms.
The voltage regulator maintains consistent output to accessories. Attach a voltmeter to the battery while the engine runs–fluctuations above 14.5V indicate overcharging, while dips below 13.5V suggest regulator failure. Check the ground strap linking the regulator to the chassis; a compromised connection mimics regulator issues by causing erratic readings.
Accessory Circuit Diagnosis
- Headlights: Dim or intermittent output stems from corroded bulb sockets or a weak alternator. Replace bulbs with equivalent wattage (typically 35W/35W halogen) to avoid overload.
- Turn signals: Rapid flashing often traces to a burnt-out bulb rather than the flasher relay. Test each bulb base for continuity–burnt contacts demand soldering or replacement.
- Horn: A silent horn may need adjustment–twist the mounting screw until the diaphragm contacts the plunger. If still inoperative, bridge the horn relay terminals with a jumper wire to bypass the switch.
Tracing Parasitic Draws
- Disconnect the negative battery cable.
- Set a multimeter to 10A DC mode and connect it between the battery post and cable.
- Activate each load sequentially–readings above 50mA indicate a drain. Focus on the accessory fuse block first.
- Pull fuses one by one until the current drops–this isolates the faulty circuit.
- Inspect the wire bundle behind the dashboard for pinched insulation or exposed conductors.
Inspect the key switch contacts for pitting or melting. Use dielectric grease on the terminals to prevent future oxidation. A test light should illuminate when bridging the “B” and “S” terminals–if not, replace the switch. Avoid substituting lower-rated switches; 20A capacity is mandatory to handle inrush currents from inductive loads.
Check the main fuse block–blown fuses often protect multiple systems simultaneously. Label each fuse position with its amperage rating (e.g., 10A for lights, 20A for accessories) and replace with identical values. Skip automotive fuses; grain-of-wheat types ensure proper current interruption. Probe the backside of the fuse holder for loose connections–a 12V test light should glow at both terminals when powered.
Step-by-Step Tracing of the Starter Generator Circuit
Begin by locating the battery’s positive terminal–follow the thick red cable directly to the solenoid. This connection is critical; verify it’s secure and free of corrosion before proceeding. The solenoid acts as the primary switch, routing voltage to both the starter and generator functions. Use a multimeter set to 20V DC to confirm at least 12.4V between the solenoid’s large input terminal and the chassis ground. A lower reading indicates a weak battery or faulty connection.
Trace the solenoid’s output terminal (larger post) to the starter generator’s main stud. This pathway carries the initial surge to crank the engine. If the engine fails to turn over, check for continuity between this stud and the generator’s field coil terminal–resistance should measure between 0.5 and 2 ohms. Higher readings suggest a broken field winding or deteriorated brushes. Replace the brushes if they measure less than 5mm in length.
Isolating the Generator Excitation Path
Once the engine runs, voltage regulation shifts to the generator’s excitation circuit. Identify the small wire (typically brown or yellow) from the voltage regulator’s “F” terminal to the generator’s field coil. With the engine at 2000 RPM, probe this wire; readings should fluctuate between 3V and 6V. If static, the regulator is faulty–replace it immediately to prevent battery overcharging.
Follow the generator’s armature output (thick black wire) to the rectifier or diode plate. Here, AC output is converted to DC. Test each diode individually using a multimeter’s diode mode: forward bias should show ~0.5V, reverse bias should read OL. Failed diodes degrade charging efficiency–replace the plate if readings deviate. Ensure the output wire connects securely to the battery’s positive terminal; poor contact causes voltage drop and weak charging.
For final validation, monitor battery voltage at idle and under load. Idle should stabilize at 13.2–13.8V, increasing to 14.2–14.6V at higher RPMs. Deviations outside this range indicate a malfunctioning regulator, generator, or rectifier assembly. Address irregularities promptly to avoid deep-cycle battery damage or starter motor burnout.
