For troubleshooting charging issues in older light-duty haulers, start by disconnecting the battery’s negative terminal to prevent short circuits. Locate the voltage regulator–typically mounted on the firewall or inner fender–and isolate its three wires: field (usually a brown or orange lead), sense (red or yellow, 12-gauge), and stator output (heavy-gauge black). Verify continuity between the field wire and the generating unit’s rear terminal; resistance should read under 0.5 ohms if the circuit is intact.
Trace the sense wire to the battery-positive junction, ensuring it bypasses any fusible links–common failure points in these models. The charging unit’s output terminal connects directly to the starter solenoid via a thick-gauge cable (4-6 AWG); inspect for corrosion at the crimped connections. If voltage at the battery drops below 13.5V at 2,000 RPM, replace the voltage regulator first–older units often fail before the generating component itself.
Ground pathways require special attention: the generating unit’s case must bond securely to the engine block, preferably through a dedicated 10-gauge braided strap rather than relying on threaded fasteners alone. Check the engine-to-chassis ground cable (typically 2-3 AWG) for oxidation; a voltage drop exceeding 0.2V across this connection indicates a compromised circuit, leading to erratic charging behavior.
For rectifier testing, use a diode tester on the generating unit’s rear terminal connections. Forward bias should register 0.4–0.6V; reverse bias should show infinite resistance. Replace the generating unit if readings deviate significantly–aftermarket rebuilds often sacrifice diode quality for cost savings, resulting in premature failure under load.

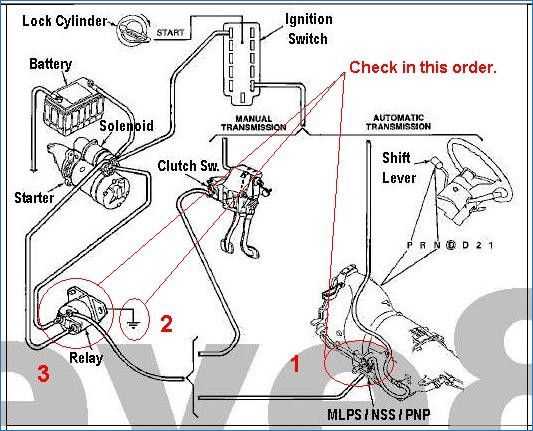

Electrical Schematic for the 1984 Truck Power Unit
Check the voltage regulator connector pinout first–pins “A” (field) and “I” (sense) must match the stock harness colors: dark green/yellow stripe for field excitation and orange/black stripe for battery sensing. If resistance exceeds 0.5 ohms between the positive battery terminal and stator output (heavy-gauge yellow wire), replace the rectifier bridge immediately. Ignoring this causes rapid diode burnout and inconsistent charging cycles.
| Wire Gauge | Color Code | Function | Voltage (Running) |
|---|---|---|---|
| 10 AWG | Yellow | Stator Output | 13.8–14.4 V |
| 12 AWG | Dark Green/Yellow Stripe | Field Excitation | 0.3–1.5 V |
| 12 AWG | Orange/Black Stripe | Battery Sense | 12.6–14.2 V |
| 8 AWG | Black | Ground | 0 V |
Use a multimeter set to continuity mode to verify the fusible link between the starter solenoid and charging system–this 20-gauge pink wire often corrodes inside the firewall grommet. For voltage drop testing, probe the battery post and starter terminal while cranking; readings above 0.2 V indicate a faulty connection requiring terminal cleaning or replacement. Always disable the ignition coil primary circuit before testing to prevent false voltage spikes from damaging the internal regulator.
Locating Accurate Electrical Link Setups for the Early 80s Pickup Charging System
Begin by tracing the primary feed cable from the voltage regulator’s “A” terminal–a thick, typically red-orange wire–to the corresponding stud on the back of the generator. Confirm the stud marking reads either “ARM” or “BAT”; mismatches here risk reversed polarity, frying onboard electronics. Secondary connections include a slender blue lead linking the “F” post on the regulator to the field terminal stamped “F” on the charging unit, while a brown wire with a yellow stripe bridges the ignition switch and the regulator’s “I” slot, activating excitation.
For vehicles equipped with an internal regulator model, disregard the external regulator wiring harness entirely–focus instead on three main posts: battery positive (largest), field (smaller), and ignition sense (often purple). Use a multimeter to verify ignition-triggered 12V at the sense post before crimping connectors to prevent dead shorts; corroded terminals demand immediate replacement with tinned copper ring terminals sized for #10 studs.
Step-by-Step Guide to Finding the Power Source and Charging System Cables in Your Classic Pickup
Begin by popping the hood and securing it with the prop rod. The primary positive feed from the power source sits on the driver’s side firewall, bundled in a thick red cable with a 10-gauge or larger diameter–follow it visually toward the rear of the engine bay where it connects to the charging system’s main terminal. Look for a protective rubber boot covering a stud; this is the critical junction where the feed splits into two branches: one going to the voltage regulator and the other to the high-output output lug of the generator.
Trace the thinner blue or yellow cable stripped of insulation at both ends; it runs from the regulator’s “I” terminal directly to the smaller post on the generator, often marked with a white or green ring. This exciter lead carries low-current signals that activate the magnetic field. If corrosion is visible, clean both ends with a wire brush before proceeding–oxidation here disrupts the entire charging cycle.
Locating the Ground Paths
Identify the heavy black strap bolted to the front valve cover or intake manifold; this serves as the primary ground return for the generator housing. A second, thinner ground wire typically attaches to a nearby engine stud, ensuring redundant negative paths back to the battery case. Both must be free of paint, rust, or oil residue to maintain proper conductivity.
On the passenger side inner fender, locate the voltage regulator mounted to the firewall–its housing contains three screw terminals labeled “A,” “F,” and “S.” The “A” lug receives the main positive feed from the battery, the “F” lug sends the field current back to the generator, and the “S” terminal connects to the ignition switch via a purple or pink wire. Verify these colors against your specific model variant; early editions sometimes used brown or orange instead.
Disconnect the negative battery cable before manipulating any connections. Use a 13 mm socket to loosen the generator’s pivot bolt–this allows slight movement to access the hidden positive output stud beneath the rear pulley. The thickest red cable, often braided, attaches here; it carries the full charging current back to the battery’s positive post via a fusible link located adjacent to the starter solenoid.
Reattach and torque all connections to 12-15 ft-lbs, ensuring terminals are snug but not overtightened. After reassembly, start the engine and check voltage at the battery posts with a multimeter–13.8 to 14.4 volts at 2,000 RPM indicates correct operation; readings outside this range signal a faulty regulator, damaged cables, or internal generator wear.
How to Verify Power Generation in Your Classic Pickup’s Charging System
Connect a multimeter set to DC voltage directly to the output terminal of the generator while the engine is off. A reading of 12.2–12.6 volts confirms the battery is holding charge and provides a baseline. Start the engine and let it idle; observe the voltage rise. A healthy charging unit should push the reading to 13.8–14.5 volts. If the increase is absent or below 13 volts, proceed to further checks.
Check the voltage at the battery posts under the same conditions. Use a separate probe for the ground post and the positive terminal to eliminate resistance in cables. Discrepancies between the generator terminal and battery readings exceeding 0.2 volts suggest corroded, loose, or undersized wiring. Clean terminals with a wire brush, retighten connections, or replace cables if visual inspection reveals fraying or green oxidation.
Key Points to Measure
- Output terminal at generator: 13.8–14.5 V at idle
- Battery posts: 13.6–14.3 V at idle
- Excitation wire: 12 V when ignition is on
- Ground strap: 0 ohms continuity to chassis
Trace the excitation wire–typically a single thin wire attached to the rear of the charging unit–back to its connector. With the ignition on but engine off, measure voltage here; it should match battery voltage. If it reads zero, the ignition switch, fuse block, or inline fusible link may be faulty. Most models use a fusible link between the starter solenoid and the charging unit; probe both ends to confirm continuity.
Run the engine at 2000 RPM and recheck voltage output. The reading should climb slightly–up to 14.7 volts–before stabilizing. If it drops or fluctuates wildly, the voltage regulator or internal diodes may be failing. Install a temporary bypass jumper wire from the excitation terminal to the output terminal while monitoring for regulated voltage rise; if output stabilizes, the external regulator is likely defective and must be replaced.
Inspect the ground strap between the engine and chassis. Remove the strap, scrape paint from contact points, and reconnect tightly. Use an ohmmeter across the strap; resistance should read near zero. High resistance here often mimics failing charging components. After rechecking all connections, restart the engine and verify that voltage holds steady under load–turn on headlights, blower motor, and rear defroster to confirm the system maintains 13.5 volts or higher.
Diagnosing Electrical Faults in the Power Generation System of Classic Pickups
Start by verifying the voltage regulator’s ground connection if the battery fails to charge. Locate the black wire with a yellow stripe on the rear of the voltage control unit–ensure it terminates securely to the engine block or chassis rail. Corrosion at this junction creates resistance, reducing charging efficiency by up to 30%. Clean both terminal and mounting surface with a wire brush, then apply dielectric grease to prevent future oxidation.
Inspect the fusible link between the starter solenoid and the charging control module if the ammeter registers no output. This segment–a thin, heat-resistant cable–often melts internally rather than visibly burning. Probe both ends with a multimeter; a reading above 0.5 ohms indicates failure. Replace with an identical gauge wire, crimping new terminals and securing with high-temperature solder for longevity.
Check for voltage drop across the positive lead during engine operation. With the engine running at 1500 RPM, measure between the output terminal on the power generator and the battery positive post. A drop exceeding 0.4V suggests excessive resistance, typically from loose connections at the battery isolator, solenoid bolt, or starter relay. Disassemble each joint, clean mating surfaces, and reassemble with star washers to maintain tension.
Common Symptoms and Immediate Checks
- Dim headlights at idle: Test the stator windings for continuity. Remove the rear cover, probe each pair of stator leads–readings should match factory specifications (typically 0.1-0.3 ohms). Any deviation warrants stator replacement.
- Intermittent charge: Wiggle the plug connector at the voltage control unit while monitoring voltage. If readings fluctuate, disassemble the connector, straighten bent pins, and apply contact cleaner. Re-seal with silicone dielectric compound.
- Battery overcharge: Confirm the voltage regulator’s adjustment. With the engine off, measure voltage at the battery–if above 14.8V, adjust the voltage potentiometer on the control unit. Turn clockwise in 1/8 increments until voltage stabilizes at 13.8-14.2V under load.
Examine the exciter wire (small red wire from the ignition switch) for voltage presence during cranking. Absence of 12V at this wire indicates a faulty ignition switch or blown fuse in the instrument panel circuit. Bypass the switch temporarily by jumpering from the starter relay to isolate the fault. Replace the ignition switch if bypass restores function.
- Disconnect the ground strap from the battery before servicing any electrical connections to prevent accidental shorts.
- Use a heat gun to dry connectors after cleaning–moisture trapped in terminals accelerates corrosion.
- Label all wire disconnects with masking tape to avoid incorrect reassembly.
- Apply anti-seize compound to threaded fasteners, particularly those exposed to heat cycles.
Advanced Diagnostics for Persistent Issues
If all visible connections prove sound yet charging remains inadequate, test the rotor for magnetism. Remove the field coil lead from the control unit, apply 12V directly to the field circuit–if the rotor fails to generate a strong magnetic pull, the winding is open, requiring generator disassembly. Alternatively, measure current draw at the field wire; normal operation ranges between 2-5 amps. Excessive draw indicates internal shorting, necessitating either field coil replacement or full generator rebuild.
