Start by locating the main fuse block under the dashboard on the driver’s side. The 83 model uses ATC-style fuses–replace any blown 15-amp or 20-amp units with exact matches to avoid voltage drops. Trace the instrument cluster wiring next; corrosion at the pink/black (fuel gauge) and yellow/black (temperature gauge) connectors causes intermittent failures. Clean contacts with deoxit D5 or CRC electrical cleaner–sanding pads degrade plastic housings over time.
Check the headlight switch harness for brittle insulation. The dark blue/white (high beam) and light blue/white (low beam) wires often short against the firewall. Route replacements through split-loom tubing and secure with zip ties–avoid electrical tape as it traps moisture. The turn signal flasher (mounted near the steering column) fails silently; test with a multimeter before assuming bulb issues.

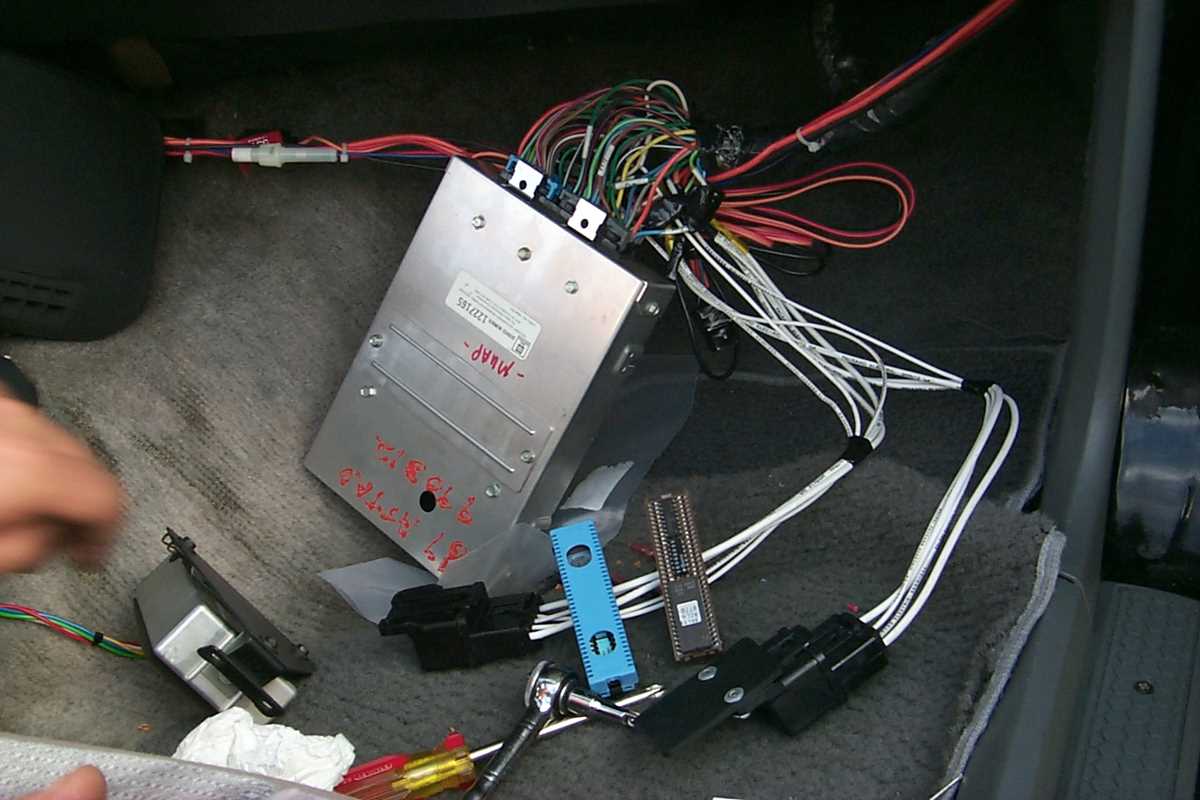

For ignition system repairs, focus on the 10-pin ECM connector. The orange (ignition feed) and dark green/white (tach signal) wires are critical–use a pin removal tool to extract terminals without damaging the housing. Solder all splices with 60/40 rosin-core and protect with heat-shrink tubing. Avoid crimp connectors; they loosen under vibration.
Ground points under the driver’s side fender and near the battery tray corrode first. Scrape paint and rust to bare metal, then apply dielectric grease before reattaching. The alternator output wire (heavy gauge red) must connect directly to the battery positive post–no intermediate splices. Verify charging voltage with the engine running; expect 13.8–14.4V at idle.
Third-Gen F-Body Electrical Blueprint: Hands-On Troubleshooting
Begin by locating the fuse block under the instrument panel–labelled positions for each circuit eliminate guesswork. The radio memory circuit (fuse #7) often drains the battery if left unchecked; verify continuity with a multimeter before replacing components. Critical paths include the ignition feed (orange wire, 12-gauge) and the charging system (pink/black stripe), which should read 13.8-14.4V at idle.
Trace ground points first: engine block-to-chassis (G100), firewall behind the brake booster (G101), and rear body panel (G105). Corrosion at these junctions causes intermittent issues; clean with a wire brush and apply dielectric grease. The starter solenoid utilizes a heavy-gauge purple cable–any voltage drop exceeding 0.5V indicates a failing connection.
For the lighting system, check the brown/white stripe wire feeding the headlight switch. Dimmers operate via a rheostat; resistance should decrease smoothly from 5kΩ to near-zero as the knob rotates. Tail lights share a common ground (G300)–poor contact here manifests as flickering or single-side failures.
| Component | Wire Color | Expected Voltage | Diagnostic Tip |
|---|---|---|---|
| Alternator Output | Pink/Black Stripe | 13.8-14.4V | Check at battery with engine running |
| Ignition Feed | Orange | 12V (key-on) | Test at coil positive terminal |
| Fuel Pump Relay | Gray/Black Stripe | 12V (momentary) | Listen for click during cranking |
| Blower Motor | Black/Light Blue | 0-12V (variable) | Test speed selector resistance |
Instrument cluster problems often stem from the voltage regulator (metal can behind speedometer). A failing unit over-reads by 20-30%–replace with a solid-state regulator for consistent accuracy. The oil pressure sender uses a 1/8″ NPT thread; mismatched threads cause fluid leaks and false readings.
HVAC controls rely on vacuum actuators–listen for distinct “click-clack” sounds when switching modes. The blend door motor connects via a purple wire; resistance should measure 3-5kΩ across its terminals. Refrigerant pressure switches (gray 2-pin connector) typically open at 27 psi–test continuity with system charged.
Aftermarket stereo installs commonly disrupt factory circuits. The speaker wires (purple/light blue and dark green/white) handle 10W RMS–exceeding this burns voice coils. Use a relay for high-power amps, tapping into the pink accessory wire at the fuse block for clean 12V switched power.
Best Sources for a Trusted Third-Gen Z28 Electrical Schematic PDF
Download official factory schematics from Helm Incorporated via their authorized storefront. Their reproduction manuals for the 82-92 F-body lineup include exact OEM wiring layouts, pinouts, and color codes. Verify the part number H8221–this covers the entire electrical system. Pricing typically ranges between $25 and $40 for immediate PDF delivery.
Specialized forums like ThirdGen.org host member-uploaded PDFs of verified documentation. Search their “Factory Service Manuals” thread–users often share scanned copies of the Chassis Electrical section from GM’s original 1982-1985 service manual. Look for posts by @V8FTW or @LS1Tech–these contributors consistently vet accuracy.
Check RockAuto under the “Literature” tab. They stock reprinted electrical guides from Motor Book Publications–search for ISBN 978-1613250007. While not a PDF, this printed book offers crisp, enlarged reproductions of the original schematics, including component location charts. Shipments arrive within 3-5 business days.
Facebook Marketplace and Craigslist occasionally list sellers offering physical workshop manuals with high-resolution scans. Filter for listings mentioning “GM F-body” or “1980s Chevy service book”. Ask for sample pages before purchasing–ensures the electrical section is legible at 300+ DPI. Expect to pay $15–$30 for a complete shareable scan.
eBay remains a reliable last-resort source. Search for auctions titled “Original GM Electrical Schematic” and filter by “Hard Copy + PDF.” Sellers like @classicmanuals or @restorationparts frequently bundle downloads with physical purchases. Review seller ratings above 98%–avoid blurry, low-resolution previews.
Critical Electrical System Segments and Pinout Positions for the Z28 Coupe
Trace the primary power distribution module beneath the instrument panel toward the driver’s side kick panel–here, the fuse block integrates with the main harness via a 24-pin connector (black housing). Pin assignments follow a consistent schema: slots 1–8 manage ignition-switched circuits, while 9–16 handle constant power for memory retention in the ECM and radio. Verify continuity at pin 17 (ground reference) before addressing parasitic draws; corrosion here mimics intermittent shorts in accessory feeds. For engine bay diagnostics, focus on the dual 6-way connectors adjacent to the voltage regulator–terminal A (red/white stripe) supplies alternator excitation current; interruptions here trigger erratic charging gauge fluctuations.
Sensor Cluster and Ignition Control Interfaces
Locate the 4-way oxygen sensor harness near the firewall’s passenger side–this plug (gray with male spades) carries heated element leads on terminals 1 and 2, while 3 and 4 deliver raw lambda data to the control unit. Replace deteriorated connectors with heat-shrink terminals to prevent signal degradation; resistance above 0.5 ohms between the ECM and sensor mandates harness re-termination. The ignition control module resides under the distributor cap; its 2-pin connector (yellow/green wires) bridges the coil negative terminal–any voltage drop exceeding 0.2V under cranking indicates module failure or corroded grounds at the intake manifold studs.
Ensure the transmission range sensor’s 3-wire plug (translucent white housing) aligns flush with the case-mounted solenoid pack. Terminal misalignment here forces manual lever interpretations, corrupting shift timing maps in the ECM. Probe the tan/black wire with a high-impedance multimeter–voltage should toggle crisply between 0V and 5V across P-R-N-D-L selections; erratic transitions confirm internal wear necessitating sensor replacement, not harness splicing.
Step-by-Step Guide to Isolating Electrical Faults with Your Classic Vehicle’s Schematic
Locate the fuse block first–it’s typically mounted beneath the dashboard or inside the engine bay on the driver’s side. Remove each fuse one at a time and inspect the metal bridge: corrosion or a broken filament confirms a blown fuse. Replace only with the exact amperage rating listed on the schematic’s legend, usually 10, 15, or 20 amps. Avoid guessing; even a 5-amp difference risks damaging circuits.
Check voltage at the fuse terminals using a multimeter set to DC 20V. Probe the input side (battery feed) while the key is off–readings should match battery voltage (12.6V). Probe the output side (load feed) with the key on; voltage should drop no lower than 11.5V. Readings below 10V indicate resistance upstream, often from corroded connectors or deteriorated wire insulation near the firewall.
Trace the starter relay path next. The relay socket has five terminals: 85 and 86 control the coil, 30 is constant power, 87 delivers output to the starter solenoid. Verify continuity between 30 and 87 when the ignition engages–no continuity suggests a failed relay or broken wire. Swap the relay with an identical unit (usually A/C or horn relay) to confirm failure before replacing.
Pinpointing Sensor and Switch Circuits
Focus on the temperature sender circuit to diagnose erratic gauge behavior. Disconnect the sender connector, located near the thermostat housing. Probe the harness-side pin with the multimeter set to Ohms–resistance should vary smoothly between 10KΩ (cold) and 200Ω (hot). Static readings signal a failed sender; inconsistent readings suggest a frayed wire in the engine harness, commonly near the exhaust manifold.
Test turn signal function by accessing the flasher module under the dash. Remove the module and jump terminals 1 and 4 with a paperclip–both signals should illuminate steadily. If only one side lights, inspect the bulb filaments and socket grounds. Repeat with terminals 1 and 2 to test the hazard flashers; failure here often stems from oxidized contacts in the steering column stalk.
Use a tone generator to track hidden ground issues. Attach the probe to known good chassis grounds (battery negative or starter mounting stud) and follow the schematic’s ground symbols. Audible drops in tone reveal corroded eyelets, often behind the instrument cluster or under the rear seat. Clean surfaces with a wire brush, then apply dielectric grease to prevent future oxidation.
Final Checks for Intermittent Failures
Wiggle-test the dash harness behind the instrument panel. Start the vehicle and simulate road vibrations by gently manipulating bundles near the firewall grommet. Flickering gauges or dropped signals isolate damage to specific wires–trace color-coded paths back to the schematic’s connector charts. Common failure points include the tan/black wire (fuel gauge) and pink/black wire (tachometer).
Inspect bulkhead connectors for heat damage. The firewall pass-through connector often melts from high-current draw, especially in the headlight and cooling fan circuits. Disassemble the connector, clip damaged wires, and splice in new terminals using crimp connectors–never solder bulkhead connections, as vibration cracks solder joints.
Verify all repairs by monitoring voltage drop across repaired circuits. With accessories on (headlights, blower motor, radio), voltage at the battery should not dip below 12.4V. Drops beneath 12V indicate lingering resistance–recheck splices and grounds against the schematic’s color codes and pinouts.
- Always disconnect the battery before probing airbag circuits (yellow wires).
- Never assume wire colors–cross-reference with the schematic’s supplemental notes.
- Use a heat gun to spot brittle insulation; pins in the main harness often crack near the transmission tunnel.
