Start by locating the main fuse block beneath the dashboard on the driver’s side. Verify power distribution using a multimeter set to 12V DC–pin 1B (red/white stripe) should show continuous voltage whether the ignition is on or off. Failure here indicates a corroded fusible link near the battery terminal, often hidden under the fender liner. Replace the link with 10-gauge wire before proceeding.
Trace the ignition circuit from the ignition switch (terminal IG) to the ignition relay. Yellow wire (code Y-L) delivers power to the coil, while a parallel black/white wire (B-W) grounds the electronic control unit. If the engine cranks but won’t start, test the Y-L wire at the coil–resistance above 0.5 ohms means a broken connection inside the firewall grommet, requiring repinning with 16-gauge terminals.
Access the rear lighting harness through the driver-side kick panel. Brown wires (BR) feed the taillights; a single green/white stripe (G-W) controls the brake lights. Cross-reference voltages: 12V at BR during running lights, 12V at G-W when braking. Dim illumination suggests a failing ground splice beneath the left rear quarter panel–clean corroded chassis contacts with a wire brush and apply dielectric grease.
For turn signals, the flasher unit mounts behind the glove box. Dark green (DG) and light green (L-G) wires alternate between 0V and 12V during operation. Non-functional signals require checking the DG/L-G wires at the hazard switch–frayed insulation calls for heat-shrink repair. Replace the flasher with a solid-state relay if buzzing persists.

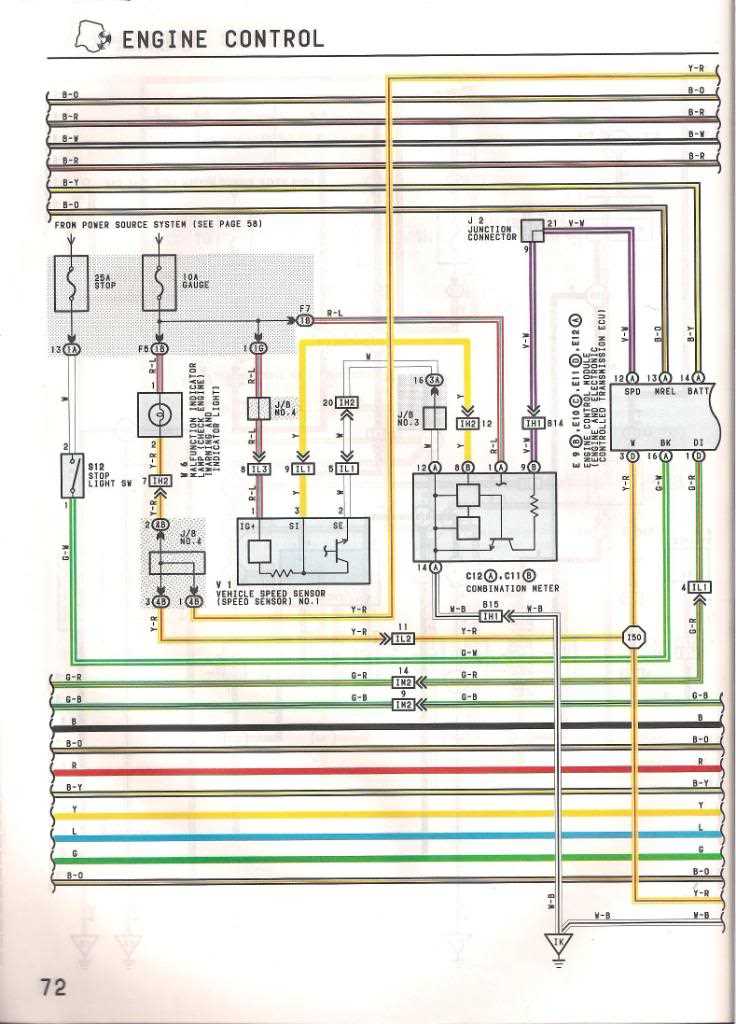

Download the manufacturer-issued schematics for chassis code RN30–manually drawn diagrams mislabel ignition wires. Cross-check color codes against the underhood decal; late-model variants swap the Y-L and red/black (R-B) wires at the alternator. Print the diagram on waterproof paper and store it beneath the seat for field repairs.
Restoring Your Classic Compact Hauler’s Electrical Blueprint: Hands-On Steps
Trace the main fusible link cluster under the dashboard near the steering column–it splits into two branches: one feeds the ignition circuit, the other powers accessories. Use a multimeter set to 200 ohms to verify continuity across each 8 mm spade terminal; readings above 0.5 ohms indicate corrosion or frayed wire strands. Label every terminal with masking tape and a silver Sharpie to prevent cross-wiring during reassembly.
Color-Coded Wire Chart for Immediate Reference
| Wire Hue | Function | Voltage Check Point | Common Failure |
|---|---|---|---|
| Black with white stripe | Ignition switch output | Fusible link LH terminal | Corroded inline spade connector |
| Red with yellow stripe | Alternator charging lead | Battery positive terminal | Brittle insulation near engine mount |
| Blue with white stripe | Headlight low beam | Headlight connector bulb socket | Intermittent short to chassis ground |
| Green with red stripe | Horn relay coil | Steering column horn pad wire | Frayed strand cluster |
Locate the instrument cluster harness plug behind the speedometer bezel; it contains twelve pins arranged in a staggered grid. Pin 7 delivers 12 V constant feed, Pin 8 grounds the fuel gauge sender, and Pin 9 carries the turn signal flasher pulse–use a test light to confirm each pin lights when probed. Swap any dim or flickering dash lights with 3.4 W wedge bulbs; higher wattage units melt the plastic bulb socket over time.
Splice the rear tail-light harness where it exits the frame rail beside the leaf spring shackle–this junction corrodes first due to road salt infiltration. Strip back insulation with a heat gun to soften brittle plastic, then crimp 16-gauge tin-plated copper butt connectors for a permanent repair. Route new wire away from moving suspension components and secure with Adel clamps every 8 inches.
Quick Troubleshooting Matrix for Common Symptoms
| Symptom | Probe Points | Expected Reading | Next Action |
|---|---|---|---|
| Battery drains overnight | Fusible link cluster | Open circuit >5 kΩ | Replace fusible link segment |
| Left turn signal fast blink | Steering column hazard switch | 0.2 Ω across switch contacts | Clean switch contacts with contact cleaner |
| No dash illumination | Dimmer switch output | 0 V at full brightness | Replace dimmer rheostat assembly |
| Starter cranks but no spark | Ignition coil negative terminal | Voltage pulses 0-12 V | Test ignition control module |
Finding Key Electrical Bundle Junctions in Early 80s Light-Duty Trucks
Start beneath the dashboard on the driver’s side–two primary connectors attach to the fuse box. The upper one, labeled “A,” handles headlights, turn signals, and instrument cluster feeds. Trace it left along the firewall; a 12-pin rectangular plug mates with the main harness behind the kick panel. Remove the lower dash panel screws (10mm) to expose it fully.
- Lower junction (“B”)–feeds rear lights, fuel pump, and ignition. Locate it behind the glove box; squeeze release tabs on the plastic shroud.
- Inspect the 8-pin oval connector–pin corrosion here kills fuel gauge signals.
- Behind the radio cavity, a smaller 6-pin unit controls heater blower speeds.
Follow the engine-side bundle up the firewall–three connectors split here. The largest, near the brake master cylinder, contains heavy-gauge leads for starter solenoid and alternator. Label each one before separation (A/C compressor clutch, radiator fan relay). Two smaller plugs flank it: check the right-side one for oil pressure and coolant temp sensor links.
Under the hood, lift the battery tray (two 14mm bolts) to find the chassis ground strap’s crimp terminal. Loose strands here create intermittent charging faults. Along the passenger-side fender well, a firewall-mounted 4-terminal block connects taillight harnesses–green/red stripe wires handle left-side brake circuits.
For rear body links, drop the spare tire tray. A 9-wire loom enters the bed via a rubber-grommeted hole beneath the rear corner; splice corrosion often occurs at this point. Use dielectric grease when reseating connections–particularly on the 3-pin trailer light plug behind the bumper.
Understanding Electrical Tracings: Color Schematics in Early 80s Utility Vehicles
Identify the ignition feed harness by locating the solid red conductor–this carries the primary power source from the battery to the fuse block and ignition switch, typically rated for 10-15 amperes. Verify continuity with a multimeter before assuming integrity, as corrosion at the terminal clusters can mimic open circuits.
Trace the blue stripe (BLU/WHT) along the instrument cluster harness: this powers dashboard illumination and must splice cleanly into the dimmer control rheostat’s high-side input. Flickering lamps often indicate a degraded connection at the splice joint, requiring sandpaper (400-grit) cleanup and dielectric grease reapplication.
Ground pathways use black or black-striped sheathing; inspect chassis attachment points near the driver-side kick panel–these bolts accumulate rust, creating high-resistance paths. Replace washers with zinc-plated versions and apply anti-seize compound to prevent future oxidation.
For the charging circuit, follow the yellow/green (YEL/GRN) lead from the alternator output to the voltage regulator–resistance exceeding 0.2 ohms here reduces field excitation, causing undercharging. Bypass testing with a bench regulator isolates faulty stock units without full system teardown.
Exterior lighting employs distinct codes: brown/white (BRN/WHT) serves tail lamps, while red/blue (RED/BLU) activates brake circuits. Swap bulbs and sockets if phantom voltage appears–loose filaments create intermittent faults mimicking harness problems.
Accessory circuits (radio, blower motor) branch from the fusible link block; the pink/yellow (PNK/YEL) line feeds the heater fan motor–replace the 30-amp slow-blow fuse if blowing repeatedly, as this often indicates shorted windings rather than wiring faults.
Transmission sensors (neutral safety, reverse lights) rely on gray/orange (GRY/ORG) tracing–confirm proper connector seating, as pin pushback within the loom disrupts signal flow. Crimp new terminals with a wire stripper and heat-shrink tubing to restore reliability.
Exhaust the diagnostic flowchart before cutting into conduits: mechanical damage (rodent chews, abrasions) concentrates at wheel wells and firewall grommet crossings. Encapsulate repaired sections with spiral wrap or loom tape rated for 80°C minimum to prevent insulation breakdown.
How to Trace the Ignition Circuit Path in Your Early 80s Truck
Locate the ignition coil mounted on the firewall or inner fender. Note the two thick leads: one connects to the distributor via a high-tension cable, the other receives voltage from the ignition switch. Use a multimeter set to 20V DC to check for 12V at the coil’s positive terminal when the key is turned to “ON” or “START.”
Follow the thin wire with a black-yellow stripe from the coil’s positive terminal. This is the switched power feed coming directly from the ignition switch. Trace it backward through the firewall–often bundled with other harness wires–until you see it split from the main loom near the steering column.
- Disconnect the battery negative terminal before probing any circuits.
- Label each connection with masking tape as you disconnect it.
- Use needle-nose pliers to gently pull apart harness ties without cutting them.
At the base of the steering column, identify the five-pin ignition switch connector. The black-yellow wire should terminate at the “IG” or “ACC” terminal. Verify continuity between this pin and the coil’s positive terminal using a multimeter’s continuity setting. A beep confirms a solid path; silence indicates a break.
If voltage is missing at the coil, move to the fusible link feeding the ignition circuit. Find the main power distribution block under the hood–typically a black plastic box near the battery. Open the lid and locate the 80A fusible link (white or red stripe). Probe the input side for 12V constant; if present but missing at the output, the link is blown and must be replaced.
- Remove the old fusible link by cutting it flush with the terminals.
- Crimp a new link (same gauge) onto the terminals using a dedicated crimping tool.
- Solder the joint for corrosion resistance, then cover with heat-shrink tubing.
Re-test voltage at the coil after replacing the link. If still absent, inspect the ballast resistor (a ceramic block with two spade terminals) mounted adjacent to the coil. Bypass it temporarily by jumpering its terminals with a fused 12-gauge wire. If the engine fires, the resistor is defective and requires replacement–permanent bypasses will overheat the coil.
