Start with the main fuse block–typically located near the battery on models from the late seventies. Trace the red cable (10-gauge) from the positive terminal to the ignition switch; a faulty connection here causes intermittent power loss. Verify the inline fuse (20A) before proceeding; corrosion often mimics wiring failures. If voltage drops below 12.6V at this point, check the ground strap linking the frame to the engine block–oxidation in this 8-gauge braided lead is a common culprit.
Locate the charging circuit’s stator wires (yellow/red and yellow/green) behind the alternator cover. Use a multimeter in AC mode to confirm 50-70V under 5,000 RPM; readings outside this range indicate stator degradation or rectifier issues. The regulator-rectifier unit, mounted near the rear fender, should show DC output of 13.2-14.5V at the battery terminals during a test ride. Deviations suggest failed diodes or poor grounding–clean the mounting surface and recheck.
Inspect the lighting circuit next. The high/low beam filaments draw 6V each; if one blows, test the corresponding orange (left) or light blue (right) wires for continuity. Corroded bullet connectors in the headlight shell often cause flickering–replace with gold-plated terminals. For turn signals, follow the brown/white wire from the flasher relay to the handlebar switch; a stuck relay produces rapid clicking with no bulb illumination. Swap the relay first before diagnosing switch contacts.
For the ignition system, probe the black/white coil wires (both primary and secondary) with an ohmmeter. Primary windings should read 2.5-3.5 ohms, secondary 8-12k ohms. Resistance above these values means replacing the coil assembly–aftermarket units often lack the thermal paste required for the dual-layer design of early eighties models. Spark plug caps should register 5k ohms; higher readings demand new caps to prevent misfires under load.
When troubleshooting instrument clusters, focus on the voltage regulator (small metal box behind the speedometer). A faulty unit causes erratic readings–verify 4.8-5.2V at the gauge terminals with a headlight on. For fuel senders, the float arm resistance should decrease smoothly from 70 ohms (empty) to 10 ohms (full); sudden jumps indicate a worn rheostat. Rebuild kits restore accuracy without full gauge replacement.

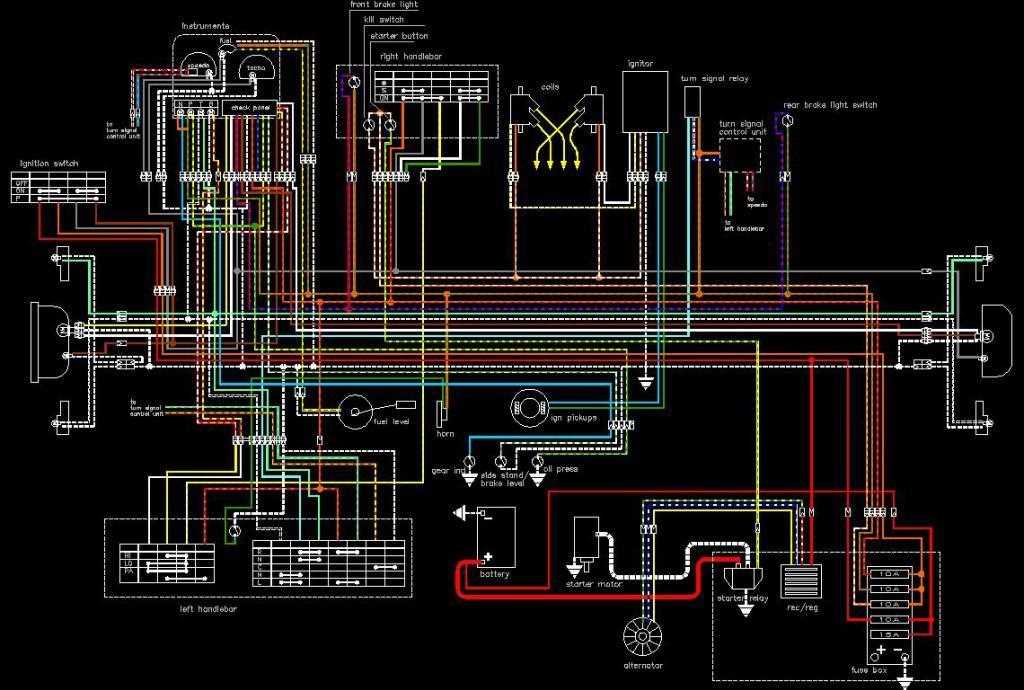

Electrical Schematic for Classic Twin-Cylinder Tourers: Hands-On Reference
Start by isolating the ignition switch terminals before testing continuity. Use a multimeter set to 200 ohms to verify resistance across the red (power in), black/white (ignition feed), and brown (accessory) leads–values should read below 0.5 ohms with the key in the “ON” position. Anything above 2 ohms indicates corrosion or broken strands inside the harness, requiring terminal crimping or pigtail replacement.
Check the voltage regulator’s heat sink mounting bolts–they must secure both the unit and the frame ground strap. Loose bolts cause erratic charging; torque them to 9 Nm. The rectifier’s diode trio should drop exactly 0.6V forward when probed with a diode tester. If readings deviate by ±0.1V, replace the regulator assembly–aftermarket substitutes often lack thermal grease pads beneath the diodes, leading to premature failure.
- Stator coil resistance: 0.2–0.4 ohms phase-to-phase, unplugged.
- Stator output: minimum 20V AC at 2,500 RPM, key-off.
- Headlight relay coil: 80–120 ohms; spade terminals must show 12.4V when triggered.
Any deviation suggests shorted windings–replacement stators should be matched to the original 0.5mm lamination thickness to prevent eddy-current losses.
Trace the turn-signal circuit’s flasher unit sockets: two spade connectors, one brown (ground) and one yellow/blue (signal input). If signals flash at double speed, bypass the thermal flasher with a solid-state 4-pin bypass module–original bimetallic flashers fail after 150°C ambient exposure. Replace the hazard switch microswitch if its contacts measure above 0.2 ohms when toggled; oxidation here mimics a blown bulb.
Inspect the instrument cluster’s 10-pin molex connector for green corrosion–clean pins with DeoxIT D5, then apply dielectric grease. The tachometer’s white wire must pulse 12.8±0.2V square waves at 8 pulses per ignition event. If the needle jumps, the pickup coil is failing–re-gap it to 0.35mm with brass foil shims. Verify the speedometer’s drive gear teeth count: 16T for 19T rear sprocket ratio, or 14T for 18T–mismatches skew readings by 7%.
- Disconnect the battery negative lead before probing any circuit.
- Heat-shrink all splices–vinyl tape absorbs moisture within 300 hours.
- Zip-tie harness sections every 8 cm to prevent chafing on the swing-arm pivot.
- Replace the main fuse holder sockets–original phenolic holders crack at 5A load.
Use crimp sleeves specifically listed for 2.8mm² wire gauge; generic connectors compress strands unevenly, causing intermittent opens.
How to Locate and Interpret the Primary Electrical Circuit Connections
Begin by tracing the central bundle from the battery terminal. The positive lead splits into two main paths: one routes directly to the ignition switch, the other branches off to the fuse block. Use a multimeter to verify voltage at each junction–expect 12.5–13.2V on the unloaded circuit and 11.8V or above under operating conditions. Label each segment with masking tape to avoid confusion during reassembly, noting connections with alphanumeric codes from the manual.
Identify the color-coding system: solid lines indicate primary power, striped pairs signal ground returns, and dotted traces denote sensor inputs. The following table clarifies common patterns for this model’s harness:
| Color | Function | Typical Connection |
|---|---|---|
| Red/White stripe | Fused ignition feed | Starter solenoid |
| Black/Yellow stripe | Charging system output | Voltage regulator |
| Green/Red stripe | Lighting circuit | Headlamp relay |
| Brown/White stripe | Ground return | Frame mounting point |
Inspect the main connector block near the steering stem. This 14-pin plug aggregates signals from the engine control module, lighting circuits, and auxiliary systems. Probe each pin with the ignition turned to the “ON” position–functional circuits should show continuity to ground or battery voltage. A failed reading at pin 7 (green/white wire) typically indicates a faulty neutral switch or shorted harness segment.
Examine the sub-harness branching to the rectifier and alternator. The three-phase stator leads (yellow wires) should register AC voltage between 18–24V at 3000 RPM, while the DC output (red wire) must maintain 13.8–14.5V under load. Corrosion at these terminals is a frequent failure point; clean with a wire brush and apply dielectric grease before reconnecting. Replace any connector exhibiting heat damage or melted insulation.
Use a circuit tester to isolate parasitic draws. With all switches off, connect the tester between the negative battery terminal and disconnected ground cable. A reading above 0.05A suggests an uncontrolled drain–trace each circuit sequentially, starting with the largest consumers (headlamp, ignition coil) until the faulty path is identified. Replace inline fuses with identical rating; never bypass a fuse with wire or higher-amperage substitutes.
Step-by-Step Troubleshooting for Ignition System Connections
Begin by disconnecting the battery terminals to prevent accidental shorts. Use a multimeter set to continuity mode to verify the integrity of the main power feed from the fuse box to the ignition switch. Trace the red wire with a black stripe–standard for 12V supply–ensuring no breaks or corrosion at connectors. If resistance exceeds 0.5 ohms, clean terminals with electrical contact cleaner and a wire brush.
- Inspect the ignition switch contacts for pitting or discoloration. Rotate the switch through all positions while testing voltage output at each terminal.
- Check the kill switch by toggling it to the “run” position; voltage should remain steady at the coil’s positive terminal.
- If voltage drops below 10.5V during cranking, test the battery’s cold-cranking amps–minimum 200A required for reliable spark delivery.
Examine the pulse generator (pickup coil) for proper resistance. Attach the multimeter probes to the sensor’s two wires; readings should fall between 120–240 ohms. Lower values indicate a shorted coil, while infinite resistance suggests an open circuit. Replace the sensor if readings deviate, as recalibration isn’t possible.
Test the ignition coil’s primary and secondary windings. For primary, connect the multimeter to the coil’s two small terminals–expected resistance is 0.5–1.5 ohms. For secondary, probe the small terminal and high-tension lead; readings should be 7,000–12,000 ohms. Any deviation outside these ranges requires coil replacement.
Verify spark plug wires by removing each boot and measuring resistance. Ideal range: 5,000–10,000 ohms per foot. Replace wires if resistance exceeds 15,000 ohms or if insulation shows cracks. Use dielectric grease when reinstalling boots to prevent moisture ingress.
- Reconnect all components and perform a spark test. Ground a spare plug to the engine block, crank the engine, and observe the spark. A healthy system produces a strong blue spark; weak or yellow sparks indicate faulty ignition components.
- If no spark occurs, check the CDI module by swapping it with a known-good unit. Faulty modules often fail without warning and cannot be repaired.
- Recheck all grounds–loose or corroded grounding points cause intermittent ignition failures. Sand paint off mounting points and tighten bolts to 10–12 Nm.
