Start by disconnecting the main 12V battery terminal to prevent accidental shorts. The printed circuit behind the speedometer and tachometer often develops corrosion at solder joints–inspect these points first before replacing any wires. Trace each bulb socket’s path: the leftmost socket (turn signal) typically routes through a purple-striped line, while the oil pressure sender connects via a black-striped wire with a yellow tracer. A multimeter set to continuity mode will confirm if these circuits remain intact or require bypassing.
For dimmer function issues, focus on the brown wire with a white stripe–this carries the rheostat signal to the bulbs. If dashboard lighting flickers or stays off, clean the contacts at the headlight switch’s dimmer resistor with electrical contact cleaner. The fuel gauge circuit differs from later models: it uses a balancing coil sender unit, calibrated at 8–12 ohms for full range–measure resistance at the tank sending unit first before assuming gauge failure.
Reproduction schematics often omit the voltmeter’s wiring path. Locate the white wire with black stripe running from the voltage regulator to the gauge–this line must remain unbroken for accurate voltage display. When replacing burnt bulbs, use 168-style bulbs rated for 14V to match the original system design. Keep a wiring harness repair kit on hand; the original cloth-covered wires degrade near heat sources like the exhaust manifold proximity.
Verify ground connections at the firewall grommet–poor grounding causes erratic readings across all meters. The ignition warning light circuit (red indicator) relies on a purple wire with orange tracer linking the alternator to the gauge cluster. If the light stays on after startup, test the alternator’s field circuit before replacing the bulb or gauge. Always recheck connections after reassembly; vibration from rough terrain loosens crimped terminals over time.

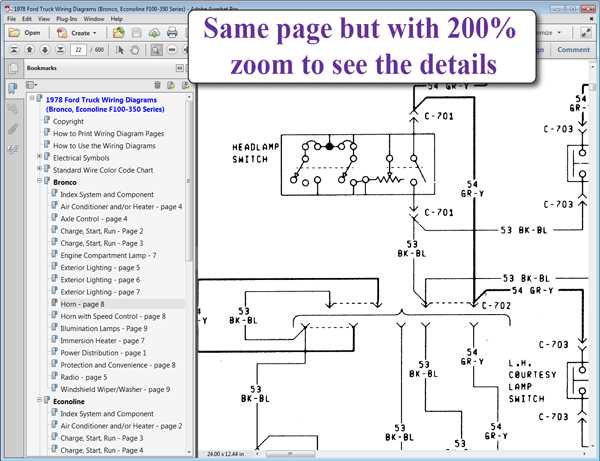

Electrical Guide for Classic Pickup Gauge Panel
Start by disconnecting the battery negative terminal to prevent shorts. Locate the fuse block behind the driver-side kick panel–trace the red wire with a yellow stripe (Y/R) to pin 1 of the speedometer harness. This powers the illumination circuit. Verify voltage at the connector using a multimeter; 12V DC should register with the headlights on.
Check the tachometer calibration by probing the violet wire (V) at the back of the gauge. With the engine idling at 800 RPM, the signal should pulse between 0.5V and 9V. If readings fluctuate erratically, inspect the ignition coil connection and distributor pickup for corrosion or broken strands. Replace the wire if resistance exceeds 0.3 ohms per foot.
Common failure points include:
- White wire (W) from alternator to ammeter–ensure the splice near the firewall isn’t brittle.
- Brown/white stripe (BN/W) for fuel sender–test continuity from tank to dash; resistance should drop from 73 ohms (empty) to 10 ohms (full).
- Green/orange stripe (G/O) for oil pressure sender–delivers 0.5V–4.5V proportional to PSI.
Troubleshooting Dim Lights
If gauges light but stay dim, focus on the gray wire (GY) feeding the dimmer switch. Backprobe the switch with the dash lights on–full brightness should yield 12V; lower settings scale down. If voltage doesn’t vary, replace the rheostat. For intermittent flickering, examine the ground splice under the driver’s seat; scrape paint off the chassis for clean contact.
Reassembly requires exact wire routing:
- Route the yellow/black stripe (Y/BK) through the firewall grommet–avoid sharp edges.
- Secure the orange (O) wire along the inner fender with cloth tape, away from moving parts.
- Reattach the black ground (BK) to the dashboard support bracket using a star washer.
Snug all connections with crimp terminals; soldering risks melting nearby plastic clips. Reconnect the battery and verify all functions before reinstalling trim panels.
Finding the Right Gauge Panel Connectors in Your Classic Pickup
Trace the main harness behind the dash assembly to the white twelve-pin connector. Pin assignments follow a strict sequence: voltage feed enters at slot 1 (brown wire), while the sender circuits exit slots 6 through 9 (yellow, green, blue, and purple strands). Verify continuity with a multimeter before reconnecting–resistance readings above 5 ohms indicate corrosion in the firewall grommet.
Locate the smaller six-pin plug adjacent to the speedometer cable. This interfaces directly with fuel, oil pressure, and temperature sensors. The black wire (slot 1) serves as the ground reference; swapping it with the pink slot 2 wire will trigger false low-fuel warnings. Label each connector leg before disassembly to prevent cross-wiring during reinstallation.
Identify the orange illumination wire branching from the headlight switch. It splits into three paths–one leads to the dash bulbs, another to the heater controls, and the last to the optional tachometer. Use a 14-gauge spade terminal for secure connections; crimp twice and solder for durability. Flickering lights often stem from this single source.
Inspect the voltage regulator mounted on the firewall–its two-pin connector bridges the alternator output to the gauge panel. The thick red cable carries 12V; the thinner striped wire modulates gauge response. Clean both terminals with a wire brush to eliminate voltage drop. A faulty regulator mimics fuel gauge failure by distorting sender signals.
For vehicles equipped with optional air conditioning, an additional four-wire pigtail links the climate controls to the main loom. The brown/yellow stripe (slot 3) powers the blower motor relay; interruption causes erratic temperature needle behavior. Re-seal moisture-prone areas with dielectric grease after confirming connections.
Step-by-Step Guide to Decoding Gauge Panel Connector Hues and Roles
Start by locating the main harness connector at the rear of the dashboard assembly–it’s typically a rectangular plug with 10–12 terminals. Use a multimeter set to continuity mode to probe each pin while referencing the vehicle’s schematics. Document every observed color code immediately; mismatches between factory manuals and real-world installations are common due to aftermarket modifications.
Ground wires stand out as the most consistent: solid black or black with a thin stripe (often red, yellow, or white). These should register zero ohms when tested against the chassis rail near the fuse box. If resistance exceeds 0.5 ohms, inspect for corroded terminals or frayed strands in the cable run–especially at junction points behind the glovebox or under the steering column.
Illumination circuits rely on a dimmer-controlled orange wire (sometimes pink with a black tracer). Verify its function by turning the lamp switch on: voltage should fluctuate between 0V and 12V as the dimmer knob rotates. If readings remain static, trace the wire upstream to the switch itself–failed rheostats frequently plague vintage dash systems.
| Wire Color | Typical Function | Voltage Range (Key On) |
|---|---|---|
| Yellow with black stripe | Fuel level sender | 2.5V–9V (varies with tank level) |
| Green with white stripe | Temperature gauge | 0.5V–4V (rises with engine heat) |
| Dark blue with orange stripe | Tachometer signal | 0V–10V (AC pulses, frequency increases with RPM) |
| Light blue with red stripe | Oil pressure sender | 12V at 0 PSI, drops to 0V as pressure builds |
Sender wires–yellow/black for fuel, green/white for temperature–interact directly with their respective float switches or sensors. Test these by disconnecting the sender unit and simulating resistance: a 10-ohm resistor should peg the gauge to full; 90 ohms should bottom it out. Deviations suggest a faulty gauge or shorted harness between the dashboard and engine bay.
For tachometer circuits, dark blue/orange carries an AC waveform generated by the ignition coil. Capture this signal with an oscilloscope if available; healthy patterns resemble uniform spikes at 50–80V peak-to-peak during idle. Lower amplitudes or erratic waveforms indicate a compromised coil or distributor cap–common failure points in high-mileage ignition systems.
Speedometer cables–mechanical in this era–mount via a square-drive gearbox near the transmission output shaft. If the needle hesitates or jumps, first check for frayed inner cables (replace the entire assembly if splits are visible). Next, verify the gearbox ratio: a mismatched driven gear will cause chronically inaccurate readings. Compare part numbers against the axle ratio (e.g., 3.55:1 requires a 19-tooth gear for proper calibration).
Always secure the harness with nylon ties every 4–6 inches to prevent chafing against sharp edges under the dash. Use heat-shrink tubing on any splices; electrical tape degrades within months under hood-temp fluctuations. Label every wire with fine-tip marker on heat-shrink before final reassembly–future diagnostics will be drastically faster.
Troubleshooting Common Gauge Problems in Classic Pickup Dashboards
Check the voltage regulator first if all gauges fluctuate erratically or read abnormally high. Locate the regulator, typically a small rectangular unit mounted behind the dashboard near the speedometer cable entry. Use a multimeter to verify output–it should supply a steady 5V to the sending units. If readings exceed 7V or drop below 3V, replace the regulator without delay. Ignoring this component can damage sensitive gauge movements permanently.
For a non-responsive fuel level indicator, bypass the sending unit wire at the tank temporarily. Disconnect the wire from the tank sender and ground it momentarily while observing the gauge. If the needle jumps to full, the sender is faulty–corrosion or worn rheostat windings are common failures. If no movement occurs, trace the wiring harness for breaks, focusing on flex points near the chassis and suspension. Use a continuity tester to isolate faults without guesswork.
Speedometer slippage often stems from a stretched or broken drive cable. Remove the cable from the transmission housing and inspect for fraying, kinks, or lubricant depletion. If the inner strand spins freely but the gauge needle lags, apply lightweight speedometer grease sparingly–too much will cause drag. Replace cables showing signs of wear rather than attempting repairs; aftermarket replacements match original specifications precisely.
Temperature readings that peg to the high side usually indicate a failed sending unit or air trapped in the cooling system. Start by bleeding the radiator properly–improper bleeding mimics a faulty gauge. If the issue persists, swap the temperature sender with a known-good unit. Test resistance with an ohmmeter: a functional sender should read approximately 100 ohms at room temperature, dropping to near 10 ohms at operating heat.
Burnt or melted wiring insulation near the bulkhead connector is a frequent culprit for intermittent gauge failures. Disassemble the connector and inspect pins for pitting or oxidation. Clean contacts with electrical cleaner and a small wire brush, then apply dielectric grease to prevent future corrosion. Replace any terminals showing heat damage–aftermarket connectors include color-coded wires for error-free reinstallation.
Verify the ammeter functions by disconnecting the battery while the ignition is on. The gauge needle should drop to zero; any deviation suggests a faulty shunt or ground issue. Trace the shunt wire from the battery terminal to the voltage stabilizer–breaks often occur where the harness exits the firewall. For persistent zero readings, check the alternator’s voltage output; an overcharging system can destroy gauges silently.
Quick Diagnostic Checks for Stubborn Gauge Issues
Needle bounce under acceleration: Securely tighten the dashboard mounting screws–vibration causes false gauge readings. Inconsistent voltmeter: Test the alternator output at the battery with the engine running; optimal readings hover around 13.5–14.5V. Stuck oil pressure gauge: Rule out a blocked oil passage before replacing the sender–low oil levels mimic a failed unit.
