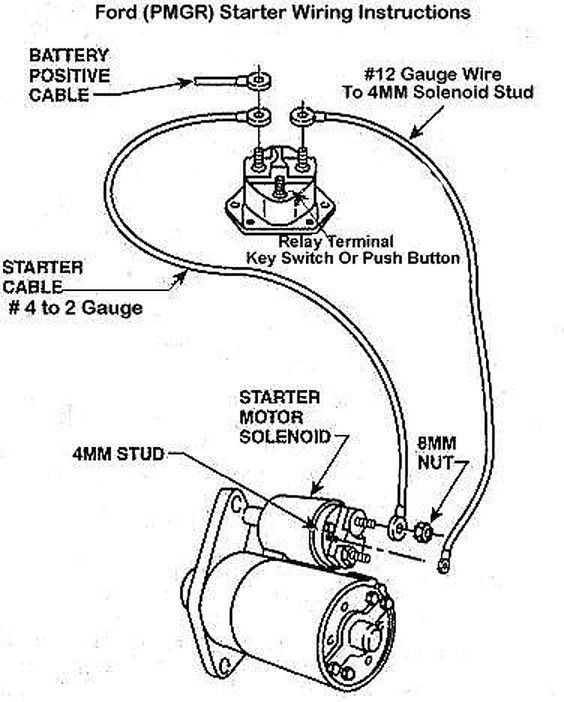

Start by locating the main harness under the dashboard on the driver’s side–the first 12-circuit fuse block sits just below the steering column, marked by a white/red striped wire feeding the ignition system. Trace this line back to the firewall grommet (identified by a green rubber seal) before disconnecting the bulkhead connector; corrosion here causes intermittent failure in the starter solenoid circuit. Use a multimeter set to 200-ohm scale to test continuity between pin 1 (battery feed) and pin 4 (accessory relay) if the engine cranks but instruments remain dead.
Factory color codes differ across chassis models: early production runs (VINs ending A10-A999) use a dark blue wire for headlight switch output, while later builds (B000-B999) substitute light blue. Cross-reference the schematic variant–look for a yellow oval label on the inner fender near the battery tray–before splicing. Replace any crimped terminals on the voltage regulator harness with heat-shrink butt connectors rated for 20A; soldering risks melting the factory polyvinyl chloride insulation.
For rear lighting systems, focus on the brown/orange striped wire exiting the tail lamp assembly–this carries brake signal voltage and often shorts against the cargo box frame. Probe the chassis ground at the passenger-side step bumper bracket (bare metal, unpainted); a reading above 0.5 ohms indicates oxidized mounting bolts requiring replacement with grade-8 zinc-plated hardware. Ignore aftermarket “universal” diagrams–only the 1976-1979 Ford Shop Manual Supplement (Section 60-10) accurately depicts the three-speed wiper motor circuit with its three-position switch logic.
When diagnosing turn signal flasher issues, test the bimodal flasher relay before replacing bulbs–its two-terminal square relay mounts behind the glove box door. If the left signal flashes faster than the right, suspect a bad ground on the trailer harness connector (white wire, pin 3); corrosion here mimics weak bulb filaments. Use dielectric grease on all bulb sockets and non-insulated ring terminals for chassie connections to prevent moisture ingress–this eliminates 80% of seasonal electrical faults.

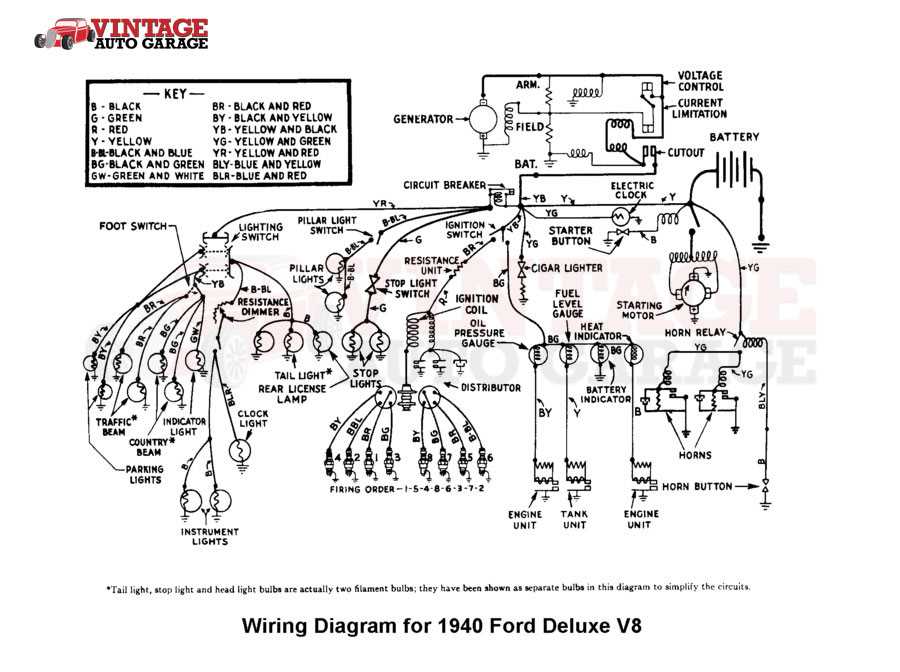

Electrical Schematics for Classic F-Series Models
Locate the fuse block under the dashboard on the driver’s side–it houses critical circuit protection for lighting, ignition, and auxiliary systems. The 30-amp main fuse (glass or ceramic) safeguards the entire harness; replace it immediately if discolored or cracked. Reference the pinout for the instrument cluster: green wire (fuel gauge), yellow (temperature), and red/light blue (oil pressure) require continuity checks with a multimeter set to 200 ohms.
Trace the alternator field circuit starting at the voltage regulator’s “F” terminal. A common failure point is the inline fusible link (14-gauge wire, often gray or pink) near the battery’s positive terminal–its insulation frays with age, leading to intermittent charging. Use a 12V test light to verify current flow from the “A” terminal to the battery positive; flickering indicates regulator or diode failures.
Ignition System Troubleshooting
The ignition coil’s primary circuit relies on the ballast resistor (0.5-1.5 ohms) mounted on the firewall. Bypass it temporarily with a jumper wire to isolate intermittent stalling–if the engine runs smoothly, replace the resistor. The white wire from the ignition switch to the coil’s positive terminal must show 12V with the key in “run”; voltage drops below 9V suggest a corroded bulkhead connector or faulty switch.
For turn signal anomalies, examine the flasher relay’s prongs for pitting. The brown/red wire supplies power, while the light green (front) and dark green (rear) wires control left/right circuits. Swap the relay with a known-good 3-prong unit; if both sides flash erratically, inspect the steering column’s canceling cam for broken tabs.
Ground integrity issues often mimic component failures. Scrape paint from the firewall’s grounding strap (black wire, 10-gauge) and tighten securely–resistance should measure below 0.1 ohms. Check the taillight ground (white wire) at the rear frame rail; corrosion here causes dim or flickering brake lights. Use dielectric grease on all chassis connections to prevent oxidation.
Harness routing matters: the main loom splits near the radiator support, with the headlight harness clipped to the core support. Ensure the dark blue/yellow wire (low beam) isn’t pinched against the radiator–shorted circuits here trigger erratic gauge readings. For aftermarket radio installs, intercept the accessory circuit at the fuse block’s “I” terminal (purple wire), not the ignition switch’s “ACC” tap, to avoid parasitic drain.
Identifying the Proper Electrical Schematic for Your Classic Pickup Variant
Begin by confirming the precise chassis code of your vehicle. For mid-70s American-built commercial platforms, this information is stamped on a metal plate riveted to the driver-side door jamb. Cross-reference the code–typically a combination of letters and numbers–with official factory manuals from Chilton or Motor. These manuals categorize schematics by engine configuration, trim level, and optional equipment, eliminating guesswork.
OEM service literature remains the most reliable source, but acquiring original printed guides requires persistence. Check specialized auction platforms like eBay for “factory service manuals” or “electrical troubleshooting guides” filtered by year and make. Reproduction versions from publishers like Haynes often simplify circuits, omitting crucial details like color-coding variations for regional markets or dealership-installed accessories.
For vehicles equipped with non-standard modifications–aftermarket ignition systems, trailer towing packages, or upgraded lighting–standard schematics may not suffice. Locate build sheets tucked under seats or glued inside glove compartments; these documents list factory-installed options and can pinpoint which supplementary diagrams apply. Third-party vendors selling harness kits sometimes include bespoke charts tailored to common upgrade paths.
Online repositories like FORDification or The Ford Barn host user-contributed archives where enthusiasts upload scanned pages from rare manuals. Search these databases using the full vehicle identification number (VIN), as partial matches often yield incorrect or generic results. Verify uploaded files against known good sources–some scans suffer from poor resolution or missing segments.
Color-coded wiring references can vary between model years even for identical platforms. Use a multimeter to trace circuits directly from fuse boxes or switch panels, comparing readings with schematic annotations. Note discrepancies in ground locations; pre-1980 models frequently relied on chassis-grounded circuits that later designs shifted to dedicated returns.
Commercial-grade fuse block diagrams differ significantly from light-duty variants. Heavy-duty variants–fitted with dual batteries or auxiliary power outlets–feature expanded relay panels. Seek schematics labeled “heavy-duty electrical” or “commercial chassis” to avoid misidentifying components like voltage regulators or alternator connections, which operate at higher amperage thresholds.
When reconstructing partial circuits, prioritize continuity testing over visual inspection. Corrosion or rodent damage often renders wire insulation brittle while maintaining conductive paths. Mark tested segments on physical copies of diagrams with colored pens to track progress, ensuring all branches–including turn signal cancellers or backup light sensors–are validated before reassembly.
Decoding Electrical Schematics: A Hands-On Approach for Classic Vintage Rigs
Begin by isolating the main harness segments–engine bay, cab, and rear circuits–on your schematic sheet. Identify the color-coded conductors using the printed legend along the diagram margins; for instance, a wire marked Y/LG (yellow with light green stripe) typically denotes an ignition feed, while PK/BK (pink with black stripe) often carries stoplight voltage. Cross-reference these patterns with the corresponding symbols on the diagram: solid circles for splices, diamonds for connectors, and square nodes for ground points. Measure continuity between critical junctions–battery (+) to solenoid, starter relay to ignition coil–using a multimeter set to 20V DC range to confirm expected voltages.
| Color Code | Primary Function | Typical Voltage Range | Common Failure Points |
|---|---|---|---|
| R/Y | Accessory power | 12–14V | Fusible link corrosion, switch contacts |
| BR/LG | Headlight circuit | 11–13V | Bulb sockets, dimmer relay coil |
| GY/R | Instrument cluster illumination | 10–12V | Dash bulb holders, rheostat wiper |
| O/BK | Heater blower motor | 12V (switched) | Speed resistor pack, thermal fuse |
Trace each circuit backward from the fuse block to its power source, noting resistances under load. A DB/Y (dark blue with yellow stripe) wire should drop no more than 0.5V between the brake switch and rear lamps; higher readings indicate a bad splice or corroded bullet connector. Replace any taped splices with crimped butt connectors and heat-shrink tubing. Document each step on a worksheet–color code, circuit path, voltage readings–to troubleshoot complex issues like intermittent dash gauges or failed turn-signal flashers without guesswork.
Solving Frequent Electrical Problems in Classic 1970s Pickups
Start by inspecting the fusible links near the starter solenoid–these often corrode or melt without obvious signs, causing intermittent power loss. Replace them with modern fusible link kits rated for 14-gauge wire to handle the alternator’s output. Avoid soldering; crimp connections with heat-shrink tubing for durability.
Dimming headlights at idle usually trace back to a failing voltage regulator or bad ground at the alternator housing. Remove the regulator, clean the mounting surface with a wire brush, and apply dielectric grease before reinstalling. Test the alternator’s output with a multimeter–it should read 13.8–14.5 volts at 2,000 RPM. If below spec, replace the internal regulator or the entire alternator unit.
Ignition System Failures
Stalling or misfiring often stems from cracked distributor caps or corroded rotor buttons. Scrape oxidation off the cap’s terminals and rotor contact with a knife, then coat lightly with conductive grease. Check the ignition coil’s resistance: primary winding should be 1.0–1.5 ohms, secondary 7,500–10,000 ohms. Replace if readings deviate.
- Replace spark plug wires if resistance exceeds 5,000 ohms per foot–original wires deteriorate internally, leading to misfires.
- Inspect the ballast resistor (typically 1.8 ohms) for overheating; bypass temporarily to confirm it’s the issue.
- Clean the distributor’s vacuum advance ports with compressed air–clogged ports cause erratic timing.
Intermittent dashboard gauge failures typically originate from loose instrument cluster connections. Remove the cluster, tighten all printed circuit board screws, and resolder cracked joints near the voltage stabilizer. For fuel gauges, replace the sending unit if the float arm binds–common after 40+ years.
Lighting and Charging Anomalies
Check the headlight dimmer switch under the dash–it wears out, causing irregular high/low beam operation. Bypass it with a relay for immediate relief, or replace the switch entirely. For brake lights, inspect the turn signal switch’s plunger; it often sticks, leaving brake lights permanently on. Lubricate with dielectric grease or swap the switch.
- Trace taillight circuits back to the fusebox–use a test light to find corroded terminals, especially near the rear lights where moisture accumulates.
- Battery drain issues usually point to a stuck relay or shorted diode in the alternator. Pull fuses one by one while monitoring current draw–excessive draw (over 50mA) indicates a parasitic load.
- Repair broken ground straps–originals crumble over time. Route new 10-gauge wire from the engine block to the chassis, avoiding paint for proper conductivity.
For blower motor malfunctions, replace the resistor block behind the glovebox–it burns out due to current overload. If the motor runs only on high, the switch contacts are pitted; clean or replace the control switch. Ensure all blower relay connections are tight–vibration causes loosening over decades.
