Begin by isolating the main harness connections at the ignition switch–identify the red/white fused lead (10A) as your primary power source, routed directly from the battery positive terminal. Trace this wire to its junction with the orange circuit, which splits to both the horn and high-beam headlamp filament. Cross-reference these markings against a factory service manual; degradation in vintage wiring insulation often masks the original green/red ground paths, leading to voltage drop that mimics bulb failures.
Focus next on the alternator output–locate the black/yellow stator wire exiting the left engine cover. This signal feeds the voltage regulator’s S terminal before branching to the white rectifier output. Measure AC voltage at idle (1,500 RPM); expect 20–28V unloaded. Lower readings indicate stator winding erosion or corroded connector pins; these require resistance checks (target: 0.2–0.5Ω per coil phase) rather than visual inspection.
For the charging system, isolate the green ground return from the regulator’s E terminal–verify continuity to the frame rail using a 20A multimeter setting. A .5V potential drop here reveals hidden corrosion at the engine mount bolts or subframe welds. Replace the regulator’s condensers if you encounter erratic voltage spikes; original NipponDenso units from this era rarely survive beyond 40 years without dielectric breakdown.
Examine the turn signal flasher relay–mounted adjacent to the fuse block–and confirm its light blue/white input wire shows clean, pulsed 12V when activated. Inoperative signals often stem from the orange/white output wire’s oxidation at the handlebar switch housing; disassemble and sand the beryllium-copper contacts, then apply dielectric grease to inhibit future tarnish.
Retain the original red auxiliary power circuit for the taillight if rewiring the rear sub-harness; splice a 3A inline fuse directly downstream of the connector to protect the thin-gauge wire from short-circuit fatigue. When soldering replacement terminals, use 60/40 rosin-core solder–acid-core or silver-bearing alloys accelerate stress fractures in vibration-prone sections like the swingarm pivot.

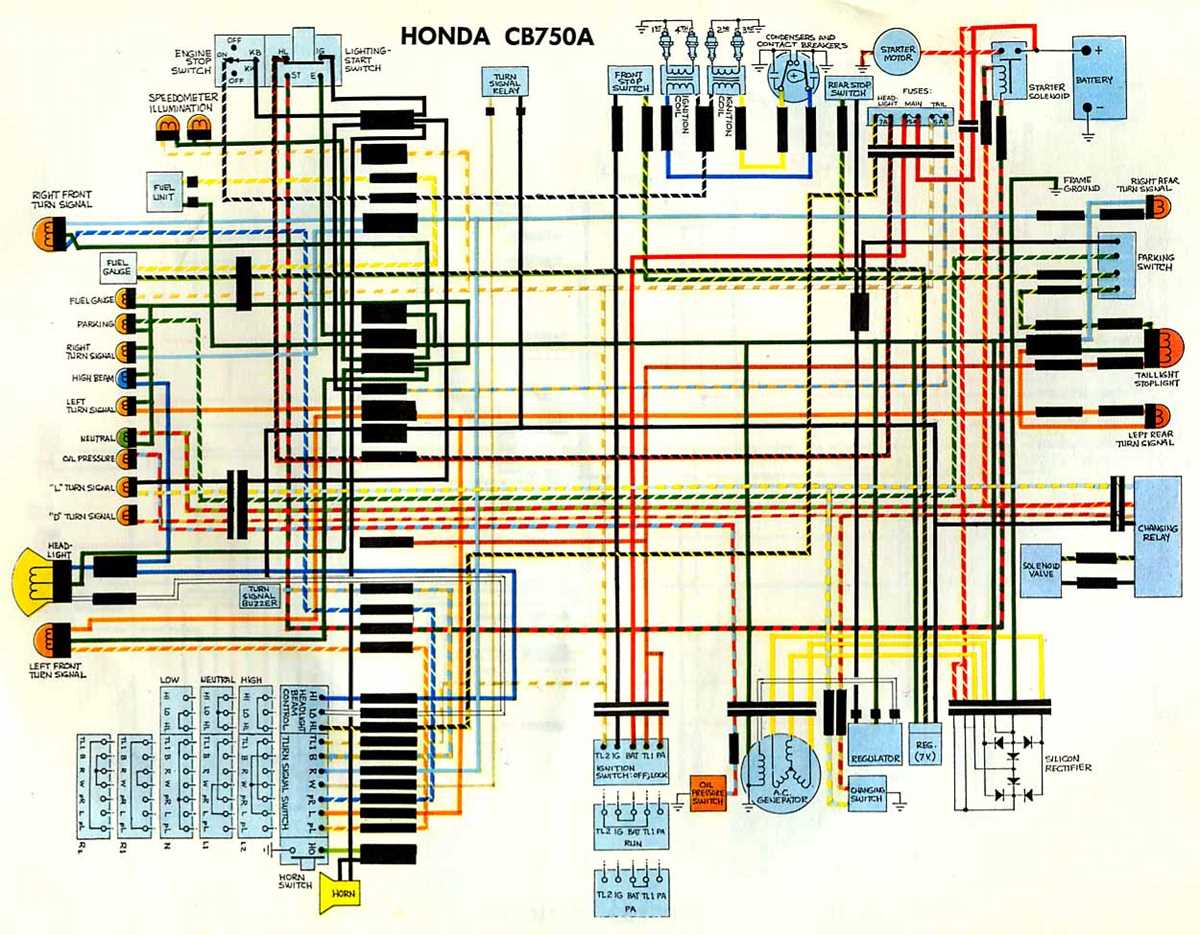

Understanding the Electrical Schematic for the Classic 750cc Four-Cylinder Model
For accurate troubleshooting, prioritize the ignition system layout first–locate the black/yellow wire running from the ignition switch to the left handlebar cluster, then trace it to the CDI unit. Verify continuity with a multimeter (0.5 ohms or less) before proceeding to the alternator circuit. The white/red wire from the stator should measure 50-70V AC at 3,000 RPM; deviations indicate worn rotor magnets or grounded windings.
Fuse placement differs from later variants–red/white main wires bypass the fuse block directly on this year’s edition, terminating at the rectifier. Test each diode in the bridge rectifier individually (forward bias: ~0.5V drop, reverse: open circuit). Replace the entire assembly if leakage exceeds 0.1mA at 50V DC. For lighting circuits, the green ground wire must maintain
Color coding remains consistent but verify against factory prints–brown/white alternator wires split into three phases, while yellow/white handlebar switch wires govern high/low beam selection. The taillight’s red wire doubles as a brake switch return; intermittent operation often stems from the bullet connector near the rear fender oxidizing. Apply dielectric grease during reassembly.
Solenoid engagement diagnostics: connect a 12V test lead to the yellow/red wire at the starter relay–clicking confirms coil function, while silence suggests replaced relay or faulty blue/yellow trigger wire. Voltage at the battery should hold 12.6V static but drop no lower than 11.5V during cranking; regulator adjustments are unnecessary if output remains within these parameters.
Final checks include inspecting the red/black wire from the kill switch–ensure it’s not shorted to ground when deactivated. Orange wires at the neutral switch must show continuity only in neutral; failure here prevents starter engagement despite correct voltage. Always secure harness clamps with zip ties to prevent chafing against the left engine cover, a known cause of sporadic electrical faults.
Finding and Interpreting Your Classic Superbike’s Electrical Schematic
Begin by sourcing the factory service manual for your model year. Official publications from the manufacturer contain the most accurate schematic, often tucked in the back as fold-out plates or a dedicated section labeled “electrical troubleshooting.” If the original manual is unavailable, reputable third-party publishers like Clymer or Haynes offer replicas, though verify the edition matches your bike’s exact specifications–later printings may omit minor circuit variations.
- Check the inner cover of the manual for a copyright year–earlier versions frequently include hand-drawn schematics with color-coded lines.
- Trace wires from the ignition switch to individual components; the diagram mirrors physical routing, with labels like “B/W” (black with white stripe) next to each terminal.
- Locate the fuse block and ground points first–these serve as landmarks for deciphering the rest of the layout.
When examining the schematic, note how the circuit branches split immediately after the main power source. The upper half typically covers lighting and accessories, while the lower half details ignition and charging systems. Solid lines represent power-carrying wires, dashed lines indicate ground returns, and dotted lines show interconnections between relays or switches. Use a multimeter to confirm continuity along each path, matching readings to the diagram’s voltage annotations near critical junctions.
For precise identification, cross-reference connector pinouts listed in the schematic’s appendix against actual plug shapes on the bike. The original system used a mix of bullet connectors and blade terminals–each unique to a subsystem (e.g., turn signals versus headlamp dimming). Label wires with masking tape before disconnecting anything, and snap reference photos of the harness layout before modifications to avoid mismatches during reassembly.
Step-by-Step Guide to Testing the Classic 750cc Four-Cylinder’s Ignition Circuit
Begin by disconnecting the battery’s negative terminal to prevent accidental shorts. Locate the ignition coil’s primary and secondary terminals–labelled “+” (12V input) and “-” (points/switching side)–then set a multimeter to 20V DC. Probe the “+” terminal while a helper turns the engine over; voltage should spike to 9-12V briefly. If readings stay flat, trace the black/yellow wire from the coil back through the main harness junction under the fuel tank, checking for breaks or corrosion at grommet entries.
Next, test the triggering side: connect the multimeter’s black lead to a chassis ground and the red lead to the coil’s “-” terminal while cranking. Expect a clean on-off signal between 0.5V and 9V; anything below indicates weak points, failed condenser, or a faulty advance unit. Swap in a known-good condenser and retest; persistence means the points need cleaning or the advance weights are stuck. Remove the points cover and inspect for pitting–use a feeler gauge to set gap to 0.35-0.45mm, ensuring cam lobe surfaces are dry.
Resistance Values & Expected Readings
| Component | Test Points | Expected Ohms | Tool Setting |
|---|---|---|---|
| Primary Coil Windings | “+” to “-” terminals | 3.0 – 4.5 Ω | 200 Ω |
| Secondary Coil Windings | High-tension tower to “-” terminal | 8,000 – 15,000 Ω | 20 kΩ |
| Condenser Isolation | Case to lead | Infinite (OL) | 2 MΩ |
| Points Closed (ignition on) | Coil “-” terminal to ground | 0.1 – 0.3 Ω | 200 Ω |
For solid-state conversions, replace point checks with a dwell meter: clip the positive lead to the “-” coil terminal and ground the negative. Start the engine; dwell should stabilize between 28-32° at 1,500 RPM. Values outside this range suggest a failing control module or incorrect timing advance. Verify 12V feed at the module’s brown/white wire while ignition is on; intermittent voltage confirms a loose bullet connector or damaged harness loom near the steering stem.
Typical Electrical Faults and Solutions for Early Four-Cylinder Bikes
Corroded fuse clips rank as the most frequent failure point. Remove the fuse panel cover and inspect each clip for green oxidation or pitted metal; replace any suspect holders with new phenolic finger-style clips. Solder a jumper wire directly to the fuse tail if replacement parts are unavailable–strain-relief the joint with heat-shrink tubing and secure it to the chassis with nylon zip ties.
Tail-light wiring often frays where the harness exits the rear fender stay. Slice the rubber boot back 20 mm, strip 5 mm of insulation, crimp a new ring terminal, and coat the splice with dielectric grease before sliding a fresh length of automotive-grade split-loom over the repair. Route the loom so it follows the original path and terminate at the license-plate bracket to prevent vibration-induced fatigue.
Ignition coils fail internally without warning–check primary resistance across the white and black terminals with a multimeter; readings below 1.0 Ω or above 3.0 Ω indicate a shorted or open winding. Swap suspect coils side-to-side; if the miss follows the coil, replace it immediately to prevent overheating the points. Always install a matched set of Bosch or Hitachi replacements to maintain consistent advance curve.
Rectifier-regulator connectors melt because of undersized wires. Unsolder the factory bullet terminals, cut back 30 mm of insulation, and crimp new 14-gauge female spade lugs onto the wires. Clean the male pins on the regulator with a brass brush, apply contact enhancer, and push the connectors home until they click. Install a 10 A auxiliary fuse on the positive feed as close to the battery as possible to isolate future faults.
Handlebar switch clusters develop intermittent contacts after fifty seasons. Disassemble the cluster, scrub each wafer with DeoxIT spray, and reassemble without lubricant–powdered graphite attracts moisture and accelerates corrosion. Test continuity through every position before reinstalling; if resistance measures above 0.3 Ω, replace the entire switch assembly to avoid phantom neutral-light illumination at speed.
