Start by isolating the fuse panel behind the glove box–this is the nerve center for most ignition and accessory circuits. Remove the lower dashboard trim to expose the harness connections, marked by color-coded wires: yellow/red for headlights, brown for ground, and green/black for brake lights. Use a multimeter set to continuity mode to verify each path before touching connectors; corrosion often interrupts signals in vehicles stored for decades.
Focus on the front lighting cluster first. The original schematic splits power between low and high beams via a double-pole switch–replace it if contacts show pitting. Splice new terminals if insulation feels brittle, ensuring copper strands remain visible after crimping. For taillights, remove the lens assemblies to access the sockets; clean oxidized contacts with emery cloth and apply dielectric grease to prevent future buildup.
The charging system relies on a 6-volt alternator–check the voltage regulator mounted on the firewall, adjusting the screwdriver slot potentiometer until the battery maintains 7.2 volts under load. Swap the original regulator for a modern solid-state unit if readings fluctuate erratically. Trace the starter solenoid wires (thick red and thin purple) back to the ignition switch; loose connections here cause intermittent cranking failures.
Label every connection before disconnecting. Photograph the original routing of the harness before repairs–factory clips and looms follow precise bends to avoid interference with steering columns or pedals. For stubborn clips, use a flat screwdriver to pry them apart gradually; force risks breaking tabs. Replace frayed wires with new 16-gauge silicone-coated cables rated for 105°C if upgrading to LED bulbs.
Electrical Layout for Classic Transporter: Hands-On Walkthrough
Start by locating the fuse box under the dashboard on the driver’s side–it houses eight fuses, each marked with amperage ratings: 8A (turn signals, hazards), 16A (headlights, high beams), and 25A (heater blower, interior lights). Use a multimeter to verify continuity; resistance above 0.5Ω signals corrosion in the circuit. Label each wire with masking tape before disconnecting anything–factory coding follows a rigid scheme: red/white (positive), brown (ground), blue (headlight switch feed), and black/yellow (ignition-switched power).
Critical Connection Points to Test First
| Component | Color Code | Voltage (Key On) | Voltage (Engine Running) | Common Failure Point |
|---|---|---|---|---|
| Voltage Regulator (B+ terminal) | Red | 12.6V | 13.8V–14.4V | Loose lug, oxidized contacts |
| Ignition Coil (+) | Black/Yellow | 0V | 12V | Ballast resistor burnout |
| Fuel Gauge Sender | Green | 5V–7V | Unchanged | Float arm seizure |
Replace crimped connectors with soldered joints and heat-shrink tubing–factory crimps fail within 30 years. The alternator’s field coil (gray wire) must show 2V–5V at idle; lower readings point to a faulty rotor or brush assembly. Route new wires harnessed in corrugated loom away from exhaust manifolds and sharp edges–high-temperature silicone tape protects up to 200°C. Print the official Volkswagen repair manual’s schematics (page 12-5) and cross-reference colors with your model’s serial number prefix (231 vs. 233) before splicing any circuits.
Finding the Right Electrical Schematic for Your 1974 VW Type 2 Variant
Start by identifying your exact model version–early ’74 split-windscreens differ significantly from later bay-window editions in fuse layout, ignition circuits, and auxiliary equipment connections. Factory microfiche from Volkswagen’s Ersatzteilkatalog (ETKA) remains the most reliable source, listing variant-specific schematics under group 97 for electrical systems. If ETKA access isn’t available, third-party manuals like Bentley Publishers’ “Volkswagen Transporter: Official Factory Repair Manual” often include precise, exploded diagrams for camper, kombi, and panel configurations.
Check the vehicle’s identification plate–mounted inside the engine compartment or beneath the dashboard–for the chassis number suffix. Codes like “23” denote a kombi with high-roof upgrades, while “25” indicates a panel van with dual rear doors, each requiring distinct harness routing for rear lighting clusters and auxiliary power points. Schematics labeled “Typ 2/74” may omit later additions like aftermarket heaters or auxiliary batteries; verify against wire colors and connector shapes in the engine bay against original harnesses before assuming compatibility.
Cross-Referencing Inherited Modifications
Owners frequently encounter mismatched schematics due to prior custom work–e.g., swapped diesel injectors, upgraded alternators, or converted taillights. Trace each wire from the fuse block outward, recording deviations; Westfalia conversions, for instance, route separate circuits for interior lighting and refrigeration that standard diagrams ignore. Utilize an automotive multimeter to confirm continuity against suspected diagrams, focusing on ground paths (typically brown wires) and switched circuits (red, black, or yellow stripes).
Leveraging Community Archives
Specialized forums like TheSamba.com host digitized original documents and user-submitted corrections for rare variants, including Canadian and Australian-market Type 2s with unique emissions controls. Scan these archives for “2/74 wiring harness” threads, filtering by your variant’s exact build month–July through September assemblies sometimes incorporate mid-year revisions to the turn-signal flasher relay or headlight dimmer switch circuits. Avoid generic “classic VW” downloads; confirmation should come from at least two independent sources showing identical pin assignments for critical components like the voltage regulator or starter solenoid.
Step-by-Step Guide to Restoring Classic Transporter Electrical Systems
Begin by isolating the fault: disconnect the battery’s negative terminal to prevent shorts. For flickering headlights, focus on the fusebox located beneath the dashboard. Remove the clear plastic cover and inspect the blade-style fuses–corrosion on fuse clips is a frequent culprit. Clean contacts with a brass brush and apply dielectric grease to prevent future oxidation. If fuses are intact, trace the headlight circuit using a multimeter: probe the red/white wire at the dimmer switch while toggling between high and low beams. A voltage drop below 12V indicates a faulty switch or corroded bullet connectors near the front turn signals.
Dashboard gauge failures often stem from the voltage stabilizer mounted on the left kick panel. Remove the stabilizer’s two screws and test its output–it should deliver a steady 10V; anything else means replacement is necessary. For non-functional fuel or temperature senders, bypass the sender temporarily with a 50-ohm resistor to confirm the gauge’s condition before replacing the unit. If the horn sounds weak, check the ground strap attached to the front bumper’s support bracket–clean rust with a wire wheel and ensure the strap’s continuity with a test light.
Tackling Charging System Deficiencies
Loose or frayed alternator connections manifest as dim lights under 2000 RPM. Start the engine and measure voltage at the battery’s terminals–it should read 13.5-14.5V. If readings fluctuate, replace the voltage regulator (external on Type 2 models) or the alternator’s diode trio if voltage spikes occur. For persistent issues, inspect the harness routed along the left frame rail; chafing near the suspension tower is common–protect wires with split loom tubing and secure with Adel clamps.
Blown taillight bulbs usually point to a compromised ground. Detach the inner lining behind the rear seat to access the light cluster’s mounting plate. Scrape paint off the plate’s backside where the ground wires attach, then re-secure with fresh star washers. For intermittent brake lights, follow the red/black wire from the pedal switch to its junction beneath the driver’s seat–look for broken strands inside the rubber grommet where the harness enters the cabin.

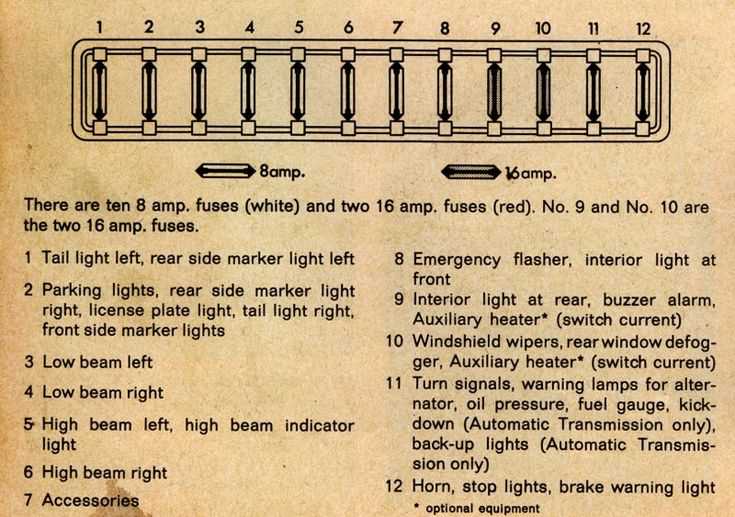

Mapping the Fuse Panel in Early Transporter Models
Begin by locating the central fuse holder beneath the dashboard on the driver’s side–the plastic cover snaps off with minimal force. Each slot corresponds to a numbered circuit listed in the factory service manual, but aging labels often peel or fade. Use a multimeter set to continuity mode to trace connections from the fuse slots to their respective components. Ground points–typically bare metal near the pedal assembly–serve as reference points; mark them with white tape for clarity.
Label each fuse holder entry with masking tape and a fine-tip permanent marker. Write both the circuit description (e.g., “Headlight Low Beam”) and the amperage rating (8A, 16A) directly on the tape. Press firmly to ensure adhesion, especially around curved surfaces where moisture accumulates. For circuits with relay switches, note the relay’s number (19, 21) and its position near the steering column base.
Check the color-coding on wires emerging from the fuse panel: brown denotes ground, red carries 12V constant, yellow supplies ignition-switched power, and black with colored stripes signals accessory circuits. Use a wire gauge tool to measure thickness–thicker wires (>2.5mm²) handle high-current loads like the starter motor, while thinner strands (pinout chart from the vehicle’s repair manual.
Attach a supplemental sheet to the fuse panel cover listing every circuit in order of fuse slot. Include columns for wire color, connected component, and known failure modes (corroded bulb socket, shorted heater motor). Replace any brittle wires with marine-grade stranded copper–untwist old wires gently to avoid breaking brittle plastic insulation.
Test each circuit systematically. Plug a test light into fuse slots while activating switches–if the light illuminates, the circuit functions; if not, inspect the fuse, relay, and component path. For intermittent faults, wiggle wires near connectors while monitoring the test light–this reveals loose crimps or insulation breaks. Secure all wires with nylon zip ties spaced every 15cm to prevent chafing against sharp edges.
Store a printed reference guide inside a sealed plastic bag taped behind the glovebox. Update it whenever modifications are made (aftermarket radio, LED conversion). Include contact information for specialty suppliers that stock discontinued components, such as original-style blade fuses or the exact gauge wire used in 1970s-era German vehicles.
