The factory harness for this model follows a distinct color-coded layout: heavy-gauge red for the main battery feed, yellow with a stripe for the ignition circuit, and dark green for the starter solenoid trigger. Trace the harness bundle along the driver-side firewall grommet–each branch splits precisely 6 inches before the fuse block. Use a multimeter set to 200 ohms and confirm continuity between the alternator’s field terminal (F) and the voltage regulator’s IGN tab; resistance should read 3-5 ohms. Any deviation signals a corroded pigtail or faulty internal brushes.
Headlight circuits rely on a sealed twin-relay setup mounted behind the grille. Label the relays: RLY-1 controls high beams via lt blue/black wire, RLY-2 handles low beams through lt blue/orange. Bypass both relays temporarily with a jumper wire–if the lights illuminate, replace the defective relay immediately. Avoid touching the jumper to chassis ground; the circuit carries 12 VDC and can arc through skin.
Dashboard instrumentation wiring terminates in a single 12-pin connector beneath the steering column. Pinout assignments: Pin 1 is oil pressure sender (white/lt blue), Pin 4 is temperature gauge (dk green/white). Disconnect the negative battery cable before probing; a misplaced probe can fry the 8-track amplifier’s power transistor. Inspect the printed circuit board for hairline cracks–common at the heat-staked mounting tabs–with a jeweler’s loupe under oblique light. Repair cracks with a conductive silver pen, then cover with 3M smoothing epoxy.
Vacuum advance solenoid and electronic spark control module share a 4-wire harness tucked under the valve cover. Wire colors: solid pink for +12 V ignition, dk blue/yellow for manifold vacuum switch signal. Remove the carburetor to access the harness; the connector passes through a rubber grommet in the firewall. If the engine hesitates under partial throttle, backprobe the dk blue/yellow wire while monitoring with a scope–expect a clean 0-5 V square wave at 1500 RPM.
Restoring Classic Muscle Car Electrical Schematics
Locate the fusebox under the dash on the driver’s side–marked by a rectangular black cover with six blade-style fuses. Label each fuse directly on the cover with a permanent marker: “Headlights” (15A), “Ignition” (20A), “Horn” (10A), “Gauges” (7.5A), “Wipers” (15A), “Turn Signals” (10A). Use a multimeter to verify continuity; replace any fuse showing resistance above 0.5 ohms. Trace the thick red wire from the alternator’s “Bat” terminal back to the starter solenoid–secure connections with dielectric grease to prevent corrosion. If the voltage regulator fails (common symptom: dimming lights at idle), bypass it by connecting the alternator’s “Field” terminal directly to the ignition switch via a 5-ohm resistor.

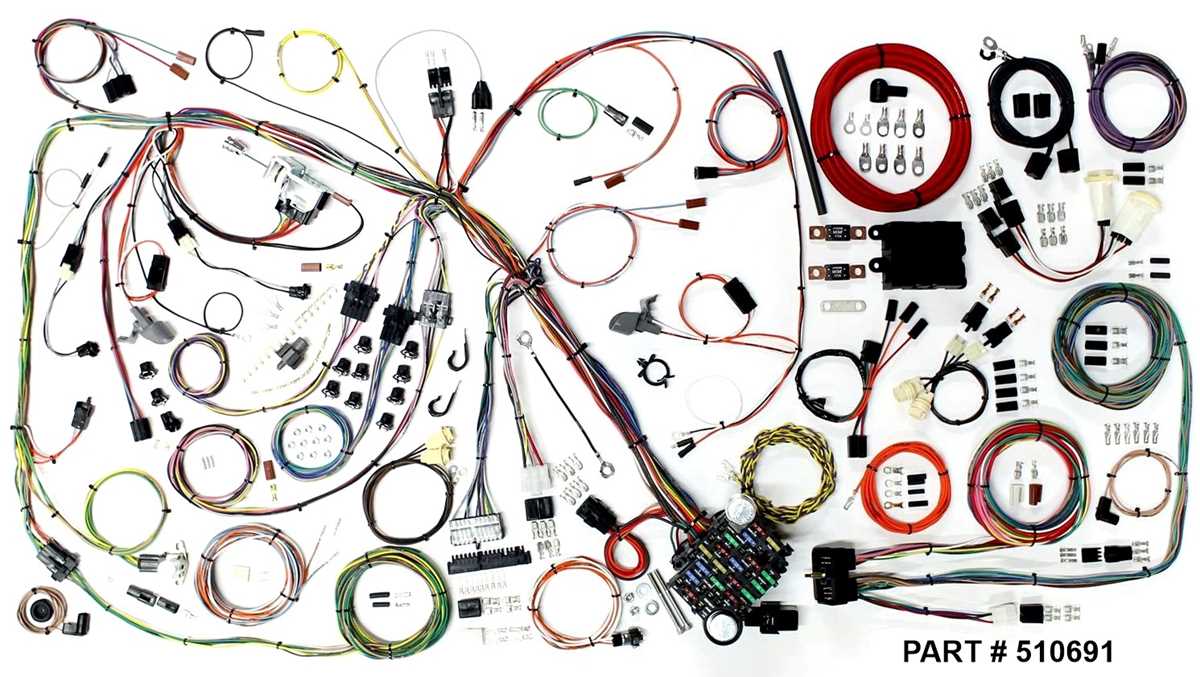

Replace the factory harness between the steering column and instrument cluster if brittle insulation flakes off–use 18-gauge TXL wire for high-current circuits, 22-gauge GPT for signals. Splice repairs with solder and heat-shrink tubing; avoid crimp connectors unless using a double-crimp tool. For intermittent turn signal failures, check the flasher relay (mounted near the fuse panel) and swap with a solid-state unit if the original’s bimetallic strip is fatigued. Ground the engine block directly to the firewall using 4-gauge braided cable; factory ground straps often degrade and cause hard starting. When rewiring the taillights, route new wires through the original grommets in the trunk floor to avoid chafing against the frame.
Finding Factory Electrical Bundle Links in the Engine Bay
Start by removing the air cleaner assembly to expose the firewall-mounted junction block–this cluster consolidates most primary feeds from behind the dash and feeds direct circuits like headlights, alternator output, and ignition systems.
The main harness splits near the driver-side strut tower into three distinct branches: one routes to the front lighting, another to the engine harness, and the third drops into the cowl for interior connections. Trace each bundle by color-coding:
- Black with yellow stripe: alternator excitation lead–secured with a ring terminal to the voltage regulator.
- Dark green with orange stripe: tachometer signal–interrupts the coil negative wire.
- Light blue with black stripe: starter solenoid trigger–attaches via spade connector.
Inspect the bulkhead connector at the wiper motor firewall grommet; twelve wires exit here, with four terminating in bullet connectors for the headlight switch, turn signals, and horn relay. Use a multimeter to continuity-test each terminal against a known ground–factory docs reference this as connector C-104.
Locate the fusible link center mounted beside the battery tray. Three braided leads emerge: 8-gauge red powers accessories, 10-gauge yellow feeds the ignition switch, and 14-gauge brown loops back to the ammeter. Verify resistance between each link and its corresponding fuse–any reading above 0.2 ohms indicates corrosion needing splice replacement.
Critical Fastener Points
Avoid unbolting the entire harness unless necessary; critical retention points include:
- 1/4-inch binder bolt securing the main loom to the inner fender near the horn relay.
- Two #10 sheet metal screws anchoring the headlight harness along the core support.
- Plastic snap-clips over the radiator support–these fracture if forced, requiring substitutes.
Check the valve cover grommet where the spark plug cables penetrate; factory seals often degrade, letting moisture corrode the distributor feed (pink/black tracer) spliced inside. Peel back protective tape 3 inches on either side to inspect for green oxidation–clean with contact cleaner and reseal with dielectric grease.
Terminal Identification Quick Reference
- Alternator output: ring terminal, #10 stud on rear housing.
- Temperature sender: single-pin connector, 3/8-inch NPT fitting.
- Wiper motor: three-wire plug–solid red (power), green/white (park), black (ground).
- Distributor pickup: two-wire flat connector–solid purple and purple/white.
Mark each connection with masking tape labels before disassembly–factory schematics group circuits by engine compartment quadrants (left front, right front, firewall, bulkhead), easing reassembly tracing.
Decoding Ignition and Charging Circuit Color Standards
Locate the battery-to-starter solenoid lead first–it’s a thick red cable with a yellow tracer stripe. If tracing from the alternator, the output wire (B+) is solid orange, while the field excitation wire (F) is dark green with a pink stripe. Fuse block connections often follow this pattern: ignition feed (run/crank) is black with a white stripe for the coil positive, while the distributor side uses a solid purple wire for the negative trigger. Verify these with a multimeter set to continuity–factory schematics occasionally deviate on rebuilt harnesses.
| System | Primary Wire | Tracer/Stripe | Key Landmarks |
|---|---|---|---|
| Ignition Coil (+) | Black | White stripe | Fuse block terminal #10 |
| Alternator Output | Orange | None | Solenoid stud, 4-gauge |
| Voltage Regulator | Dark Green | Pink stripe | Alternator “F” terminal |
| Starter Relay | Red | Yellow stripe | Solenoid “S” terminal |
Ground paths typically use brown wires with colored stripes–chassis grounds are solid brown, while sensor grounds (like oil pressure) append a blue stripe. For charging system troubleshooting, probe the orange alternator output wire; voltage should read 13.8–14.5V at 2,000 RPM. If voltage drops below 13.2V, inspect the dark green/pink regulator wire for corrosion–this often mimics alternator failure. Check for voltage at the fuse box first before assuming component failure.
Aftermarket additions like electronic ignition may split the purple distributor wire into separate red (power) and white/black (trigger) leads. If modifying circuits, bypass the ballast resistor by routing a fused 12-gauge red wire directly from the ignition switch to the coil, but retain the black/white run circuit for factory-like operation. Always disconnect the battery negative terminal before splicing–accidental shorts through wrenches weld alternator diodes instantly.
Step-by-Step Guide to Tracing the Dashboard Instrument Cluster Circuitry
Locate the factory service manual for the exact model year to identify wire colors and terminal assignments under “Instrument Panel Electricals.” Disconnect the battery ground terminal before proceeding–this prevents shorts while probing connections. Use a multimeter set to continuity mode and attach one probe to the cluster’s main harness plug; validate each circuit by touching the other probe to the corresponding bulb socket or gauge terminal.
Remove the cluster assembly by unscrewing the retaining bolts (typically four) and gently pulling the unit forward. Label each connector with masking tape–note positions like “Ignition Feed (Pink),” “Brake Warning (Brown/White),” or “Oil Pressure Sender (Dark Blue)” to avoid miswiring. Trace each wire from the plug to its source (e.g., fuse block, sender unit, or ignition switch) by following the harness path beneath the dash. Pay special attention to splices or junctions where corrosion often occurs.
Critical Checks for Common Faults
- Inspect for brittle, cracked, or melted insulation–especially near heat sources like the heater core pipes.
- Check bulb sockets for oxidized contacts; clean with electrical contact cleaner and a small wire brush.
- Verify ground connections (black wires) by attaching a jumper cable from the cluster frame to the battery negative–flickering gauges indicate a bad ground.
- Test senders (fuel, temperature) by disconnecting their wires and measuring resistance with the multimeter–compare values to factory specs (e.g., 240 ohms at full, 33 ohms at empty for fuel).
Reassemble the dash only after confirming all circuits function correctly. Reconnect the battery, turn the key to “ON,” and verify each gauge responds–fuel, temperature, voltmeter, and warning lights. If a gauge remains inert, recheck its sender circuit; if all gauges fail, inspect the voltage regulator or ignition feed wire (often red with a tracer stripe).
