Start with locating the central fuse block beneath the dashboard–pin A1 carries constant power from the battery, while A2 links to the ignition switch. Trace the red wire from the voltage regulator to the fuel gauge sender terminal; resistance should read between 0-90 ohms at full/empty tank states. If readings deviate, bypass the gauge first to isolate whether the issue lies in the sender unit or wiring harness.
The ammeter operates on a direct shunt principle–brown and white wires connect to the alternator’s “A” terminal, with a third black wire grounding through the firewall. Test continuity across these junctions with a multimeter (expected: <0.5 ohms resistance). Corrosion at the firewalls grommet often disrupts this path; clean with 600-grit sandpaper and apply dielectric grease before reassembly.
Temperature and oil pressure sensors share a common ground wire (green/yellow stripe) routed through the engine block. Verify sensor operation by back-probing: temperature sender should register 120Ω at 212°F, oil pressure switch should open at <4 PSI when tested with a calibrated gauge. Replace any sender showing erratic readings–OEM replacements (AC Delco #sending-unit-22610 or equivalent) maintain factory calibration.
For speedometer accuracy, inspect the driven gear inside the transmission housing. Count teeth on both drive and driven gears: 9-tooth drive paired with a 19-tooth driven yields 1:2.11 ratio, critical for correct cable rotation speed (1,000 RPM @ 60 MPH). Lubricate the cable core sparingly with light grease (Lithium-based, NLGI #2) to prevent binding.
Dashboard illumination uses dual-intensity bulbs (GE #17805, 2 filament 14V/12W). Check both filaments–one for main lighting, the second for dimmer-controlled circuits. Replace bulbs showing blackening at the base; use a blade screwdriver to pry the socket gently from the cluster housing to avoid snapping plastic tabs. Label wires before disconnecting to preserve color-coding (typical: orange/black = marker lights, yellow/white = brake warning).
Restoring Gauge Panel Electrical Connections for Classic C/K Models
Begin by locating the voltage regulator behind the speedometer–this small rectangular unit manages power distribution to all meters. Disconnect the battery negative terminal before touching any circuits to prevent shorting sensitive resistors in the fuel or temperature senders.
Identify wire colors using this reference: pink (battery feed), tan (ignition-switched power), black (ground), purple (fuel sender), green (oil pressure), white (temperature sender), and orange (high-beam indicator). Cross-reference with a fuse block diagram–the tan wire often routes through the 10A ignition fuse.
- Pink wire: connects to the alternator’s BAT terminal via a 50A fusible link
- Tan wire: branches to each gauge’s power lug–check for 12V when ignition is ON
- Black wire: secure connection to chassis ground near the steering column
- Purple wire: probe sender unit reading–should show 0-90 ohms variably
Use a multimeter set to 20V DC to verify voltages at each gauge terminal. Backprobe the tan wire while the key is in the RUN position–expect 12-14V. If readings fluctuate, inspect the ignition switch’s P terminal for corrosion or loose crimps.
The charge indicator relies on two wires: a brown-striped lead from the alternator’s F terminal and a brown solid wire from the voltage regulator’s F post. Clean both connections with emery cloth, then apply dielectric grease to prevent future oxidation.

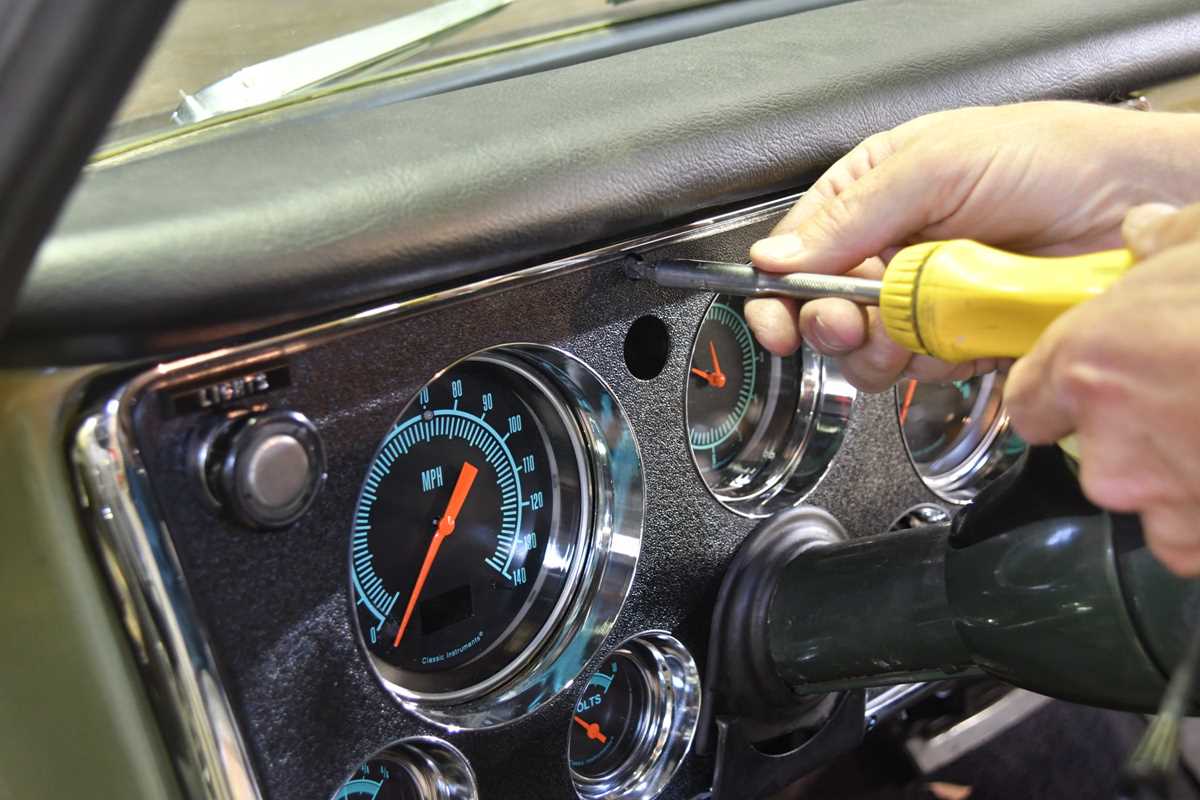

- Remove the cluster bezel carefully–pry tabs are brittle and snap easily
- Label each gauge’s wire harness with masking tape before unplugging
- Test sender units by grounding their return wires–gauges should peg if working
- Replace burnt bulbs with #194 LED equivalents while maintaining original resistance
Trace the turn signal wires–light green (left) and dark green (right)–to the flasher relay behind the dash. Corrosion here causes erratic blinking; bypass with a modern electronic flasher if original fails. Ensure the hazard warning switch interrupts both circuits simultaneously.
Troubleshooting Intermittent Readings
If the speedometer needle jumps, the flexible drive cable may bind at the transmission coupling. Disconnect the cable housing at the rear axle–rotate the inner wire by hand; if stiff, apply dry PTFE spray without over-lubricating the nylon gears.
After reassembly, start the engine and monitor all gauges for five minutes watching for gradual movements. Voltage stabilizers sometimes fail silently–substitute with a solid-state 10V Zener diode if ammeter or fuel readings drift erratically.
Pinpointing Factory Harness Hookups for Dash Meters
Start by tracing the main harness loom exiting the rear firewall grommet–specifically the lower left bundle for classic C/K series dashboards. This loom splits into three branches: one veers toward the fusebox, another drops to the transmission tunnel, and the third curls upward to the gauge pod. Focus on the upward branch, which carries 18-gauge wires sheathed in black vinyl for ground circuits, red-striped for ignition-switched power, and solid colors (white, pink, yellow) for sensor feeds.
Identify the plug terminals where the harness mates to the back of the speedometer assembly. The connector consists of a 12-way rectangular plug with female spade terminals; note the tang positions as they correlate directly to the following functions:
| Terminal Slot | Wire Color | Circuit Function | Typical Resistance/Reading |
|---|---|---|---|
| 1 (top-left) | Black | Ground return (all gauges) | 0 ohms to chassis |
| 3 | Red/White stripe | Ignition circuit (ammeter) | 12V key-on |
| 5 | White | Oil pressure sender unit | 10-75 psi ≈ 20-120 ohms |
| 7 | Pink | Fuel level sending unit | Empty ≈ 90 ohms, Full ≈ 10 ohms |
| 9 | Yellow | Temperature sensor | Cold ≈ 1200 ohms, Hot ≈ 200 ohms |
For voltage verification, disconnect the harness plug and back-probe terminals using a multimeter set to DC volts. With ignition switched on, terminal 3 should register battery voltage; terminals 1, 5, 7, and 9 should show variable resistance corresponding to their respective sensors. If readings deviate, follow the wire back toward the engine bay or fuel tank sender–kinks, splices, or corroded eyelets typically cause faults.
Far-End Sensor Connections
Locate the two-pronged temperature sender near the engine thermostat housing. The pink insulation wire attaches to the upper prong, while the white-striped accessory lead connects to the lower; swapping these positions causes erratic gauge behavior. Similarly, the oil pressure unit mounts adjacent to the distributor; its single terminal accepts the white conductor–confirm with a 0-90 psi mechanical tester to validate sending unit accuracy before reconnecting.
Fuel level circuits demand scrutiny at the tank;sending unit flange. A six-foot black conduit runs from the rear chassis crossmember to the tank; inside, a float arm pivots a variable resistor. Probe the two terminals: one connects to the pink wire (float signal), the other shares chassis ground via the tank mounting strap. Corrosion often bridges these, falsely pegging the gauge–clean contact surfaces with phosphoric acid gel and retest resistance across the float sweep.
Verify ground integrity by running a dedicated 12-gauge braided strap from the dashboard’s steel frame to the negative battery terminal. Factory grounds route through multiple joints susceptible to resistance buildup; a direct path ensures stable gauge operation, particularly for the ammeter, which relies on pure current flow rather than intermittent chassis returns.
Step-by-Step Guide to Tracing Each Circuit Conductor Hue
Locate the service manual schematic for the gauge assembly–focus on the legend detailing conductor pathways. Each hue corresponds to a distinct function: red typically signals battery voltage, black grounds, yellow delivers ignition-switched power, and brown handles illumination. Verify these against the legend before proceeding.
Equip a multimeter set to continuity mode or 20V DC range. Probe the fuse block first–identify the exact terminals feeding the panel. Red should show 12V at the ignition-on position; yellow matches this when the key activates accessories. If readings deviate, inspect the fusible link or corroded connectors upstream.
Disconnect the Gauge Plug for Isolation
Label each terminal on the harness-side connector with masking tape. Remove the panel retaining screws and carefully disconnect the 12-pin plug. Examine male pins for oxidation–clean with electrical contact spray if resistance exceeds 0.5 ohms. Cross-reference pin numbers with the manual: #3 yellow powers the fuel sender, #5 brown dims lamps.
Trace conductors from the plug toward the sender units. For the temperature gauge (typically green/white), follow the bundle near the firewall grommet, separating it from the lighting harness (brown/white). Use a tone generator if the bundle branches–clip the generator to a suspect wire, then probe along its path to isolate breaks under the dash.
Avoid предположений about shared grounds–test each black wire at the chassis connection. Attach the multimeter lead to the battery negative terminal; any reading above 0.1V indicates a poor ground. Relocate corroded connections to a fresh chassis point using a star washer and dielectric grease.
Reassembly with Modified Circuits
Reconnect conductors one-by-one, verifying voltage at each step. Attach a fused 14-gauge jumper from the ignition circuit to bypass faulty switches–this confirms whether the issue lies in the panel or upstream. For intermittent failures, flex the harness near stress points while monitoring the meter for voltage drops.
Seal splices with shrink tubing–never tape. Route harnesses away from sharp edges or moving components. Re-test all gauges before finalizing dash installation; the voltmeter should read steady 13.8–14.5V at the alternator output terminal with the engine running.
