Locate the central fuse block beneath the dashboard on the driver’s side–that’s your starting point. The black-yellow wire from fuse #5 supplies power to the ignition switch and must register 12 volts with the key in the “on” position. Anything less indicates corrosion at the bullet connectors or a cracked insulation sleeve near the bulkhead grommet. Replace the entire run with 14-gauge GXL automotive wire if resistance exceeds 0.2 ohms per foot.
Trace the brown/white stripe wire from the alternator’s #6 terminal to the voltage regulator. This path controls field excitation; a voltage drop below 13.2 V at 2,000 RPM suggests regulator failure or a frayed connection at the alternator’s mounting bolt. Remove the alternator bracket, clean both surfaces with 80-grit emery cloth, and apply dielectric grease before reassembly. Bypassing the regulator with a direct 12 V feed tests the alternator’s output–consistent readings confirm the regulator is the culprit.
The green/red wire from the rear taillight socket splits into two branches: one to the license plate bulb, the other to the left rear lamp. A dim taillight often stems from a grounding fault at the fender lip; drill a new #10 self-tapping screw 1.5 inches above the original location and bond it with star washers for a lasting connection. Verify continuity by probing between the ground terminal and chassis–readings above 0.5 ohms require wire replacement.
For the blower motor circuit, follow the black/blue wire from the fan switch to the resistor block under the passenger-side dash. A non-functional high-speed setting typically means a burnt resistor; replace the block as a unit rather than individual coils. The white/blue wire from the wiper motor’s park switch must show continuity only when the blades are fully down–intermittent parking issues trace back to a corroded switch or a broken contact within the motor gearbox.
Use a 20-amp circuit tester to confirm the black ground wire from the battery’s negative terminal reads 0 ohms at the starter solenoid. A weak starter draw (>120 amps) points to worn brushes or a faulty solenoid plunger–clean the plunger contacts with contact cleaner and lubricate with molylube. If the issue persists, swap the solenoid before disassembling the starter.
Electrical Layout for the ’71 VW Type 351 Sports Sedan
Begin by locating the fuse box under the dashboard near the driver’s left knee–it houses six fuses rated at 8 amps each, except for the headlight circuit (16 amps). Replace corroded blade-style fuses with ceramic alternatives if oxidation is visible; the original phenolic bases crack under heat. Trace the black/yellow wire from the ignition switch (terminal 15) to the coil’s positive terminal–this path carries 12V only when the key is in the “on” position. Verify continuity before condemning the coil; a weak spark often stems from a broken wire inside the insulation, not the component itself.
Charging System Troubleshooting
The alternator’s brown/white field wire attaches to the voltage regulator’s “DF” post–measure 0.5-2V AC here with the engine at 2,000 rpm; readings outside this range indicate a faulty diode trio. Clean the battery-to-body ground strap (16mm bolt near the master cylinder) with a wire brush; resistance over 0.2 ohms causes erratic dash lights. The starter solenoid’s thick red cable connects directly to the battery positive–inspect for heat blisters at the crimp; bypass temporarily with a jumper wire if the engine cranks slowly. Keep a digital multimeter set to 20V DC scale when probing the charging circuit–analog meters load the circuit and skew readings.
Headlight relays hide behind the grille’s left-side support; the four-prong Bosch unit (part 111-941-503B) fails silently–swap with a known-good spare. High-beam current flows through the headlight switch’s red/black wire to the dimmer stalk; splice a bypass wire if the switch melts–common with 100W bulbs. Tail lights share a ground cluster near the rear license plate; scrape paint off the mounting studs until bare metal shows–paint acts as an insulator. Turn-signal flasher clicks audibly inside the cabin fuse box when operational; replace the cylindrical flasher unit if self-canceling fails.
Instrument cluster wiring terminates in a twelve-pin connector–ensure pin 12 (white/green) carries 12V when the ignition is active; loss here kills fuel and temperature gauges. Back-up lights activate via a switch bolted to the transmission’s right rear–adjust the plunger length so lights illuminate at ¼” of reverse gear engagement. Heater fan speed switches through three resistors mounted on the heater box; bypass the resistor pack with a jumper wire to confirm fan failure versus resistor failure.
Secure all connections with crimped ring terminals–never solder alone, as vibration fractures joints. Route harnesses away from sharp metal edges and exhaust components; use split loom or spiral wrap to prevent chafing. Label every wire with masking tape before disconnecting any plug–factory colors repeat (brown appears 47 times). Store original schematics under the front seat; aftermarket diagrams often transpose wire colors incorrectly.
Locating Critical Electrical System Parts in the Vintage Type 1
Begin by isolating the main harness bundle running along the driver’s side inner fender. Trace the thick red cable from the battery connector–terminal 30–to the fuse box; this supplies primary current. Verify that the 16-gauge wire splits at the firewall grommet into two circuits: one feeds the ignition switch (terminal 15), the other routes to the lighting system via the headlight relay.
Terminal Clusters and Relay Stations
Check the three-position plug near the brake master cylinder for correct pin alignment: pin 4 (yellow) links to the brake warning switch, pin 6 (black/white) connects to the taillight circuit, and pin 8 (green) grounds the fuel gauge sender. Replace any corroded spade connectors with tinned copper versions to prevent voltage drop. The voltage regulator, attached to the generator bracket, requires a solid ground strap–ensure it’s fastened to bare metal, not painted surfaces.
Examine the dashboard loom for brittle insulation on the temperature gauge wire (pink) and fuel level sender wire (purple). These two leads share a single plug at the floorpan but must not contact each other–shorts here mimic gauge failures. Label each branch with heat-shrink tubing marked “T” and “F” before separating repairs to avoid misconnection during reassembly.

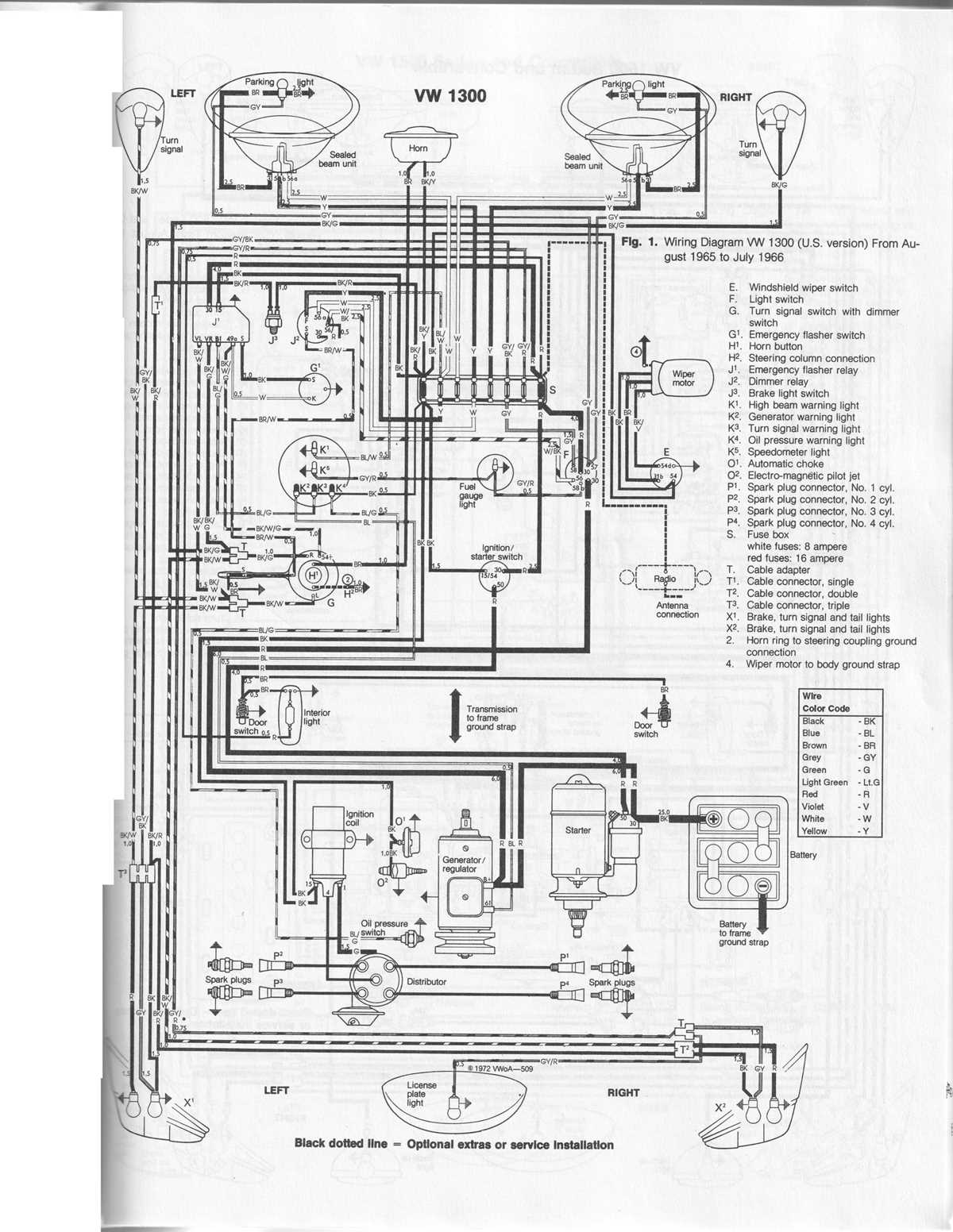

How to Interpret the Classic Volkswagen Circuit Blueprint
Locate the battery terminal markings first–these use standardized symbols: “+” for positive, “-” for negative, and a ground symbol connected to the chassis. Trace each line from these terminals to identify power distribution paths, noting color-coded wires like black (ground), red (primary power), and brown (accessory circuits). Cross-reference wire colors with the legend in the vehicle’s manual to confirm their function before proceeding.
Understanding Component Symbols
Decode symbols for key elements: a zigzag line represents resistors or heater elements, while circles with arrows indicate fuses or relays. Rectangles often denote switches (ignition, lighting, or accessories), and triangles with a line through them mark diodes or suppressors. Label each symbol on the schematic with its component name–this prevents confusion when tracing circuits across multiple pages.
Follow current flow arrows or directional indicators, which show the path electricity takes from the source through switches, fuses, and loads. For example, the headlight circuit starts at the battery, passes through the ignition switch, then a fuse, before reaching the headlight switch and finally the bulbs. Use a highlighter to mark each step physically on a printed copy if working offline.
Test connections with a multimeter by setting it to continuity mode–probe between designated points on the schematic to verify connectivity. If a circuit fails, check for corroded terminals, broken wires, or blown fuses by comparing measured resistance against the expected values in the service documentation. Replace damaged sections with wire matching the original gauge and insulation type.
Frequent Electrical Problems and Diagnostic Steps for the Classic 1971 Volkswagen Model
Start by inspecting the fuse box for corroded connections–particularly around the horn relay and turn signal flasher. Use a multimeter to test continuity across each fuse; readings above 0.5 ohms indicate resistance buildup. Scrape corrosion gently with a wire brush, then coat terminals with dielectric grease to prevent recurrence. If the horn fails to sound, bypass the relay with a jumper wire; if it activates, replace the relay immediately.
Check the voltage regulator’s ground connection if the battery drains overnight. Disconnect the negative terminal, then measure resistance between the regulator’s case and chassis–values below 0.2 ohms confirm a faulty ground. For flickering headlights, trace the alternator’s field wire back to the voltage regulator; frayed insulation here causes erratic charging. Solder any broken strands and secure them with heat-shrink tubing. Always disconnect the battery before performing these tests to avoid short circuits.
- Dim dashboard lights? Test the alternator’s output at the battery terminals–13.8-14.5V under load confirms proper operation. Lower readings require replacing the alternator’s brushes or diode trio.
- Brake lights not engaging? Swap the bulbs first; if they work, focus on the brake light switch under the pedal. Adjust its position by turning the plunger clockwise until it clicks.
- Stalling at idle? Probe the ignition coil’s positive terminal with the engine running–steady 12V indicates a healthy circuit. If voltage drops, scan for loose connections at the ignition switch or ballast resistor.
- Intermittent instrument cluster? Tap each gauge lightly with a screwdriver handle–spikes or drops in readings pinpoint failing solder joints on the circuit board. Reflow suspect areas with a low-wattage soldering iron.
- Remove the distributor cap to inspect the rotor’s contact surface if misfires occur. Carbon deposits here disrupt spark delivery; clean with emery cloth or replace the rotor every 20,000 miles.
- Test the condenser’s resistance by placing one multimeter probe on its case and another on its lead–values between 5-15 ohms are acceptable. Higher readings mean internal failure, causing weak sparks.
- Examine the wiring harness near the steering column for brittle insulation, a common failure point on older vehicles. Reinforce chafed sections with electrical tape and relocate harnesses away from moving parts.
