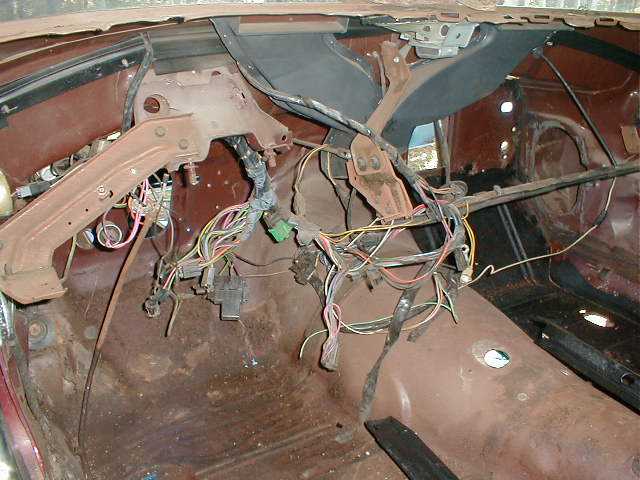

For accurate restoration or troubleshooting, focus on the main harness routing under the dashboard and firewall. The fuse block (located on the driver’s side kick panel) typically contains 14 circuits, but early models may vary–verify with a multi-meter before assuming continuity. Pay special attention to the headlight switch connections; corrosion here often disrupts the dimmer relay, leading to intermittent failures.
The instrument cluster wiring uses six-pin connectors–inspect for brittle insulation, especially near the voltage regulator (mounted on the firewall). Replace any pigtails showing cracks; original cloth-wrapped wires degrade after 50+ years. For the taillight circuit, trace the ground wires (black/tan stripe) directly to the chassis–poor grounding causes flickering or complete outages.
Use a factory-accurate schematic to identify the alternator field wire (often stripped or mislabeled). Modern reproductions may omit the idiot light resistor; bypass with a 470-ohm, 1/2-watt resistor if the dash gauge behaves erratically. Avoid splicing wires unless necessary–crimp connectors (not solder) are reliable for high-vibration areas like the engine bay harness.
For the turn signal and hazard flasher system, locate the flasher relay near the steering column. If signals blink too fast or not at all, test the bulb sockets first–burnt filaments or corroded contacts are common culprits. The brake light switch (mounted on the pedal bracket) should have a 12-volt feed; verify with a test light before assuming a faulty switch.
Document every modification. Label wires with heat-shrink tubing and a Dymo labeler–future diagnosis depends on clear markings. Store original schematics in a sealed plastic bag with desiccant; humidity accelerates paper degradation.
Chevy Muscle Car Electrical Schematic Analysis
Start troubleshooting by isolating the main harness connections at the fuse block–specifically terminals F-1 (ignition feed) and F-3 (headlamp switch). Use a multimeter in continuity mode to verify the purple wire (I) from the ignition switch hasn’t frayed near the steering column; corrosion here mimics starter solenoid failure. Replace the 14-gauge wire if resistance exceeds 0.5 ohms per foot.
Critical Wire Gauges and Circuit Paths
| Circuit | Wire Color | Gauge (AWG) | Max Amperage |
|---|---|---|---|
| Battery to Starter | Red (R) | 4 | 200A |
| Alternator Output | Dark Green (DG) | 10 | 60A |
| Instrument Panel Feed | Black/White (BK/W) | 18 | 10A |
| Fuel Pump | Orange (O) | 14 | 25A |
Bypass splices under the dash for the blower motor resistor (white wire, 12 AWG) if the fan only operates on high–solder and heat-shrink replacements last longer than crimp connectors. For intermittent turn signals, check the flasher relay socket (G-6) for loose rivets; tighten or replace the light gray relay if flickering persists.
Ground Points and Common Failure Zones
Clean all ground straps with a wire brush–target G-101 (left front fender) and G-200 (engine block)–using dielectric grease to prevent oxidation. The brown wire (BN) running to the taillights often shorts where it passes through the trunk hinge; reroute with exterior-grade conduit if chafing is visible. For dim headlights, replace the voltage regulator (VR-1) with a solid-state unit rated for 14.5V output to preserve the yellow/orange (Y/O) charging circuit.
Finding Factory Harness Connection Points on a Classic F-Body
Begin by tracing the main engine compartment loom from the firewall forward. Key junctures include the bulkhead connector, a rectangular 12-pin plug with a distinctive angled locking tab, positioned near the brake master cylinder. Early production runs feature a separate ground strap bolted directly to the firewall–verify its presence before assuming corrosion in inaccessible areas.
- Headlight harness splits at the inner fender; follow the dual-rectangular connectors for high and low beams.
- Turn signal flasher relay hides behind the instrument cluster; access requires removing the dash pad.
- Brake light switch pigtail emerges below the pedal assembly, often obscured by sound deadening material.
The chassis harness runs along the driver-side frame rail, secured with brittle plastic clips. Look for a T-shaped connector near the rear leaf spring shackle–this tap feeds the fuel pump, backup lights, and taillight circuits. Factory seals degrade; inspect for greenish discoloration where copper meets tin-plated terminals.
Under-dash fuseblock connections use color-coded spade terminals:
- Yellow with black stripe: heater blower motor feed.
- Dark green: windshield wipers.
- Pink: ignition-switched circuits.
- Brown: instrument panel illumination.
Misrouted wires often cause gauge clusters to flicker; confirm correct pin alignment at the printed circuit board stabs.
Step-by-Step Guide to Tracing Ignition and Starter Circuit Conductors
Locate the solenoid’s heavy-gauge input terminal first–this is the thick cable bolted to the top post of the starter relay. Disconnect the battery’s negative terminal to prevent accidental grounding, then use a multimeter set to continuity mode. Probe the solenoid’s input lug while tracing the path back to the battery’s positive terminal; the meter should beep steadily if the circuit is intact. If no signal registers, inspect the fuse link–typically a 4-gauge pink or orange wire with melted insulation near the battery tray.
Identifying Common Failure Points
Examine the ignition switch’s purple and yellow striped lead, which carries the 12V signal to the starter relay. With the key turned to the “start” position, backprobe this conductor at the switch’s harness connector while monitoring voltage–expect a reading of 9-12V. If voltage drops below 8V, check the neutral safety switch on automatics or the clutch switch on manuals; corrosion inside these switches often causes intermittent failures. For automatics, verify the neutral safety switch by bridging its two terminals with a screwdriver–if the engine cranks, replace the switch.
Inspect the ground strap from the engine block to the chassis near the bellhousing. Clean both contact surfaces with a wire brush, then reattach using star washers to ensure a solid connection. Test the starter motor’s ground by connecting a jumper cable from the starter’s case to the battery negative terminal–if the engine cranks, the original ground path is faulty. For persistent no-crank conditions, remove the starter and bench-test it by applying 12V directly to the solenoid’s smaller “S” terminal while grounding the case; a healthy unit will engage with a sharp “click” and spin freely.
Color-Coding Cheat Sheet for Fuse Block and Lighting Circuits
Match the orange stripe lead to the high-beam terminal on sealed beams–this wire always carries +12V when activated, regardless of dimmer switch position. Double-check polarity before crimping: reversed connections here will fry the filament instantly.
Use the following decoder for the fuse panel (Dash Cluster, Column S):
- Pink (P): Constant ignition feed (10A fuse). Powers gauges, turn signals, and hazard flashers–severity: critical; splice only with solder and shrink tubing.
- Dark Green (DG): Left front and rear turn signals (5A fuse). Avoid confusing with light green (LG), which controls backup lamps.
- Yellow (Y): Headlight switch output (fused at 25A). Branches to park lamps, tail lights, and license plate illumination–inspect every 6 months for voltage drop.
- Black/White (B/W): Ground return for all dash lamps. Route directly to chassis with star washers; corrosion here causes flickering.
- Brown (Br): Tail lamp feed (fused at 10A). If upgrading LED clusters, swap to 20A fuse and reroute with 16-gauge wire.
When tracing lighting loops, strip ¼ inch of insulation and verify continuity with a diode tester:
- Start at the headlight switch plug (terminal #5: LG).
- Follow the harness past the firewall grommet–locate the splice junction beneath the brake master cylinder.
- Split: one branch (Br) descends to tail lights; the other (DG) veers left to front marker lamps.
- If resistance exceeds 0.3 ohms, replace the entire pigtail between splice and lamp socket.
For fog lamp retrofits, repurpose the LT Blue (LB) wire from the dimmer relay (column-mounted, red dot). This circuit is inactive unless fog lamps are switched on–add a 15A inline fuse and relocate the relay under the hood near the driver’s side strut tower for easy access. Warning: LB shares a fuse with the cigarette lighter; overloading causes both circuits to fail abruptly.
Keep a printed reference taped inside the fuse box lid:
- Purge stripe colors once yearly–silicone dielectric grease prevents oxidation.
- Replace any wire whose insulation exhibits cracking or brittleness below 50°F.
- Stock harness: 18-gauge max current capacity: 10A. Exceeding this requires upgrading to 14-gauge.
- All solder joints must meet MIL-SPEC 8835–heat gun setting 350°F for minimum 12 seconds.
Troubleshooting the Classic Rally Sport Instrument Panel
Start by removing the bezel screws–six Philips fasteners hidden beneath the trim ring–before lifting the cluster assembly. The printed circuit board behind the speedometer often develops hairline cracks at stress points where the tachometer wires exit. Resolder these joints with 60/40 rosin-core solder; a 30-watt iron ensures precision without overheating adjacent traces.
Voltmeter fluctuations usually trace to a corroded voltage regulator ground. Locate the black wire terminal on the back of the fuel gauge; scrape the chassis connection clean and apply dielectric grease. A 10-ohm resistor bypass test confirms the issue–temporarily jumper the circuit and observe needle stability.
Dim or non-responsive warning lights frequently stem from oxidized bulb sockets. Remove each bulb holder, polish the brass contacts with 400-grit sandpaper, and reinstall with fresh #194 bulbs. For persistent dimming, check the brown instrument light feed wire at the headlight switch–it often frays where it exits the harness grommet behind the kick panel.
The tachometer’s erratic behavior typically points to a failed calibration resistor. Access the component hidden beneath the cluster’s metal shield–replace the original carbon-film resistor with a 47kΩ 5% tolerance metal-film unit. Calibrate by adjusting the trimmer potentiometer until the needle aligns at 3,000 RPM during a road test.
Odometer failure is nearly always mechanical, but electronic gremlins lurk in the purple wire feeding the trip reset solenoid. Probe the connection at the gauge connector with a multimeter during reset attempts–the voltage should spike to 12V. If absent, trace the wire back to the turn signal switch, where chafing against the steering column is common.
Gauge needles sticking at mid-scale often indicate a faulty thermal stabilizer–usually the green wire at the temperature sender input. Disconnect the wire, measure resistance across the sender (should be 240Ω at 70°F), then jumper the circuit to bypass the stabilizer for temporary verification. Permanent fixes require a solid-state voltage divider module spliced into the circuit.
Intermittent fuel gauge readings usually result from a compromised sending unit ground. Drop the tank for access, then clean the ground strap connection at the sender flange. While exposed, inspect the float arm pivot for wear–bend it slightly downward if resistance readings drift above 0.5Ω when manually actuated.
For stubborn cluster illumination issues, bypass the original rheostat with a modern PWM dimmer module wired in-line with the orange instrument light feed. Mount the module behind the glovebox for easy adjustment. Replace all original panel bulbs with LED equivalents, ensuring polarity matches the printed circuit paths–reversed polarity will extinguish adjacent indicators.
