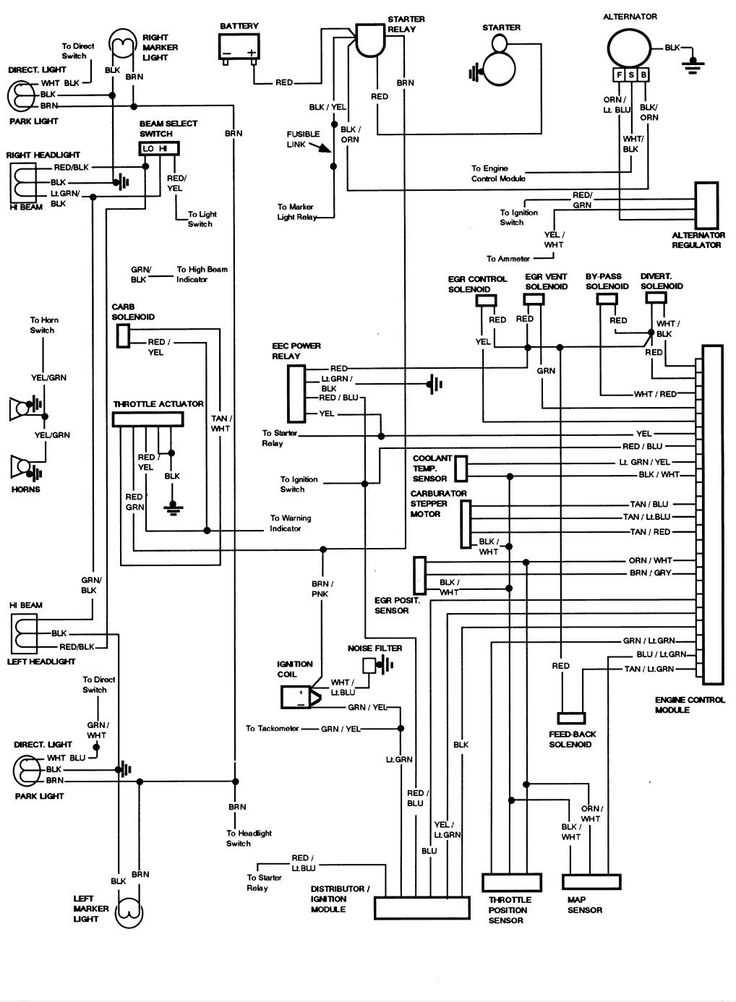

Start by sourcing the original factory manual or a high-resolution reproduction. Avoid aftermarket guides unless verified by reputable restorers–many contain errors in terminal numbering or color-coding. The first-generation utility vehicle’s electrical layout is divided into primary sections: ignition, lighting, charging, and accessory circuits. Focus on the color-coded wiring bundles running along the driver-side firewall, where the main harness splits into sub-circuits for the dash, headlights, and rear lighting.
For ignition troubleshooting, locate the ballast resistor (typically a ceramic unit near the coil) and confirm its resistance of 0.5 to 1.0 ohms. Corrosion at the ammeter terminals often causes voltage drops–clean contacts with 600-grit sandpaper and apply dielectric grease. The alternator’s internal regulator (C-4TF-10300-A) is prone to failure; replace it with a solid-state unit if flickering dash lights or dim charging outputs persist.
Headlight circuits rely on a two-relay system–one for high beams, another for low. Test relay continuity with a multimeter; if readings exceed 0.2 ohms across terminals 85 and 86, replace the relay. Tail lights share a ground with the fuel sender; a single corroded ground strap can disable both. Use a 16-gauge wire to bypass suspect grounds directly to the chassis, but never splice into the original harness without soldering and shrink tubing.
Reproduction wiring harnesses exist but often lack original gauges or protective loom wrapping. If rebuilding, label every connector with flag terminals–white for accessories, yellow for lighting, red for ignition. Route wires away from moving components (steering column, pedal linkages) and secure with nylon ties every 6 inches. For persistent issues, trace circuits with an LED test light, probing each component’s input and output while the system is powered.
Restoring Classic Electrical Systems: Step-by-Step Reference
Begin by locating the main fuse block beneath the dash near the steering column–original models use a single 20-amp blade fuse for ignition, an 8-amp for lighting, and a separate 15-amp for the dome lamp. Trace the red wire (12-gauge) from the battery positive terminal to the starter solenoid, ensuring it’s free of corrosion; resistance above 0.2 ohms signals degraded connections. The alternator output (yellow wire, 10-gauge) should register 13.8–14.5 volts at idle when tested with a multimeter. If readings fluctuate, inspect the voltage regulator (mounted on the firewall) and clean the grounding points on the driver-side fender.
- Disconnect the battery negative terminal before probing any circuits.
- Use a dedicated color-coded schematic–green (right turn), brown (tail lamps), black/white (instrument panel illumination)–to avoid cross-wiring.
- Replace brittle conduit harnesses with braided loom; 1960s PVC degrades at temperatures above 180°F.
- For gauge clusters, solder connections to the printed circuit board–crimping risks intermittent failures.
- Test relays with a 12V power probe; the horn relay (next to the glove box) should click audibly when engaged.
Finding Key Electrical Bundle Junctions Behind the Instrument Cluster
Start by removing the lower dash panel–it’s secured by four screws along the underside. Once detached, you’ll expose the main electrical bundle’s primary junctions, clustered near the steering column base and extending toward the fuse block. The largest connector here is a 12-way plug with red, yellow, and black-striped wires; trace these first, as they feed critical circuits like ignition, lighting, and instrumentation. Smaller harnesses branch off to the left, often tucked behind a plastic clip–pry gently with a trim tool to avoid snapping tabs.
Pinpointing Specific Circuits
Use a multimeter set to continuity mode to verify connections: probe the male pins on the back of the fusebox (label F2 and F3 for parking lamps) while a helper activates each corresponding switch. For turn signals, focus on the flasher relay socket–it’s a cylindrical unit mounted near the top of the bundle. The hazard switch wires (white with red stripe) often fray at this junction; inspect insulation for cracks. If gauges behave erratically, check the voltage stabilizer–located behind the speedometer assembly–and ensure its ground (black wire) connects solidly to the firewall’s braided strap.
Tracing the Engine Compartment Harness for Ignition and Lighting Circuits
Identify the main power distribution block near the battery–typically a rectangular fuse panel with labeled terminals. Trace the thick red cable from the positive battery terminal to this hub; it branches into two primary circuits: the ignition feed (often marked “IGN” or “RUN”) and the lighting system. The ignition circuit uses a 10-gauge wire, fused at 30 amps, running to the coil’s positive terminal via a ballast resistor (verified by its ceramic casing). For lighting, follow the yellow-striped lead from the fuse panel to the headlight switch; observe the color-coded splits–yellow for high beams, light blue for low beams, and brown for parking lamps.
Test continuity at critical junctions using a multimeter: probe the ignition feed at the coil’s “Bat” terminal with the key in the “ON” position (expect 9-12 volts); a drop below 9 volts indicates resistance in the ballast or corroded connectors. For lighting, activate each beam setting and measure voltage at the bulb sockets–high beams should show full system voltage (12-14 volts), while low beams may read slightly lower due to dimmer switch resistance. Replace any degraded connectors showing greenish oxidation or brittle insulation; use heat-shrink terminals for repairs to prevent moisture ingress.
Label each circuit segment with tape flags during tracing to avoid misconnections. The starter solenoid’s purple cable carries the ignition feed during cranking; ensure it’s intact, as breaks here cause hard starting. For lighting, the dimmer switch often fails silently–bypass it temporarily by jumping the yellow-striped input to the yellow or light blue output to confirm faulty operation. Secure all harnesses with nylon ties away from moving parts and exhaust manifolds; route wires through factory grommets to prevent chafing.
Identifying and Repairing Common Faults in the Charging Circuit
Start by testing the alternator output at the battery terminals with a multimeter while the engine runs at 1,500 RPM. Voltage should read between 13.8 and 14.5 volts. Readings below 13.2 volts indicate a weak or failing charging component, while values above 15 volts suggest overcharging, often caused by a defective voltage regulator or shorted stator windings.
Check the alternator belt tension immediately. A loose belt–one that deflects more than 1/2 inch under moderate thumb pressure–slips under load, reducing current output. Replace frayed or glazed belts; adjust tension using the factory specifications (typically 50-70 lbs of force applied mid-span). If the belt appears intact but squeals during acceleration, inspect pulley alignment with a straightedge–misalignment as little as 1/16 inch can destroy a new belt within hours.
Inspect all connections in the charging loop for corrosion or looseness. Clean battery terminals with a wire brush, removing all white or green oxidation, then apply dielectric grease. Trace the heavy-gauge cable from the alternator’s “BAT” post to the positive battery terminal–discoloration or heat distortion at any lug indicates high resistance. Crimp new terminals using a hydraulic crimper rated for 4 AWG wire; soldering can melt insulation under high load.
| Fault Symptom | Likely Cause | Diagnostic Tool | Acceptable Value |
|---|---|---|---|
| Voltage <13.2 V at 1,500 RPM | Weak alternator diodes | Diode tester | Forward bias >0.5 V, reverse leakage <0.1 mA |
| Voltage >15 V | Faulty voltage regulator | Regulator bypass test | Voltage drops to ~12.6 V when bypassed |
| Battery drains overnight | Parasitic draw | Ammeter in-line | <50 mA with key off |
Use a load tester to confirm battery health before condemning the alternator. A healthy battery should maintain at least 9.6 volts for 15 seconds under a 200-amp load. If the battery fails, replace it–attempting to recharge a sulfated cell wastes time and risks boiling electrolyte onto surrounding components. After replacement, retest the entire charging circuit to ensure no hidden faults remain.
For models equipped with external voltage regulators, measure voltage at the “I” (indicator) and “F” (field) terminals. At 1,500 RPM, the “I” terminal should show 5-7.5 volts; the “F” terminal should mirror battery voltage (12.6-14.5 V). If “F” reads zero, suspect an open field coil or blown fuse–check continuity with an ohmmeter (field coils typically measure 4-8 ohms). If “F” reads full battery voltage but “I” shows none, the regulator ground is compromised; clean the mounting surface and retighten screws.
Finally, perform a dynamic load test by switching on high-beam headlights, heated rear window, and blower motor simultaneously. Monitor voltage drop at the battery; it should not fall below 13.5 volts. If it does, suspect internal alternator decay–replace the unit. Always reconnect the negative battery terminal last to prevent sparks near hydrogen gas vented from the battery.
Decoding the Instrument Cluster Connections in Classic Off-Roaders
Start by tracing the voltage feed wire from the ignition switch to the fuse block–this is the lifeline for your dash gauges. On most vintage models, the red or orange wire with a white stripe carries a stabilized 12V signal; any drop below 11V here will cause erratic gauge behavior or dim lighting. Use a multimeter to verify continuity, as corrosion at the fuse terminal is a common failure point.
Identifying Key Gauge Circuit Paths
The temperature sender connects via a blue wire (often #14 or #16 AWG) running directly to the back of the instrument cluster. Interrupt this circuit by grounding the wire momentarily–if the needle sweeps to the “hot” position, the sender is faulty. For fuel level readings, follow the green wire from the tank unit; resistance values should range between 10Ω (full) and 73Ω (empty), though manufacturer variations may shift these benchmarks by ±5Ω.
Oil pressure and ammeter circuits share a thinner, purple wire that splits near the firewall. The oil pressure sender outputs 0–80 psi via a variable resistance (typically 240Ω at idle, 33Ω at 60 psi), while the ammeter relies on a direct shunt connection to monitor alternator output. If gauges fluctuate unpredictably, check for a loose ground at the engine block–star washers here prevent oxidation on steel mounting surfaces.
Lighting circuits use separate dimmer-controlled strands: bulbs for warning indicators (brake, high beam) connect via gray wires, while gauge illumination runs through brown wires with a yellow stripe. Failed bulbs often stem from melted socket contacts, so replace original phenolic sockets with modern ceramic ones if discoloration is present. For aftermarket LED upgrades, add a 500Ω resistor in parallel to prevent hyperflashing.
Speedometer cables on these models are driven by a gearbox-mounted transducer, but the mechanical link can bind if misaligned. Lubricate the housing with graphite powder rather than grease, which attracts dust and accelerates wear. A binding cable will cause needle oscillation; if the problem persists after servicing, the gear cluster inside the transmission may have stripped teeth–common after 200,000 miles.
For troubleshooting, use a known-good jumper wire to isolate faults: connect the temperature gauge’s sender wire to ground–if the needle doesn’t respond, the issue lies in the cluster’s bimetallic spring or internal connections. Repeat this process for each gauge, working methodically. Terminal blocks under the dash often have hidden splices; seal these with dielectric grease to prevent moisture ingress, a leading cause of intermittent shorts in older systems.
