The most reliable starting point is the factory-produced schematic tailored for late-1960s sports cars. Unlike aftermarket reproductions, the OEM version maintains precise wire gauges, connector types, and color-coding–details that can prevent shorts or voltage drops. Vault copies are archived under part number C8ZZ-14405-A, though counterfeit prints circulate; verify the Ford Motor Company embossed stamp on the reverse. If acquiring a used unit, inspect for brittle insulation on the loom, especially near exhaust manifolds where heat accelerates deterioration.
Focus on three critical zones: fuse panel feed, ignition circuit, and lighting bundle. The main power distribution block should accept 10-gauge wires, while tail lamps and courtesy lights only require 18-gauge. Splice connectors must meet GM-standard crimp profiles; solder joints risk corrosion unless sealed with heat-shrink tubing containing adhesive liner. For vehicles equipped with air conditioning, the compressor clutch requires a dedicated 14-gauge wire routed separately from headlamp wiring to avoid induced electrical noise.
Test continuity with a multimeter set to 200 ohms, probing between each terminal and chassis ground. Resistance above 0.5 ohms indicates oxidation inside connectors–clean with a contact enhancer or replace terminal housings. Avoid excessive tension when rerouting loom sections; sharp bends near suspension components can cause fatigue fractures. Replace any cloth-wrapped sections with modern cross-linked polyethylene insulation to resist oil and coolant contamination.
Final assembly demands strict adherence to the original firewall grommet placement. Misalignment causes chafing against sheet metal, often located behind the brake master cylinder. Secure the loom with original-style plastic ties or nylon straps–never use zip ties, which can degrade under UV exposure. After installation, energize systems individually to localize faults rather than applying full voltage simultaneously.

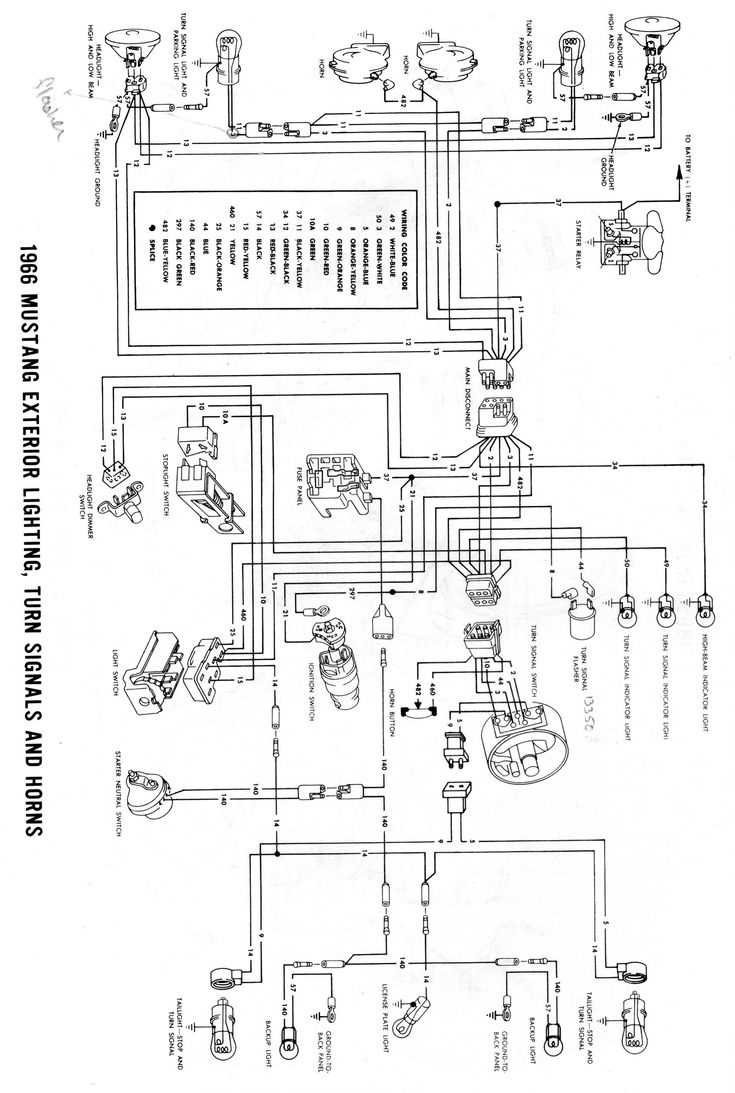

Classic Pony Car Electrical Layout Guide
Locate the main fuse block under the dashboard near the steering column–it houses critical protective devices for the entire vehicle’s circuits. Use a multimeter set to continuity mode to verify each fuse before proceeding; corroded or blown units must be replaced with exact amp ratings (typically 15A for lighting, 20A for accessories).
The engine compartment bundle splits into three primary branches: ignition, charging, and lighting. Trace the red wire from the battery terminal to the starter solenoid–this is the primary power feed. Interruptions here often cause no-crank conditions; inspect for frayed insulation where the cable passes through the firewall grommet.
- Headlight circuit: Verify the dimmer switch’s two-position functionality–low beams should activate the #12A fuse, high beams the #12B.
- Turn signals: The flasher relay (mounted on the firewall inner panel) controls blink rate; swap with a known-good 3-prong unit if flashing irregularly.
- Instrument cluster: Each gauge requires a dedicated sender–oil pressure (0-80 psi), temperature (100-250°F), and fuel (7-75 ohms).
For the interior illumination branch, check the courtesy light door switches–each door jamb has a plunger-style actuator that completes ground when depressed. Replace broken switches with original-style reproductions; aftermarket units often fail prematurely due to weaker spring tension.
Wiper circuits utilize a two-speed motor controlled by a steering column stalk. The park function relies on an internal cam; if blades don’t return fully, replace the entire motor assembly–individual components are not serviceable. Ensure the washer pump ground (black wire, unpainted metal) has no corrosion; a compromised connection causes intermittent spray patterns.
Color-coding standards for this model year adhere to a strict palette:
- Red: constant power (battery positive)
- Purple: ignition-switched (accessories)
- Yellow: lighting (headlights, dash)
- Green: left turn/brake
- Blue: right turn/brake
- Black: ground
Deviations from this scheme indicate prior modifications–restore original routing for reliability.
Handle connectors with care–the factory-used bullet-style terminals require specific crimping tools (AMP 40450). Avoid soldering splices; the vibration inherent in classic designs breaks solder joints over time. For damaged wire sections, use adhesive-lined heat-shrink tubing (minimum 3:1 shrink ratio) over crimped butt connectors.
Testing sequence priority:
- Verify all grounds at the firewall bulkhead (clean paint to bare metal).
- Check battery voltage (12.6V minimum) before engaging starter.
- Isolate circuits one-by-one using the fuse block test points.
- Load-test the alternator (13.8-14.4V at 2,000 RPM).
Document each reading for baseline comparison during seasonal maintenance.
Recognizing Authentic Electrical Circuit Elements from the Late ’60s Pony Car
Inspect the wire insulation colors against the factory standards: black with yellow tracer for starter solenoid circuits, red with green stripe for generator excitation, and brown with white stripe for instrument panel feeds. Verify connectors use tinned copper terminals with a dull finish, not shiny or nickel-plated replacements. Original loom coverings feature a coarse, wax-coated cotton braid–modern vinyl sheathing lacks texture and flexibility variations.
Check for distinctive markings: Ford’s supplier codes appear embossed on rubber grommets (e.g., “Ford 53” or “Packard Electric 1967”), while aftermarket parts often display sharp edges or absent stamps. The main engine compartment bundle exits the firewall through a single oval bulkhead connector with a stamped metal reinforcement plate–any modification using plastic grommets is non-original.
Component Validation Table
| Element | OEM Specification | Reproduction Flaw |
|---|---|---|
| Coil high-tension lead | Silicone-impregnated cloth braid, 7mm diameter | Thinner, synthetic rubber insulation visible |
| Dash-to-fusebox segment | Twisted pair coding within a split loom sleeve | Parallel wires bundled loosely or missing brass eyelets |
| Taillight pigtails | Solid brass spade connectors, 6.3mm male blade | Flimsy steel terminals or female receivers |
Locate the voltage regulator’s two-wire plug: genuine units have staggered pin spacing (0.25″ and 0.3125″), while reproductions frequently invert positioning or use uniform spacing. The alternator plug exhibits a round keyway slot–not the common D-shaped aftermarket variant. Rear lamp sockets retain Ford’s unique three-prong bayonet base; adapters signal tampering.

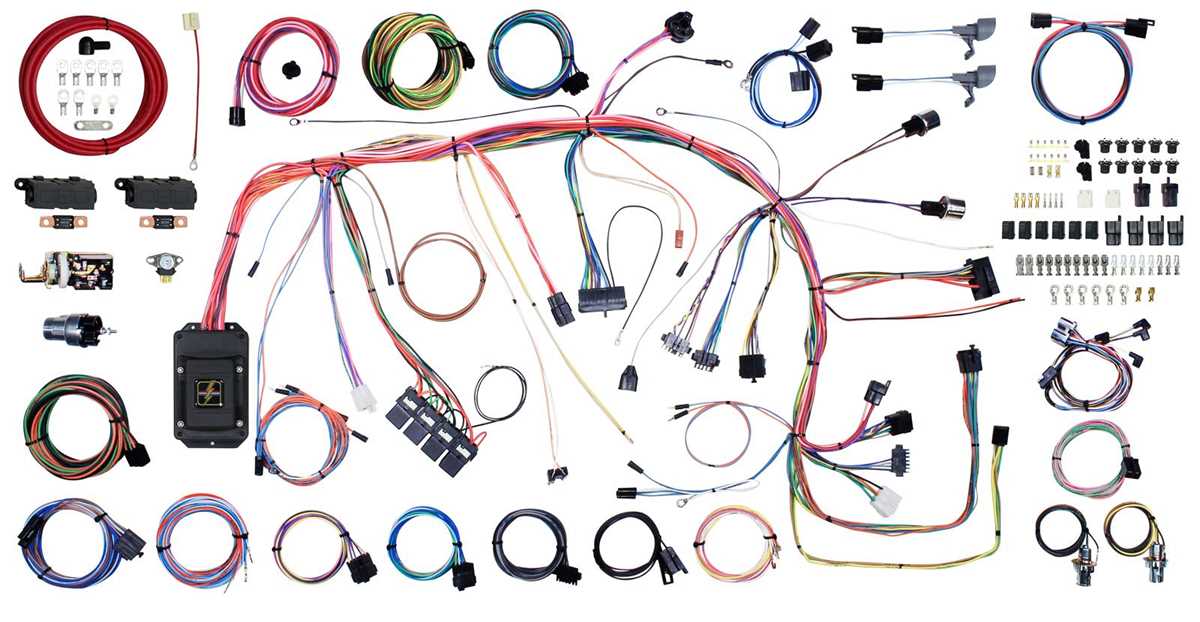

Step-by-Step Replacement of the Engine Compartment Electrical Bundle
Disconnect the battery first. Remove the negative terminal using a 10mm wrench, then the positive. Label each connection with masking tape–note terminal positions, ground attachments, and plug orientations. Store hardware in magnetic trays to avoid misplacement during disassembly.
Remove the old assembly by unbolting clamps near the firewall, fender wells, and valve cover. Gently pry connectors from sensors–use a pick tool on stubborn tabs without forcing them. Trace each lead back to its origin to confirm routing paths. Photograph every attachment point (at least three angles) before detachment.
Measure the new bundle’s length against the original. Identify excess segments–trimming may be necessary, but preserve 6 inches of slack on critical feeds like the alternator and starter solenoid. Strip ¼ inch of insulation from cut ends, then crimp battery-grade terminals using a ratcheting tool. Apply dielectric grease liberally to each splice.
Routing the New Assembly
Thread the bundle through existing grommets–lubricate holes with silicone spray to prevent sheath damage. Secure clamps every 12 inches, avoiding sharp edges and hot manifolds. Use nylon zip ties, leaving slight tension to allow thermal expansion. Route high-current feeds (starter, ignition coil) away from signal wires to minimize interference.
Reconnect components in reverse order: grounds first, then sensors, followed by power feeds. Verify each plug seats fully–listen for a distinct click. Tighten terminal bolts to 8-10 ft-lbs; over-tightening risks thread stripping. Reinstall battery terminals (positive first), then test circuits incrementally: ignition, headlights, gauges. Address faults immediately–chasing errors after buttoning up doubles troubleshooting time.
Finish by wrapping exposed segments with adhesive-lined heat shrink or loom tape. Coat phenolic terminals with corrosion inhibitor. Perform a final continuity test with a multimeter: resistance should read less than 0.5 ohms across all feeds. Document modifications for future reference.
Pinpointing Dashboard Circuit Issues in Classic Ford Pony Cars
Start by inspecting the voltage regulator connections behind the instrument cluster–corrosion at the bullet connectors often disrupts signal continuity. Use a multimeter set to 20V DC to verify input at the fuel gauge sender wire (pink/black stripe); readings below 10V indicate a compromised ground at the G-terminal of the voltage limiter. Remove the cluster bezel and trace the brown/white stripe wire from the temperature gauge to the engine block sensor–discoloration or brittleness signals heat damage requiring immediate splice replacement with 18-gauge braided copper wire, not solid core.
Check the rheostat slider contact for dimmer switch faults by rotating the knob while monitoring voltage across the gray/red stripe wire; erratic fluctuations confirm carbon track erosion. For tachometer inaccuracies, probe the purple/white wire at the coil’s negative terminal–consistent 6-8V pulses should register; absence suggests a broken coil wire or faulty ignition resistor. Replace the plastic-clad fiber-optic light pipe for the high-beam indicator if brittleness is observed, ensuring the new component retains the original 45-degree bend angle to maintain alignment with the bulb housing.
