Begin troubleshooting with the main harness under the dashboard–pin 16 on the fuse block corresponds to the headlight switch’s power input. Use a multimeter set to 20V DC continuity mode to verify the brown wire with a white stripe (BRN/WHT) delivers 12V from the ignition switch when the key is in the “ACC” or “ON” position. If voltage is absent, inspect the ignition switch’s internal contacts or the inline fusible link near the starter solenoid.
For turn signal function, trace the light green (LT GRN) wire from the flasher relay to the steering column’s multi-function switch. A common failure point is the plastic slider inside the column housing–replace it if the canceling cam shows wear. Check the black wire (BLK) grounding the taillight assembly; corrosion at the trunk’s right-side fender mount often disrupts the circuit.
The charging system relies on the yellow (YEL) wire connecting the voltage regulator to the alternator’s “F” terminal. If the battery drains overnight, probe the YEL wire for resistance–values above 0.5 ohms indicate internal regulator failure. Replace the entire regulator assembly rather than attempting component-level repairs.
For instrument cluster illumination, the orange (ORG) wire feeds the dimmer switch, then branches to the dashboard bulbs. If only some gauges light, inspect the printed circuit board beneath the cluster for burnt traces–these can be bridged with 18-gauge wire soldered across damaged sections. Always disconnect the battery before servicing the voltage stabilizer module at the rear of the cluster.
Classic Pony Car Circuit Blueprint Guide
Start by locating the main fuse panel under the dashboard on the driver’s side–positioned just above the kick panel. Remove the plastic cover to access the blade-style fuses, which protect critical routes like headlight circuits (10A), ignition feed (20A), and the charging system (30A). Each fuse correlates directly to colored traces on the official factory schematic; match the colors precisely–red/yellow for voltage feeds, brown/white for ground returns–to avoid misdiagnosis.
Trace the instrument cluster harness by following the gray conduit running along the firewall’s inner panel. The speedometer, fuel gauge, and warning lights rely on a dedicated 5-wire harness (purple, black, green, blue, and orange strands). Splice points near the steering column base often corrode; apply dielectric grease to connections when reassembling. The voltage regulator–mounted on the firewall near the brake master cylinder–uses a 3-wire configuration (field, output, ground) that must be tested with a multimeter at 14.2V under load.
Inspect the front lighting loops beginning at the headlamp sockets. Sealed beams require a relay-free setup; verify continuity from the dimmer switch to each lamp using a test light. Turn signals integrate with the hazard flasher unit–a cylindrical component behind the glovebox–via a fluted 6-prong connector. Replace any brittle PVC-insulated wires (common in 50-year-old harnesses) with modern XLPE-stranded copper, matching the original gauge: 18AWG for lighting, 12AWG for high-draw circuits like the starter solenoid.
Ground points demand special attention. The primary earth strap connects the engine block to the chassis near the battery tray, while secondary grounds for accessories bolt to the inner fender wells or core support. Remove paint at contact surfaces, star-washers prevent loosening under vibration. For radio noise suppression, add inline capacitors (0.1µF) across the alternator’s output and battery terminals; bypass ignition coil static with a 0.01µF condenser across the + and – coil terminals.
Use a toner probe to identify hidden shorts in door-jamb harnesses or trunk wiring. The rear lighting cluster–a frequent failure point–includes separate circuits for brake lights (red), reverse lamps (white), and tail/license plate illumination (brown). Replace the original push-in connectors with soldered joints sealed in heat-shrink tubing; ensure license plate bulbs share a busbar with the rear marker lights to maintain consistent brightness.

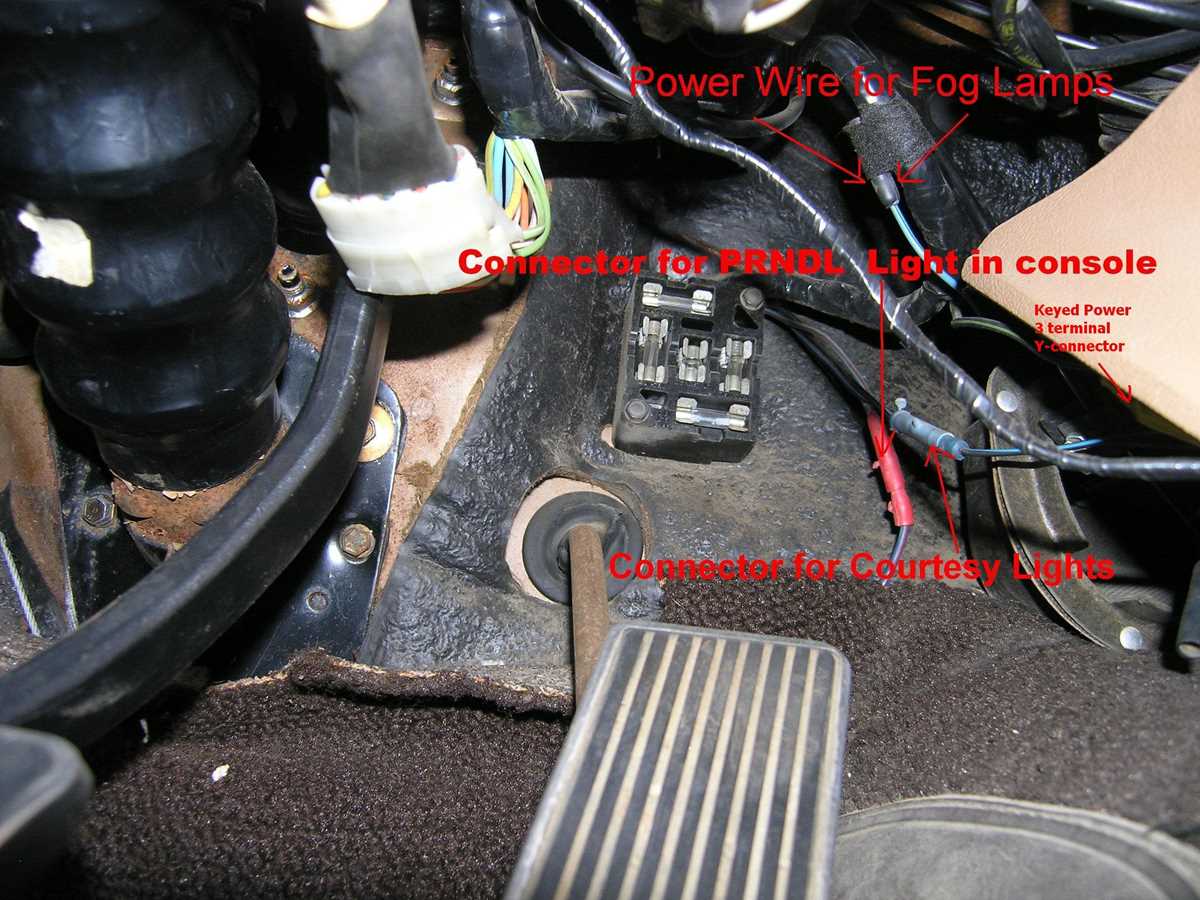

Finding the Primary Circuit Bundle Junctions Behind the Instrument Panel
Begin by removing the lower dash panel cover, secured by four Phillips-head screws near the pedals and two clips along the top edge. Slide the panel down to expose the backside of the fuse block and adjacent connectors.
Trace the large harness bundle exiting the firewall grommet–it splits into three main branches: one leading to the steering column, another to the fuse box, and the third extending toward the center console. The ignition and lighting circuits converge here.
- Locate the female spade terminals (0.25″ wide) for the headlight switch; they sit behind the left vent, color-coded purple (high beam), yellow (low beam), and dark green (parking lamps).
- Identify the four-wire cluster (red, black, white, and brown) feeding the ignition resistor–its terminals attach to the back of the ignition switch via a small harness pigtail.
Check the vertical bundle descending from the fuse block; the turn signal flasher relay snaps into a socket on its left side, marked by a circular black casing with three male blades. A single red wire with a blue stripe branches off to the emergency switch.
To test continuity without disconnecting, use a multimeter probe on the backside of terminals–set the dial to 200Ω and touch the prongs through the connector housing. Gauge readings should drop below 5Ω for functional circuits.
- Disconnect the battery negative terminal before probing power feeds.
- Label each connector with masking tape before separation to avoid misrouting.
- Inspect for brittle insulation, especially around the voltage regulator’s two-wire plug (pink and white).
Hidden behind the radio mounting bracket, a six-wire harness (green, orange, brown, white, black, and purple) routes to the heater blower motor–press the release tab on its rectangular plug to detach it. Verify the purple wire functions as the speed control input.
Reattach components in reverse order, ensuring the firewall grommet seals tightly–moisture intrusion corrodes the splice near the wiper motor’s three-prong connector (blue, black/yellow, and purple).
Step-by-Step Guide to Identifying Fuse Box Circuits for Headlights and Taillights
Locate the main fuse panel beneath the dashboard on the driver’s side–it’s a black rectangular box secured with a clip. Remove the cover by squeezing the sides; inside, you’ll find a labeled map taped to the underside. Scan the diagram for terms like “lamps,” “lighting,” or “exterior lights”–these denote the circuits controlling front and rear illumination.
Use a multimeter set to continuity mode to verify suspected fuses. Probe both metal contacts on each fuse; a reading of near-zero ohms confirms an intact circuit, while an open signal indicates a blown fuse. Refer to the table below for common fuse amperage and circuit assignments:
| Fuse Position | Amperage | Circuit Function | Expected Voltage (Key ON) |
|---|---|---|---|
| #4 | 15A | Headlight high beams | 12-14V |
| #6 | 10A | Taillights, license plate lights | 12-14V |
| #8 | 15A | Headlight low beams | 12-14V |
Trace the wiring loom from the fuse box toward the front and rear of the vehicle. The headlight circuits run through a single white connector block near the radiator support, while taillight wires bundle into a multi-pin plug behind the left rear quarter panel. Disconnect these connectors and check for corrosion–clean terminals with a wire brush if necessary. Replace any cracked or melted connectors immediately.
Test the headlight switch by toggling it through each position (off, parking, low, high). With the ignition on, measure voltage at the switch’s output terminals. If voltage drops below 11V during this test, inspect the switch’s internal contacts for wear. For taillights, operate the brake pedal while monitoring the rear harness–any flickering or dimming suggests a faulty brake light switch or loose ground near the trunk hinge.
Secure all grounds using a 10mm wrench; the primary ground strap connects the chassis to the battery tray, while secondary grounds for lighting attach to the left frame rail. Sand paint from grounding points to bare metal before reattaching–poor grounds cause intermittent power fluctuations. After reassembly, cycle all lights through each mode (parking, brake, signal) to confirm consistent illumination before finalizing repairs.
Solving Instrument Panel Circuit Problems
Check voltage at the fuse block first if gauges fail to respond. Use a multimeter set to DC 12V–probe terminals 1 (yellow/red) and 6 (black/white) on the 8-pin connector under the dash. Readings below 11V indicate corroded contacts or a blown 10A fuse. Clean contacts with fine sandpaper and apply dielectric grease before reassembly.
Verify the printed circuit board for hairline cracks near solder joints. A magnifying glass helps spot fractures along traces supplying the fuel gauge or tachometer. Reflow cracked points with a 50W soldering iron–use 60/40 rosin-core solder and avoid overheating adjacent components.
Inspect the voltage regulator mounted behind the speedometer. Remove the three screws securing the cover; test resistance across the two outer terminals with an ohmmeter. Values outside 50-150 ohms confirm regulator failure–replace with a solid-state unit if original bimetal strip overheats or sticks.
Trace wire harness behind the cluster for brittle insulation. Strip ¼ inch of damaged sections and splice with 18-gauge automotive wire using solder-sealed crimp connectors. Wrap repaired segments with vinyl electrical tape followed by heat-shrink tubing for moisture protection.
Calibrate the fuel sender by draining the tank and swinging the float arm through its arc. Measure resistance at the tank connector: empty should read 10-15 ohms, full 70-85 ohms. Adjust the sender bracket if readings deviate–bend the pivot tab no more than ⅛ inch per attempt.
Listen for relay clicks at the ignition switch when turning the key. Absence of sound suggests a faulty solenoid or broken brown/white wire leading to terminal 30. Jumper the starter relay socket momentarily to isolate the issue–sparking at the terminal indicates internal switch failure.
Test dashboard illumination by connecting a 12V test lamp between the dimmer switch output and ground. Dim lights that flicker or fail point to a faulty rheostat–rotate the switch through its range while monitoring voltage. Replace the entire switch if resistance jumps erratically above 100 ohms.
Secure all ground connections under the dash. Scrape paint from the metal firewall where black or green/white wires terminate–use a star washer between the ring terminal and chassis. Loose grounds cause erratic gauge behavior and parasitic battery drain at night.
