Start by locating the battery feed wire (typically red, 10-12 AWG) at the starter solenoid’s “BAT” terminal–this carries unfused 12V directly to the ignition switch. Route it through a 40-amp fusible link before connecting to the switch’s “BAT” lug to protect against short circuits. Avoid splicing into existing harnesses; Ford’s factory pigtail uses color-coded insulation (red with yellow stripe for ignition, red with blue stripe for accessories) for sequential power distribution.
From the ignition switch’s “IGN” terminal, a resistance wire (pink with yellow stripe) runs to the coil’s “+” post–this reduces voltage by ~1.5V to prevent point arcing in the distributor. Bypass this with a 1-ohm ballast resistor if upgrading to an electronic ignition (e.g., PerTronix). Ground the coil’s “-” post via the distributor’s breaker points or magnetic pickup; verify continuity with a multimeter (
The starter relay’s “S” terminal connects to the ignition switch’s “START” position via a purple wire–this engages the solenoid without drawing heavy current through the switch. For push-button starts, relocate this wire to a 30-amp relay triggered by a momentary switch. Always use crimped and soldered connections on high-current paths; solder-only joints fatten under vibration, causing intermittent failures.

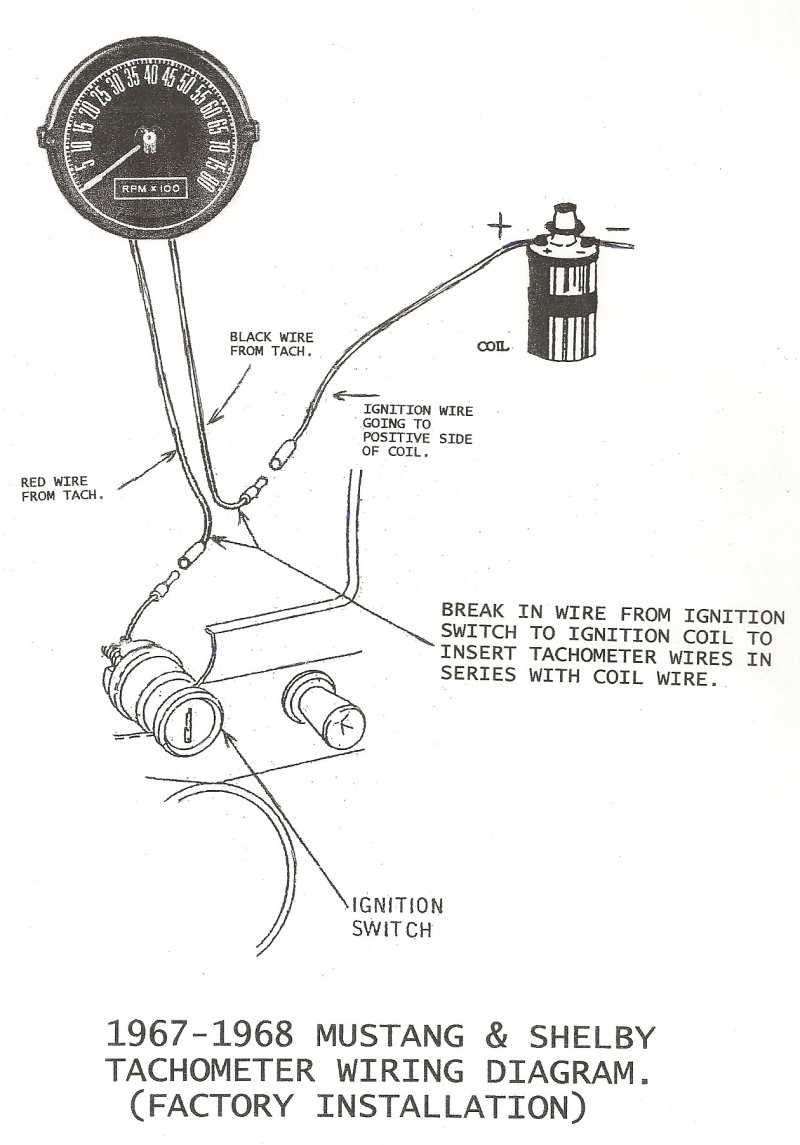

Distributor wiring varies by engine: the 289 V8 uses a single red/white wire to the tachometer, while the 390/428 requires an additional blue wire for dual-point setups. Cross-reference against the Ford Shop Manual’s Section 25-20; discrepancies often indicate aftermarket modifications. Replace vintage cloth-insulated wires with TXL-spec copper core (rated to 250°C) if insulation shows cracking–this prevents tracking under high-voltage coil discharge.
Classic Ford Coupe Electrical Switch Connection Layout
Start by locating the main power distribution block beneath the dashboard on the driver’s side–it’s identifiable by a cluster of red and purple cables entering a rectangular junction box. Verify battery voltage at the coil’s positive terminal before proceeding; readings below 11.5V indicate a weak battery or corroded terminals requiring immediate service.
The factory-installed ballast resistor, typically a ceramic unit mounted near the coil, reduces voltage from 12V to 6-9V for proper spark generation. Bypass it only during testing–permanent removal risks coil overheating. For restoration, replace aging resistors with a high-quality solid-state version resistant to vibration and heat fluctuations.
Wire colors follow a strict coding system: green with yellow stripe denotes the starter solenoid trigger, while solid black with orange trace routes to the ignition switch’s START position. Purple with white stripe carries voltage from the switch’s RUN/ACC circuit to accessories. Cross-referencing these with factory schematics prevents misconnections leading to backfeed or intermittent operation.
Critical Junction Points and Their Functions
| Junction Location | Incoming Wires | Outgoing Path | Voltage (Key ON) |
|---|---|---|---|
| Fuse Block (Left Dash) | Red (Battery), Purple/White | Ignition Switch RUN | 12V |
| Coil Positive Terminal | Red (via Resistor), Black/Orange | Distributor Primary | 6-9V |
| Starter Solenoid | Green/Yellow, Battery Cable | Starter Motor, Neutral Safety | 12V (Momentary) |
Trace the ground path from the engine block to the firewall–ensure bare copper or stainless clamps with star washers to prevent voltage drop. Replace any ground straps showing discoloration or corrosion; factory straps degrade after prolonged exposure to heat and road salts.
Troubleshooting Common Failures
Intermittent stalling often stems from loose connections at the ignition switch or distributor’s breaker points. Use a multimeter to test switch continuity while turning the key–resistance above 0.5 ohms indicates wear requiring replacement. For point-style distributors, gap adjustment to 0.015–0.018 inches is critical; improper gap causes weak spark or engine misfires.
Ammeter readings above 3A at idle signal excessive accessory draw or a shorted voltage regulator. Disconnect the generator field wire (blue/red stripe) and retest–if current drops, replace the regulator. For alternator conversions, ensure the new unit’s ground matches the original wiring path to avoid charging system imbalances.
Use dielectric grease when reassembling connectors, particularly at the bulkhead plug where moisture ingress is common. Avoid silicone-based lubricants on rubber-insulated wires–opt for petroleum-free compounds compatible with PVC and EPDM materials. Store spare wires in heat-shrink tubing to prevent fraying during handling.
Critical Parts of the Classic Ford Cougar Electrical Firing Setup
Start by locating the coil–a cylindrical component near the engine block. This unit transforms low-voltage current from the battery into a high-voltage surge required for spark plugs. On models from that era, the coil typically features two terminals: one marked “+” (positive) linking to the ignition switch, and the other “-” (negative) connected to the distributor. Verify the coil’s resistance with a multimeter; a standard reading ranges between 1.5 to 1.8 ohms for primary and 7,500 to 10,000 ohms for secondary circuits. Values outside this scope signal coil degradation.
The distributor holds three core elements: the rotor, cap, and points. The rotor spins inside the cap, distributing voltage to each cylinder sequentially. Inspect the cap for cracks or carbon tracks–these cause misfires. The points, housed under the rotor, act as a mechanical switch; their condition dictates timing precision. Replace points if pitted or worn, adjusting the gap to 0.018–0.022 inches using a feeler gauge. Lubricate the cam with a thin layer of grease to prevent premature wear.
Ballast resistors regulate voltage to the coil, preventing overheating during prolonged operation. Early Ford V8 setups often use a single external resistor wired in series with the coil’s positive terminal. Check the resistor’s resistance–typically around 1.0 to 1.4 ohms. If the engine stalls when hot, the resistor may be faulty. Some models bypass the resistor during startup for higher initial voltage; ensure the bypass wire (often pink) connects securely to the starter solenoid.
- Spark plug wires must route away from exhaust manifolds to avoid heat damage. Replace wires showing cracks, stiffness, or resistance exceeding 5,000 ohms per foot.
- The ignition switch connects the battery to the system; corrosion on terminals causes voltage drop. Clean contacts with a wire brush and dielectric grease.
- Fuses in the system are rare on base models, but aftermarket setups may include them. Use a 20-amp fuse on any added circuits to protect components.
Condensers absorb voltage spikes from the points, extending their lifespan. A failing condenser causes erratic firing or points arcing. Test by substituting a known-good unit–symptoms should disappear. Mount condensers securely to prevent vibration damage; use a silicone dielectric compound on connections to prevent corrosion.
The engine’s firing order–1-5-4-2-6-3-7-8–must align with distributor rotation. Crossed plug wires mimic timing issues; double-check their sequence. For timing adjustments, use a strobe light while idling at 850–950 RPM. Rotate the distributor body to advance or retard, locking it once the correct mark aligns on the harmonic balancer.
High-output coils improve performance but demand proper grounding. Ensure the metal housing touches a clean, unpainted engine surface. Paint or rust creates resistance, reducing spark energy. For aftermarket CD setups, follow the manufacturer’s wiring schematic–these often combine coil and amplifier into one unit, eliminating points entirely. Keep all connections tight and use heat-resistant sleeves on wires near exhaust components.

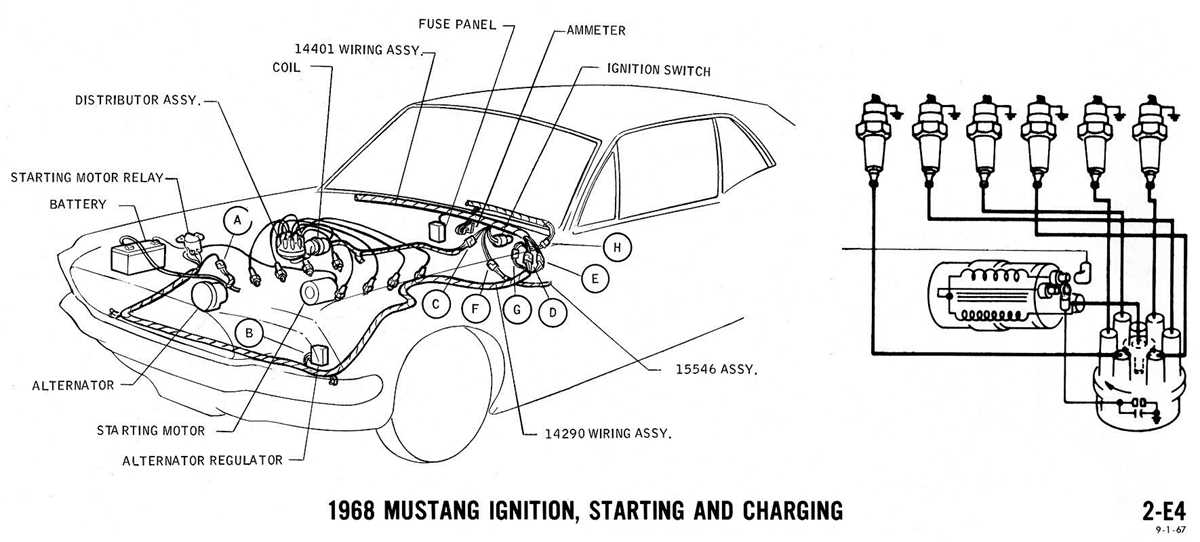

How to Map Electrical Circuits in a Classic Ford Coupe
Begin by locating the coil near the firewall on the driver’s side–the red lead connects directly to the battery’s positive terminal via a ballast resistor or fusible link, often hidden under a protective sleeve.
Trace the white-striped cable from the coil’s negative post to the distributor cap’s center tower. Ensure this path is free of corrosion or fraying, especially where it routes behind the cylinder head; oxidation here mimics faulty components.
Identify the thin, colored leads exiting the distributor cap’s side towers. Each corresponds to a spark plug: black/yellow to cylinder 1, blue/white to 2, green to 3, red/light blue to 4, striped brown to 5, and solid purple to 6. Mark them sequentially using electrical tape before disconnecting.
Check the condenser mounted on the distributor body–its single wire merges with the coil’s negative lead. Replace if the housing shows bulging or leakage; failed units cause intermittent misfires under load.
Follow the lone black ground strap from the distributor base to the engine block. Confirm a clean, paint-free connection; resistances above 0.2 ohms degrade performance at high RPM.
Examine the switch panel behind the dashboard. The ignition feed (red with white stripe) splits here to power the starter solenoid, gauge cluster, and accessory circuits. Use a multimeter (DC scale) to verify 12V present when the key is in the “run” position.
Disconnect the voltage regulator from its pigtail and inspect the three-prong connector. The green wire links to the alternator’s field circuit–if voltage drops below 13.8VDC at 2,000 RPM, the rotor winding may have internal shorts.
Reassemble all connections with dielectric grease at terminals prone to moisture intrusion, particularly the distributor cap’s internal contacts. Route replacement cables parallel to the original harness using split-loom tubing to prevent chafing against exhaust manifolds.
