Start with a multimeter calibrated to the original factory resistance values–Ohm readings for 1965-67 pony car circuits rarely exceed 0.5Ω per linear foot of 12-gauge copper cable. Cross-reference every connection point against the original equipment schematic labeled “Ford Part No. C5ZZ-14401-A” for accuracy; third-party reproductions often omit critical ground paths. Label each segment with heat-shrink tubing printed with alphanumeric codes matching the factory block terminals–this prevents splicing errors during reassembly.
Disconnect the battery negative terminal before handling any circuit–even a capped battery generates sufficient voltage to short hidden corrosion inside the junction block. Focus on the instrument voltage regulator (IVR) first: its 1.5A fuse must be replaced with a silicon diode bypass for stable gauge readings, as stock mechanical regulators fail under modern alternator loads. Trace the headlight switch circuit backward from the dash connectors–pink wire with black stripe carries ignition power to the IVR, while the yellow wire feeds the high-beam relay. Mistaking these will blow the 20A fuse and damage the dimmer switch permanently.
Use a soldering iron with 60/40 rosin-core solder rated for automotive terminals–crimp connectors alone will loosen over time due to engine bay vibrations. Apply dielectric grease to every terminal before reconnecting; this prevents moisture intrusion and ensures conductivity under temperature swings from -20°F to 220°F. Replace all fusible links with tinned copper braid of equivalent gauge–modern plastic-coated links melt before the circuit fails, masking underlying shorts. For persistent faults, inject Wagner LRV3 leak detector dye into suspected circuits and scan under UV light; inconsistencies as small as 0.003″ will fluoresce.
Verify the charging system with an oscilloscope set to 2V/division–alternator output should produce a smooth sine wave between 13.8V and 14.4V at 2000 RPM. Deviations indicate worn diode trio bridges; replace the entire unit rather than attempting repairs on individual diodes. For turn signal synchronization, adjust the flasher relay timing by modifying the bimetallic strip gap–standard replacement relays flash at 75±15 cycles per minute, but stock Ford units were calibrated for 80-120 cpm at 75°F ambient. Adjust accordingly to match original beacon cadence.
Electrical Layout Reference for Classic Pony Models
Begin by locating the main fuse block beneath the dashboard on the driver’s side–this houses critical circuit protection for the ignition, lighting, and accessory systems. Use a 12-volt test light to verify continuity across terminals: pin 30 (constant power) should register voltage with the key off, while pin 15 (ignition-switched) activates only when the key is turned to “ON” or “START.” If readings deviate, inspect the bulkhead connector for corrosion or broken strands in the copper wiring bundle, particularly at stress points near the firewall grommet.
| Component | Wire Gauge (AWG) | Color Code | Function |
|---|---|---|---|
| Headlamp Low-Beam | 14 | Yellow w/ Black Stripe | Grounded through dimmer switch |
| Voltage Regulator | 12 | Dark Green | Field excitation output |
| Starter Solenoid | 10 | Red w/ Light Blue Stripe | Battery direct feed |
| Fuel Gauge Sender | 18 | Pink w/ White Stripe | Variable resistor signal |
Route replacement bundles along the original factory paths, securing with nylon clips every 12 inches to prevent chafing against sharp metal edges or exhaust components. Label each connector with heat-shrink tubing marked in indelible ink–matching the factory service manual’s nomenclature–to avoid misrouting during final assembly. For circuits prone to voltage drop (e.g., headlight or horn), substitute with 10-gauge tinned copper wire; standard 18-gauge leads may suffice for dash indicators and low-current sensors.
Identifying Factory Electrical System Parts in a Classic Pony Car

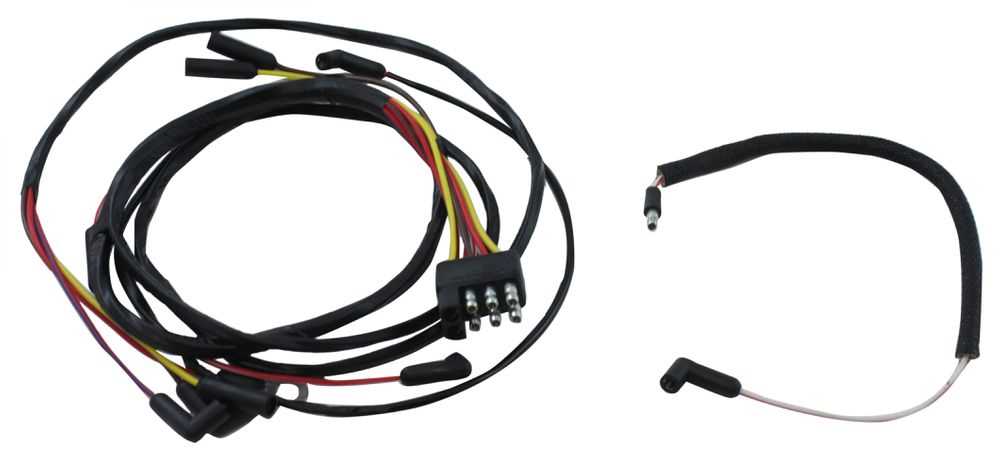

Begin by examining the firewall grommet–this is the primary entry point for the main loom connecting the engine bay to the cabin. On the driver’s side, the harness splits into three distinct branches: the instrument cluster feed, the fuse block circuit, and the lighting control bundle. Trace the thickest wire bundle from the grommet; it should lead directly to the bulkhead connector under the dash, secured by a metal retaining clip. If corrosion is present, the original copper strands will appear darkened or brittle, indicating a need for preservation efforts.
Under the dashboard, locate the voltage regulator harness near the steering column assembly. This smaller loom–typically sheathed in black cloth tape–links to the alternator through a 3-pin plug. The color codes follow Ford’s mid-60s standard: red with a tracer stripe for power, brown for field current, and black for ground. Adjacent to this, the headlight switch loom branches into three circuits: low beams (yellow), high beams (light blue), and parking lights (green). Verify the connections against an original parts manual to confirm authenticity.
The rear section of the vehicle contains two critical looms: the tail light assembly and the fuel sender unit. The tail light loom emerges from the quarter panel and divides into four paths–two for brake/turn signals (white with red tracer and green, respectively) and two for backup lights (purple) and license plate illumination (brown). The fuel sender loom, encased in clear plastic tubing, runs along the frame rail with a single sender wire (gray with a black stripe) and a ground wire (bare copper). Discrepancies in wire gauge or insulation material often reveal aftermarket alterations.

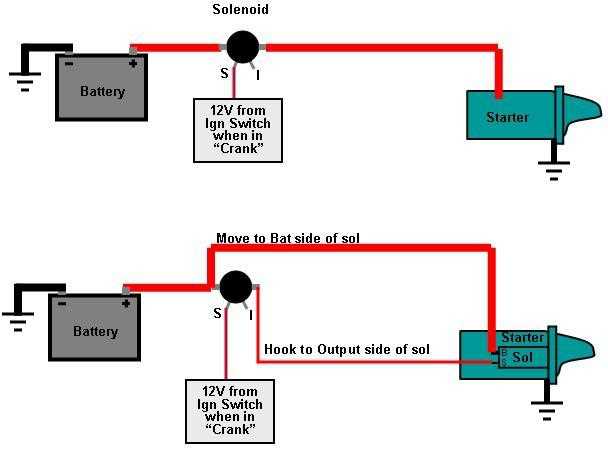

Inspect the under-hood components by following the starter solenoid lead–this heavy-gauge cable (usually 4 AWG) connects to the battery terminal via a fusible link, distinguishable by its melted-looking insulation. The ignition coil loom, wrapped in fabric tape, splits into three terminals: positive (resistance wire, pink), negative (black), and distributor signal (white). Factory looms use soldered joints, not crimps; check for uniformity in solder blobs to confirm originality.
Step-by-Step Process for Tracing Circuits in the Original Electrical Bundle
Start by isolating the section of the bundle linked to the component you’re diagnosing. Use a multimeter set to continuity mode to verify connections between terminals and connectors. Label each wire with masking tape before disconnecting anything–this prevents misalignment during reassembly.
Identify color-coded conductors first, as factory schematics often rely on standardized hues like red for power, black for ground, and yellow for switched circuits. Cross-reference these with repair manuals or aftermarket guides, noting any deviations from the expected pattern, especially in splices or aftermarket modifications.
Work methodically from source to load: begin at the fuse panel or ignition switch, then follow the conductor to relays, connectors, and finally the component. Probe terminals at each junction to confirm voltage presence–this reveals whether the fault lies in the run or at an earlier point.
For splices buried in loom tape, carefully slit the sheathing with a hobby knife to expose junctions. Avoid cutting conductors; instead, peel back insulation at suspected trouble spots. Use a pin probe to pierce the coating for testing without compromising the integrity of the strand.
Check grounding points by measuring resistance between the terminal and chassis. Factory mounts often corrode–clean contact surfaces with a wire brush if readings exceed 0.5 ohms. Loose or painted-over connections are frequent culprits in intermittent failures.
Trace daisy-chained circuits backward from the final device. Shared power feeds may exhibit voltage drop if one branch draws excessive current. Compare readings at the start and end of the run; a drop greater than 0.2V warrants further scrutiny of connectors or wiring gauge.
Document every finding with annotated sketches or photographs. Include connector pinouts, terminal ID numbers, and voltage readings. This record becomes invaluable if retracing steps later or consulting specialists. Replace aged loom tape with modern spiral wrap after completing diagnostics to protect restored circuits.
Common Fault Zones and Restoration Methods for Electrical Circuits
Inspect solder joints at connector pins first–these degrade due to vibration and thermal cycling. Use a 60/40 rosin-core solder and a temperature-controlled iron (350°C max) to reflow connections. Avoid excessive heat to prevent insulation melt on adjacent wires. For brittle or cracked solder, scrape the old material with a fiberglass pen, then apply fresh solder. Check continuity with a multimeter (≤1Ω resistance) after each repair.
Corroded terminals require mechanical cleaning. Remove the terminal from the housing, then use a wire brush or 600-grit sandpaper to strip oxidation. For severe corrosion, immerse terminals in a vinegar bath (10 minutes) followed by a baking soda rinse to neutralize acid. Re-crimp terminals using a ratcheting crimper (not pliers) to ensure proper compression. Apply dielectric grease to inhibit future oxidation before reassembling connectors.
- Chafed insulation near moving components (e.g., shift linkages, pedal assemblies): Wrap damaged sections with adhesive-lined heat shrink tubing (3:1 shrink ratio). Slide tubing over the exposed area, then apply heat evenly with a heat gun (120°C) until the adhesive seals.
- Intermittent shorts in bundled segments: Separate individual strands, then encase each in spiral wrap (split-loom tubing). Secure with UV-resistant zip ties at 6-inch intervals.
- Grounding issues: Scrape paint off chassis mounting points down to bare metal, then bolt grounds with star washers to ensure metal-to-metal contact. Test with a multimeter (≤0.2Ω to chassis).
For water-damaged segments, replace entire sections rather than splicing. Match wire gauge (AWG) and insulation type (GPT or TXL) to original specs. Use a dedicated pinout guide to verify connections–incorrect pin assignments can fry sensitive components. Securely route replacement segments away from sharp edges, exhaust manifolds (>80°C zones), and rotating parts. Validate repairs by powering circuits in stages, starting with fused low-current branches.
