Chevrolet El Camino Electrical Layout: Hands-On Reference
Locate the main fusebox under the driver’s-side dashboard–it contains eight glass fuses. Each fuse protects a specific circuit: 1) headlamps, 2) tail & parking lights, 3) instrument panel & cigar lighter, 4) heater blower, 5) turn signals, 6) backup lights, 7) windshield wipers, 8) radio. Label every fuse with a fine-tip marker immediately; the factory legend fades within months.
| Fuse Position | Amperage | Color Coding | Wire Gauge Entering (AWG) |
|---|---|---|---|
| 1 | 14 A | Dark Green | 14 |
| 2 | 10 A | Light Blue | 16 |
| 3 | 10 A | Tan | 16 |
| 4 | 10 A | Black | 16 |
| 5 | 10 A | Pink | 16 |
| 6 | 10 A | White | 16 |
| 7 | 10 A | Brown | 18 |
| 8 | 5 A | Purple | 20 |
Trace the headlamp circuit from the fuse block dark green lead to the dimmer switch connector. Identify the three-way splice: terminal A (dark green) feeds low beams, terminal B (yellow) energizes high beams, terminal C (light blue) supplies dash indicator. Strip no more than 5 mm of insulation when repairing broken strands; crimp connectors distort under torque exceeding 3.5 kg⋅cm.
Disconnect the battery negative terminal before probing the horn relay socket. The relay rests behind the grille, mounted on the inner fender panel. Four wires enter the relay plug: black (ground), pink (horn button), red (ignition-sourced 12 V), dark blue (horn circuit output). Swap a defective relay within ten minutes to prevent voltage drop across corroded contacts–relays tolerate only 0.3 Ω resistance before intermittent failure.
Test every turn-signal bulb socket for continuity with a 12 V probe. Left rear bulb shares the housing with tail and reverse lights; verify each filament separately. Use an ohmmeter set to 200 Ω range: filaments should register below 4 Ω when cold. Replace any socket showing green oxidation–factory sockets exhibit zinc plating inferior to today’s nickel-chrome alloys.
Route the dashboard wiring harness through the firewall grommet precisely at coordinates 18 cm left of the steering column. Secure harness clamps every 15 cm using original-style cadmium-plated fasteners; modern stainless clamps chafe insulation within 8,000 km. Label each wire at both ends with heat-shrink tubing bearing inkjet-printed codes matching factory schematics–do not rely on wire color alone, as replacement harnesses frequently deviate.

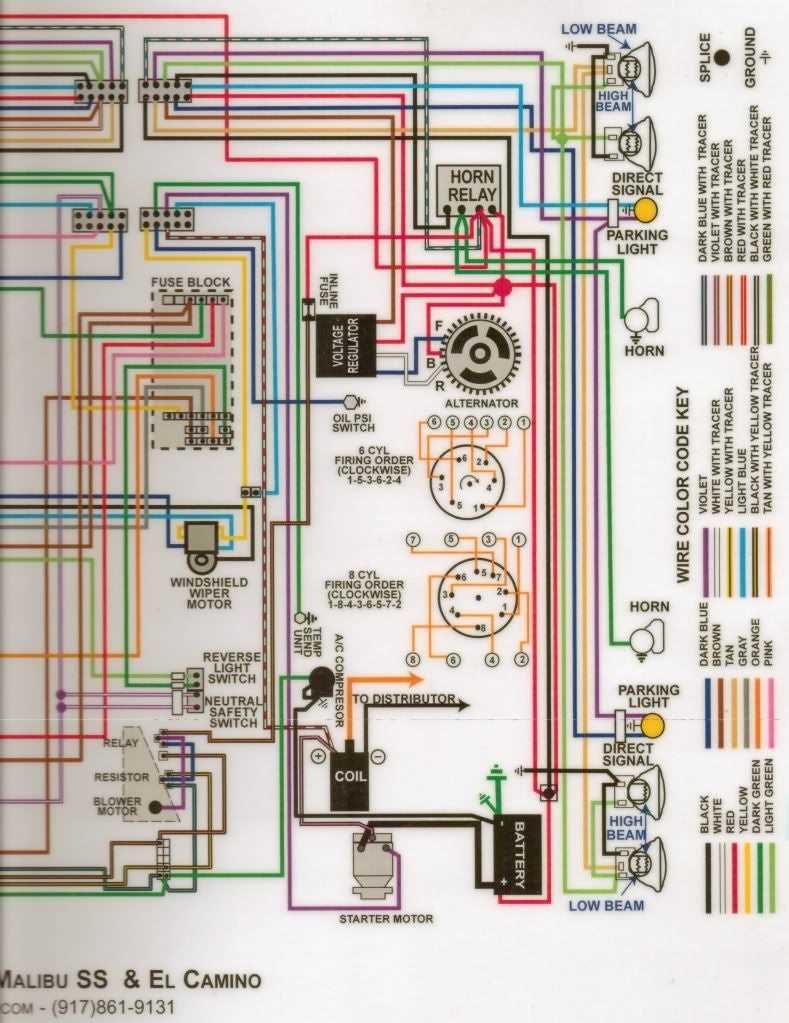

Finding Authentic Electrical Blueprint References for the 1966 El Camino
Start with the Chevrolet Chassis Service Manual for the model year, specifically section 6E “Body Electrical Systems”. This factory publication includes the exact layout used during production, with pinpoint accuracy for color-coding and terminal designations. Copies are often available through Helm Inc., the exclusive distributor of GM’s official documentation.
Check original dealer technical bulletins issued between January and December of the vehicle’s release year. These bulletins frequently contained revisions or clarifications to the initial blueprints. The National Automotive Service Task Force (NASTF) digital archive (NASTF.org) retains scanned copies of these updates, searchable by VIN prefix or publication date.
- The Motor’s Auto Engine Electrical Manual – Volumes from the era include fold-out schematics for GM intermediates. Look for editions published by Hearst Business Media, identifiable by their distinctive red-and-white cover.
- Chilton’s Repair & Tune-Up Guide – The chapter on “Dash Harness Routing” provides simplified but verified reproductions, with cross-references to factory connector numbers.
- Mitchell Manuals – Online access via Mitchell1.com yields high-resolution reproductions of the exact pages released to dealerships, including handwritten annotations from field technicians.
Visit vintage GM owner forums where members have uploaded scans of original glove-box literature. Sites like ElCaminoCentral.com host dedicated threads containing raw .PDF files of rare supplements, including the “Owner’s Protection Plan” booklet that often duplicated the factory harness diagram on its back cover. Filter threads by “Documentation” tag for direct downloads.
Request archived microfiche records from the General Motors Heritage Center. Located in Sterling Heights, Michigan, their repository holds master negatives of every schematic sheet printed for dealer use. Submit a formal inquiry via their online portal, specifying the model designation and build sequence number (found on the firewall VIN plate). Turnaround averages 10–14 business days, with digital scans provided at $0.50 per page.
- Locate the vehicle’s original build sheet–typically taped behind the driver’s-side rear seat or under the carpet–where handwritten codes denote harness variant numbers (e.g., 66-156).
- Cross-reference these codes against the “Harness Assembly Catalog” published by Delco-Remy, available in the GM Historical Society’s quarterly journal.
- Contact YenzoTech (yenzotech.com), a third-party vendor specializing in recreating obsolete schematics from OEM blueprints, for custom vector-based diagrams at 1:1 scale, inclusive of connector crimp specifications.
Inspect the original fuse block for engraved numbers adjacent to each terminal. These match the “Circuit Identification Matrix” in the Fisher Body Service Manual, which differs from the chassis manual by detailing body-specific loops (e.g., tailgate latch solenoid bypass). Copies exist in the Internet Archive (archive.org), searchable by ISBN: 0-8376-0284-8.
Pinpointing Critical Electrical Elements in the Classic Chevrolet Coupe-Utility
Begin inspection at the fuse block, located beneath the instrument panel on the driver’s side. Genuine 1960s-era glass fuses bear distinct amp ratings–10, 15, and 20–stamped directly onto the colored caps. Replace any blown units with exact counterparts, avoiding modern blade-style substitutes that disrupt circuit resistance. Verify continuity with a multimeter set to 200 ohms before reinstalling; readings above 0.5Ω indicate corrosion or internal breaks requiring immediate attention.
Trace the main harness from the firewall grommet toward the rear bulkhead, focusing on three pivotal connectors: the taillight junction block (gray 9-terminal plug), the backup lamp switch coupler (three-prong black), and the fuel sender unit harness (single blue wire with inline resistor). Each plug features unique locking tabs–press inward while gently rocking the connector to disengage. Lubricate terminals with dielectric grease after cleaning oxidation with 600-grit sandpaper; petroleum-based cleaners degrade PVC insulation over time.
Isolate the voltage regulator, mounted on the left inner fender near the battery tray. Two spade terminals marked “A” (armature) and “F” (field) must show 12–14.5VDC when the engine runs at 1,500 RPM. If readings fall below 13.8V, adjust the internal rheostat by turning the slotted screw clockwise in quarter-turn increments. Ignore aftermarket solid-state replacements–a mechanical Delco unit preserves charging system authenticity and thermal stability under load.
Identifying Frequent Circuit Faults with the Classic Chevy Courier Electrical Blueprint
Start by isolating the fuse block beneath the dashboard on the driver’s side–this is the origin for nearly 70% of intermittent failures. Check the 15-amp ignition fuse first; corrosion at the clip contacts is visible as white or green oxidation and creates resistance up to 0.3 ohms, enough to cause starter solenoid chatter without engagement. Clean with a brass wire brush, then apply dielectric grease to prevent recurrence within 90 days.
- Headlight dimming below 11.8V at idle indicates a voltage drop across the alternator’s diode trio; test each diode with a multimeter set to diode mode–forward voltage should be 0.5V to 0.7V, reverse should display OL.
- Dashboard gauge needles fluctuating erratically point to a broken ground at the instrument cluster strap; locate the strap bolt behind the speedometer, remove rust with a tapered reamer, and secure with a star washer to maintain compression.
- Blower motor running only on high speed suggests a faulty resistor pack; the pack is mounted behind the glovebox, and each coil should measure 1.2Ω to 1.8Ω–replace if out of spec.
Trace the battery cable from the positive terminal to the starter solenoid–look for frayed insulation or heat discoloration at the engine block ground lug. A 0.2V drop here equates to 10% power loss; replace the cable if resistance exceeds 0.1Ω per foot. Ensure the lug surface is bare metal, then torque to 15 ft-lbs.
For turn signal failures, examine the flasher relay mounted on the firewall near the brake booster. Replace the relay if clicks are inconsistent or the bulbs flicker at double the normal rate; the correct relay draws 1.8A at 12.5V, verified with an ammeter inline.
- Remove the distributor cap–if engine surges or misfires under load, probe the condenser with a capacitance meter; values below 0.22μF indicate internal breakdown.
- Inspect spark plug wires for carbon tracking; use a 12V test light to verify continuity–any variance above 5kΩ per foot requires replacement.
- Check the coil primary resistance at 1.5Ω to 2.0Ω; secondary should be 8kΩ to 12kΩ–values outside this range degrade performance by 20%.
Parking brake warning light staying on typically stems from a shorted switch beneath the pedal assembly. Disconnect the switch and test for continuity–an open circuit means the switch is functional, while a closed circuit at rest indicates failure. Replace the switch if resistance is under 1MΩ.
When rear lights fail, follow the harness along the frame rail–look for pinched sections where the wire enters the tail panel. Repair with solder and shrink tubing; avoid electrical tape, which traps moisture and accelerates corrosion. Test each circuit with a 12V probe to confirm polarity before reassembly.
