Start troubleshooting with the primary circuit: battery to ignition switch. Locate the 1/4-inch terminal stud marked “BATT” on the back of the switch–red wire with a fuse link must connect here without corrosion. If voltage drops below 11.8V at this point, replace the 10-gauge fusible link before proceeding. Confirm continuity between the switch’s “IGN” terminal and the coil’s positive post using a multimeter; readings above 2 ohms require inspection of the ballast resistor (white ceramic block, typically rated at 1.8 ohms).
Trace the secondary circuit next: coil output to distributor. The thin distributor wire (often purple/white stripe) should carry 8-12V at idle–any divergence suggests a faulty condenser or worn points. For vehicles retrofitted with electronic conversion kits, verify the black/yellow tach wire connects directly to the negative coil post, bypassing the ballast resistor entirely. Ignore aftermarket instructions warning about “voltage spikes”–OEM condenser specs (0.18-0.22 μF) handle this reliably.
Ground paths demand scrutiny. The 12-gauge black wire from the ignition switch must terminate at the firewall stud, not simply bolted to painted metal. Sand the contact point to bare steel and treat with dielectric grease to prevent oxidation. Check the engine block ground strap (braided copper, minimum 7mm width) for fraying–replace if resistance exceeds 0.1 ohms across any segment. For persistent misfires, probe the distributor base with a test light while cranking: illumination at the housing confirms proper engine block grounding.
Color codes follow a consistent pattern but verify against a factory manual for accuracy: red (battery), white (ignition feed), black (ground), purple (coil-to-distributor). Aftermarket harnesses often substitute green for standard pink/white–test first, then label. Use crimp connectors with heat-shrink tubing for all repairs; avoid solder-only joints which crack under vibration. When testing, disable the fuel system to prevent flooding–pull the pump relay or disconnect the fuel line at the carburetor.

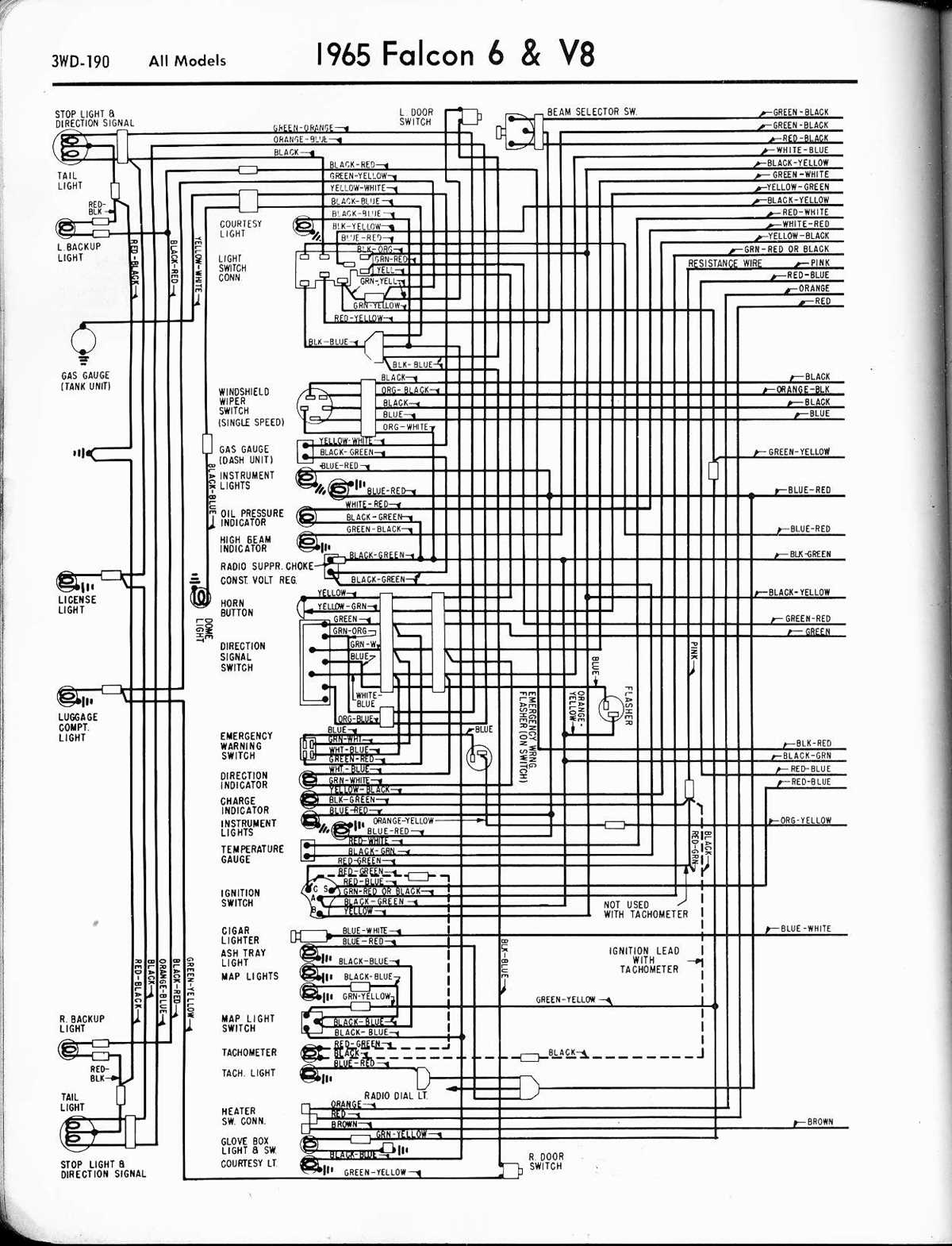

Restoring the Classic Pickup’s Electrical Firing System: A Hands-On Approach
Locate the red wire with a white stripe at the firewall grommet–this is the primary 12V feed from the battery. Trace it directly to the ignition switch’s “BAT” terminal, ensuring no corrosion interrupts the path. If resistance exceeds 0.5 ohms, replace the wire with 10-gauge copper strand coated in cross-linked polyethylene. Skip the fusible link; these models use a 25-amp inline fuse near the starter relay. Verify continuity between the switch and the coil’s positive terminal using a multimeter set to 200-ohm scale–expect readings between 18-22 ohms for proper function.
Attach the coil’s negative post to the distributor’s breaker points via a braided ground strap. Clean both surfaces with 400-grit sandpaper, then apply dielectric grease before securing with a star washer and 8-mm bolt. Adjust point gap to 0.019 inches using a feeler gauge–misalignment by just 0.003 inches reduces spark duration by 40%. Replace condenser with a 0.22 µF unit if dwell angle fluctuates beyond 26-32 degrees. Route the tachometer lead (green with yellow stripe) from the distributor to the instrument cluster through the steering column chase, avoiding contact with the exhaust manifold.
Test the solenoid with a remote starter switch–listen for a sharp 90-dB click without chatter. If solenoid fails, replace with a 400-amp continuous-duty unit featuring stainless steel contacts. Connect the purple wire from the ignition switch “IGN” terminal to the voltage regulator’s “F” post, then to the alternator’s field terminal. Check diode trio resistance: 12-18 ohms forward, infinite reverse. For intermittent no-start, probe the ballast resistor (normally 1.2 ohms) with a torch bulb–if it dims at 6V, bypass temporarily with 14-gauge wire to confirm resistor failure before replacement.

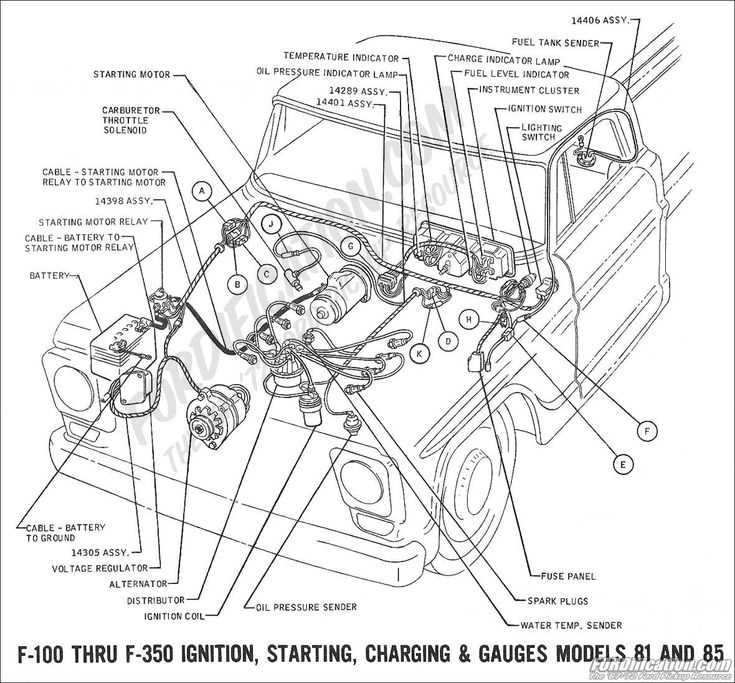

Finding Key Electrical Parts in a Classic 1960s Pickup
Begin under the dashboard near the steering column–this is where the ignition switch hides. Look for a cylindrical or rectangular metal housing secured by two screws. The switch connects to the harness via a multi-pin plug, typically black or dark brown. If corrosion is present, clean the contacts with electrical cleaner before testing continuity.
Trace the thick primary power lead from the switch upward to the coil, mounted on the inner fender panel. The coil is a small, round canister with two posts: the “+” side links to the switch, while the “-” terminal feeds the distributor. Check for cracks in the coil housing or oil leaks from the internal windings–either requires immediate replacement.
The distributor sits on the engine block, usually at the front or side, with a cap covering a rotating mechanism. Remove the cap carefully–inside, the rotor spins atop a shaft connected to the cam. Inspect for cracked plastic, burned contacts, or excessive play in the shaft bushing. Lubricate the shaft lightly with dielectric grease during reassembly.
Follow the thin wire running from the distributor’s side post to the relay or resistor block, often bolted near the coil. This wire, typically green or yellow, regulates voltage to prevent coil overheating. Use a multimeter to verify the block reduces voltage from ~12V to ~9V when the engine cranks–faulty resistors cause weak sparks.
Locate the ballast resistor–a white ceramic brick or a resistance wire wrapped in fiberglass–mounted near the firewall or coil. It drops voltage during startup but bypasses when the engine runs. Test by probing both ends while starting; if voltage doesn’t dip, replace the resistor to avoid damaging the coil.
Examine the spark plug wires, thick cables snaking from the distributor cap to each cylinder. Pull each wire gently to check for brittleness or internal cracks. Use a spark tester to confirm current flows to all plugs; misfires often stem from cracked wires, not plug failures. Route wires away from exhaust manifolds to prevent heat damage.
The battery-to-starter cable is a heavy-gauge wire running from the positive terminal to the starter solenoid. Inspect for fraying, especially where the cable attaches to the solenoid. Corrosion at this junction creates high resistance–clean terminals with a wire brush and apply dielectric grease to prevent future oxidation.
Finally, check the ground straps–bare or braided wires connecting the engine block to the chassis. Poor grounding causes erratic electrical behavior. Scrape paint from contact points to bare metal, then bolt the straps tightly. A missing or loose ground strap is a common culprit for hard starting or dim lights.
Identifying Wire Colors and Their Corresponding Functions
Trace the red with yellow stripe lead–it carries the switched power from the ignition switch to the coil. Sever any corrosion at the terminal ends with a wire brush before testing continuity, as resistance here causes weak spark output. If voltage drops below 11.5V at the coil positive terminal under cranking, suspect a bad ballast resistor or compromised primary circuit.
Locate the black wire–this is the engine block ground return for the coil and starter solenoid. Secure its ring terminal to a bare metal surface on the block, not the intake manifold or valve cover, which can introduce contact resistance. Use a 14-gauge or thicker wire; anything thinner creates a voltage drop under load, leading to slow crank speeds and hot-start failures.
Distributor and Sensor Circuit Wires
The white with blue stripe wire connects the distributor’s breaker points to the ignition coil negative terminal. Replace it every 30K miles if the vehicle sees heavy use, as internal oxidation reduces conductivity. For electronic conversions, this wire carries the tachometer signal–verify frequency with an oscilloscope (should show 8–10V peak-to-peak at 1,500 RPM). A flattened waveform indicates a failing module or worn pickup coil.
Examine the yellow with green stripe lead–it feeds the distributor’s vacuum advance solenoid. Resistance here shouldn’t exceed 3 ohms; higher readings mean a corroded connector or frayed wire inside the harness sheath. Splice in new 16-gauge wire if insulation is cracked, ensuring the routing avoids heat sources like the exhaust manifold. Failure to address this will result in timing drift and pinging under acceleration.
Check the purple wire–it supplies unfiltered voltage directly from the battery to the ignition switch. This bypasses the fusible link, so any short here risks melting the harness. Test for stray voltage at the switch connector while off; readings above 0.2V suggest a parasitic draw or faulty diode in the alternator. Route temporary jumpers from the starter solenoid to isolate the fault before re-terminating connections.
The dark green with orange stripe wire handles the temperature sender signal for the gauge cluster. Disconnect it at the sender first and test resistance across the terminals (should read 75–100 ohms at 70°F, rising linearly with temperature). If readings erratic, replace the sender before condemning the gauge–false high readings can trigger unnecessary cooling fan activation, wasting fuel.
Step-by-Step Electrical Path Tracing for the Starter Control System
Locate the battery’s positive terminal–typically marked with “+”–and trace the thick red cable leading to the solenoid. Use a multimeter set to 20V DC to verify voltage at both ends; readings should match within 0.2V. If discrepancies appear, inspect the cable for corrosion or fraying, particularly at connection points under the hood. Replace damaged sections with 10-gauge copper wire rated for 30A minimum, securing joints with solder and heat-shrink tubing to prevent moisture ingress.
Next, identify the solenoid’s small “S” terminal, where the starter relay connects. Disconnect the wire and probe it with the multimeter’s continuity setting–no resistance should exist between this point and the ignition switch’s “ST” output. If continuity fails, follow the wire loom along the firewall, checking for pinches or breaks. Common failure spots include the bulkhead connector; clean terminals with contact cleaner and dielectric grease before reassembly. For reference, consult the internal resistance values in the table below:
| Component | Expected Resistance (Ohms) | Voltage Drop (V) |
|---|---|---|
| Solenoid coil | 0.2–0.5 | <0.1 |
| Starter relay contacts | 0 | <0.2 |
| Ignition switch “ST” circuit | 0–0.3 | 0.3–0.5 |
Move to the ignition switch’s backside, focusing on the red wire with a yellow stripe. This carries control current to the solenoid via the relay. Remove the switch’s harness connector and test for 12V at the red/yellow wire when the key is turned to “start.” Absence of voltage indicates a faulty switch or broken wire between the switch and fuse block–replace the switch if testing confirms failure. For relay diagnostics, swap in a known-good unit; if the issue persists, inspect the fuse block’s “I” terminal for loose connections.
Trace the ground path from the starter motor’s housing to the engine block, then to the chassis via the braided strap. Scrape paint and rust from connection points, ensuring bare metal contact. Test for continuity between the starter housing and negative battery terminal–readings above 0.1Ω indicate corrosion; clean or replace the strap. For persistent no-start conditions, bypass the voltage regulator temporarily by jumpering the battery’s positive terminal to the “F” terminal on the generator; if the engine cranks, the regulator is defective.
Final checks involve the neutral safety switch on automatic transmissions or the clutch pedal switch for manuals. Disconnect the switch and bridge its terminals with a paperclip–if the engine starts, the switch is faulty. For manuals, ensure the switch closes fully at pedal depression; adjust linkage if necessary. Document all findings with photographs before reassembly to avoid missteps during reinstallation, particularly for complex harness routing near the exhaust manifolds or suspension components.
