The correct sequence for connecting the solenoid to the battery terminal involves a red wire with a fusible link from the positive post to the starter relay. This ensures voltage stability during cranking. A purple or violet trace wire–typically 14-gauge–must run from the ignition switch to the relay’s “S” terminal. Avoid substituting thinner wire; voltage drop under load will cause intermittent failures. Ground the solenoid bracket directly to the engine block with a minimum 10-gauge braided strap; paint or corrosion will introduce resistance, mimicking a dead battery.
If the motor cranks but the engine refuses to fire, check the neutral safety switch wiring. The original harness routes a yellow wire with a black stripe from the switch to the starter relay’s “I” terminal. This circuit opens when the transmission is in gear; a misadjusted switch or corroded connector will prevent engagement. Inspect the voltage drop across the battery cables while a helper turns the key–readings above 0.2 volts signal a faulty clamp or hidden corrosion at the terminals.
For alternator integration, locate the brown wire with a white stripe exiting the voltage regulator. This must splice into the field terminal on the alternator and connect to a warning lamp in the instrument cluster. A missing or reversed connection will silence the idiot light and mask charging failures until the battery is drained. Verify proper operation by revving the engine to 1,500 RPM; the lamp should extinguish, and voltmeter should read 13.8–14.4 volts across the battery posts.
Spare fuses are useless if the fusible link melts unexpectedly. Measure continuity between the battery side of the link and the starter relay input–any resistance indicates partial failure. Replace the link with a length of 10-gauge wire clad in approved automotive-grade insulation, secured with crimp connectors and heat-shrink tubing to prevent shorts against the radiator support.
Classic Full-Size Sedan Ignition System Connections
Trace the solenoid control wire from the ignition switch’s “S” terminal directly to the starter solenoid. This 12-gauge red or purple wire carries the initial engagement signal–verify continuity with a multimeter by probing one end at the switch and the other at the solenoid tab, expecting ~0.2 ohms resistance. If readings exceed 0.5 ohms, inspect for corrosion at the firewall grommet or along the inner fender routing; replace the wire in 12-inch segments rather than attempting repairs, as splice points create voltage drops.
Critical Junction Points
| Component | Terminal | Wire Color (Std) | Acceptable Voltage Drop |
|---|---|---|---|
| Ignition Switch | BAT | Red (10-gauge) | ≤0.1V |
| Solenoid | Motor | Yellow (8-gauge) | ≤0.3V |
| Neutral Safety Switch | Output | Purple (12-gauge) | ≤0.2V |
Ground the battery negative cable to the engine block at two separate points: one at the original factory location beneath the exhaust manifold (1/2-inch bolt) and a second at the driver-side bellhousing (3/8-inch starter bolt). Use 4-gauge welding cable for battery-to-block connections rather than the stock 6-gauge wire–this prevents cranking voltage sag that mimics starter failure symptoms. For automatic transmissions, confirm the neutral safety switch adjustment by inserting a 0.015-inch feeler gauge between the switch plunger and the shift linkage; improper clearance causes intermittent no-crank conditions.
Finding Power Source Hookups on a Classic Full-Size Model

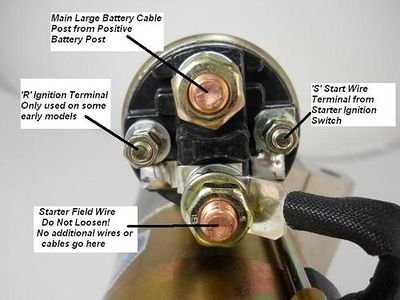

The solenoid’s primary posts sit atop the heavy-duty relay near the bellhousing. Trace the thick red cable from the battery’s positive terminal to the larger post; this delivers cranking voltage directly. Adjacent sits a thinner purple or striped lead–this feeds ignition-switched juice to engage the relay once the key turns. Verify both connections are tight and corrosion-free before proceeding.
Beneath the relay, inspect the braided ground strap linking the engine block to the firewall or chassis. A degraded ground will cause weak engagement or intermittent starting issues. Scrape paint or rust from contact points, then secure with a star washer for reliable conductivity. If the motor cranks slowly, suspect a failing battery or corroded ground before blaming the relay or cable runs.
Key Connection Points to Check
- Battery cable (red, 4-6 gauge) → solenoid primary post
- Ignition-switched lead (purple/white stripe, 10-12 gauge) → solenoid secondary post
- Braided ground strap → clean mounting surface on block and firewall/chassis
- Starter motor housing → verify no paint or rust on case-to-frame contact
When the relay clicks but the engine doesn’t turn, focus on the solenoid’s internal contacts or the starter’s internal drive mechanism. Remove the relay cover if accessible; pitted or burned contact plates require replacement. Some aftermarket relays integrate a fusible link–ensure it hasn’t melted or opened under load. If the motor spins freely without engaging the flywheel, the Bendix drive or ring gear teeth may need inspection.
Pinpointing Battery and Solenoid Connection Cables
Locate the thick red cable leading from the positive terminal of the power source–this is the primary feed to the magnetic switch. Trace it to the largest stud on the relay housing, ensuring no insulation damage or corrosion exists along its path. A 4-gauge or thicker wire is typical for this application; anything smaller risks overheating under cranking loads.
Distinguishing the Smaller Trigger Wire
The secondary conductor, usually 10-12 gauge and often purple or yellow, activates the relay coil when ignition voltage is applied. Verify continuity with a multimeter between this wire’s spade connector and the ignition switch’s “start” position before proceeding. If the circuit reads open, inspect for broken strands or loose terminals behind the dashboard cluster.
Attach the battery’s negative lead directly to the engine block or chassis ground, avoiding the relay housing itself–this prevents voltage drop during high-current draw. Use a dedicated ground strap if the original path shows resistance above 0.2 ohms. The solenoid’s case typically provides a secondary mounting point, but confirm it’s clean of paint or rust for optimal conductivity.
Check for two posts on the relay: the high-current input (receiving the battery’s main power) and the output to the motor’s solenoid tab. Mismatching these causes immediate failure–label each post with tape if markings are unclear. Test activation by jumping a 12V source to the trigger wire while monitoring the relay’s audible click; quiet operation signals a faulty coil or stuck plunger.
Avoiding Common Mistakes
Never splice the relay’s primary feed into accessory circuits–this invites voltage sag during cranking. If retrofitting an aftermarket switch, preserve the factory override protection by retaining the original neutral safety wiring. Use heat shrink tubing over all connections to prevent shorting from road debris, and apply dielectric grease on terminals exposed to moisture.
Step-by-Step Guide to Bypassing the Neutral Safety Switch for Testing
Locate the switch on the transmission housing–it’s a small, cylindrical component with two wires, typically mounted near the shift linkage. Disconnect the electrical connector at the switch to isolate it from the circuit. Use a jumper wire to bridge the terminals inside the connector directly connected to the solenoid. Ensure the vehicle is in park or neutral before proceeding, as engaging the ignition with the jumper in place will crank the engine immediately.
Strip the ends of a 14-gauge wire, approximately 6 inches long, to create a temporary bypass. Insert one end into the terminal leading to the ignition feed (usually the smaller spade or bullet connector) and the other into the terminal supplying voltage to the starter relay. Avoid touching metal surfaces with exposed wire during this process to prevent shorts. If the engine turns over, the issue lies with the switch; if not, inspect the solenoid, relay, or power delivery.
Never leave the bypass connected longer than necessary. Prolonged jumper use risks damaging the solenoid or draining the battery if the engine fails to start. Reconnect the original wiring once testing is complete, ensuring all connections are secure and corrosion-free. For automatic transmissions only–manual-equipped vehicles rarely use this switch, so verify its presence before attempting this procedure.
If the engine cranks but the switch tests faulty, replace it immediately. A defective switch allows starter engagement in gear, risking sudden vehicle movement. Purchase a direct-fit replacement (common part numbers: NP34001 or AC-Delco D2092) and reinstall following the reverse order of removal. Torque mounting bolts to 8-10 ft-lbs, avoiding overtightening to prevent thread damage on aluminum housings.
Isolating the Ignition Switch Path to the Solenoid Control Module
Locate the ignition harness connector behind the dash cluster–typically a black or dark brown plastic plug with four to six terminals. Pin B (usually the second from the left, marked “IG” or “ACC”) carries the activation signal when the key turns to the “start” position. Verify this with a multimeter set to 12V DC: expect a reading of 9.5–11.5 volts during cranking. If absent, trace backward along the 18-gauge purple wire toward the column assembly, checking for brittle insulation or broken strands at the firewall grommet.
Disconnect the battery negative terminal before probing deeper. The ignition switch’s red or pink power feed wire–often fused at 15A–must maintain continuity to the “30” terminal. Corrosion on the switch’s soldered joints or a loose rivet securing the contact disc are common failure points. Replace the entire switch assembly if resistance exceeds 0.3 ohms; partial repairs rarely endure heat cycles. Ensure the purple signal wire from terminal “50” routes uninterrupted to the relay’s control coil–splices introduce voltage drops.
Relay Pinout and Ground Reference Verification
The solenoid control relay mounts on the inner fender or firewall bracket, distinguishable by its four-screw casing or snap-lock design. Terminal 85 connects to the ignition switch’s output; terminal 86 grounds through a dedicated 10-gauge black wire bolted to the chassis near the brake master cylinder. Scrape paint beneath the ground lug until bare metal shows–poor conductivity here mimics switch failure. Terminal 30 receives fused battery voltage via a 12-gauge yellow wire, while terminal 87 outputs to the heavy-gauge cable leading to the starter motor’s magnetic switch.
Use a jumper wire to bridge terminals 30 and 87: the engine should crank instantly if the relay and downstream circuits are intact. If cranking occurs, the relay itself is faulty; if not, inspect the solenoid’s plunger and contacts for pitting or worn return springs. A faint click without engagement often indicates a weak magnetic coil–replace the relay or resolder its internals if no spare is available. Never bypass the relay long-term; it protects the ignition switch from arcing currents exceeding 200A.
For intermittent no-crank conditions, probe the relay socket with a test light. Wiggle the ignition key while observing terminal 85: flickering light confirms a loose connection or corroded switch contacts. If stable, shift focus to the starter relay’s output side–measure voltage at terminal 87 during cranking. Expect battery voltage; readings below 10V suggest high-resistance joints in the thick starter cable or a failing internal contact in the magnetic switch. Replace the cable if flexing it alters voltage readings, as internal strand breaks rarely mend reliably.
