Begin by locating the primary ignition feed wire–typically a thick red or pink conductor–originating from the battery or solenoid. This lead delivers power to the starter and must be traced first. Use a multimeter set to 20V DC to verify voltage before disassembly; readings below 10.5V suggest corrosion at terminals or a failing battery. Cut back frays on the wire sheathing by no more than half an inch to expose fresh copper.
Identify the purple or dark blue wire connecting the ignition cylinder to the coil. This circuit handles 12V ignition power and frequently fails due to brittle insulation. Replace wire nuts with crimp connectors and seal with dielectric grease to prevent moisture ingress. If the engine cranks but won’t start, probe this wire at the firewall grommet; voltage drops exceeding 0.3V under load indicate a bad splice.
Trace the yellow or light green wire–this is the accessory circuit. It powers gauges, lights, and radios when the key is rotated to the second position. Use a relay bypass if accessories drain voltage; solder a 30-amp relay between the feed and ground to preserve battery life. Avoid twisting wires; route bundled harnesses at least 3 inches from exhaust manifolds to prevent heat damage.
For vehicles with push-button starters, the black wire with a white stripe grounds the solenoid. Scrape paint from the mounting surface to ensure a clean ground path. If the starter clicks but doesn’t rotate, test this connection with a continuity check; resistance above 2 ohms means a faulty ground. Upgrade to 10-gauge wire for high-current circuits to reduce voltage drop.
Label each wire with masking tape and marker numbers before disconnecting. Cross-reference with a factory service manual for exact color codes–aftermarket schematics often omit dashed lines indicating splice junctions. When soldering, use rosin-core flux; acid-core flux corrodes copper over time. Secure wires with zip ties spaced 6 inches apart to prevent vibration wear.
Restoring the Original Electrical Pathway for Classic Apache Models

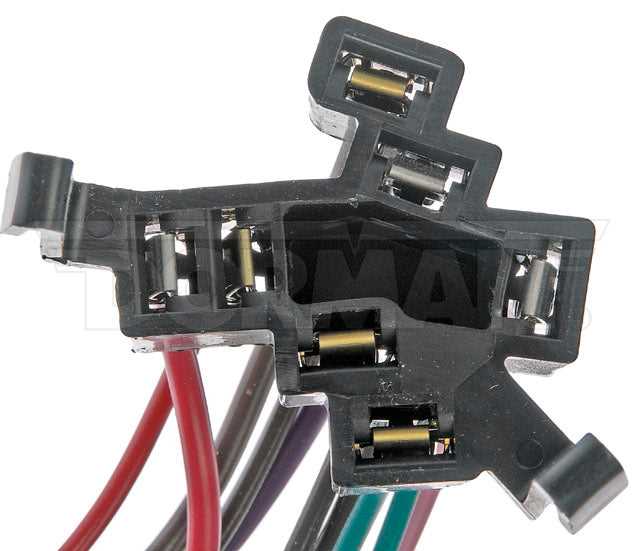

Locate the main harness connector behind the firewall cluster–typically a 12-pin plug with color-coded leads. Match the terminals using a multimeter: the red wire with a white stripe carries 12V from the battery solenoid, while the brown lead feeds the voltage regulator. A single black trace grounds the system at the firewall near the brake master cylinder, affixed with a #10 ring terminal.
Trace the violet wire–often overlooked–from the ignition cylinder to the starter relay under the driver’s fender. This path bypasses the standard ignition coil ballast resistor in accessory mode, allowing direct voltage delivery during cranking. Ensure continuity with less than 0.5 ohms resistance; corrosion at the relay socket can mimic solenoid failure.
Key Terminal Connections for Proper Circuit Flow
- Battery (+): Red (solid) – connects directly to the solenoid’s “BAT” post.
- Accessory: Pink – tapped at the fuse block, routed through the ammeter.
- Run/On: Light green – splits to the coil, ignition warning light, and generator field.
- Start: Yellow – engages the starter solenoid via the neutral safety switch.
- Ground: Black – terminates at the firewall stud; clean contact surfaces with 120-grit sandpaper.
Replace deteriorated connectors with modern blade-style terminals crimped with a Klein Tools Jen30 crimper for consistent grip. Solder connections only where the harness meets the firewall grommet to prevent brittle failure under vibration. Insulate splices with 3M Scotchcast 2220 resin tape–avoid electrical tape, which degrades within 18 months.
- Remove the steering column lower shroud using a T20 Torx driver to access the switch mounting plate.
- Disconnect the battery’s negative terminal to prevent accidental shorts during testing.
- Verify each circuit with a 12V test lamp, probing at the fuse block to confirm voltage presence before routing.
- Route the harness neatly along the frame rail, securing with nylon zip ties every 6 inches to prevent chafing.
- Recheck all connections after 24 hours of operation; thermal cycling often reveals loose terminals.
Common failure points include the neutral safety switch adjustment and the horn relay socket–both prone to oxidation. Adjust the neutral switch by rotating it until the starter engages only in “Park” or “Neutral”. For the horn relay, clean the brass contacts with emery cloth, then apply DeOxIT DN5 to prevent future corrosion. Replace the entire ignition cylinder assembly if the key fails to return smoothly from the “Start” position.
Matching the Proper Contacts on Your Classic Pickup’s Starter Control

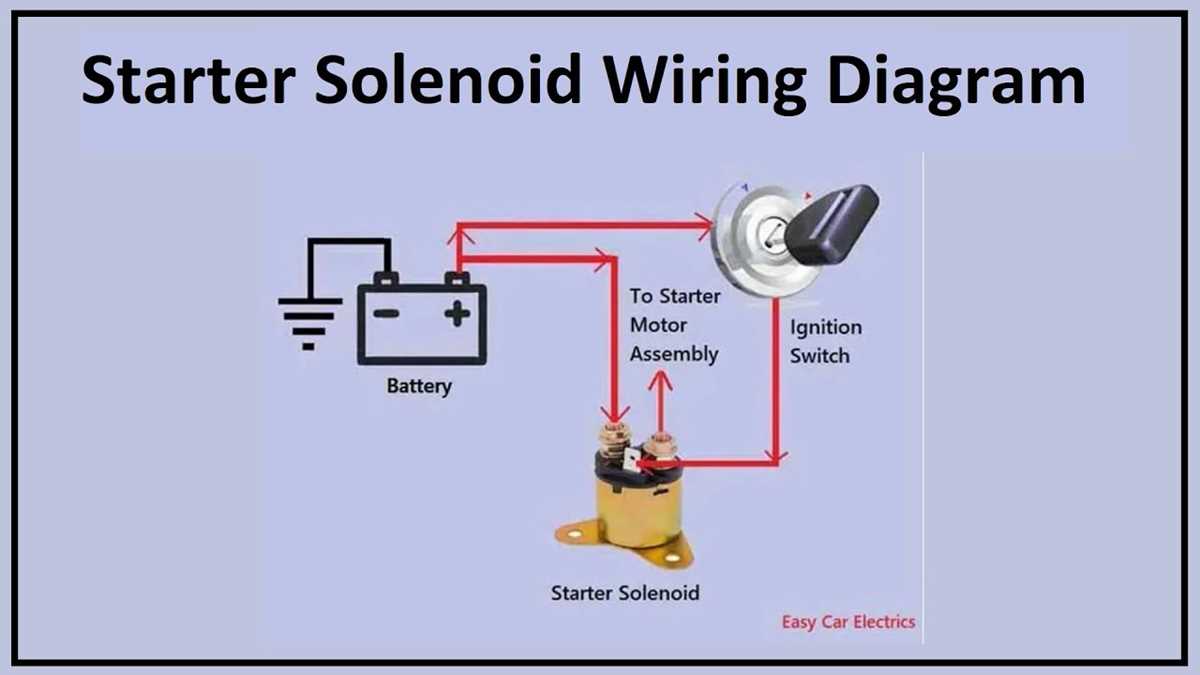

Locate the solenoid’s “S” stud first–it’s the smaller of the two terminals on the side of the starter motor housing, typically labeled or stamped. The feed wire from the key-operated cylinder’s BAT position must attach here; any deviation will prevent engagement. Confirm the opposite IGN post on the rear of the cylinder is routed to the coil’s positive terminal–resistance should read 1.5 ohms or less across this path.
Tracing the Accessory Circuit
Snap a multimeter probe onto the middle ACC contact inside the cylinder bore; voltage should appear only when the key turns to the second detent. Run this wire directly to the radio feed or instrument cluster power lead–no intermediate splices. A common pitfall is misrouting this leg into the IGN path, causing accessory draw with the engine off.
The final terminal, often marked ST, carries the heavy cranking current. Route this leg straight to the solenoid’s R stud, bypassing any fusible links. Verify continuity between the two points before reassembly; expect 0.2 ohms or less. A single loose crimp here can drop sufficient voltage to stop engagement cold, simulating a dead battery or faulty relay.
How to Map Electrical Pathways in a Classic Pickup’s Starting Circuit
Locate the fuse block beneath the dashboard–it’s mounted on the driver’s side firewall, directly above the pedal cluster. Remove the two screws securing the cover to expose the numbered terminals. Terminals 3 (red), 4 (purple), and 7 (white) correspond to the direct feeds from the key cylinder; mark each with a strip of masking tape to prevent misidentification during later steps.
Disconnect the battery negative cable first to eliminate transient voltage risks. Use a digital multimeter set to continuity mode: probe the metal housing of the key cylinder and each wire exiting its backside. The red wire with a thin yellow tracer should emit a consistent tone when touched to the cylinder’s grounding contact–this is the primary power lead that energizes the solenoid relay when the tumbler rotates to “start.”
Trace the purple wire next–it splits halfway up the steering column into two branches. One branch routes downward, terminating at the starter solenoid’s “S” post; the other ascends beneath the dash, terminating at the coil’s positive terminal. Clip a 12V test light to the positive battery post and touch the probe to the purple wire’s solenoid end while an assistant turns the key briefly. The test lamp should illuminate only during cranking; any glow at “on” or “accessory” indicates a faulty solenoid diode or bypassed resistor.
Follow the white wire–the auxiliary feed for dash lamps, gauges, and the radio memory circuit. It enters the harness through a grommet near the brake master cylinder, then loops upward behind the instrument panel. Disconnect the green connector behind the speedometer; the white wire’s terminal is the third pin from the left, top row. Probe it with the test light set to 10A: voltage should register only at “on” or “accessory” positions, never during cranking.
Remove the upper steering column shroud by prying loose the three plastic tabs along its lower edge. Examine the thin pink wire coiled around the ignition tumbler housing–it carries a momentary ground signal to engage the starter motor. Splice a temporary jumper wire between the pink lead and the solenoid’s “S” post while observing the ammeter: current should spike to approximately 300A during engagement, dropping instantly to zero once the engine fires. Persistent current indicates a stuck plunger or shorted field winding.
Verify each terminal’s integrity with a wire brush and dielectric grease. Reinstall the fuse block cover, then cycle the key through all positions while monitoring the multimeter at the coil–voltage should rise smoothly from 6V (accessory) to 9V (run) to 12V (crank), never exceeding 12.5V. Connect the negative battery cable last, then crank the engine for no longer than three seconds. Pause ten seconds between attempts to prevent overheating the solenoid contacts.
Document each wire’s path on graph paper–label the starter solenoid pole positions with their actual measured voltages and annotate any non-standard splices discovered. Store the diagram beneath the driver’s seat in a sealed plastic bag; include a spare 20A fuse and a six-inch length of each colored wire for emergency repairs.
Common Conductor Hue Standards and Their Roles in a Classic Dodge Pickup Electrical Core
Locate the Battery (BAT) lead first–it’s always red, supplying constant 12V power regardless of position. This line splits to both the solenoid and voltage regulator, so mark it clearly before splicing any circuits. If corrosion is present, clean with a stainless brush and apply dielectric grease to prevent future oxidation; failure here kills starter engagement instantly.
The Ignition Feed (IGN) wire is pink in stock setups, feeding the coil and accessory circuits when the key rotates to “ON” or “START.” Trace it backward from the coil’s positive terminal to confirm continuity; a break here leaves fuel pumps silent and gauges dead. Splice a temporary test light into this path before reassembly to verify power reaches all terminals before finalizing connections.
Critical Circuit Paths and Their Typical Colors
| Function | Primary Hue | Secondary Stripe | Key Termination Points |
|---|---|---|---|
| Starter Control | Yellow | Black | Solenoid S terminal / starter relay |
| Accessory Power | Purple | White | Radio / heater blower motor |
| Instrument Cluster | Light Green | Black | Fuel gauge / temperature sender |
| Ground Link | Black | None | Frame rail / engine block |
| Lighting Circuit | Dark Blue | White | Headlight switch / taillights |
Always test the Starter Control (STR) circuit–yellow with black stripe–using a multimeter in continuity mode. Probe from the solenoid’s S-post to the keyed terminal; resistance should read under 0.5 ohms. If higher, check for frayed strands near the firewall grommet, a frequent failure point where wires bend repeatedly. Replace the entire harness segment if insulation is brittle.
For Accessory (ACC) circuits (purple/white), insert a 10A fuse inline before attaching power to radios or auxiliary lights. This prevents melted wires if a short occurs downstream. Route these lines away from exhaust manifolds and sharp edges; use split loom tubing for protection. Label each branch at both ends to simplify future diagnostics.
Verify the Lighting Circuit (LT BLU/WH) last. Disconnect the headlight switch and measure voltage on both the input (pink) and output (dark blue) sides with the key set to “ON.” A drop over 0.3V indicates corroded switch contacts–replace the switch rather than cleaning it, as pitting recurs quickly. Reattach all bulbs and confirm high/low beams illuminate immediately before closing the dash panel.
Avoid assuming factory color codes remain universally consistent. Aftermarket harnesses often substitute orange for accessory lines or brown for lighting feeds. Cross-reference physical wire paths against a factory manual or photograph original routing before cutting. Tag every conductor with numbered flags during disassembly; mismatches here cause intermittent no-start conditions months later.
